Epson Stylus® Pro 4800

QUICK REFERENCE GUIDE

Printed in USA

CPD-19587

Control Panel Lights and Buttons

Menu button

Hold for 3 seconds to

clean the print head.

Up arrow button

Paper light

Down arrow button

Left arrow or Paper

Source button

Hold for 3 seconds

to cut roll paper after

printing.

Ink light

Pause light

and button

Hold for 3 seconds

to cancel a print job

or reset the printer.

Power button

EPSON®

CPD19587_Antr_QRGcvr.indd 1 4/28/05 2:22:44 PM

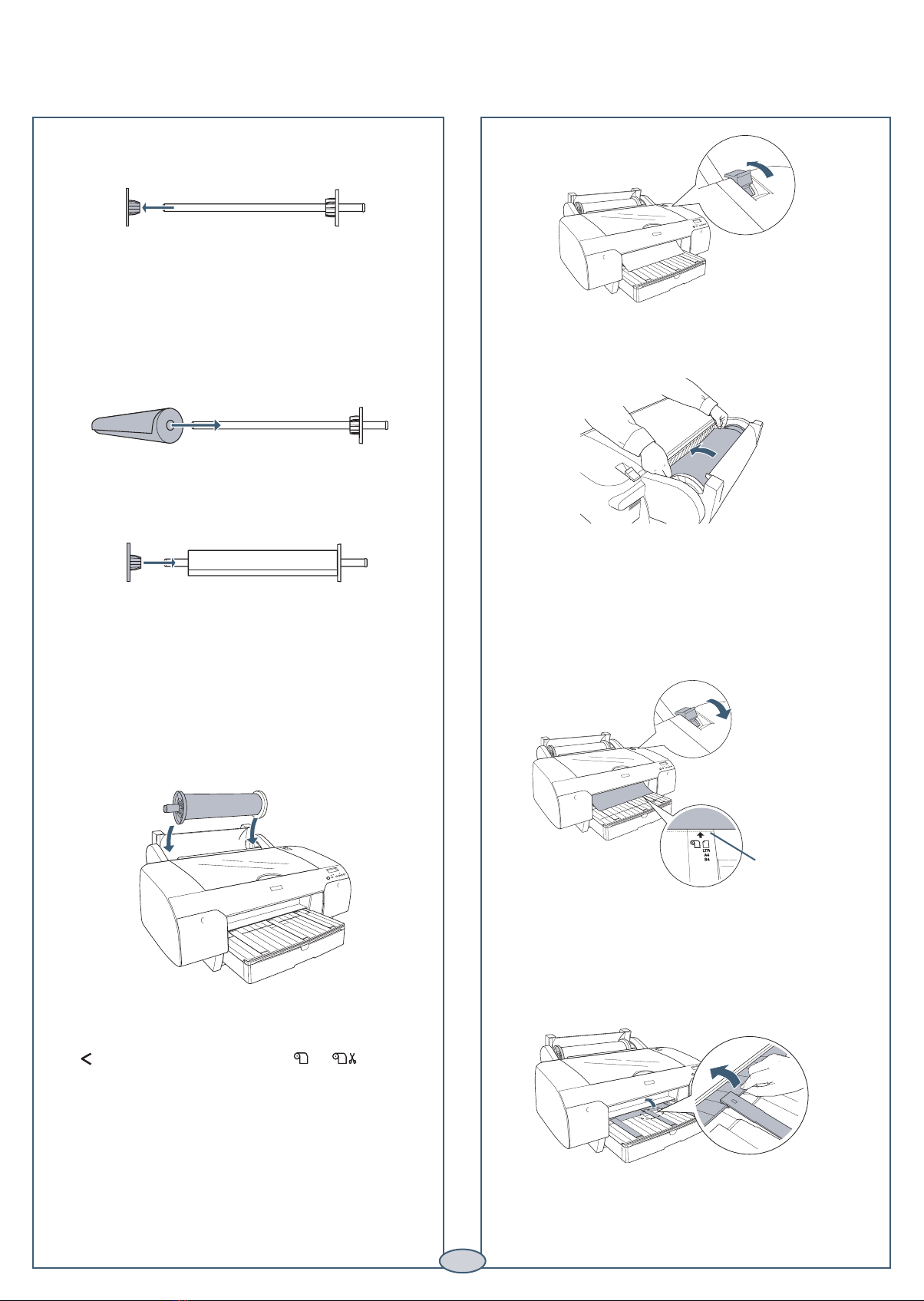

Loading Roll Paper

1 Slide the black paper stop off the end of

the spindle.

Note: To use paper with a 2-inch core, remove the

gray adapters from the paper stops at each end.

See your Printer Guide for details.

2 Position the roll as shown, then slide it onto

the spindle.

3 Slide the black paper stop back onto the spindle and

insert it ﬁrmly into the end of the roll.

4 Open the roll paper cover.

5 Place the roll paper in the printer as shown. (The

black end of the spindle goes on the left.)

6 Make sure the printer is turned on, then press the

Paper Source button until the or icon

appears.

Alignment mark

7 Release the paper lever.

8 Hold both sides of the paper and feed it into

the slot. Pull it all the way to the end of the

paper tray.

9 Using the end of the spindle, roll the paper

until it is aligned with the mark next to the

arrow. Then return the paper lever to the

secured position.

The printer automatically feeds the paper to the

printing position.

10 Raise the roll paper support on top of the

paper tray. Then close the roll paper cover.

Caution: To prevent creasing the paper, remove it

from the paper path and roll it up when you’re not

printing.

CPD19587_Antr_QRGins.indd 1 5/9/05 4:44:13 PM

5 Load the sheets in the portrait orientation, short

edge ﬁrst, with the printable side face-down. Place

the paper all the way back, against the right side of

the tray.

Don’t load paper above the arrow mark inside the

edge guide.

Caution: When you add more paper, always line up

the edges with the paper already in the tray.

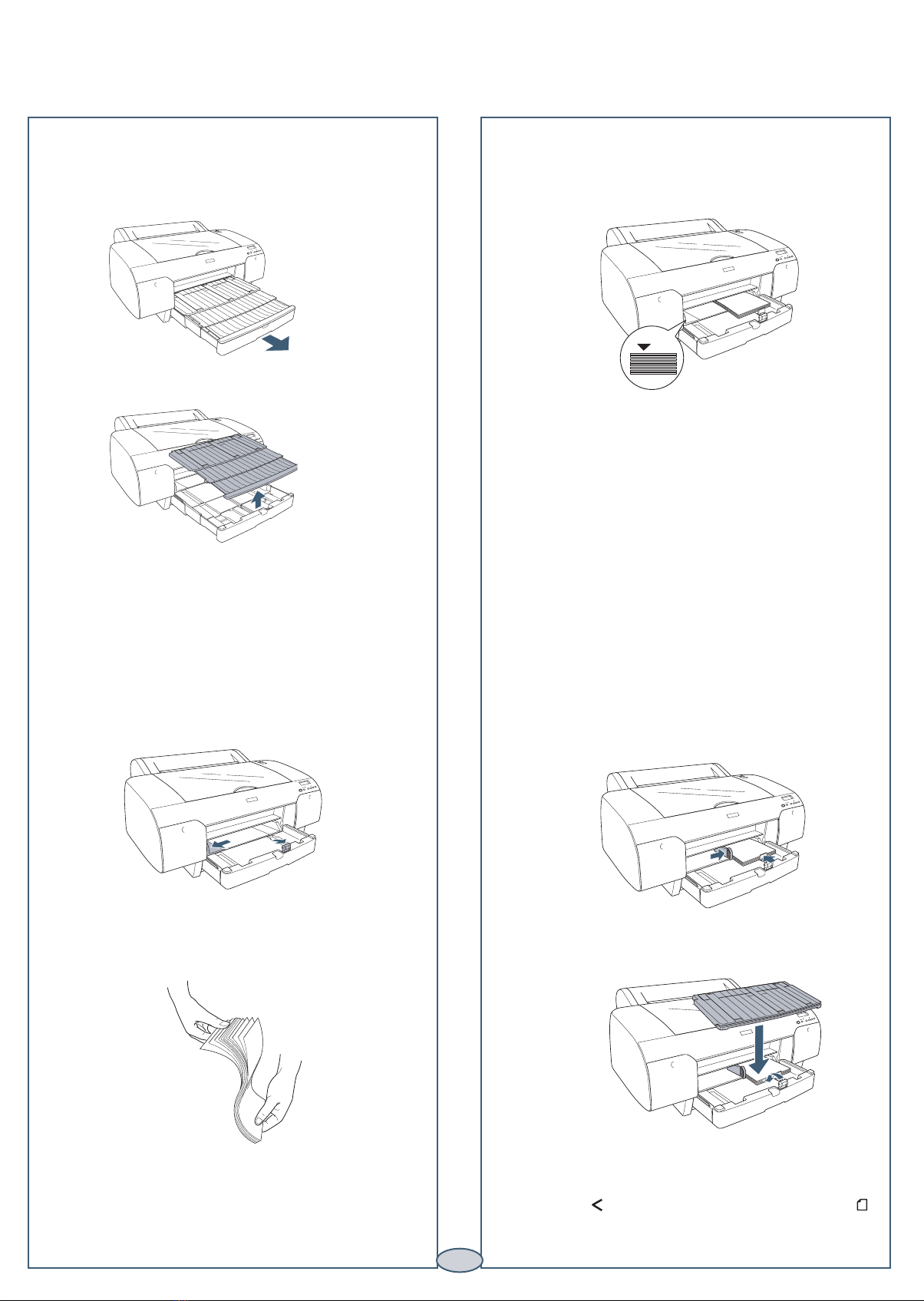

Loading Paper in the Tray

Make sure the printer is on and roll paper is not loaded

for printing.

1 Pull out the paper tray and cover.

2 Lift up the paper tray cover.

6 Adjust the paper tray and edge guide according

to the paper size. For small sheets, raise the paper

guide and move it to the edge of the stack.

7 Flip down the paper guide roller, then replace the

paper tray cover and adjust its length.

Note: Make sure the roll paper support is

not raised.

8 Press the Paper Source button until you see the

cut sheet icon.

3 Flip up the paper guide roller and slide the edge

guide all the way to the left.

4 Thumb through a stack of paper, then gently tap it

on a ﬂat surface to even the pages.

CPD19587_Antr_QRGins.indd 2 5/9/05 4:44:16 PM

3 Open the top cover.

4 Insert the sheet face-up.

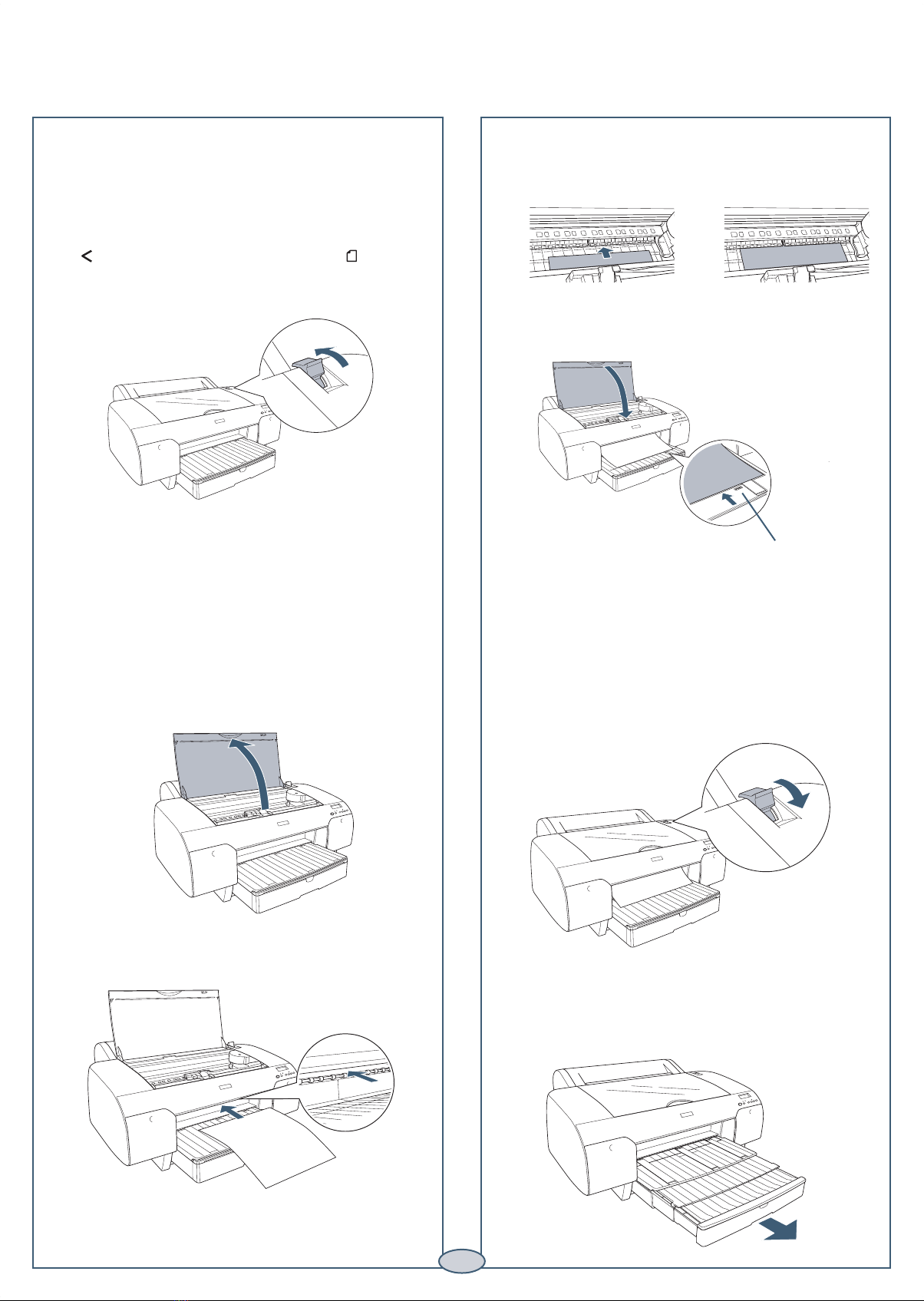

The front manual feed slot provides a straight-through

paper path for ﬁne art paper, posterboard, or other media

19 to 55 mil (0.5 to 1.5 mm) thick. Make sure there is

enough space behind the printer for feeding the paper.

1 Make sure the printer is turned on, then press the

Paper Source button until you see the cut

sheet icon.

2 Release the paper lever.

5 Push the sheet under the gray feed rollers,

and align the right edge with the vertical mark on

the right side of the tray cover.

6 Close the top cover.

7 Return the paper lever to the secured position. The

printer grabs the paper and feeds it into printing

position.

8 Extend the paper tray and cover to support the sheet

as it comes out of the printer. Make sure the roll

paper support is not raised.

Loading Paper Manually

Align paper with line

next to arrow mark.

CPD19587_Antr_QRGins.indd 3 5/9/05 4:44:19 PM

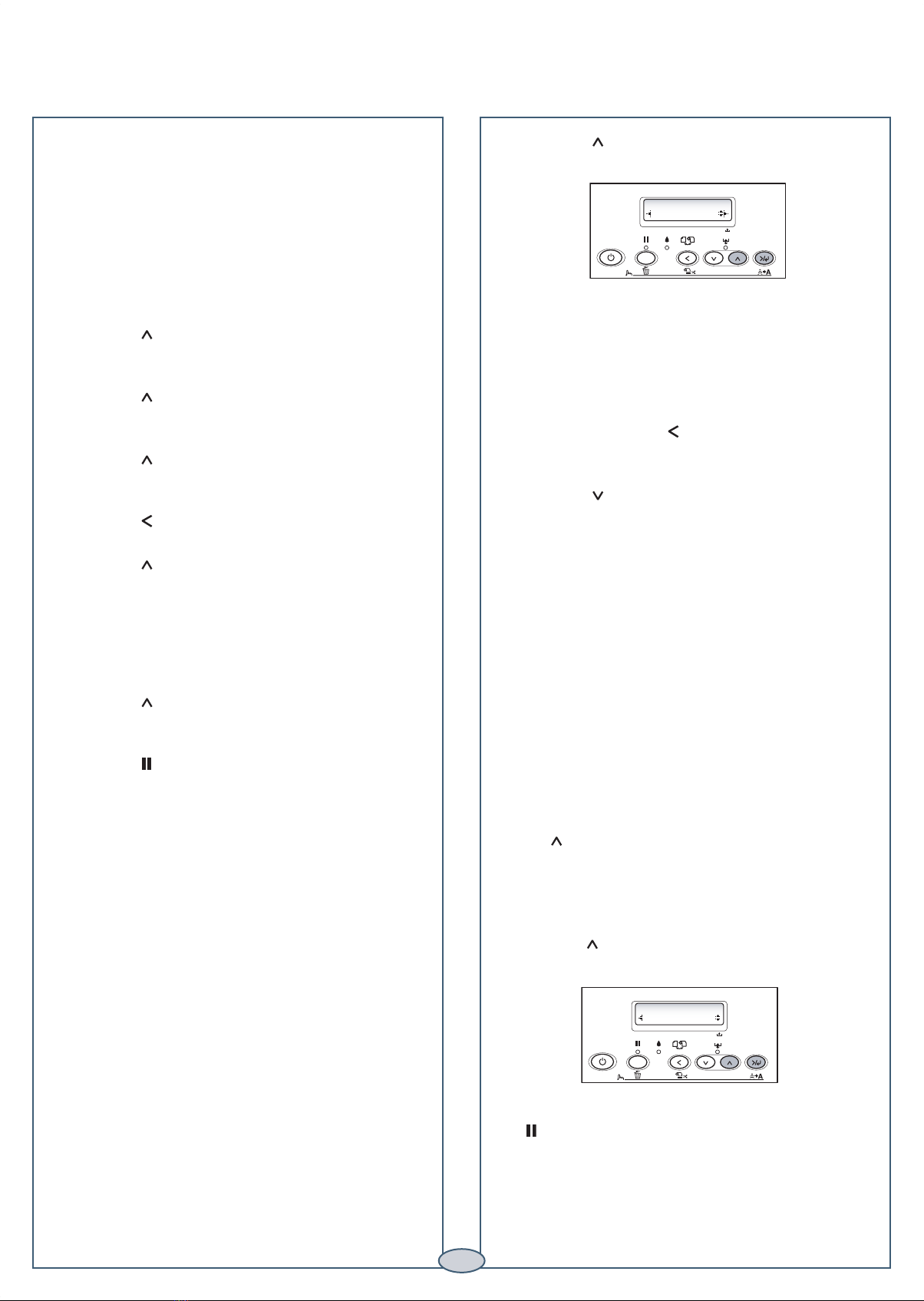

Checking and Aligning the Print Head

Auto Nozzle Check and

Auto Cleaning

You can turn on Auto Cleaning and Auto Nozzle Check

from the printer’s control panel to automatically check

and clean the print head nozzles before each print job.

First, make sure paper is loaded in the tray.

1 Press the Menu button.

2 Press the button to display PRINTER SETUP.

Then press the Menu button.

3 Press the button to display AUTO CLEANING.

Then press the Menu button.

4 Press the button to choose ON, then press the

Menu button to conﬁrm the setting.

5 Press the button.

6 Press the button to display AUTO NZL CK. Then

press the Menu button.

7 Press the button to choose ON, then press the

Menu button to conﬁrm the setting.

8 Press the Pause button.

Note: You can manually run a cleaning cycle by

pressing the Menu button and holding it for more

than 3 seconds.

Aligning the Print Head

If your prints look grainy or blurry, or you see

misregistration or “ghosting,” you need to align the print

head. Follow these steps to align the print head:

1 Make sure the printer is turned on. Then load

Epson Enhanced Matte or Premium Luster

Photo Paper.

2 Press the Menu button.

3 Press the button to display HEAD ALIGNMENT.

Then press Menu. You see PAPER THKNS.

4 Press the Menu button again so that *STD appears

on the display. This is the correct thickness setting for

most Epson papers, including Enhanced Matte Paper

and Premium Luster Photo Paper.

5 Press the Menu button to register the

value, then press the button to display

PAPER THKNS again.

6 Press the button to display ALIGNMENT.

7 Press the Menu button to display AUTO, then press

Menu again. You see UNI-D (uni-directional). This

is the type of alignment to start with.

1 2 3 4 5 6 7 8

3sec.

HEAD ALIGNMENT

PAPER THKNS

8 Press the Menu button again to start the alignment

process. Head alignment takes about 7 minutes.

Caution: Make sure you don’t open the top cover or

turn off the printer during the alignment process.

9 When the uni-directional alignment is ﬁnished, press

the button until you see BI-D 2-COLOR.

Then press the Menu button again to start the

bi-directional black alignment.

10 When the bi-directional black alignment is ﬁnished,

press the button until you see BI-D ALL. Then

press the Menu button again.

11 When the ﬁnal alignment is ﬁnished, press the

Pause button.

1 2 3 4 5 6 7 8

3sec.

ALIGNMENT AUTO

BI-D ALL

CPD19587_Antr_QRGins.indd 4 5/9/05 4:44:23 PM

Continue

▲

Checking Ink Levels and Replacing Ink Cartridges

Before you begin a large print job, you should check

your ink levels. If one of your cartridges is low, you can

replace it before you start. Or you can wait until the ink

runs out, replace the cartridge, and then continue the job

without any loss of print quality.

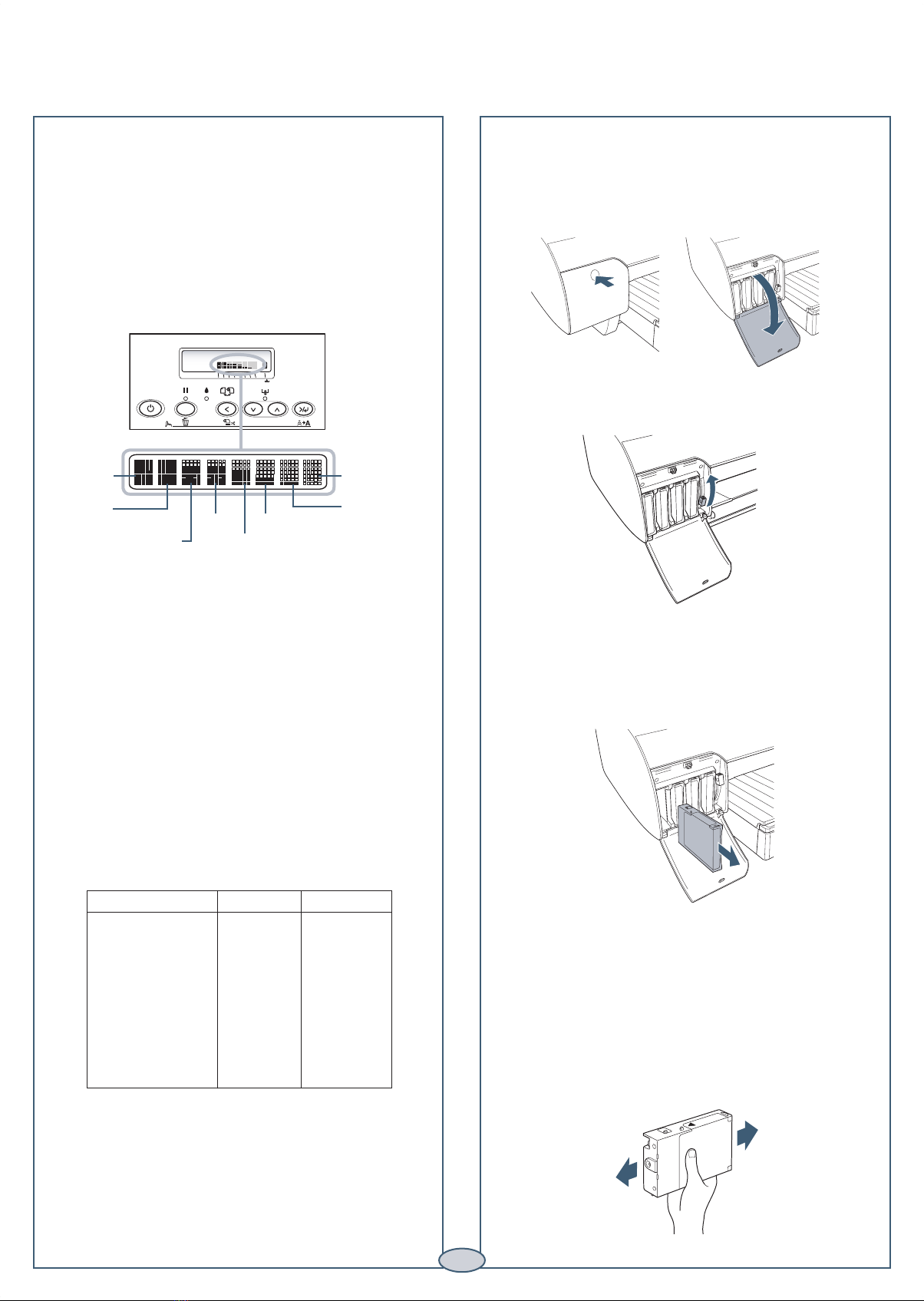

Checking Ink Levels

The easiest way to check ink levels is from the

control panel.

Replacing Ink Cartridges

When the ink light ﬂashes, one of the indicators is low,

and INK LOW is displayed on the LCD panel, the

corresponding cartridge is nearly empty. Make sure you

have the correct replacement cartridge.

You can install any combination of 110 ml and 220 ml

cartridges.

Epson UltraChromeK3TM ink

110 ml 220 ml

Photo Black T564100 T565100

Cyan T564200 T565200

Magenta T564300 T565300

Yellow T564400 T565400

Light Cyan T564500 T565500

Light Magenta T564600 T565600

Light Black T564700 T565700

Light Light Black T564900 T565900

Matte Black T543800 T544800

When one of the indicators shows empty and INK OUT

is displayed on the LCD panel, the cartridge is empty. To

replace the cartridge, ﬁrst make sure the printer is on.

1 Press the ink compartment cover to open it.

2 Raise the ink lever to the unlocked position.

3 Remove the empty ink cartridge from the printer.

Warning: Do not shake the empty cartridge, or ink

may leak. If ink gets on your hands, wash them

thoroughly with soap and water. If ink gets in your

eyes, ﬂush them immediately with water.

4 Make sure the replacement cartridge is the correct

color, and remove it from its package.

Gently shake the cartridge before installing it.

3 Magenta 5 Light Black

(full) (empty)

1 2 3 4 5 6 7 8

3sec.

1 Matte Black/

Photo Black

2 Cyan

4 Yellow 6 Light Cyan

7 Light Magenta

8 Light Light Black

CPD19587_Antr_QRGins.indd 5 5/9/05 4:44:26 PM

Replacing Printer Parts

Replacing Ink Cartridges (continued)

5 Hold the cartridge with the arrow mark pointing

toward the printer. Then insert the cartridge into the

slot. Don’t force it.

Note: If you can’t insert the cartridge smoothly,

you may have the wrong cartridge. Check the

package and product code. If the Ink light remains

on after installing the cartridge, try removing and

then reinserting it.

6 Return the ink lever to its locked position.

7 If you’re using 110 ml cartridges, close the ink

compartment cover. If you’re using 220 ml

cartridges, you’ll have to leave the cover open.

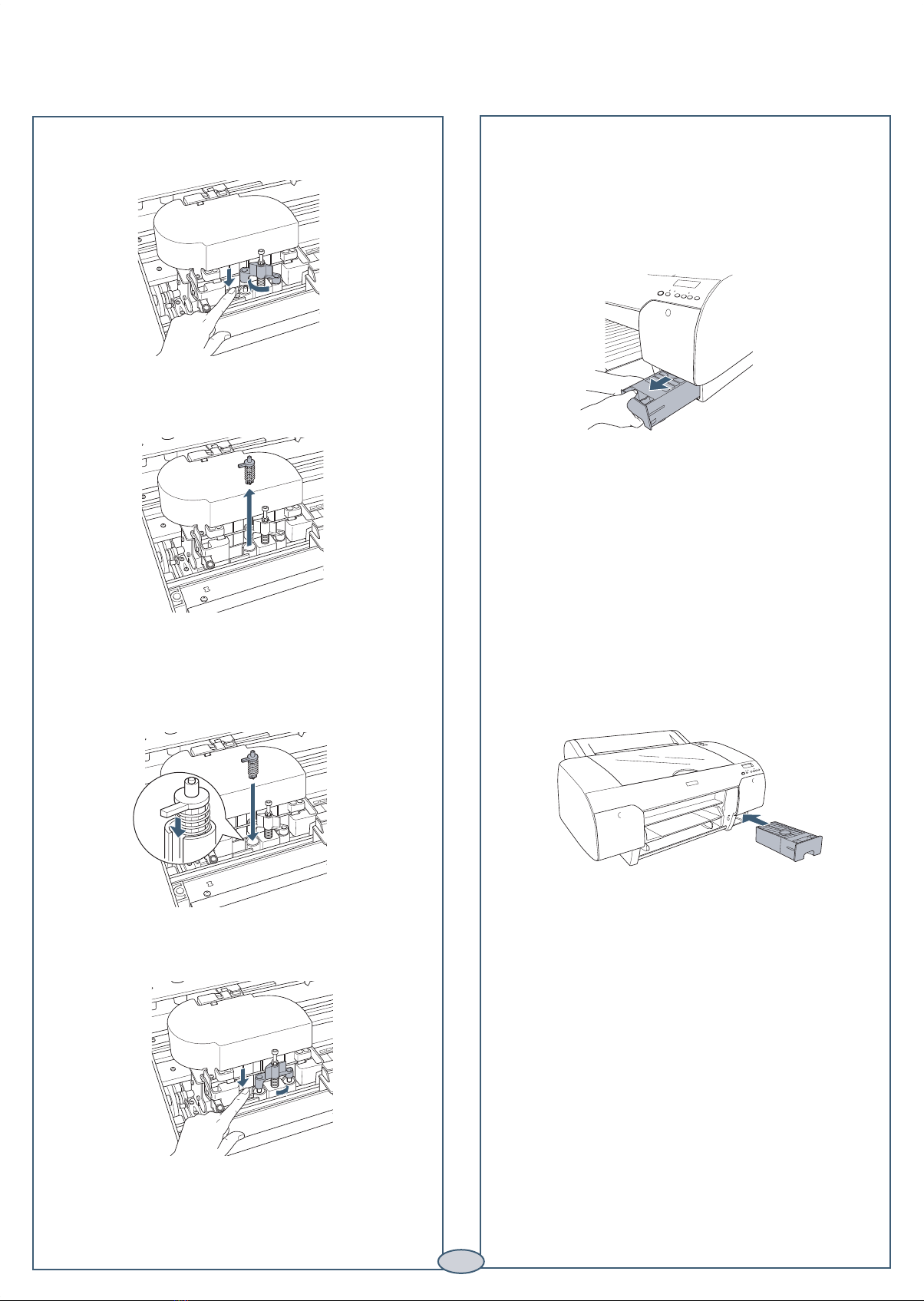

Replacing the Cutter Blade

If you notice that the paper isn’t cut cleanly, you may need

to replace the cutter blade (part # C12C815291). You can

check its status as described below:

1 Press the Menu button on the printer, then press

until you see PRINTER STATUS.

2 Press Menu, then press until you see

SERVICE LIFE.

3 Press Menu, then press until you see CUTTER.

E*****F indicates a new cutter. If no stars are

displayed, the cutter needs to be replaced.

Caution: Do not use the cutter for the

following media:

• Fine art paper (such as Epson UltraSmooth™,

Textured, or Velvet)

• Canvas

• Backlight ﬁlm

• Vinyl

Follow these steps to replace the cutter:

1 Press the Menu button on the printer, then

press until you see MAINTENANCE.

2 Press the Menu button. You see CUTTER REPL.

3 Press Menu to display EXEC, then press Menu

again. The print head moves to the cutter

replacement position.

4 Open the top cover.

Continue

▲

CPD19587_Antr_QRGins.indd 6 5/9/05 4:44:27 PM

Replacing Printer Parts (continued)

5 Hold down the side pin, as shown, then turn the

latch to the right.

6 Release the side pin and carefully remove the cutter

blade.

Replacing the Maintenance Tank

You need to replace the Maintenance Tank

(part # C12C890191) when you see MNT TNK FULL

on the LCD display. The ink light also turns red.

1 Pull out the maintenance tank as shown.

Caution: Do not tip the tank, or ink may spill out.

2 Place the used tank in the plastic bag included with

the new tank.

7 Insert the new cutter blade.

8 Hold down its side pin and secure it with

the latch.

9 Close the top cover. The carriage returns to the home

position and the cutter replacement is complete.

3 Insert the new tank.

CPD19587_Antr_QRGins.indd 7 5/9/05 4:44:30 PM

Error messages

For a complete list of error messages, see your Printer Guide.

Control Panel Messages

Message Light Explanation or response

READY Pause light off Printer is ready to print.

PRINTING Pause light ﬂashing Printer is receiving data.

RESET All lights ﬂash brieﬂy Printer is resetting.

PRESS PAUSE BUTTON Pause light on Press the Pause button to continue.

PLEASE WAIT Pause light ﬂashing Printer is initializing or performing maintenance. Wait

until READY appears.

PAUSE Pause light on Printer is paused. To resume printing, press the

Pause button.

CUTTING Printer is cutting the paper.

CHARGING INK Printer is charging the ink delivery system. Wait until

READY appears.

Status messages

These messages indicate normal phases of printer operation.

Continue

▲

Response

Replace ink cartridge(s) indicated

on LCD. See page 5.

Replace ink cartridge(s) indicated

on LCD. See page 5.

Make sure the right paper is loaded

and the paper source setting is the

same on the control panel and print

options.

Move the paper lever to the

secured position.

Make sure paper is loaded correctly

and the paper lever is secured. If

you’re using cut sheets, make sure

the paper is ﬂat.

Replace the maintenance tank. See

page 7.

Explanation

Ink cartridge(s) are nearly

empty (printing continues).

Ink cartridge(s) are empty

(printing stops).

The paper source setting in

print options is different

from the control panel setting.

The paper lever is in the

released position.

The printer cannot detect

the paper.

The maintenance tank is full.

Light

Ink light ﬂashing

Ink light on

Paper light on

Ink light on

Message

INK LOW

INK OUT

CHANGE PAPER

TYPE

LOAD PAPER

SET PAPER LEVER

RELOAD PAPER

MNT TNK FULL

CPD19587_Antr_QRGins.indd 8 5/9/05 4:44:31 PM

Where To Get Help

Control Panel Messages (continued)

Error messages (continued)

Epson and Epson Stylus are registered trademarks of Seiko Epson Corporation. Epson UltraChromeK3 and UltraSmooth are trademarks and Epson

Preferred is a service mark of Epson America, Inc.

Service

Telephone support

World Wide Web

Support for non-Epson RIP

Access

Call (888) 377-6611. Make sure

you have your Unit ID number.

If you experience any difﬁculty with the toll-free number or your Unit ID

number, call (562) 276-1305.

Go to http: //support.epson.com to download drivers, access product

documentation and troubleshooting, and get technical advice

through e-mail.

Contact the RIP manufacturer.

Response

Release the paper lever. Remove

the paper tray if you’re printing on

cut sheets. Remove the jammed

paper. If necessary, open the top

cover or remove the rear cover.

Reload paper, making sure the

edges are straight.

Check to make sure the green

tab on the print head is pulled

out until it stops. If so, note the

error number, and turn the printer

off and then on. If the message

remains, contact Epson.

Explanation

Paper has jammed in the

printer.

Paper was fed at an angle.

The print head is locked or

an error has occurred.

Light

Paper light ﬂashing

All lights ﬂashing

Message

RELEASE LEVER

REMOVE PAPER JAM

PAPER NOT STRAIGHT

SERVICE REQ.

Note your Epson PreferredSM

Unit ID number here.

CPD19587_Antr_QRGins.indd 9 5/9/05 4:44:31 PM

Other manuals for Stylus Pro 4800 Portrait Edition

Table of contents

Other Epson Printer manuals

Epson

Epson AcuLaser M4000 Series Quick reference guide

Epson

Epson Stylus Pro 7890 Series User manual

Epson

Epson Stylus Color 480SXU Operating manual

Epson

Epson PX650 Series User manual

Epson

Epson Stylus Photo 750 User manual

Epson

Epson OFFICE 960FWD User manual

Epson

Epson EPL-N2750 User manual

Epson

Epson FX-1180 - Impact Printer User manual

Epson

Epson Stylus Photo R2000 Series User guide

Epson

Epson TM-T88IV ReStick User manual

Epson

Epson Stylus COLOR 1160 Use and care manual

Epson

Epson LQ-510 User manual

Epson

Epson EPL-6100L User manual

Epson

Epson PictureMate CZ 283 User manual

Epson

Epson 3800 - Stylus Pro Color Inkjet Printer Operation and maintenance manual

Epson

Epson CR-420i Dimensions

Epson

Epson Stylus Pro 10600 - UltraChrome Ink - Stylus Pro 10600 Print... User manual

Epson

Epson Stylus Pro 10600 - UltraChrome Ink - Stylus Pro 10600 Print... Dimensions

Epson

Epson XP-630 User manual

Epson

Epson TM-T88V Use and care manual

Epson

Epson Stylus Color 880 User manual

Epson

Epson ET-4760 User manual

Epson

Epson XP-320 User manual

Epson

Epson XP-442 SERIES User manual

Popular Printer manuals by other brands

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series quick start guide

Evolis

Evolis Elypso user guide

Kyocera

Kyocera FS-9530DN specification

Canon

Canon LASER SHOT LBP-1210 Specifications

Samsung

Samsung BIXOLON SRP-350plusF user manual

Canon

Canon PIXMA PRO-1 Series Getting started

Canon

Canon PIXMA G3560 Online manual

Dell

Dell Color Laser Printer 2130cn user guide

Tektronix

Tektronix Phaser 840 user guide

Canon

Canon CLBR 460ps Service manual

Eltron

Eltron P210 Guide manual

Ricoh

Ricoh MD-P1 Service manual

Canon

Canon imagePASS-A2 Service guide

Canon

Canon S820D user guide

IRA3D

IRA3D POETRY4 Original instructions

Ricoh

Ricoh Aficio AP400 operating instructions

BIXOLON

BIXOLON SRP-352plusV user manual
