enware IFO6861 User manual
I00321_Version 2.0__01Aug22
Installation and Maintenance Instructions
IFO SIGN WC
RAISED / STANDARD HEIGHT TOILET
Call 1300 369 273
www.enware.com.au
Enware Australia Pty Limited
9 Endeavour Rd Caringbah NSW 2229 Australia
Ph: 02 8536 4000 info@enware.com.au
2 Call 1300 369 273 www.enware.com.au
contents
Page
Product Description 3
Contents 6
Installation 7
Floor Mounting Method 9
Access to Cistern Internal Components 13
Adjusting Flush Volume 14
Installation - Accessories 16
Maintenance 17
Cleaning 18
Troubleshooting 18
Spare Parts 19
Warranty 20
www.enware.com.au Call 1300 369 273 3

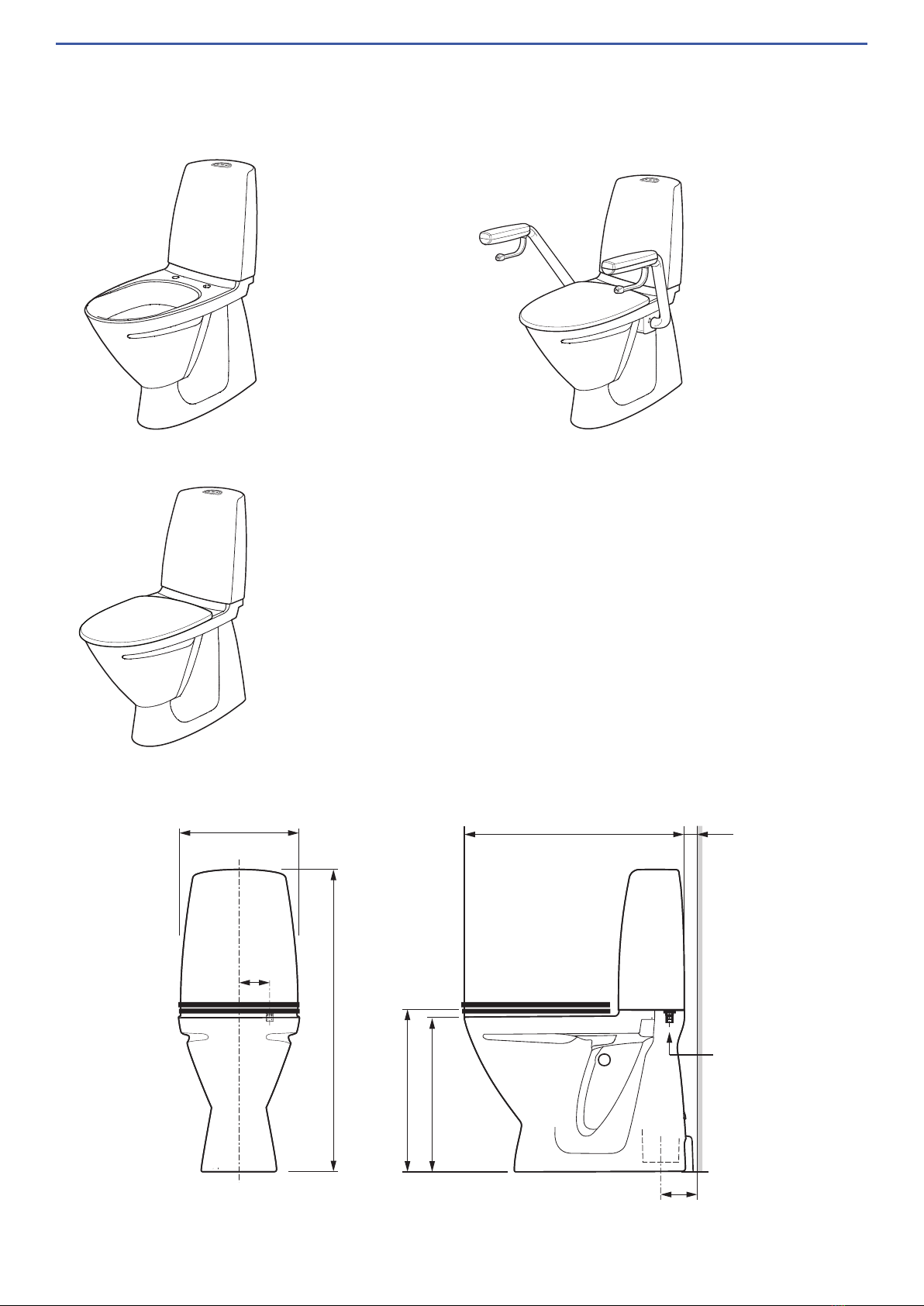

6861 Model (Raised Height S-Trap)
6860 68626861 6872
Bottom
Inlet
Connec
tion
670
30 min.
clearance
100 min.
480
to top of seat
460
900
95
360
FRONT VIEW SIDE VIEW
6860 68626861 6872
CARE6861
CARE101S, CARE102S,
CARE301S, CARE302S, CARE303S,
CARE501S, CARE502S, CARE503S
CAREAMBS
IFO6861 CARE600
CARE601
4 Call 1300 369 273 www.enware.com.au

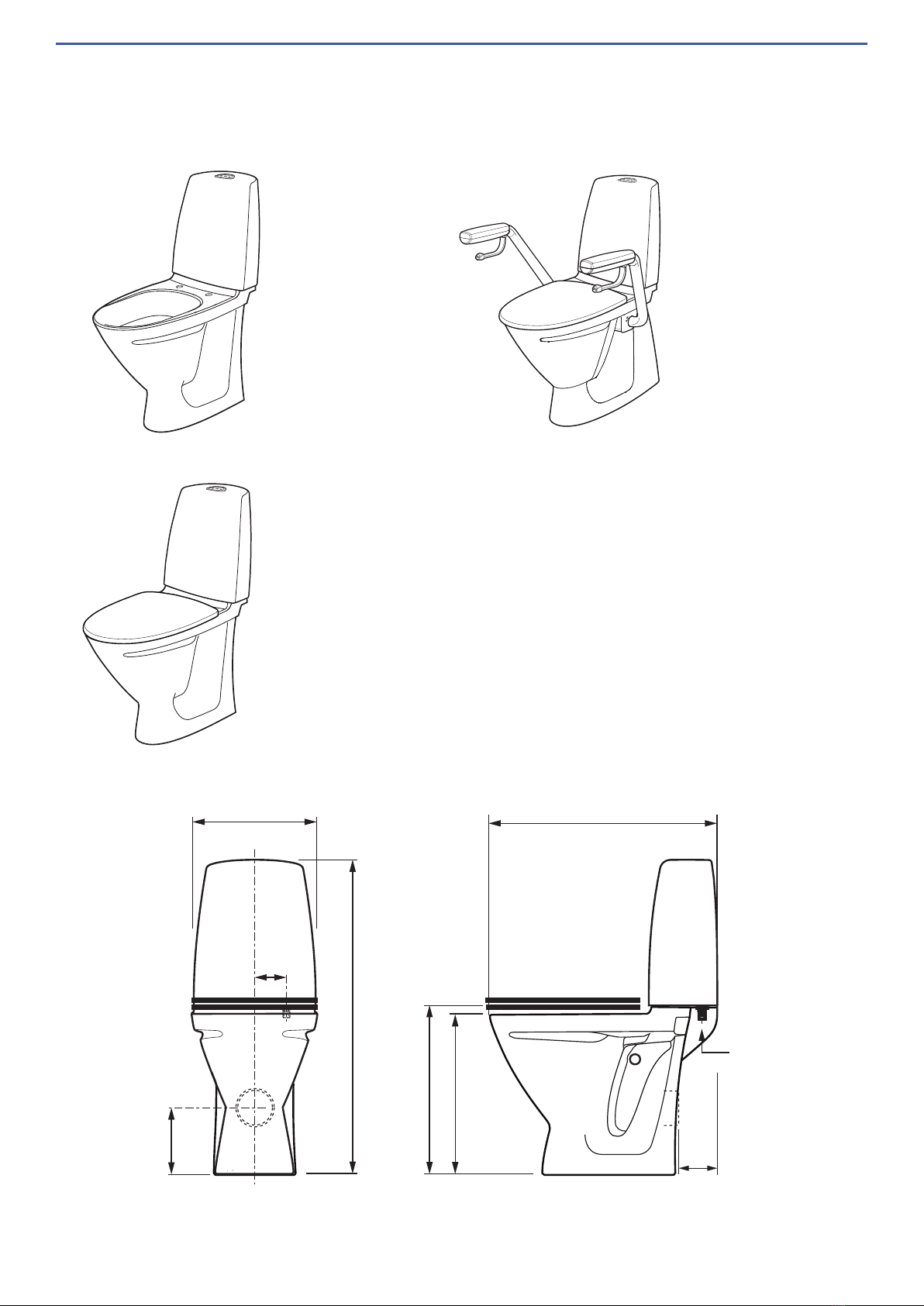

6872 Model (Raised Height P-Trap)
6860 68626861 6872
670
480
to top of seat
460
900
95
360
Bottom
inlet
connec
tion
190
120
FRONT VIEW SIDE VIEW
CARE6872
CARE101P, CARE102P,
CARE301P, CARE302P, CARE303P,
CARE501P, CARE502P, CARE503P
CARE602
CARE603
6860 68626861 6872
IFO6872
www.enware.com.au Call 1300 369 273 5
CARE602
CARE603

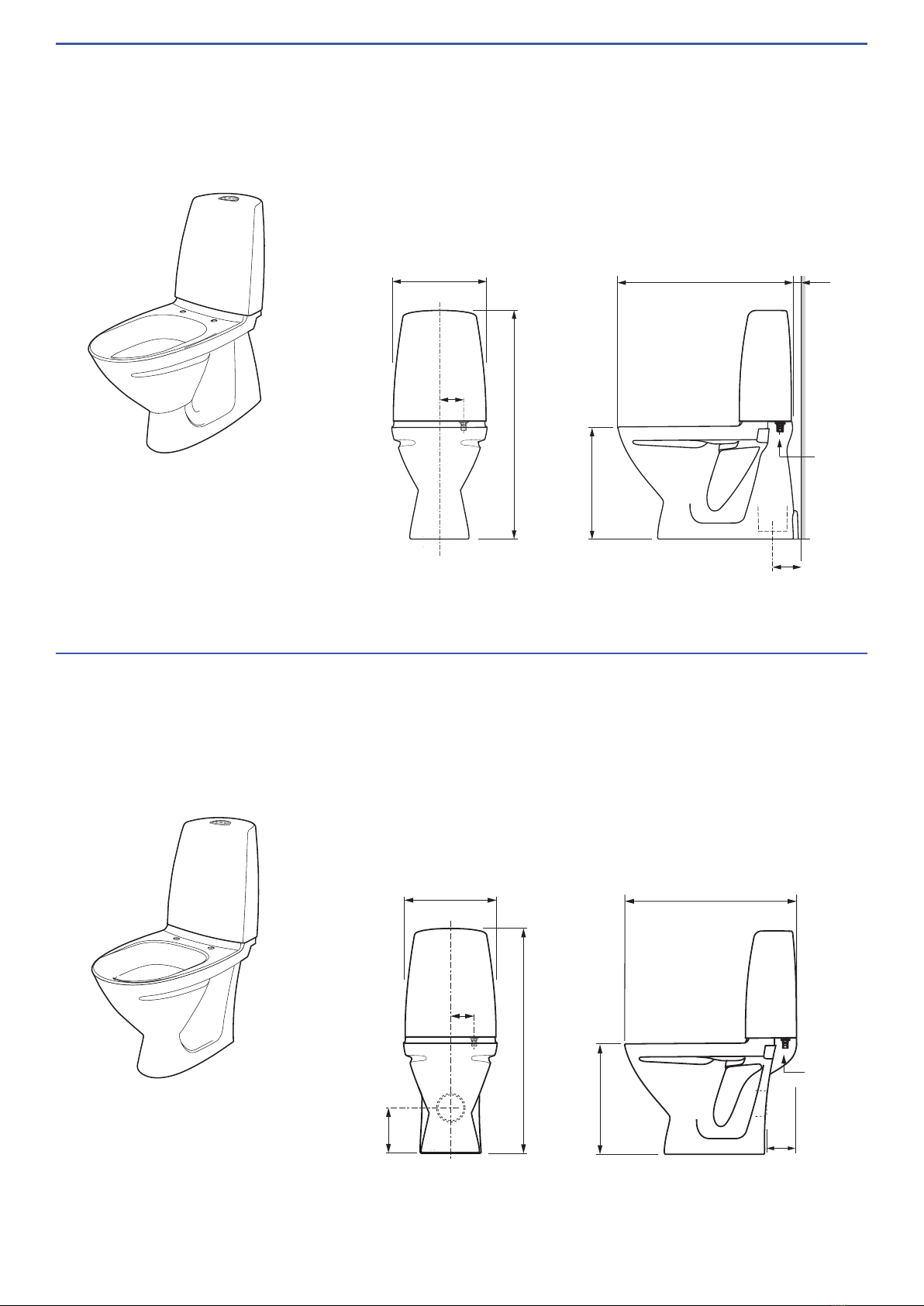

6860 Model (Standard Height S-Trap)
6860 68626861 6872
IFO6860
Bottom
Inlet
Connec
tion
670
30 min.
clearance
100 min.
420
860
95
360
FRONT VIEW SIDE VIEW
6860 68626861 6872
IFO6862
670
420
860
95
360
Bottom
inlet
connec
tion
190
120
FRONT VIEW SIDE VIEW
6862 Model (Standard Height P-Trap)
6 Call 1300 369 273 www.enware.com.au
Installation shall be in accordance with the AS/NZS3500 series of Standards, the Plumbing
Code of Australia (PCA), and the manufacturer’s instructions.
Installations not complying with AS/NZS 3500, the PCA or the manufacturer’s instructions
may void the product and performance warranty provisions.
Enware Australia advises:1. Due to ongoing Research and Development, specifications may
change without notice; 2. Component specifications may change on some export models.
All measurements are in millimetres.
contents

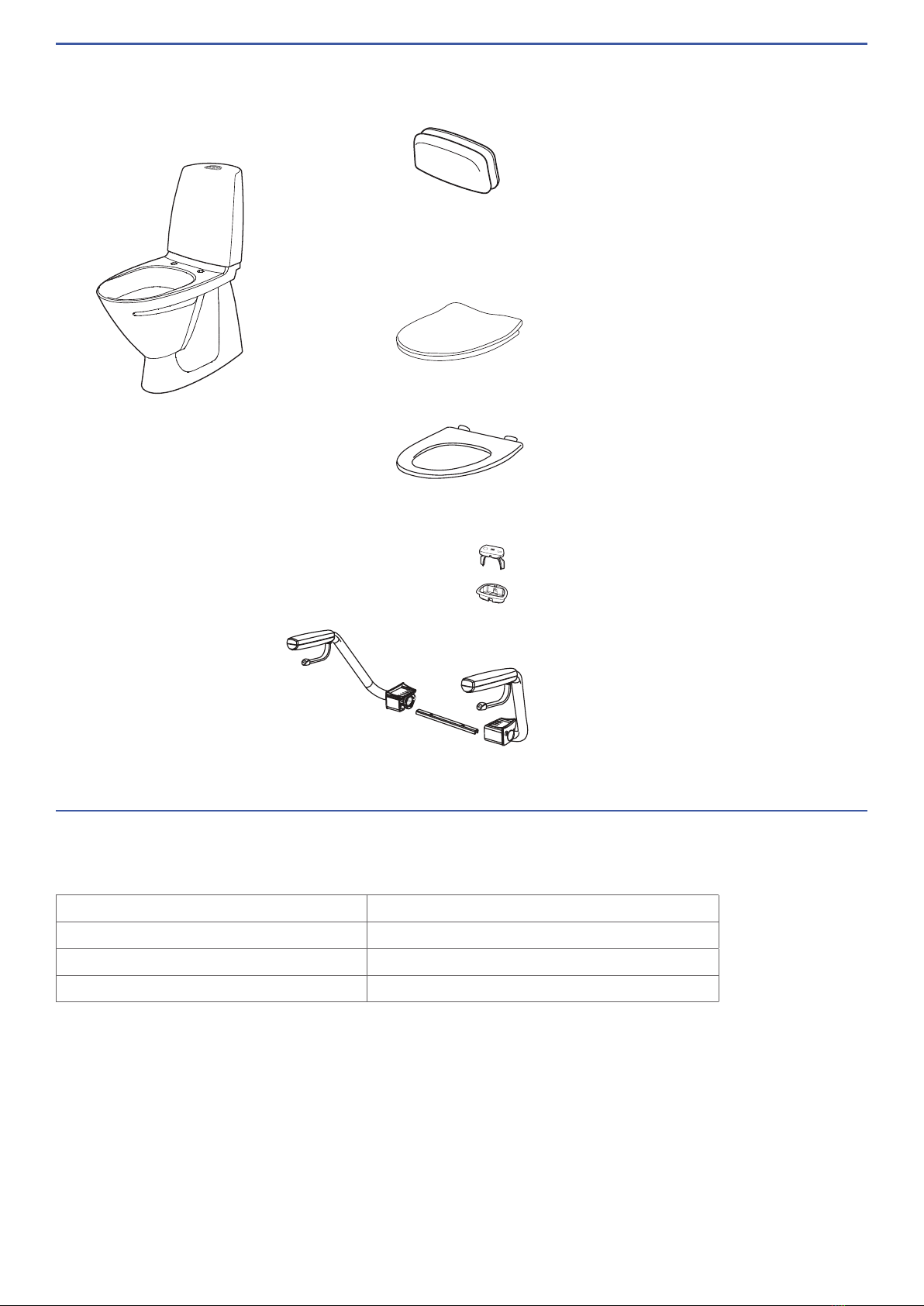

IFO733
39
90610
11
196763
98303
598308
796766
12
98951
21
96760
22
91370 23
96773 24
96761
14 96759
15
91965 för 6893/6894
34
Water Supply Inlet Pressure Min. 50 kPa - Max. 500 kPa
Inlet Connection 1/2” BSP
Water Inlet Connection Method Bottom Inlet
Outlet Connection DN100 DWV PVC Pan Collar
TECHNICAL INFORMATION
technical data
Rear Cover
Toilet Seat (With Lid)
[OPTIONAL]
Toilet Seat (No Lid)
[OPTIONAL]
Raised Flush Button
[OPTIONAL]
IFO98125 Support Arms
[OPTIONAL]
www.enware.com.au Call 1300 369 273 7
installation
1428.1 Set Out / Disabled
in accordance with AS 1428.1 - Performance Solution
Bottom
Inlet
Connection
670
200
m
ct
480
to top of seat
460
900
95
360
FRONT VIEW SIDE VIEW
800
130
450 - 460
95°
(Pressalit Sign IFO553 / 554 Seat)
Institutional / Health Set Out
Set out typical for hospitals which allows for substantial air circulation and free coving
Bottom
Inlet
Connection
670
170
m
e
480
to top of seat
460
900
95
360
FRONT VIEW SIDE VIEW
770
100
95°
(Pressalit Sign IFO553 / 554 Seat)

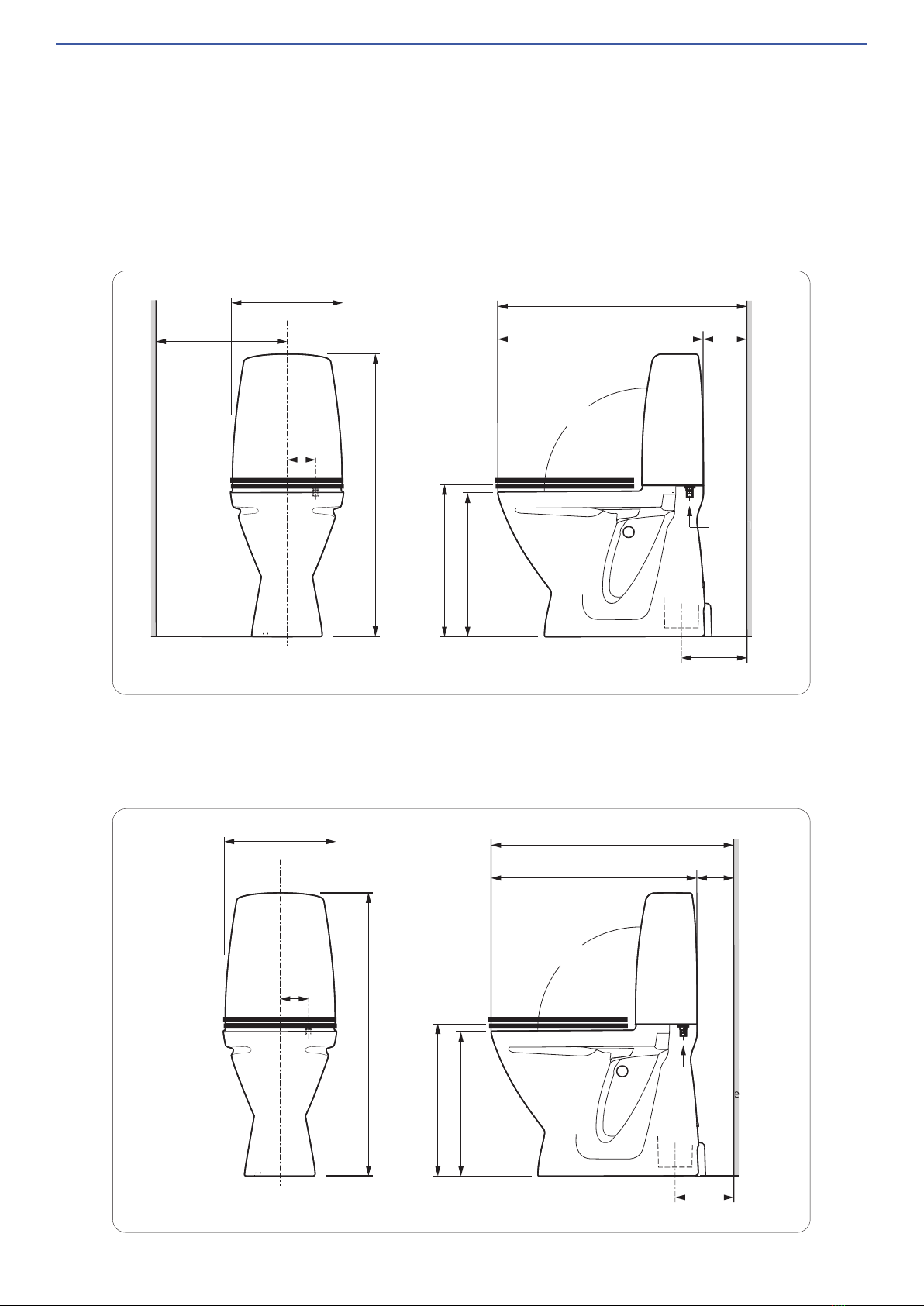

Detemine location and set out for the toilet pan.
Set out for S-trap pan for various applications is shown below.
8 Call 1300 369 273 www.enware.com.au
165
165
Finished wall
surface
With no arm support system
Finished wall
surface
280
Min.
280 Min.
With arm support system
Minimum Set Out
The minimum to still allow air circulation behind the WC pan
Bottom
Inlet
Connection
670
30 min.
clearance
100 min.
480
to top of seat
460
900
95
360
FRONT VIEW SIDE VIEW
(Pressalit Sign IFO553 / 554 Seat)
45 ° Corner Set Up
www.enware.com.au Call 1300 369 273 9
Floor Mounting Method
Determine floor fixing requirements according to the quality and strength of the floor material,
and the site risk assessment.
If there are no support arms, or there is no possibility of using
support arms in future, use:
• Silicone sealant fixing (Tiled or similar hard floor only. No Vinyl);
• Pan Screw fixing; or
• Bracket fixing (Optional - IFO98015 Bracket sold separately.)
If toilet has support arms or may have support arms in future
(raised height toilet models only), use:
• Pan Screw fixing; or
• Bracket fixing (Optional - IFO98015 Bracket sold separately.)

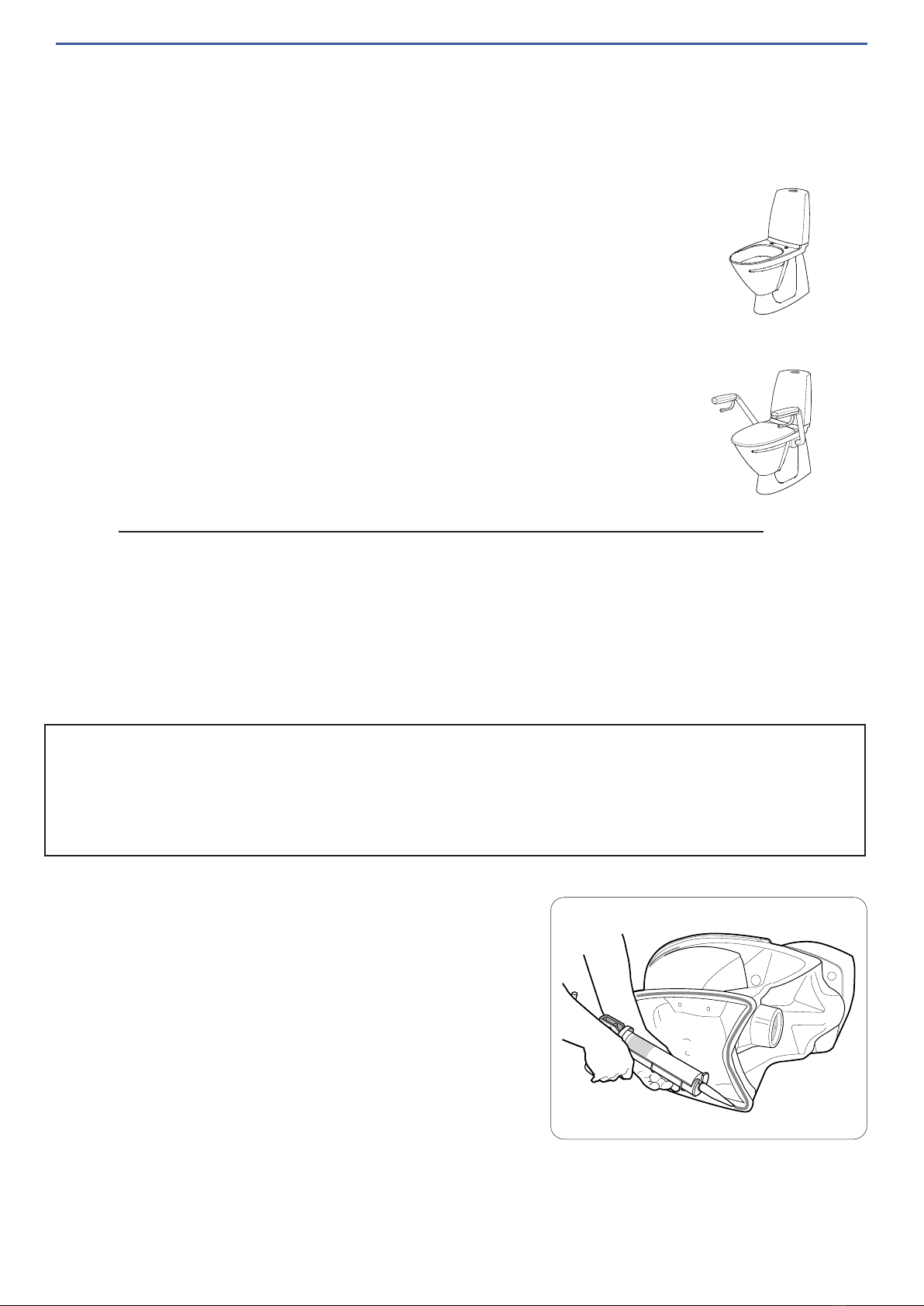

Fixing With Silicone Sealant:
Determine if this method of fixing to the floor would be suitable according to the site risk
assessment. This method of fixing is only suitable for tiled or similar hard floor surfaces. It is
not suitable for vinyl floors, or for toilets with support arms.
IMPORTANT - For Toilets with Support Arms:
Due to the extra force applied to the toilet pan by support arms, the toilet pan must be fixed
to the floor using stainless steel Pan Screws or a Floor Fixing Bracket. Fixing the toilet pan
with only silicone sealant is not considered to be an adequate method of fixing.
Ensure the floor surface and bottom surface of pan
are clean and dry - free of dust, moisture and grease.
Apply silicone sealant to the entire bottom contact
surface of pan and around the perimeter, to achieve
good adhesion and to create a strong bonding
between the pan and the floor.
Use white blind cover plugs supplied to plug the
screw holes on the pan.
10 Call 1300 369 273 www.enware.com.au

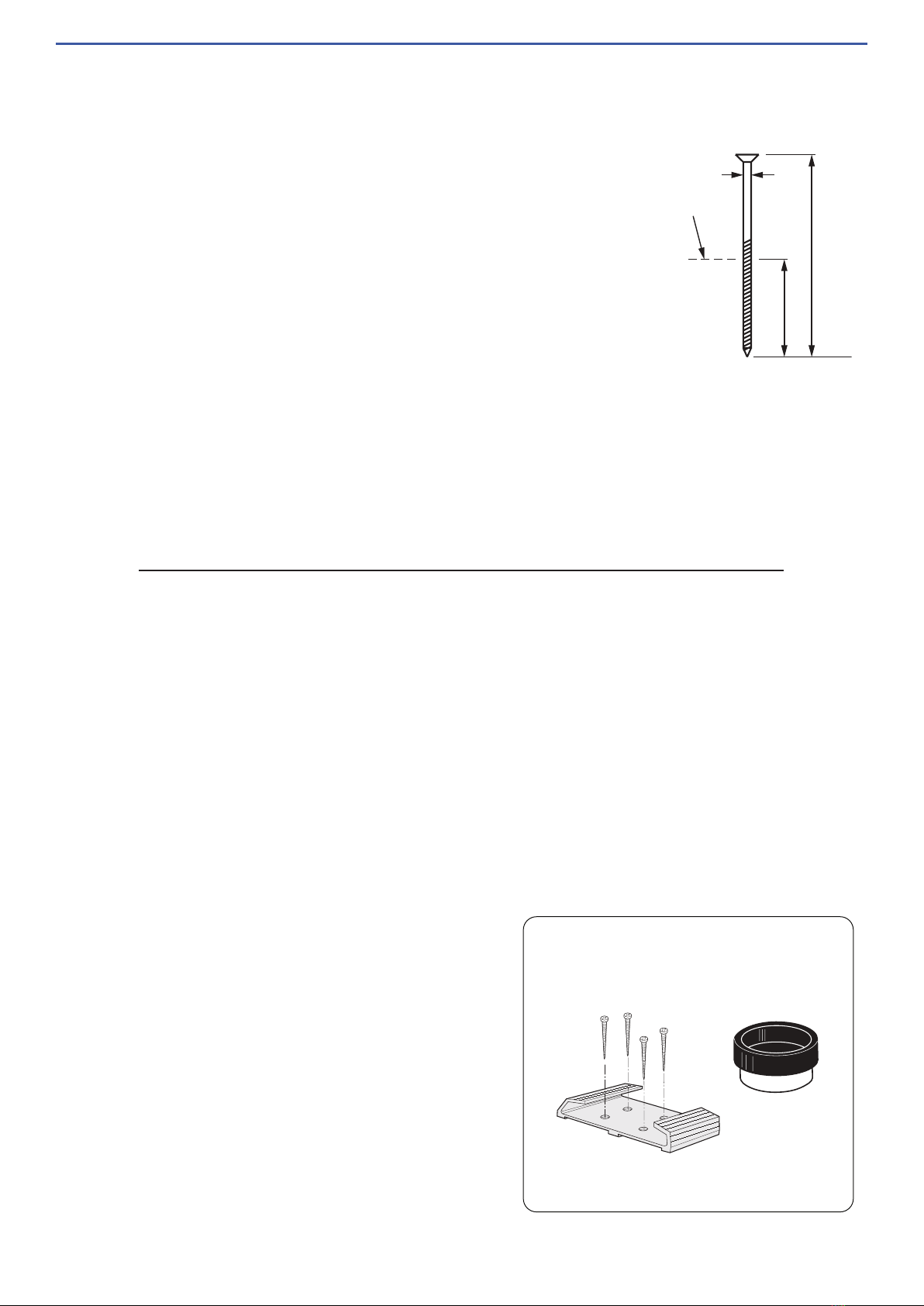

Fixing With Pan Screws:
Determine if using pan screws would be appropriate according
to the quality and strength of the floor material, and the site
risk assessment, taking into account the thickness of floor
surface and mortar bed, the distance to structural concrete
slab, and the impact of the penetration of waterproofing
membrane.
Ensure the pan screws can be fixed onto floor material with
adequate structural integrity and strength. If pan screws
are not long enough or they cannot be fixed onto floor
with adequate strength, use floor mounting bracket with
appropriate fixings. (Floor mounting bracket IFO98015 sold
separately.)
Proceed to Installing the Pan next page.
48
105
Base level
of pan
4
Pan Screw
Fixing With Floor Mounting Bracket:
(IFO98015 Floor Mounting Bracket sold separately.)
Carry out a site risk assessment taking into account the quality, strength and the thickness
of mortar bed, the distance to structural concrete slab, and the impact of the penetration of
waterproofing membrane. Determine which one of the following installation methods would
be suitable, according to the site risk assessment.
Bracket Method 1: Fixing With Screws
Bracket is fixed onto floor, by first drilling into floor
then fixing with appropriate screws. It must be
ensured that the fixing screws can be fixed onto
floor material with adequate structural integrity and
strength. (Refer to IFO98015 Instructions for more
details.)
