Enersound R-100 User manual
R-100
FM Programmable Digital Receiver
User Manual
2
Para descargar este manual en español, ingrese a: www.enersound.com/manuals
Para baixar este manual em português, acesse: www.enersound.com/manuals
INDEX
About This Manual...........................3
Safety Warnings................................4
Control Panel....................................7
Inserting Batteries.............................9
Selecting Carrying Option...............10
Care..................................................13
Using the Receiver...........................14
Turning the Receiver On and Off…14
Changing the Channel.....................15
Setting the Volume...........................15
Frequency Chart ..............................16
Locking/Unlocking the Receiver......16
Warranty......................................17-19
Technical Data..................................20
Disposal............................................20
3
NOTE: To turn the receiver on and off, gently press and hold the
POWER button for approx. 2 seconds.
About this Manual
Read this user manual carefully before using your receiver. Use the
product only as described to avoid accidental injury or damage. Also, read
safety warnings carefully.
Keep this manual for future reference. If you give this product to someone
else, remember to include this manual.
Symbols in this Manual
This symbol warns of hazards that may cause injury.
The word HAZARD indicates a life-threatening risk or the
possibility that a significant personal injury may occur.
The word CAUTION represents the risk of slight injury or damage.
This is how supplementary information is shown.
4
Safety Warnings
Intended Use
This receiver is designed for private use.
HAZARD to Children
•Batteries can be highly dangerous if swallowed. Therefore, keep
batteries and the receiver out of the reach of children. If a battery has
been swallowed, seek medical assistance immediately.
•Keep the packaging out of children’s reach as it may cause suffocation!
HAZARD! Neck Strap
Be careful when using the neck strap. Under unfavorable circumstances
you could strangle yourself with the neck strap.
Never allow children to play with the neck strap. They could strangle
themselves.
5
WARNING! Damage to your Health
•Using headphones at a loud volume or over a prolonged period of
time can lead to permanent hearing damage.
•Batteries should not be recharged or reactivated by other means, taken
apart, thrown into fire or short-circuited. There is a risk of explosion.
Rechargeable batteries should only be charged outside the receiver
and following instructions from the battery manufacturer using an
approved charger.
CAUTION! Damages
•Protect the receiver against moisture, water, dust, extreme
temperatures or direct sunlight.
•Never let the receiver fall, and do not expose it to a strong impact.
•Do not use the receiver or its accessories if there are any visible signs
of damage.
•Remove batteries from the receiver if they are dead or if you do not
intend to use the receiver for a prolonged period of time. This will
6
avoid damage that may be caused by leakage.
•Never take the receiver or its accessories apart. Have repairs carried
out by the manufacturer only.
•Do not use caustic cleaning products, benzene, solvents, etc. for
cleaning. These substances may damage the surface of the case.
•Always replace all batteries at once and do not mix different battery
types, brands or batteries with different capacities.
HAZARD! Pacemaker Safety
•Before using this receiver with a pacemaker or another medical device,
consult your physician or the manufacturer of your pacemaker or
another medical device.
•If you have a pacemaker or another medical device, make sure that you
are using this receiver in accordance with safety guidelines established
by your physician or the pacemaker manufacturer.
7

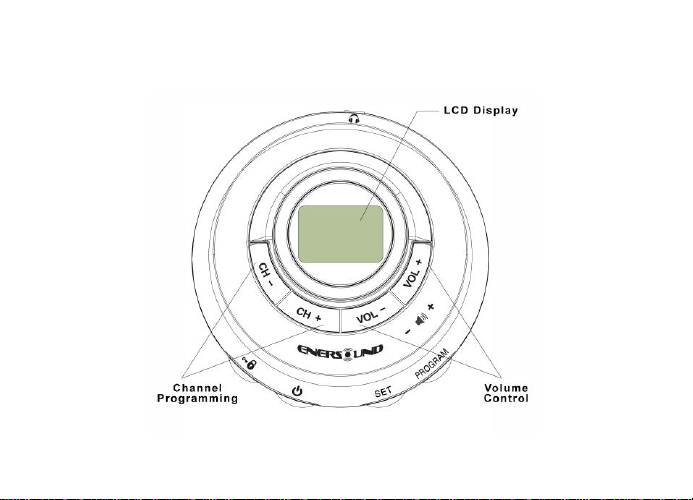

Front View
8
Side View
9
Inserting Batteries
1. Turn the battery cover on the back side of the receiver counterclockwise
as far as it will go (follow the OPEN arrow).
2. Remove the battery cover. If necessary, tap the receiver against the palm
of your hand to loosen the cover.
3. Insert batteries as indicated on the base of the battery compartment.
Make sure that the polarity is correct (+/-).
4. Replace the battery cover and turn it clockwise until it locks.
Information about Replacing Batteries
•Replace batteries when the battery symbol in the display is flashing. Any
program saved will remain stored.
•If the belt clip is attached to the receiver, you will have to unscrew it
before opening the battery cover.
•For the best performance, use AAA alkaline batteries. You may also use
AAA NiMH rechargeable batteries. Do not use any other type of
batteries besides Alkaline or NiMH.
10

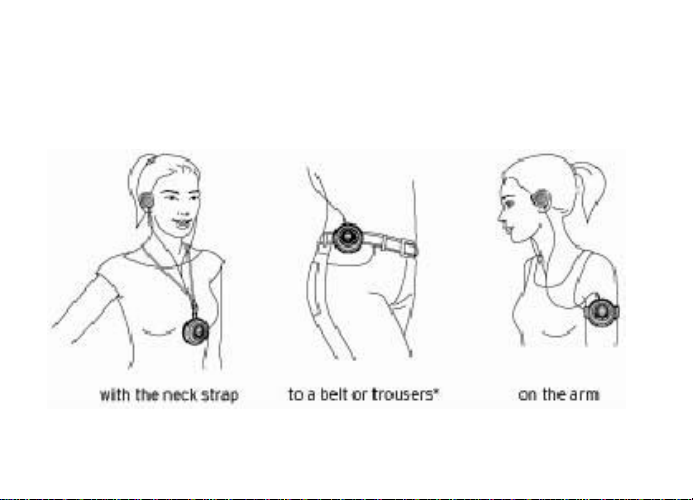

Selecting Carrying Option
Carrying Options at a Glance
