Introduction 1

Section 1: Introduction

The FF2000v4 rev. 3 is an electronic module that allows to connect the Bettis electrical actuator

XTE3000 to a Foundation™ Fieldbus serial communication line. The module has its microprocessor and

it is controlled by a program stored internally, it works as a pure bus interface and does not affect the

actuator control integrity.

It is installed inside the actuator housing and the communication interface is powered directly from

the eldbus. The data lines are fully isolated from the actuator electronics.

January 2022

Installation, Operation and Maintenance Manual

MDE 255 Rev. 0

Operation and Storage

Section 2: Operation and Storage

The module is designed to work and to be stored in the same environment of the actuator.

Installation, Operation and Maintenance Manual

MDE 255 Rev. 0 January 2022

Communication Features 3

Section 3: Communication Features

Communication protocol: Foundation™ Fieldbus

Electrical interface: IEC 61158-2, 2 wire communication

Bus type: H1 communication bus, Voltage Mode signalling

Data rate: 31.25 kbit/second

Transmission medium: 18 AWG shielded, twisted pair as specied in the IEC / ISA

Physical Layer Standard, Clause 22.7

Topology: Bus or tree structure

Device number: 32 devices per segment

Addressing capability: Up to 240

Bus length: 1,900 m per segment

Electrical power: Bus powered

Max. voltage 32 V

Min. voltage 9 V

Rated current In= 19 mA

Fault current Imax = 24 mA

Device capacitance: < 5 nF

Device inductance: Negligible

Temperature: -40 °C, +85 °C

EMC protections: Burst. EN 61000-4-4:1995 + A1:2001 + A2:2001

Electromagnetic compatibility (EMC)

Part 4 - 4: Testing and measuring techniques

Electrical fast transient/burst immunity test

Surge. EN 61000-4-5:1995 + A1:2001

Electromagnetic compatibility (EMC)

Part 4 - 5: Testing and measuring techniques -

Surge immunity test

Device type: Link Master or Basic Device

Field diagnostic: FD_VER 1.0

Device replacement: COMPATIBILTY_REV. 2

ITK version: 6.1.1

January 2022

Installation, Operation and Maintenance Manual

MDE 255 Rev. 0

FF2000v4 rev. 3 Module4

Section 4: FF2000v4 rev. 3 Module

The module consists in a single PCB that is installed inside the actuator housing. It is connected to the

XTE3000 base card via strip connector.

The internal wiring connects the Foundation™ Fieldbus data lines to the actuator terminal board.

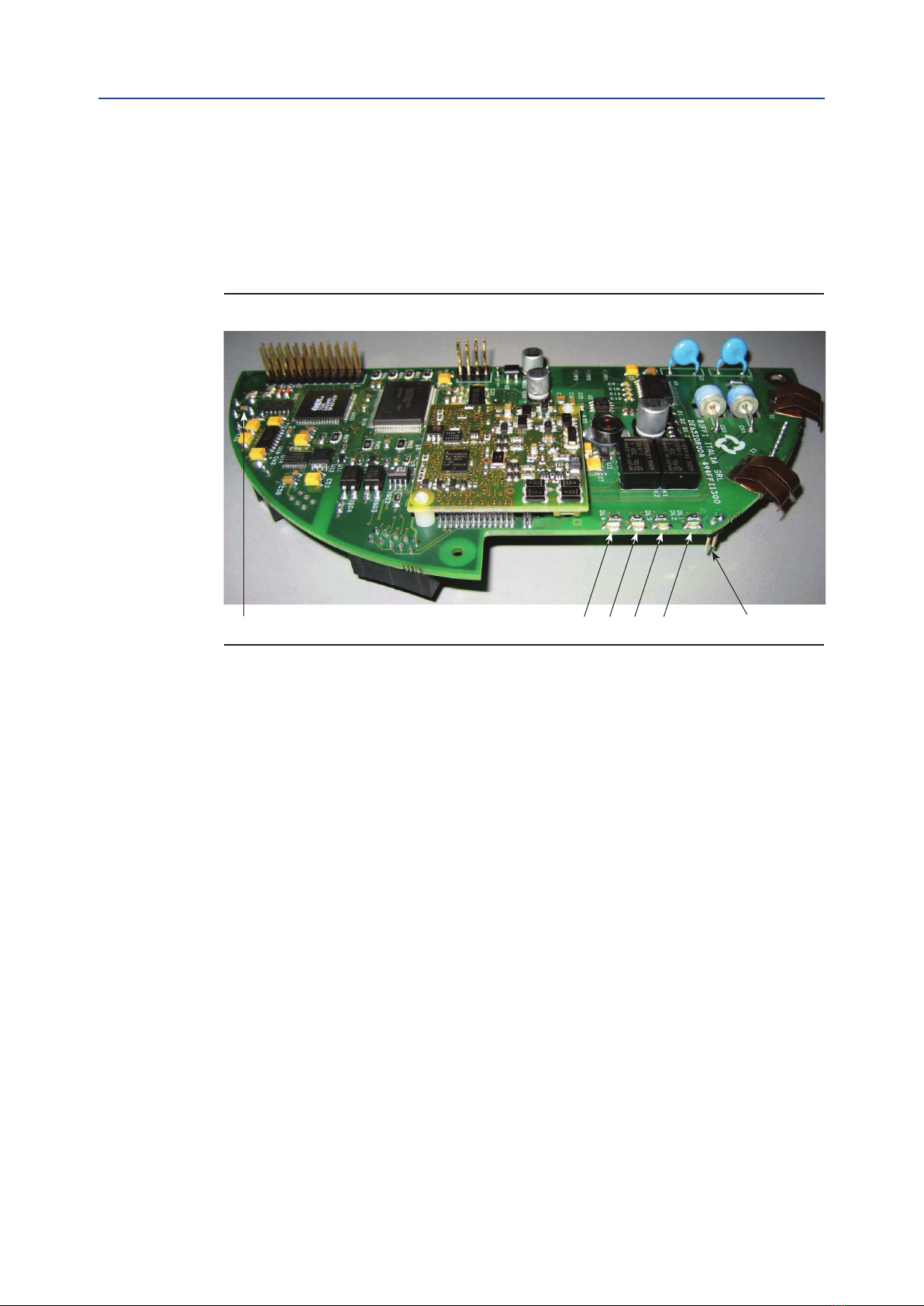

Figure 1

4.1 On Board Indications

Four LEDs are mounted on the FF2000v4 rev. 3 to give the following indications for the eld service.

LEDs indicators are active only when jumper JP1 is closed. There is also the SW1 switch button that

performs a reset of the FF2000v4 rev. 3 card.

DL4 (red) Base comm: BLINK or ON: when the communication between the base card

and the interface is not working properly.

OFF: when the communication between the base card and the

interface is working properly.

DL3 (red) Data area empty: ON: when Data Area on interface card is not yet loaded.

BLINK: when Data Area is being read from base card.

OFF: when Data Area is completely loaded.

DL2 (green) FF module comm: BLINK: The communication between the interface card and FF bus

module is working properly.

OFF or ON: The communication between the interface card

and FF bus module is not working properly.

DL1 (green) Power: ON: when the FF2000v4 rev. 3 is correctly powered from the main

power supply.

OFF: when the FF2000v4 rev. 3 is not powered from the main

power supply.

SW1 DL4 DL3 DL2 DL1 JP1

Installation, Operation and Maintenance Manual

MDE 255 Rev. 0 January 2022

Foundation™ Fieldbus Overview 5

Section 5: Foundation™ Fieldbus Overview

Foundation Fieldbus is an open networking standard which provides an open specication for both the

control application and the communication on the bus.

Foundation Fieldbus communication protocol is an industry proven international standard

(IEC 61158-2) designed for use in the process industry and also complies with the ISA-SP50

recommendation for eldbus devices.

The major benets in adopting this standard include:

• Multi-drop capability with up to 32 devices per segment;

• Extended trunk length using repeaters which increase the total bus length and the number

of devices in the network;

• Power and communications over the same shielded twisted pair network that allow to know

the physical status of XTE3000 actuator even if it is without actuator mains power;

• Distribution of the control into the eld devices reducing the amount of control equipment

in the plant.

This last item is one of the advantages of Foundation Fieldbus, which uses standards ‘Function Blocks’

and Device Descriptions to implement control strategy. Function Blocks are standardized automation

functions with dened behaviour used to represent different type of functions, such as discrete input

(DI), discrete output (DO), analog input (AI), analog output (AO), Proportional / Integral / Derivative

(PID), etc.

Furthermore, every Foundation Fieldbus device has a Resource Block and at least a Transducer Block.

Once the hardware of a Foundation Fieldbus device is congured, eldbus communication is used to

congure the transducer block parameters. The desired transducer functionality is associated with a

specic function block via a Channel.

The host system is used to link the function blocks together to create a control application that can

be downloaded to the devices in the segment.

More information about Foundation Fieldbus are in the documents:

• Foundation Fieldbus – Technical Overview

• Foundation Fieldbus – Wiring and installation 31.25 kbit/second, Voltage Mode,

Wire Medium Application Guide

Available at the website http://www.eldbus.org

January 2022

Installation, Operation and Maintenance Manual

MDE 255 Rev. 0

Foundation™ Fieldbus Overview6

Section 5: Foundation™ Fieldbus Overview

5.1 FoundationtM Fieldbus Technology

Foundation Fieldbus technology consists of:

• Physical Layer

• Communication “Stack”

• User Application

The Open System Interconnect (OSI) layered communication model is used to model these

components as shown in Figure 2:

Figure 2

The Physical Layer and the Data Link Layer correspond respectively to OSI layer 1 and layer 2.

The Communication Stack is comprised of OSI layers 2 and 7; the eldbus protocol does not use OSI

layers 3, 4, 5, and 6.

The User Application is not dened by the OSI model. Fieldbus Foundation has specied a User

Application model that Bettis has applied for FF2000v4 rev. 3 interface.

5.1.1 Physical Layer

FF2000v4 rev. 3 implements the Physical layer standards H1 that Foundation Fieldbus denes for

eld device connections. The bus communication is xed at 31.25 kbit/second, the devices can be

powered directly from the eldbus and operate on wiring previously used for 4 - 20 mA devices.

FF2000v4 rev. 3 module is a bus powered interface: it will continue to communicate to the other

devices in the segment even if the actuator is powered off.

H1 eldbus also supports intrinsically safe (I.S.) applications: in this case, the appropriate barriers will

be used.

Bettis electrical actuators XTE3000 are certied explosion proof and do not require an intrinsically

safe network. To preserve hazardous area protection armored cables or conduits will be used.

APPLICATION LAYER 7 APPLICATION LAYER

COMMUNICATION

"STACK"

PRESENTATION LAYER 6

SESSION LAYER 5

TRANSPORT LAYER 4

NETWORK LAYER 3

DATA LINK LAYER 2 DATA LINK LAYER

PHYSICAL LAYER 1 PHYSICAL LAYER PHYSICAL LAYER

OSI model Foundation Fieldbus model

Foundation Fieldbus

USER

APPLICATION

USER

APPLICATION

Other manuals for Bettis XTE3000

Table of contents

Other Emerson Controllers manuals

Emerson

Emerson Fisher 912N Series User manual

Emerson

Emerson FieldQ Series Operational manual

Emerson

Emerson Unidrive SPM User manual

Emerson

Emerson Fisher T205VB Series User manual

Emerson

Emerson Fisher 1078 User manual

Emerson

Emerson FISHER SR8 User manual

Emerson

Emerson 1301G User manual

Emerson

Emerson Double-Acting Series Installation instructions

Emerson

Emerson F02/EPI2 User manual

Emerson

Emerson unidrive m300 User manual

Emerson

Emerson FloBoss S600+ User manual

Emerson

Emerson KEYSTONE FIGURE 738 Manual

Emerson

Emerson KEYSTONE FIGURE 79U Manual

Emerson

Emerson Fisher 4195KA User manual

Emerson

Emerson Dixell WING XW220L Wiring diagram

Emerson

Emerson Fisher HSRL Series User manual

Emerson

Emerson Dixell XR40CX Wiring diagram

Emerson

Emerson Unidrive HS30 User manual

Emerson

Emerson Bettis RP4AF User manual

Emerson

Emerson Unidrive M101 User manual

Emerson

Emerson TESCOM WegaMed Compact Series User manual

Emerson

Emerson Fisher FIELDVUE DVC6005 Series User manual

Emerson

Emerson Dixell XRi77CX Wiring diagram

Emerson

Emerson FISHER 657NS User manual

Popular Controllers manuals by other brands

Digiplex

Digiplex DGP-848 Programming guide

YASKAWA

YASKAWA SGM series user manual

Sinope

Sinope Calypso RM3500ZB installation guide

Isimet

Isimet DLA Series Style 2 Installation, Operations, Start-up and Maintenance Instructions

LSIS

LSIS sv-ip5a user manual

Rockwell Automation

Rockwell Automation 1769-L31 installation instructions

Airflow

Airflow Uno hab Installation and operating instructions

ABB

ABB ACS580-01 drives Hardware manual

Panasonic

Panasonic GM1 Series Reference manual

AutoAqua

AutoAqua Smart ATO micro SATO-120P manual

Panasonic

Panasonic FP? Positioning Unit RTEX Technical manual

Samson

Samson Type 5824 Mounting and operating instructions

Alpha IP

Alpha IP MIOB 21001 manual

Siemens

Siemens OpenAir GMA 1 Series Mounting instructions

Surecom

Surecom SR-629 user manual

Fishman

Fishman TriplePlay installation guide

Regulus

Regulus SRS1 T Installation and operation manual

3M MicroTouch EX113 reference guide
