Elo TouchSystems 1939L User manual

Touchmonitor User Guide

1939L 19” LCD Rear-Mount Touchmonitor

EloTouch Solutions

19” LCD Rear-Mount

Touchmonitor

Optional Power Brick

User Guide

Revision C

P/N E824781

Elo

ouch Solutions

1-800-ELOTOUCH

www.elotouch.com

All Rights

Reserved.

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language or computerlanguage, in any form or by any means,

including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise

without prior written permission of ELOTouchSolutions.

Disclaimer

The informationin this document is subject to change without notice. ELOTouchSolutions

and its Afffiliates makes no representationsor warranties with respect to the contents

herein, and specificallydisclaims any implied warranties of merchantability or fitness

for a particular purpose. ELOTouchSolutionsreserves the right to revise this publication

and to make changes from time to time in the content hereof without obligation of ELO

TouchSolutionsto notify any person of such revisions or changes.

Trademark

Acknowledgments

AccuTouch, (logo), and IntelliTouch (logo), and ELO(logo)are trademarks of ELOTouch

Solutions. Windows is a trademark of the Microsoft group of companies. Other product names

mentioned herein may be trademarks or registered trademarks of their respective companies. ELO

TouchSolutionsclaims no interest in trademarks other than its own.

Table of Contents

Chapter 1

Introduction 1

Product Description 1

Precautions.................................................................1

Chapter 2

Installation and Setup 2

UnpackingYour Touchmonitor ....................................2

Interface Connection .................................................4

Power Requirements..................................................4

Product Overview.......................................................5

Main Unit ..............................................................5

Rear View.............................................................5

Installing the Driver Software......................................6

Installing the Serial Touch Driver (not

applicable

Acoustic Pulse Recognition

and

IntelliTouch

Plus

monitor) ................................................................7

Installing the Serial Touch Driver for Windows

7, Windows Vista, Windows XP, Windows 2000,

Me, 98/95 and NT 4.0 .....................................7

Installing the Serial Touch Driver for

Windows 3.1 and MS-DOS ............................8

Installing the USB Touch Driver............................8

Installing the USB Touch Driver for Windows 7,

Windows Vista, Windows XP, Windows 2000,

Me, 98/95 and NT 4.0 .....................................9

Chapter 3

Operation 10

About Touchmonitor Adjustments...............................10

Rear Panel Controls.............................................11

Remote OSD Buttons(option) ..............................11

Controls and Adjustment............................................12

On Screen Display (OSD) Menu Functions..........12

On Screen Display (OSD) Control Options ..........13

Preset Modes .......................................................14

Power ...................................................................15

IntelliTouch Plus Touch Technology............................16

Gesture Support.........................................................17

Chapter 4

Troubleshooting 18

Solutions to Common Problems.................................18

Appendix A

Native Resolution .......................................................19

Appendix B

Touchmonitor Safety...................................................21

Care and Handling of Your Touchmonitor ...................22

Appendix C

Touchmonitor Specifications.......................................23

19" LCD Touchmonitor (1939L) Dimensions...............24

Regulatory Information 26

Warranty 29

1-1

C H A P T E

NTRODUCTION

Product Description

Your new touchmonitor combines the reliable performanceof touch technology with the latest

advances in (LCD) display design. This combination of features creates a natural flowof

information between a user and your touchmonitor.

This LCD monitor incorporates a 19” color active matrix thin-film-transistor(TFT) to provide

superior display performance. A maximum resolution of SXGA 1280 x 1024 is ideal for

displaying graphics and images. Other outstanding features that enhance this LCD monitor’s

performance are Plug & Play compatibility, and On Screen Display (OSD) controls.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user’s manual to

maximize tF

he life of your unit. SeeAppendix B for more information on touchmonitor safety.

2-2

C H A P T E

INSTALLATIONAND

ETUP

This chapter discusses how to install your LCD touchmonitorand how to install the driver

software.

Unpacking Your Touchmonitor

Check that the following items are present and in good condition:

LCD monitor Video cable USB cable

Elo

QuickStart

Software

Serial cable CD + Quick Install Guide

(Exclude APR & IntelliTouch Plus model)

Power Adapter Brackets

(Exclude NPB model)

2-3

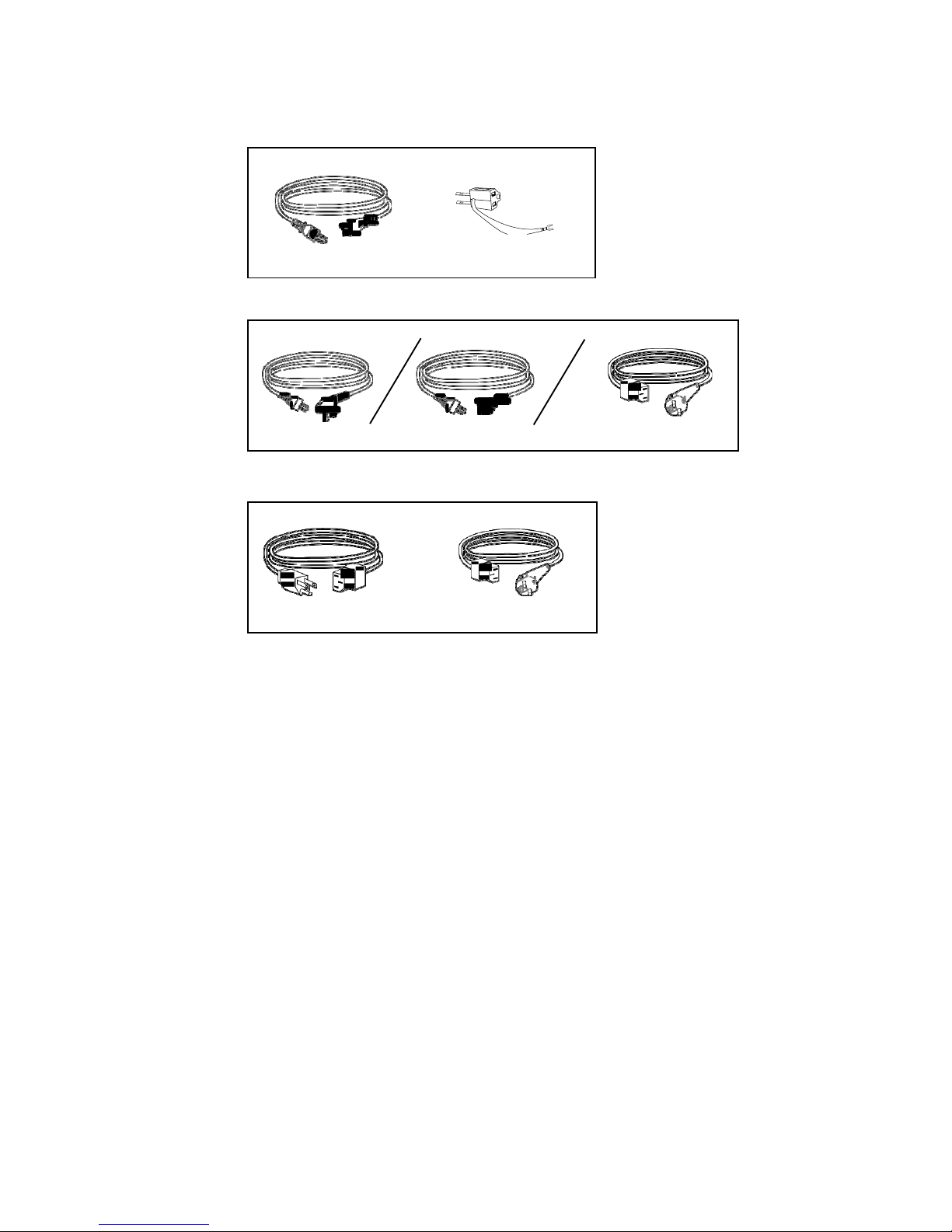

Power cable for Japan models (exclude NPB models)

Japanese/PSE power cable Adapter/Terminal

Power cable forAsia models (exclude NPB models)

and

or or

China/CCC power cable Taiwan/BSMI power cable Korea/KC power cable

Powercable forWorldwide models (exclude NPB models)

USA/UL Power cable Europe/VDE power cable

3-4

Interface Connection

NOTE: Before connecting the cables to your touchmonitor and PC, be sure that the computer and touchmonitor are

turned off.

1 3 2 2

1 3 2

Adapter Video Cable Serial Cable USB Cable OSD Remote Control

Key

(option)

Adapter Video Cable USB Cable OSD Remote Control

Key

(option)

1. Connect one end of the power adapter to the monitor and the other end to the connectorof

the power cord.

2. Connect one end of either the touchscreen serial (RS232) cable or the touchscreen USB

cable (but not both) to the rear side of the computer and the other end to the LCD monitor.

Tighten by turning the two thumb screws clockwise to ensure proper grounding (USB cable

does not have thumb screws).

3. Connect one end of the video cable to the rear side of computer and the other to the LCD

monitor. Tighten by turning the two thumb screws clockwise to ensure proper grounding.

4. Press the power button on the rear panel to turn the monitor power on.

5. Connect one end of OSD remote control key(option) to the monitor.

Power Requirements

NOTE: This monitor operates at 12V 4A

DC Input:

Plug shape: Tuning Fork Type

Plug polarity: (+) ) (-)

Outside dimension: Ø 5.5 ± Ø.1

Inside dimension: Ø 2.1 ± Ø.1

3-5

Product Overview

Main Unit

Rear View

3-6

Installing the Driver Software

ELOTouchSolutions provides driver software that allows your touchmonitor to work with your

computer. Drivers are located on the enclosed CD-ROM for the following operating systems:

• Windows 7

• Windows Vista

• Windows XP

• Windows 2000

• Windows Me

• Windows 98

• Windows 95

• Windows NT 4.0

• Windows 3.1

• MS-DOS

Additional drivers and driver information for other operating systems are available on the

ELOTouch Solutions web site at www.elotouch.com.

The ELO touchmonitor is plug-and-play compliant. Information on the video capabilities of

your touchmonitor is sent to your video display adapter when Windows starts. If Windows

detects your touchmonitor, follow the instructions on the screen to install a generic plug-and-

play monitor.

Refer to the following appropriate section for driver installation instructions.

Depending upon whether you connected the serial communicationcable or the USB

communicationcable, only the serial driveror the USB drivershould be installed.
