Elkay LKAV3021 Operating instructions
SAVE FOR CONSUMER
Single Handle Bar Faucet
Model # LKAV3021
INSTALLATION / OWNER'S MANUAL
Groove joint pliers Wrench Plumber's Putty
Screwdriver Sealant Tape

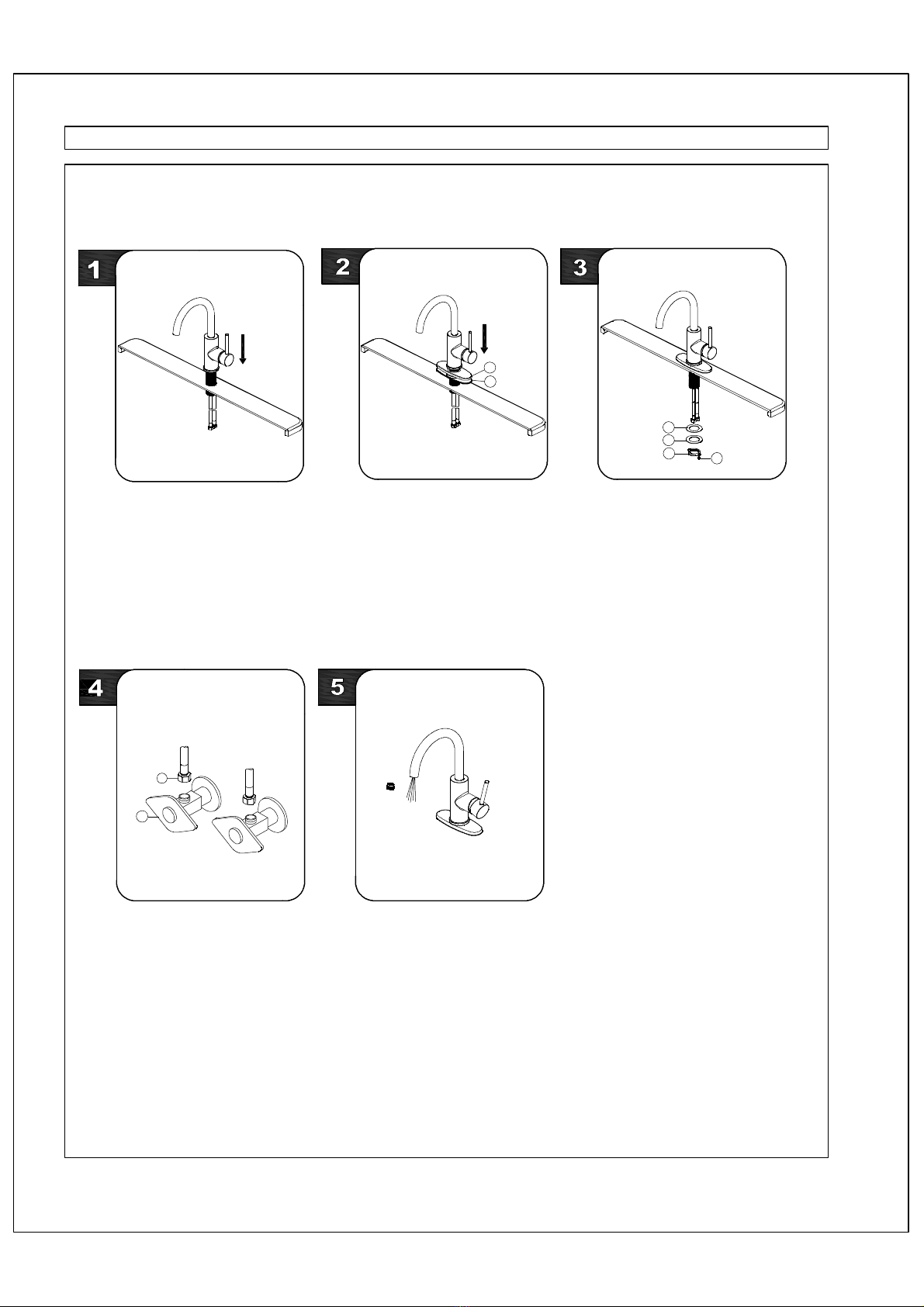

Secure the faucet assembly with the
washers (1&2) and nut (3). Hand tighten
the nut (3) onto the faucet assembly. Lock
the nut (3) into position by tightening the
screws (4) with a phillips screwdriver.
Optional Deck Plate Installation:
Before installation, align the hole in the
gasket (1) and deck plate (2) with the
mounting hole in the sink. Place the
faucet assembly through the deck plate
(2) and mounting hole in the sink until
the faucet assembly sets on top of deck
plate (2).
NOTE: If the sink is uneven, use silicone
under the gasket (1).
Optional Flange Installation:
Before installation, place the faucet
assembly through the mounting hole in
sink.
WARNING: Please carefully read and properly follow the instructions for installation found in this manual.
STEPS:
Important: After installation is
completed, remove aerator. Turn on
hot and cold water supplies. Turn
handle to full open position for one
minute. Check for leaks. Replace
aerator.
Make connections to water lines.
Thread the nut (1) on the supply line onto
the outlet of the water supply valve (2) and
tighten with a wrench.
Do not overtighten.
1
2
1
2
1
2
34

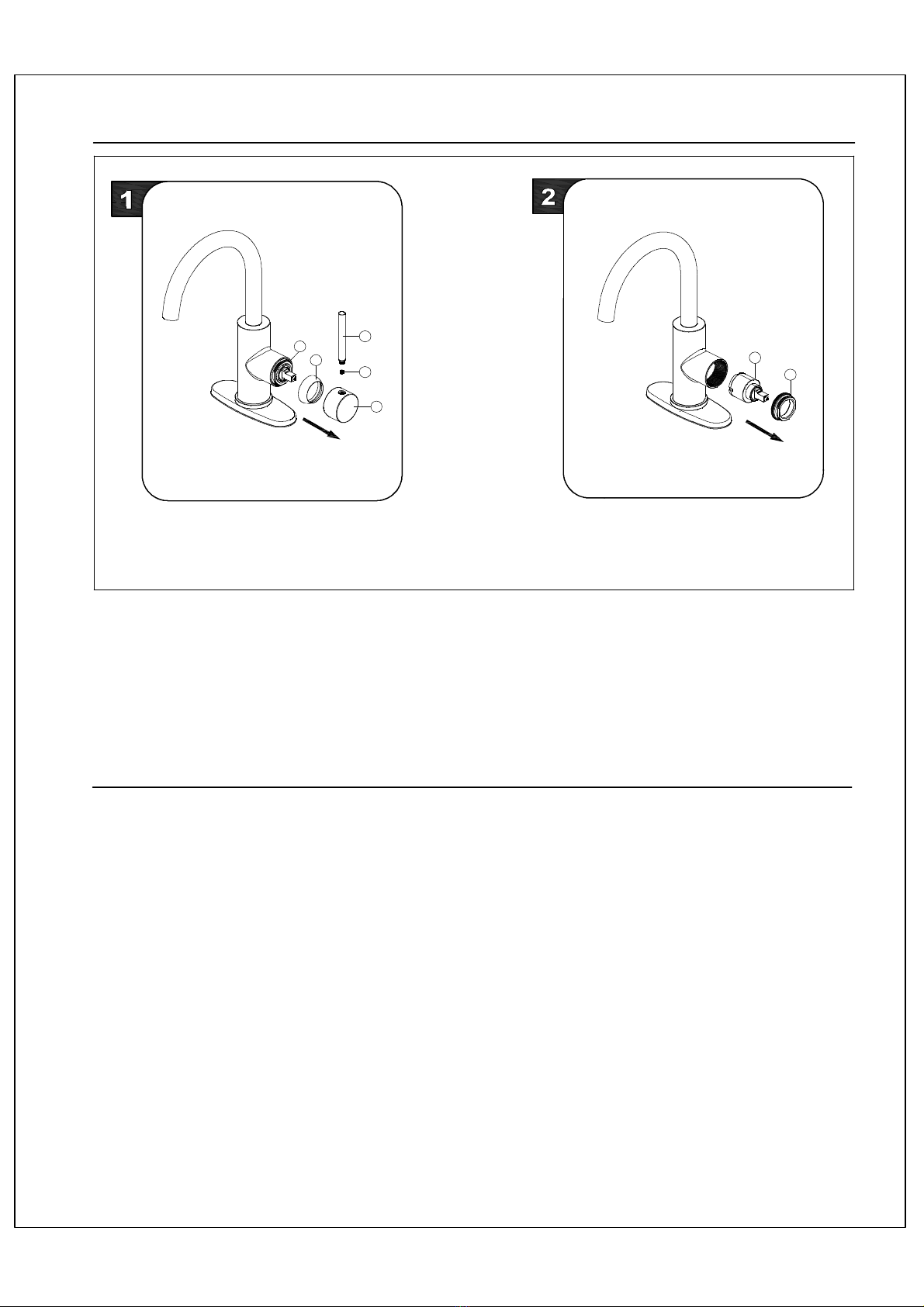

CARTRIDGE REPLACEMENT
Loosen cartridge nut (1) by turning it
counter-clockwise and lift out the cartridge (2). Insert
new cartridge. Reinstall the handle.
Shut off water supply. With valves in "closed" position,
remove handle (1) from handel seat (3). Loosen the set
screw (2) and unscrew the cap (4) from the cartridge
nut (5).
Congratulations on your purchase of an Elkay product.
Although your product is extremely durable, attention should
be given to the care, cleaning and maintenance of this
product. Cleaning agents and abrasives may cause damage,
which may result in oxidation and discoloration.
By following these simple guidelines for proper care and
cleaning, it will give you years of enjoyment:
TO CLEAN: Simply wipe gently with a damp cloth and blot dry
with a soft towel. A common rule of thumb is: when you dry off,
dry off your product.
· Avoid build-up of soap, toothpaste or mineral deposits, as
these tend to have an adverse effect on the appearance of
the product.
· NEVER use cleaning products of any kind on this product -
especially those containing ammonia, bleach or alcohol - or
those with any form of abrasive.
CARE AND CLEANING INSTRUCTIONS
FOR CARE AND MAINTENANCE:
·The water in certain areas of the world can be very caustic -
standing water around the product can cause damage. Be
sure to remove standing water with a dry, soft cloth as soon
as possible.
·For polished brass finishes, as often as once a week, you
can apply a paste wax or special, non-abrasive, brass
coating (DO NOT APPLY POLISH).
·Before applying a protective coating, gently brush the entire
fixture using a soft tooth brush. This will remove any dirt or
deposit build-up.
·These simple steps will add temporary protective coating to
your faucet and extend the life of the finish.
Failure to follow care and cleaning will void your warranty.
For additional information, please visit elkayusa.com .
2
1
1
2
3
4
5
Elkay
elkayusa.com
©2019 Elkay
Model # LKAV3021
Rev. date: 11/2019)

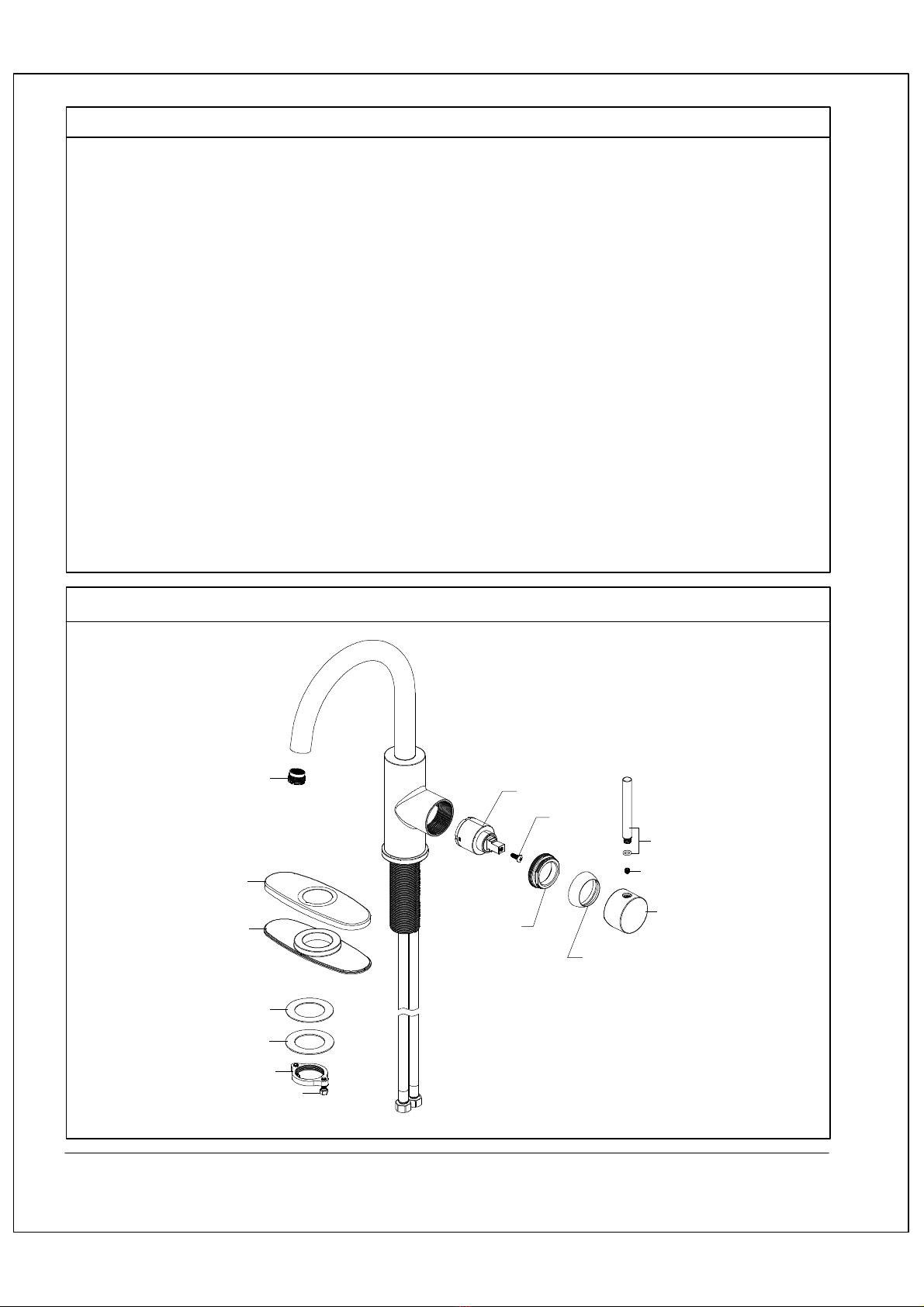

REPLACEMENT PARTS
WARRANTY
ELKAY LIMITED LIFETIME WARRANTY
Elkay warrants that all parts and finishes of the Elkay Residential brand
faucets are free from defects in materials and workmanship for the life of
the product, if purchased after 1996. This warranty covers the
original consumer purchaser of the product only.
If the product should leak or drip during normal use, Elkay will provide,
free of charge, a replacement cartridge. For other defects in material or
workmanship, Elkay will, at its option, supply replacement parts (or if no
longer available a comparable product). Elkay reserves the right to
examine product in question and its installation prior to replacement.
What is not covered:
1. Damage caused by accident, negligence, misuse, abuse, improper
installation or operation or failure to follow care or installation instructions
enclosed with your product.
2. Damage occurring during shipment of the product (claims must be
presented to the carrier).
3. Normal wear and tear.
4. Labor charges, costs of removal and reinstallation, and any damages
to other property.
5. All industrial, commercial and business use whose purchasers are
hereby extended a limited lifetime on mechanical parts and 5 years on
finish.
ELKAY LIMITED LIFETIME WARRANTY
What you must do to obtain warranty service:
Either write to Elkay Manufacturing Company, attention Consumer Care,
1333 Butterfield Road, Suite 20 Downers Grove, Illinois 60515 or call
1-800-223-5529. Please provide date of purchase and installation,
description of nature of the defect, and model number or description of
model and/or component part.
THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ANY
OTHER WARRANTIES, EXPRESSED IMPLIED, ARISING BY LAW
OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE. THIS LIMITED WARRANTY MAY NOT
BE ALTERED, VARIED, OR EXTENDED, EXCEPT BY A WRITTEN
INSTRUMENT EXECUTED BY ELKAY. THE REMEDY OF REPAIR
OR REPLACEMENT AS PROVIDED UNDER THIS LIMITED
WARRANTY IS EXCLUSIVE. IN NO EVENT SHALL THE
MANUFACTURER BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES TO ANY PERSON, WHETHER OR NOT
OCCASIONED BY NEGLIGENCE OF ELKAY, INCLUDING WITHOUT
LIMITATION DAMAGES FOR LOSS OF USE, COSTS PROPERTY
DAMAGE OR OTHER MONETARY LOSS.
Some states do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty
lasts, so the above limitations or exclusions may not apply. This
warranty gives you specific legal rights and you may also have other
rights which vary from state to state.
This warranty covers product installed in the United States and Canada.
P38168 Aerator
P38143 (BK) Deck Plate
P38144 (CR) Deck Plate
P38145 (LS) Deck Plate
P38146 (MB) Deck Plate
P38147 Gasket
P38165 Plastic Washer
P35311 Metal Washer
P38166 Nut
P29260 Screw
P38149 Cartridge
RP70548
Cartridge Nut
RP80132* Cap
P01315* Handle & O-ring
P38111 Set Screw
P01314* Handle Seat
P36163 Screw
