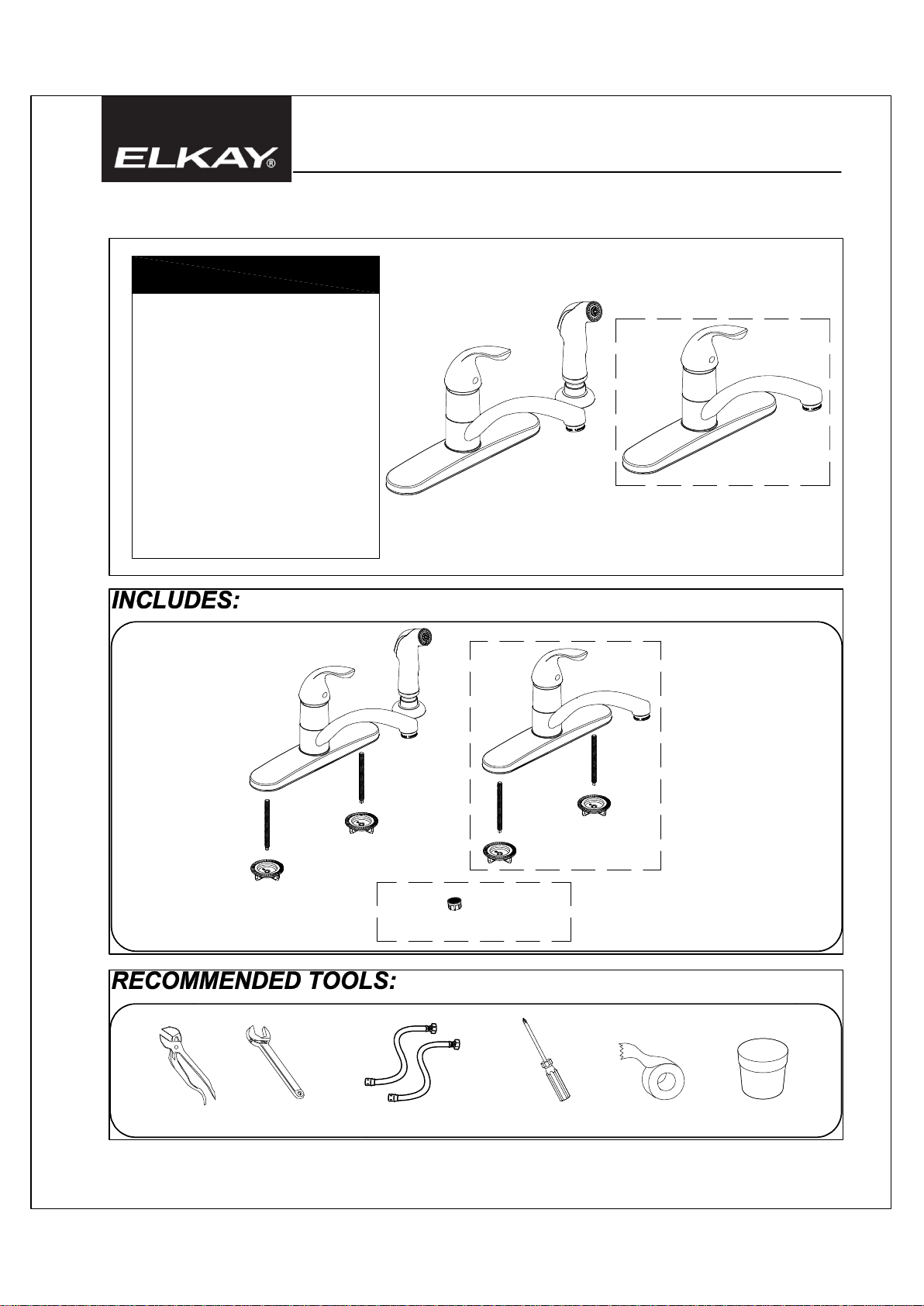

Elkay LK1001 Operating instructions

Screwdriver

SAVE FOR CONSUMER

OPTIONAL 2.2GPM AERATOR

Groove joint pliers (2) 1/2 in Supply Lines

Wrench Sealant Tape Plumber's Putty

INSTALLATION / OWNER'S MANUAL

You choose the flow rate!

This faucet ships with an

eco-friendly 1.5GPM flow regulator

installed.

If you desire higher flow rate, a

2.2GPM flow regulator has also

been included in the box.

Switching the flow regulator is

simple! See the "Flow Regulator

Replacement" section for details.

Important!

LK1001

Single Handle Kitchen Faucet

Model # LK1000, LK1001

LK1000

WARNING: Please carefully read and properly follow the instructions for installation found in this manual.

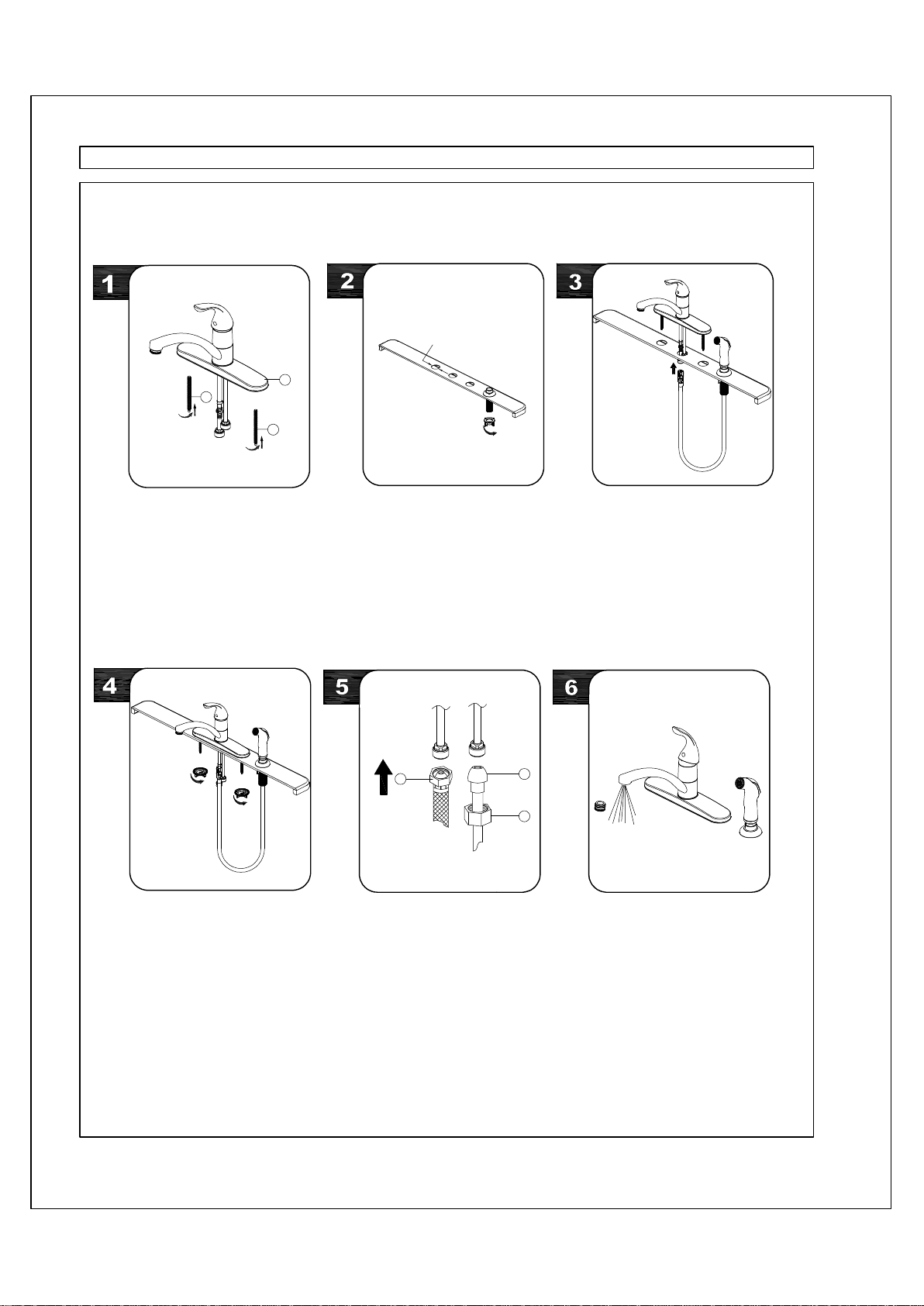

Shut off water supplies. Screw bolt

(1) onto the escutcheon (2). If your

model has a spray, proceed to step

2. If your model does not have a

spray, skip to step 4.

Place faucet in position on sink. From

under sink, screw mounting nuts onto

faucet. Tighten mounting nuts. Hand

tighten only.

STEPS:

For models with spray:

Insert spray hose down through the

support and sink. Attach the spray hose to

the connection beneath the faucet by

aligning the tabs on quick connector. Push

quick connector housing firmly upward

and snap onto receiving tube tab. Pull

down moderately to ensure connection

has been made.

If it is necessary to remove the quick

connector, squeeze tabs on hose between

index finger and thumb, then pull down to

disconnect.

Make connections to water lines.

Use 1/2" I.P.S. faucet connections (1)

or use coupling nuts (3) with 3/8"

O.D.ball-nose riser(2).

Use wrenches to tighten connections.

Do not overtighten.

Important: After installation is completed,

remove aerator assembly. Turn on hot

and cold water supplies. Turn handle to

full open position for one minute. Check

for leaks. Replace aerator.

For models with spray ( fits 4 - hole

sinks ): Insert spray support through

far right - hand hole on sink. Screw

hold - down nut onto shank and hand

tighten.

4-Ø1-3/8" (Ø35mm)

FOR CARE AND MAINTENANCE:

·The water in certain areas of the world can be very caustic -

standing water around the product can cause damage. Be

sure to remove standing water with a dry, soft cloth as soon

as possible.

·For polished brass finishes, as often as once a week, you

can apply a paste wax or special, non-abrasive, brass

coating (DO NOT APPLY POLISH).

·Before applying a protective coating, gently brush the entire

fixture using a soft tooth brush. This will remove any dirt or

deposit build-up.

·These simple steps will add temporary protective coating to

your faucet and extend the life of the finish.

Failure to follow care and cleaning will void your warranty.

For additional information, please visit elkayusa.com.

CARE AND CLEANING INSTRUCTIONS

FLOW REGULATOR REPLACEMENT

This faucet ships with a 1.5GPM aerator installed. An

optional 2.2GPM aerator is also included in the box.

To switch the flow rate of the faucet:

1. Disassemble aerator assembly by separating the

aerator shell (1), aerator (2) and washer (3). Remove

existing aerator (2) and install the new aerator.

(2.2GPM=Red, 1.5GPM=Green)

2. Reinstall the aerator assembly.

Congratulations on your purchase of an Elkay product.

Although your product is extremely durable, attention should

be given to the care, cleaning and maintenance of this

product. Cleaning agents and abrasives may cause damage,

which may result in oxidation and discoloration.

By following these simple guidelines for proper care and

cleaning, it will give you years of enjoyment:

TO CLEAN: Simply wipe gently with a damp cloth and blot dry

with a soft towel. A common rule of thumb is: when you dry off,

dry off your product.

·Avoid build-up of soap, toothpaste or mineral deposits, as

these tend to have an adverse effect on the appearance of

the product.

·NEVER use cleaning products of any kind on this product -

especially those containing ammonia, bleach or alcohol - or

those with any form of abrasive.

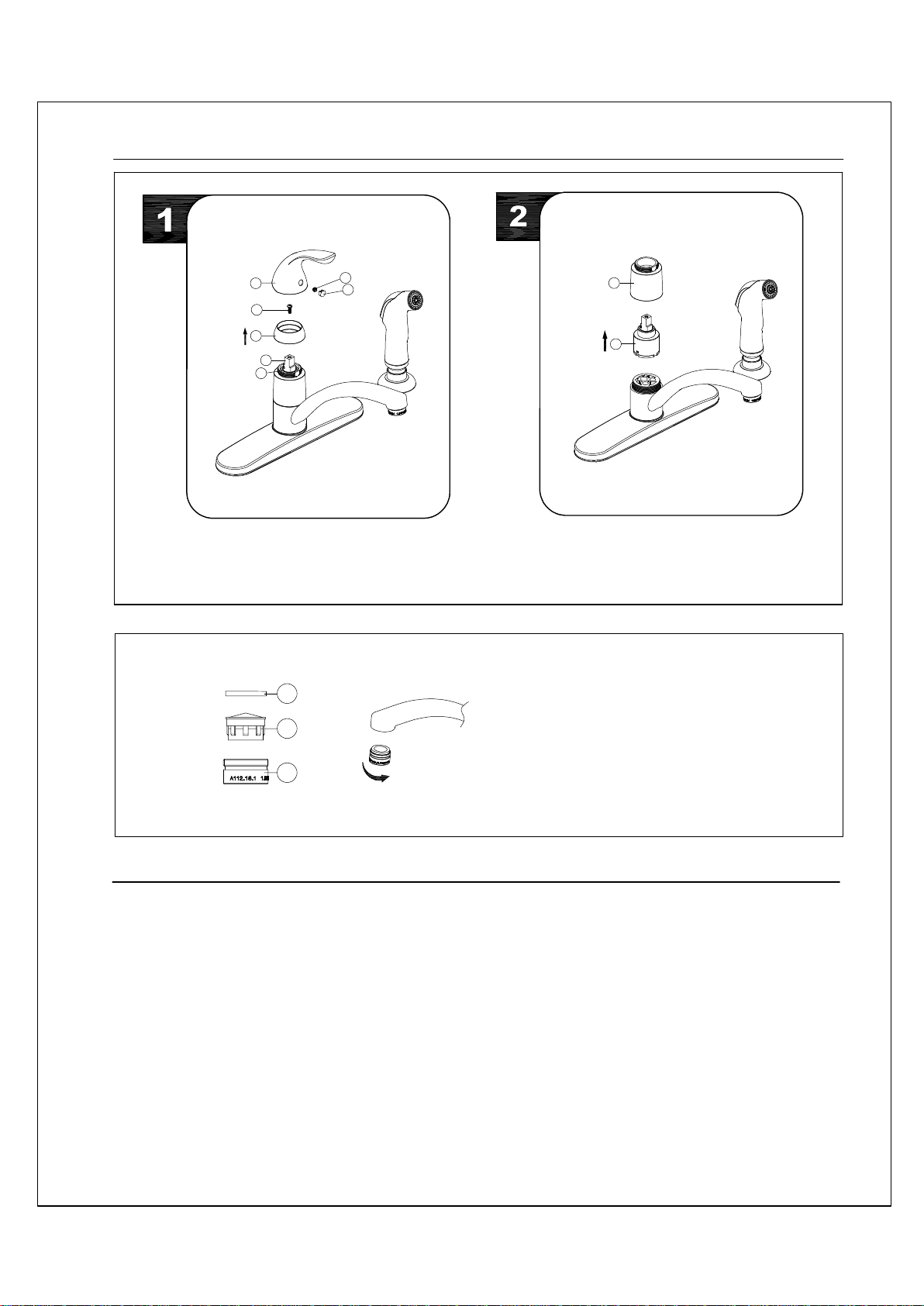

Shut off water supply.Remove set screw plug (1). With

valves in "closed" position, unscrew set screw (2) and

remove handle (3) from valve stem (4). Loosen the

screw (7) from valve stem (4). Loosen the cap (5) from

the sleeve (6).

Loosen sleeve (1) by turning it counter-clockwise and lift

out the cartridge (2). Remove the old cartridge and

replace with the new cartridge. Replace sleeve and

tighten. Reinstall the handle.

CARTRIDGE REPLACEMENT

THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ANY

OTHER WARRANTIES, EXPRESSED IMPLIED, ARISING BY LAW

OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY

IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR

A PARTICULAR PURPOSE. THIS LIMITED WARRANTY MAY NOT

BE ALTERED, VARIED, OR EXTENDED, EXCEPT BY A WRITTEN

INSTRUMENT EXECUTED BY ELKAY. THE REMEDY OF REPAIR

OR REPLACEMENT AS PROVIDED UNDER THIS LIMITED

WARRANTY IS EXCLUSIVE. IN NO EVENT SHALL THE

MANUFACTURER BE LIABLE FOR ANY CONSEQUENTIAL OR

INCIDENTAL DAMAGES TO ANY PERSON, WHETHER OR NOT

OCCASIONED BY NEGLIGENCE OF ELKAY, INCLUDING WITHOUT

LIMITATION DAMAGES FOR LOSS OF USE, COSTS PROPERTY

DAMAGE OR OTHER MONETARY LOSS.

Some states do not allow the exclusion or limitation of incidental or

consequential damages or limitations on how long an implied warranty

lasts, so the above limitations or exclusions may not apply. This

warranty gives you specific legal rights and you may also have other

rights which vary from state to state.

This warranty covers product installed in the United States and Canada.

What is not covered:

1. Damage caused by accident, negligence, misuse, abuse, improper

installation or operation or failure to follow care or installation instructions

enclosed with your product.

2. Damage occurring during shipment of the product (claims must be

presented to the carrier).

3. Normal wear and tear.

4. Labor charges, costs of removal and reinstallation, and any damages

to other property.

5. All industrial, commercial and business use whose purchasers are

hereby extended a limited lifetime on mechanical parts and 5 years on

finish.

P05139* 2.2GPM

Aerator (Red)

P36159 Mounting Nut

P05138* 1.5GPM

Aerator (Green)

LK1001 Spout Base

Elkay

elkayusa.com

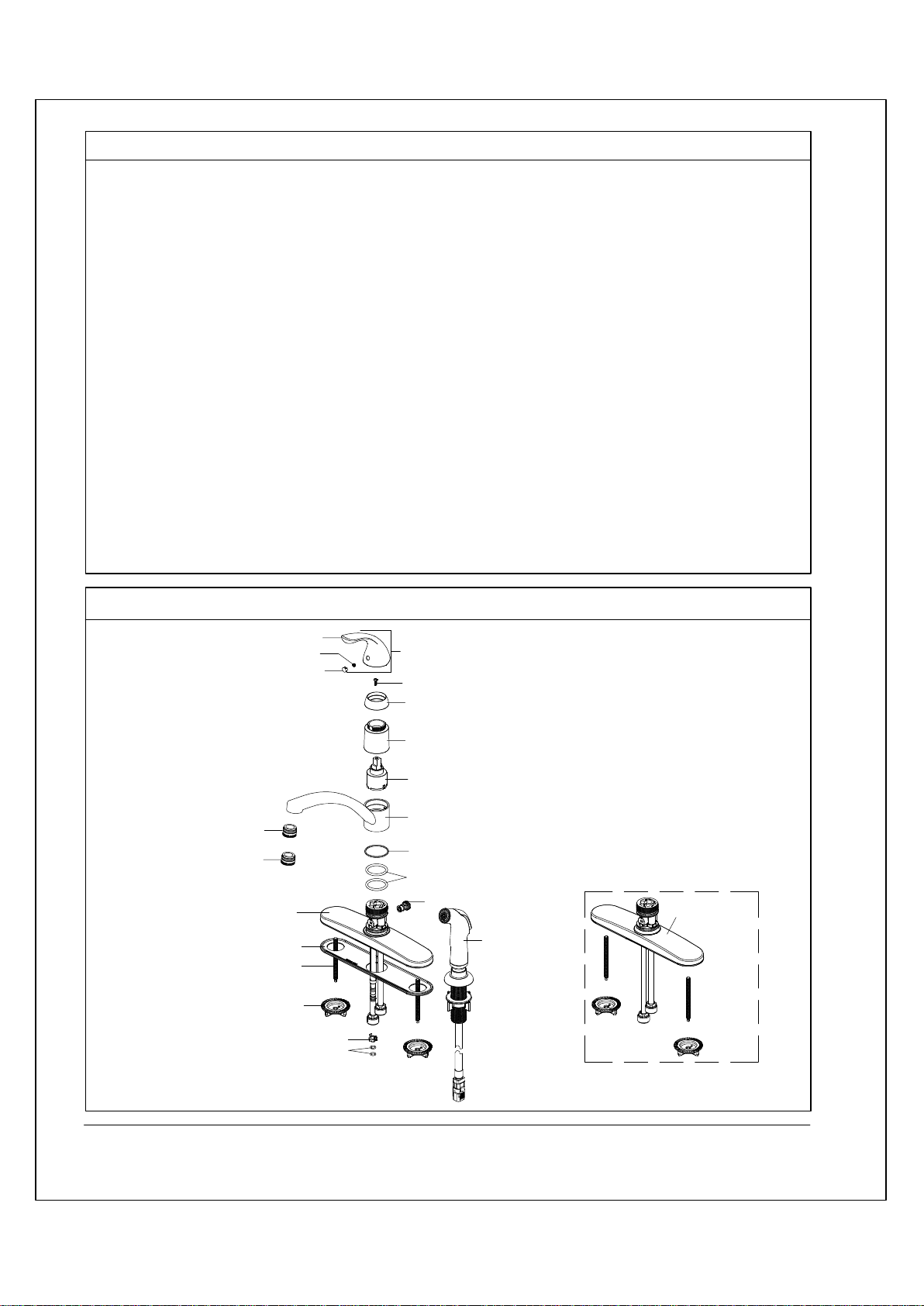

REPLACEMENT PARTS

Model # LK1000, LK1001

P99344 (Rev. date: 07/2011)

P45746* Spray

P37142 O-ring

P46466 Block

P36158 Bolt

RP70330 Gasket

P37141 O-ring

P35298 Washer

P28137 Diverter

RP33042* Spout

For LK1000

LK1000 Spout Base

P01296* Handle

P38111 Set Screw

P38112 Set Screw Plug

RP80004* Cap

P29247 Cartridge

RP70309* Sleeve

P36163 Screw

P01297* Handle Kit

ELKAY LIMITED LIFETIME WARRANTY

Elkay warrants that all parts and finishes of the Elkay Residential brand

faucets are free from defects in materials and workmanship for the life of

the product, if purchased after 1996. This warranty covers the

original consumer purchaser of the product only.

If the product should leak or drip during normal use, Elkay will provide,

free of charge, a replacement cartridge. For other defects in material or

workmanship, Elkay will, at its option, supply replacement parts (or if no

longer available a comparable product). Elkay reserves the right to

examine product in question and its installation prior to replacement.

WARRANTY

What you must do to obtain warranty service:

Either write to Elkay, attention Customer Care, 2222 Camden Court,

Oak Brook, IL 60523 or call 1-800-223-5529. Please provide date of

purchase and installation, description of nature of the defect, and

model number or description of model and/or component part.

ELKAY LIMITED LIFETIME WARRANTY
