Elkay BPSR23171 User manual

Model BPSR23171 Illustrated

1-3/4" R

17"

1-3/4" R

10-1/2"

12"

1-1/4"

9-1/4"

9-1/4" 23"

6-1/8"

GENERAL

Fine quality sink bowl seamlessly formed of #20 gauge, type

304 (18-8) nickel bearing stainless steel. Self-rimming.

DESIGN FEATURES

Bowl Depth: 6-1/8".

Coved Corners: 1-3/4" vertical and horizontal radius.

Bowl and Faucet Deck Recess: 3/16" below outside edge of

sink.

Finish: Exposed surfaces are polished to a lustrous highlighted

satin finish.

Underside: Fully undercoated to dampen sound and prevent

condensation.

OTHER

Drain Opening: 2".

NOTE: Unless otherwise specified, sink is furnished with 1

faucet hole as shown.

These sinks comply with ANSI Standard A112.19.3M.

OPTIONAL ACCESSORIES

Cutting Board: CB912.

Model BPSR(Q)23171

SINK DIMENSIONS (INCHES)*

Length is left to right. Width is front to back.

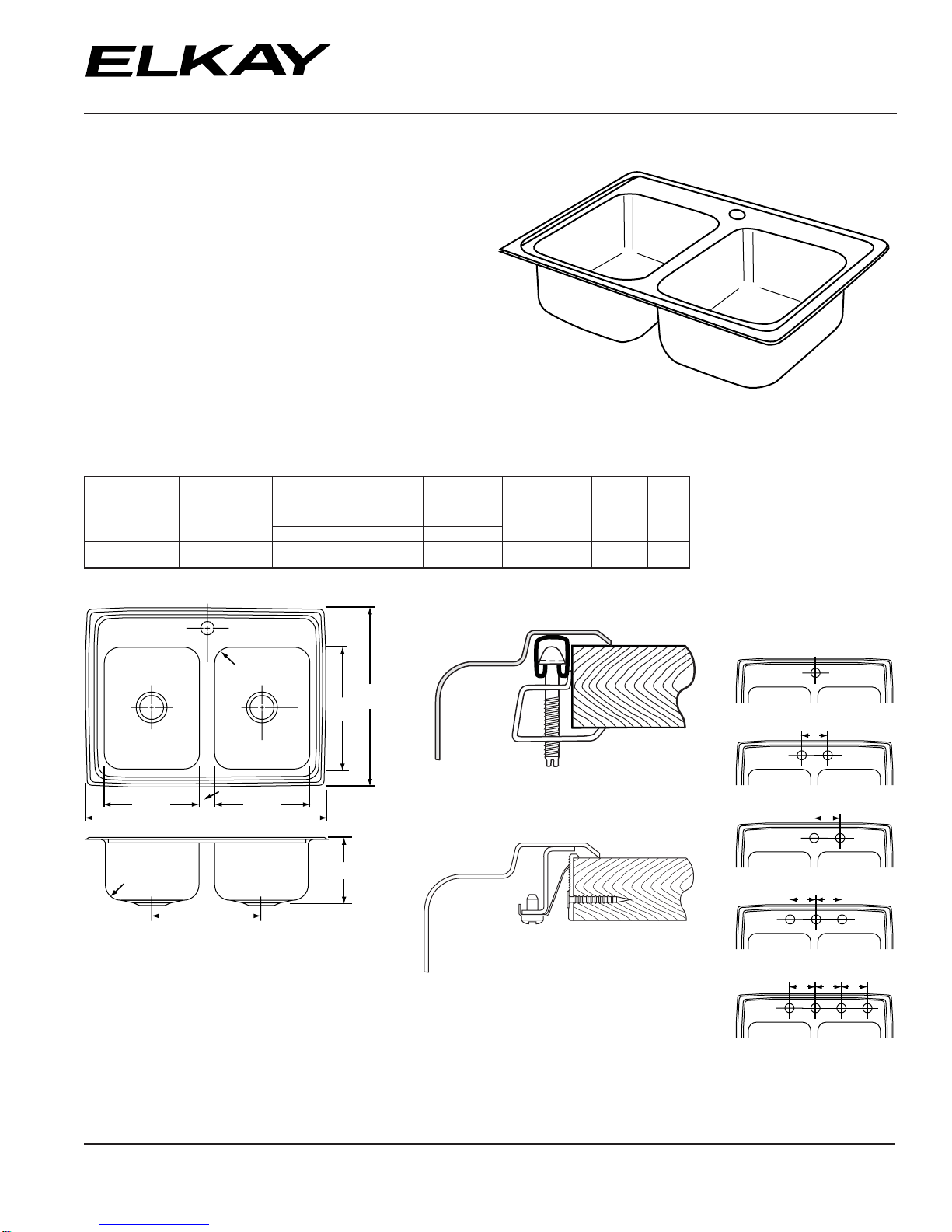

Pacemaker®Double Bowl Hospitality Sink

Models BPSR2317 and BPSRQ2317

SPECIFICATIONS

Cutout in No. of

Countertop 11/2" Dia.

U-Channel Quick-Clip®(11/2" Radius Faucet Minimum Ship.

Model Model Overall Inside Each Bowl Corners) Holes Cabinet Wt.

Number Number L W L W D L W 4" Centers Size Lbs.

BPSR2317 BPSRQ2317 23 17 91/412 61/8223/8163/81, 2, MR2, 3 or 4 27 103/4

Quick-Clip®Mounting System

U-Channel Type Mounting System

HOLE DRILLING

CONFIGURATIONS

4" 4"

4" 4" 4"

MR2

Elkay 2222 Camden Court

Oak Brook, IL 60523 Printed in U.S.A.

(Rev. 3/04) 1-74A

www.elkayusa.com

In keeping with our policy of continuing product improvement, Elkay reserves the right to change

product specifications without notice. This specification describes an Elkay product with design, quality and functional benefits to the

user. When making a comparison of other producers’ offerings, be certain these features are not

overlooked.

ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.
