Electrolux COP846X1 User manual

COP846X1

EN Oven User Manual

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it

decades of professional experience and innovation. Ingenious and stylish, it has been designed

with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great

results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information:

www.electrolux.com/support

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

For more recipes, hints, troubleshooting download My Electrolux Kitchen app.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data

available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

CONTENTS

1. SAFETY INFORMATION............................. 3

1.1 Children and vulnerable people

safety..................................................... 3

1.2 General Safety.................................4

2. SAFETY INSTRUCTIONS........................... 5

2.1 Installation........................................5

2.2 Electrical connection........................6

2.3 Use.................................................. 7

2.4 Care and cleaning............................8

2.5 Pyrolytic cleaning.............................8

2.6 Steam Cooking................................ 9

2.7 Internal lighting................................ 9

2.8 Service.............................................9

2.9 Disposal........................................... 9

3. INSTALLATION........................................... 9

3.1 Building in...................................... 10

3.2 Securing the oven to the cabinet... 11

4. PRODUCT DESCRIPTION........................ 12

4.1 General overview...........................12

4.2 Accessories................................... 12

5. HOW TO TURN OVEN ON AND OFF....... 13

5.1 Retractable knobs..........................13

5.2 Control panel................................. 13

6. BEFORE FIRST USE.................................14

6.1 Initial cleaning................................ 14

6.2 Initial preheating............................ 14

7. DAILY USE................................................ 15

7.1 How to set: Heating functions........ 15

7.2 Heating functions........................... 15

7.3 Notes on: Moist Fan Baking...........16

7.4 Water tank..................................... 17

2/44

7.5 How to set: Assisted Cooking........ 17

7.6 Assisted Cooking........................... 18

8. CLOCK FUNCTIONS.................................23

8.1 Clock functions.............................. 23

8.2 How to set: Clock functions........... 23

9. HOW TO USE: ACCESSORIES................ 25

9.1 Inserting accessories..................... 25

9.2 Food Sensor.................................. 26

10. ADDITIONAL FUNCTIONS..................... 27

10.1 Lock............................................. 27

10.2 Automatic switch-off.....................28

10.3 Cooling fan...................................28

11. HINTS AND TIPS..................................... 28

11.1 Moist Fan Baking......................... 28

11.2 Moist Fan Baking -

recommended accessories..................30

11.3 Cooking tables for test institutes..30

12. CARE AND CLEANING...........................32

12.1 Notes on cleaning........................ 32

12.2 How to remove: Shelf supports ...33

12.3 How to use: Pyrolytic Cleaning.... 33

12.4 Cleaning Reminder...................... 34

12.5 How to clean: Water tank.............34

12.6 How to remove and install: Door..35

12.7 How to replace: Lamp..................37

13. TROUBLESHOOTING............................. 38

13.1 What to do if.................................38

13.2 Service data.................................40

14. ENERGY EFFICIENCY............................ 40

14.1 Product Information and Product

Information Sheet*............................... 40

14.2 Energy saving.............................. 41

15. MENU STRUCTURE................................42

15.1 Menu............................................42

16. ENVIRONMENTAL CONCERNS.............43

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read

the supplied instructions. The manufacturer is not responsible

for any injuries or damage that are the result of incorrect

installation or usage. Always keep the instructions in a safe

and accessible location for future reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

the use of the appliance in a safe way and understand the

hazards involved. Children of less than 8 years of age and

persons with very extensive and complex disabilities shall

3/44

SAFETY INFORMATION

be kept away from the appliance unless continuously

supervised.

•Children should be supervised to ensure that they do not

play with the appliance.

•Keep all packaging away from children and dispose of it

appropriately.

•WARNING: The appliance and its accessible parts become

hot during use. Keep children and pets away from the

appliance when in use and when cooling down.

•If the appliance has a child safety device, it should be

activated.

•Children shall not carry out cleaning and user maintenance

of the appliance without supervision.

1.2 General Safety

•This appliance is for cooking purposes only.

•This appliance is designed for single household domestic

use in an indoor environment.

•This appliance may be used in, offices, hotel guest rooms,

bed & breakfast guest rooms, farm guest houses and other

similar accommodation where such use does not exceed

(average) domestic usage levels.

•Only a qualified person must install this appliance and

replace the cable.

•Do not use the appliance before installing it in the built-in

structure.

•Disconnect the appliance from the power supply before

carrying out any maintenance.

•If the mains power supply cable is damaged, it must be

replaced by the manufacturer, its Authorised Service Centre

or similarly qualified persons to avoid an electrical hazard.

•WARNING: Ensure that the appliance is switched off before

replacing the lamp to avoid the possibility of electric shock.

4/44

SAFETY INFORMATION

•WARNING: The appliance and its accessible parts become

hot during use. Care should be taken to avoid touching

heating elements.

•Always use oven gloves to remove or insert accessories or

ovenware.

•Use only the food sensor (core temperature sensor)

recommended for this appliance.

•To remove the shelf supports first pull the front of the shelf

support and then the rear end away from the side walls.

Install the shelf supports in the opposite sequence.

•Do not use a steam cleaner to clean the appliance.

•Do not use harsh abrasive cleaners or sharp metal scrapers

to clean the glass door since they can scratch the surface,

which may result in shattering of the glass.

•Before pyrolytic cleaning, remove all accessories and

excessive deposits/spills from the oven cavity.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Follow the installation instructions supplied with the appliance.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and

enclosed footwear.

• Do not pull the appliance by the handle.

• Install the appliance in a safe and suitable place that meets installation requirements.

• Keep the minimum distance from other appliances and units.

• Before mounting the appliance, check if the oven door opens without restraint.

• The appliance is equipped with an electric cooling system. It must be operated with the

electric power supply.

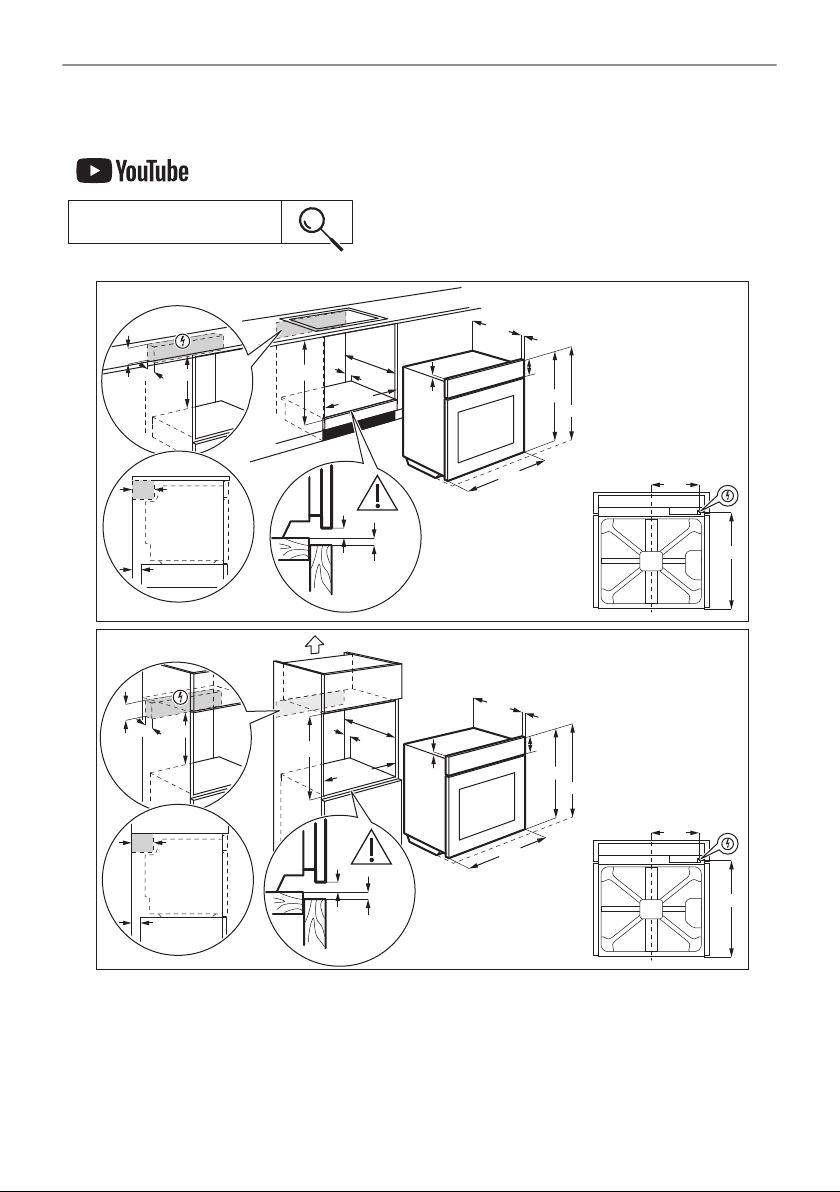

Cabinet minimum height (Cabinet under the work‐

top minimum height)

590 (600) mm

Cabinet width 560 mm

5/44

SAFETY INSTRUCTIONS

Cabinet depth 550 (550) mm

Height of the front of the appliance 594 mm

Height of the back of the appliance 576 mm

Width of the front of the appliance 595 mm

Width of the back of the appliance 559 mm

Depth of the appliance 569 mm

Built in depth of the appliance 548 mm

Depth with open door 1022 mm

Ventilation opening minimum size. Opening placed

on the bottom rear side

560x20 mm

Mains supply cable length. Cable is placed in the

right corner of the back side

1500 mm

Mounting screws 4x25 mm

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.

• The appliance must be earthed.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings

of the mains power supply.

• Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains

cable need to be replaced, this must be carried out by our Authorised Service Centre.

• Do not let mains cables touch or come near the appliance door or the niche below the

appliance, especially when it operates or the door is hot.

• The shock protection of live and insulated parts must be fastened in such a way that it

cannot be removed without tools.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure

that there is access to the mains plug after the installation.

• If the mains socket is loose, do not connect the mains plug.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed

from the holder), earth leakage trips and contactors.

6/44

SAFETY INSTRUCTIONS

• The electrical installation must have an isolation device which lets you disconnect the

appliance from the mains at all poles. The isolation device must have a contact opening

width of minimum 3 mm.

• Fully close the appliance door before you connect the mains plug to the mains socket.

• This appliance is supplied with a main plug and a main cable.

Cable types applicable for installation or replacement for Europe:

H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-F

For the section of the cable refer to the total power on the rating plate. You can also refer to the

table:

Total power (W) Section of the cable (mm²)

maximum 1380 3 x 0.75

maximum 2300 3 x 1

maximum 3680 3 x 1.5

The earth cord (green / yellow cable) must be 2 cm longer than phase and neutral cables (blue

and brown cables).

2.3 Use

WARNING!

Risk of injury, burns and electric shock or explosion.

• Do not change the specification of this appliance.

• Make sure that the ventilation openings are not blocked.

• Do not let the appliance stay unattended during operation.

• Deactivate the appliance after each use.

• Be careful when you open the appliance door while the appliance is in operation. Hot air can

release.

• Do not operate the appliance with wet hands or when it has contact with water.

• Do not apply pressure on the open door.

• Do not use the appliance as a work surface or as a storage surface.

• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture

of alcohol and air.

• Do not let sparks or open flames to come in contact with the appliance when you open the

door.

• Do not put flammable products or items that are wet with flammable products in, near or on

the appliance.

WARNING!

Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:

– do not put ovenware or other objects in the appliance directly on the bottom.

7/44

SAFETY INSTRUCTIONS

– do not put aluminium foil directly on the bottom of cavity of the appliance.

– do not put water directly into the hot appliance.

– do not keep moist dishes and food in the appliance after you finish the cooking.

– be careful when you remove or install the accessories.

• Discoloration of the enamel or stainless steel has no effect on the performance of the

appliance.

• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.

• Always cook with the appliance door closed.

• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never

closed when the appliance operates. Heat and moisture can build up behind a closed

furniture panel and cause subsequent damage to the appliance, the housing unit or the floor.

Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains

socket.

• Make sure the appliance is cold. There is the risk that the glass panels can break.

• Replace immediately the door glass panels when they are damaged. Contact the Authorised

Service Centre.

• Be careful when you remove the door from the appliance. The door is heavy!

• Clean regularly the appliance to prevent the deterioration of the surface material.

• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive

products, abrasive cleaning pads, solvents or metal objects.

• If you use an oven spray, follow the safety instructions on its packaging.

2.5 Pyrolytic cleaning

WARNING!

Risk of Injury / Fires / Chemical Emissions (Fumes) in Pyrolytic Mode.

• Before carrying out a Pyrolitic self-cleaning function or the First Use please remove from the

oven cavity:

– any excess food residues, oil or grease spills / deposits.

– any removable objects (including shelves, side rails etc., provided with the product)

particularly any non-stick pots, pans, trays, utensils etc.

• Read carefully all the instructions for Pyrolytic cleaning.

• Keep children away from the appliance while the Pyrolytic cleaning operates.

The appliance becomes very hot and hot air is released from the front cooling vents.

• Pyrolytic cleaning is a high temperature operation that can release fumes from cooking

residues and construction materials, as such consumers are strongly advised to:

– provide good ventilation during and after each Pyrolytic cleaning.

– provide good ventilation during and after the first use at maximum temperature

operation.

• Unlike all humans, some birds and reptiles can be extremely sensitive to potential fumes

emitted during the cleaning process of all Pyrolytic Ovens.

8/44

SAFETY INSTRUCTIONS

– Remove any pets (especially birds) from the vicinity of the appliance location during and

after the Pyrolytic cleaning and first use maximum temperature operation to a well

ventilated area.

• Small pets can also be highly sensitive to the localized temperature changes in the vicinity of

all Pyrolytic Ovens when the Pyrolytic self cleaning program is in operation.

• Non-stick surfaces on pots, pans, trays, utensils etc., can be damaged by the high

temperature Pyrolytic cleaning operation of all Pyrolytic Ovens and can be also a source for

low level harmful fumes.

• Fumes released from all Pyrolytic Ovens / Cooking Residues as described are not harmful to

humans, including children, or persons with medical conditions.

2.6 Steam Cooking

WARNING!

Risk of burns and damage to the appliance.

• Released Steam can cause burns:

– Do not open the appliance door during the steam cooking operation.

– Open the appliance door with care after the steam cooking operation.

2.7 Internal lighting

WARNING!

Risk of electric shock.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These

lamps are intended to withstand extreme physical conditions in household appliances, such

as temperature, vibration, humidity, or are intended to signal information about the

operational status of the appliance. They are not intended to be used in other applications

and are not suitable for household room illumination.

• This product contains a light source of energy efficiency class G.

• Use only lamps with the same specifications.

2.8 Service

• To repair the appliance contact the Authorised Service Centre.

• Use original spare parts only.

2.9 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.

• Disconnect the appliance from the mains supply.

• Cut off the mains electrical cable close to the appliance and dispose of it.

• Remove the door catch to prevent children or pets from becoming trapped in the appliance.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

9/44

INSTALLATION

3.1 Building in

www.youtube.com/electrolux

www.youtube.com/aeg

How to install your AEG/Electrolux

Oven - Column installation

594

589

114

21548

595+-1

min. 550

600

min. 560

520

198

523

(*mm)

min. 550

595+-1

590

min. 560

594

589

114

21548

60 520

198

523

(*mm)

10/44

INSTALLATION

Other manuals for COP846X1

Table of contents

Other Electrolux Oven manuals

Electrolux

Electrolux EKC 90450 X User manual

Electrolux

Electrolux E30EW85EPS - Icon 30" Professional Series Electric Double... User manual

Electrolux

Electrolux EOC 6800 User manual

Electrolux

Electrolux EOG2102AOK User manual

Electrolux

Electrolux KODFP46TX User manual

Electrolux

Electrolux EON6701FI User manual

Electrolux

Electrolux KOCDP77WX User manual

Electrolux

Electrolux E3000-5 User manual

Electrolux

Electrolux EOB6635 Operation manual

Electrolux

Electrolux AEG BS8304021M User manual

Electrolux

Electrolux KOFFP46BX User manual

Electrolux

Electrolux EOT0906X User manual

Electrolux

Electrolux E30EW75ESS3 User manual

Electrolux

Electrolux EVY9741AAX User manual

Electrolux

Electrolux COMPETENCE B3301-4 User manual

Electrolux

Electrolux EOU 6365 User manual

Electrolux

Electrolux EOC 5630 Operation manual

Electrolux

Electrolux EOB 21000 Operation manual

Electrolux

Electrolux KCF4P61TX User manual

Electrolux

Electrolux Air-O-Steam 267554 User manual

Electrolux

Electrolux Air-O-Steam 268003 User manual

Electrolux

Electrolux EOB3410 User manual

Electrolux

Electrolux EOA6841 User manual

Electrolux

Electrolux E30EW75PPSA User manual

Popular Oven manuals by other brands

Bosch

Bosch HVA531NS0 instruction manual

NEFF

NEFF B44S32 5GB Series instruction manual

Combi

Combi BLODGETT BC142GDS Specifications

AEG

AEG COMPETENCE 311704300 Installation and operating instructions

Falcon

Falcon DOMINATOR PLUS G3106 Series Servicing instructions

Rational

Rational SCC WE 61G installation manual

Smeg

Smeg DOSPA38X User manuals

Miele

Miele HR 1954-2 operating instructions

KHIND

KHIND OT50 instruction manual

Henny Penny

Henny Penny Smoker Box installation manual

Lang

Lang ECOD-AP Installation and operation instructions

AEG

AEG BEK455310M user manual

Frigidaire

Frigidaire FNGE90JGR user manual

Hotpoint

Hotpoint FE9 S831 JSH IX user manual

GE Advantium SCB2000 owner's manual

AEG

AEG DE401301DM user manual

DeLonghi

DeLonghi XA660 Directions for use

AEG

AEG BEB331010M user manual
