EN Oven User Manual
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 8
4. CONTROL PANEL............................................................................................. 9
5. BEFORE FIRST USE......................................................................................... 9
6. DAILY USE....................................................................................................... 10
7. CLOCK FUNCTIONS....................................................................................... 12
8. USING THE ACCESSORIES........................................................................... 13
9. ADDITIONAL FUNCTIONS.............................................................................. 16
10. HINTS AND TIPS........................................................................................... 17
11. CARE AND CLEANING..................................................................................35
12. TROUBLESHOOTING....................................................................................38
13. TECHNICAL DATA.........................................................................................42
14. ENERGY EFFICIENCY.................................................................................. 42
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts
may become hot during use.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Only a qualified person must install this appliance and
replace the cable.
ENGLISH 3
•WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
•Always use oven gloves to remove or put in
accessories or ovenware.
•Before carrying out any maintenance, disconnect the
appliance from the power supply.
•WARNING: Ensure that the appliance is switched off
before replacing the lamp to avoid the possibility of
electric shock.
•Do not use the appliance before installing it in the
built-in structure.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can
scratch the surface, which may result in shattering of
the glass.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Excessive spillage must be removed before the
pyrolytic cleaning. Remove all parts from the oven.
•To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the
side walls. Install the shelf supports in the opposite
sequence.
•Use only the food sensor (core temperature sensor)
recommended for this appliance.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from
other appliances and units.
www.electrolux.com4
• Install the appliance in a safe and
suitable place that meets installation
requirements.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power
supply.
• The built-in unit must meet the
stability requirements of DIN 68930.
Cabinet minimum
height (Cabinet un‐
der the worktop
minimum height)
600 (600) mm
Cabinet width 550 mm
Cabinet depth 605 (580) mm
Height of the front of
the appliance
594 mm
Height of the back
of the appliance
576 mm
Width of the front of
the appliance
549 mm
Width of the back of
the appliance
548 mm
Depth of the appli‐
ance
567 mm
Built in depth of the
appliance
546 mm
Depth with open
door
1017 mm
Ventilation opening
minimum size.
Opening placed on
the bottom rear side
550 x 20 mm
Mains supply cable
length. Cable is
placed in the right
corner of the back
side
1500 mm
Mounting screws 4 x 12 mm
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Do not let mains cables touch or
come near the appliance door or the
niche below the appliance, especially
when it operates or the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
• Fully close the appliance door before
you connect the mains plug to the
mains socket.
• This appliance is supplied with a main
plug and a main cable.
2.3 Use
WARNING!
Risk of injury, burns and
electric shock or explosion.
ENGLISH 5
• This appliance is for household use
only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and
air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly
on the bottom.
– do not put aluminium foil directly
on the bottom of cavity of the
appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or
stainless steel has no effect on the
performance of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
• Always cook with the oven door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make
sure the door is never closed when
the appliance is in operation. Heat
and moisture can build up behind a
closed furniture panel and cause
subsequent damage to the appliance,
the housing unit or the floor. Do not
close the furniture panel until the
appliance has cooled down
completely after use.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold.
There is the risk that the glass panels
can break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service
Centre.
• Be careful when you remove the door
from the appliance. The door is
heavy!
• Clean regularly the appliance to
prevent the deterioration of the
surface material.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• If you use an oven spray, follow the
safety instruction on it's packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
www.electrolux.com6
2.5 Pyrolytic cleaning
WARNING!
Risk of Injury / Fires /
Chemical Emissions
(Fumes) in Pyrolytic Mode.
Do not start the Pyrolysis if
the Plus Steam button is
pressed in.
• Before carrying out a Pyrolitic self-
cleaning function or the First Use
please remove from the oven cavity:
– any excess food residues, oil or
grease spills / deposits.
– any removable objects (including
shelves, side rails etc., provided
with the product) particularly any
non-stick pots, pans, trays,
utensils etc.
• Read carefully all the instructions for
Pyrolytic cleaning.
• Keep children away from the
appliance while the Pyrolytic cleaning
operates.
The appliance becomes very hot and
hot air is released from the front
cooling vents.
• Pyrolytic cleaning is a high
temperature operation that can
release fumes from cooking residues
and construction materials, as such
consumers are strongly advised to:
– provide good ventilation during
and after each Pyrolytic cleaning.
– provide good ventilation during
and after the first use at maximum
temperature operation.
• Unlike all humans, some birds and
reptiles can be extremely sensitive to
potential fumes emitted during the
cleaning process of all Pyrolytic
Ovens.
– Remove any pets (especially
birds) from the vicinity of the
appliance location during and
after the Pyrolytic cleaning and
first use maximum temperature
operation to a well ventilated
area.
• Small pets can also be highly
sensitive to the localized temperature
changes in the vicinity of all Pyrolytic
Ovens when the Pyrolytic self
cleaning program is in operation.
• Non-stick surfaces on pots, pans,
trays, utensils etc., can be damaged
by the high temperature Pyrolytic
cleaning operation of all Pyrolytic
Ovens and can be also a source for
low level harmful fumes.
• Fumes released from all Pyrolytic
Ovens / Cooking Residues as
described are not harmful to humans,
including children, or persons with
medical conditions.
2.6 Internal lighting
WARNING!
Risk of electric shock.
• The type of light bulb or halogen lamp
used for this appliance is for
household appliances only. Do not
use it for house lighting.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.7 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.8 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
ENGLISH 7
3. PRODUCT DESCRIPTION
3.1 General overview
1
2
3
4
5
2 3 5
8
14 11
9
10
641
12
7
13
1Control panel
2Knob for the heating functions
3Power lamp / symbol
4Display
5Control knob (for the temperature)
6Temperature indicator / symbol
7Plus Steam
8Socket for the core temperature
sensor
9Heating element
10 Lamp
11 Fan
12 Shelf support, removable
13 Cavity embossment
14 Shelf positions
3.2 Accessories
Wire shelf
For cookware, cake tins, roasts.
Baking tray
For cakes and biscuits.
Grill- / Roasting pan
To bake and roast or as a pan to collect
fat.
Food Sensor
To measure the temperature inside food.
www.electrolux.com8

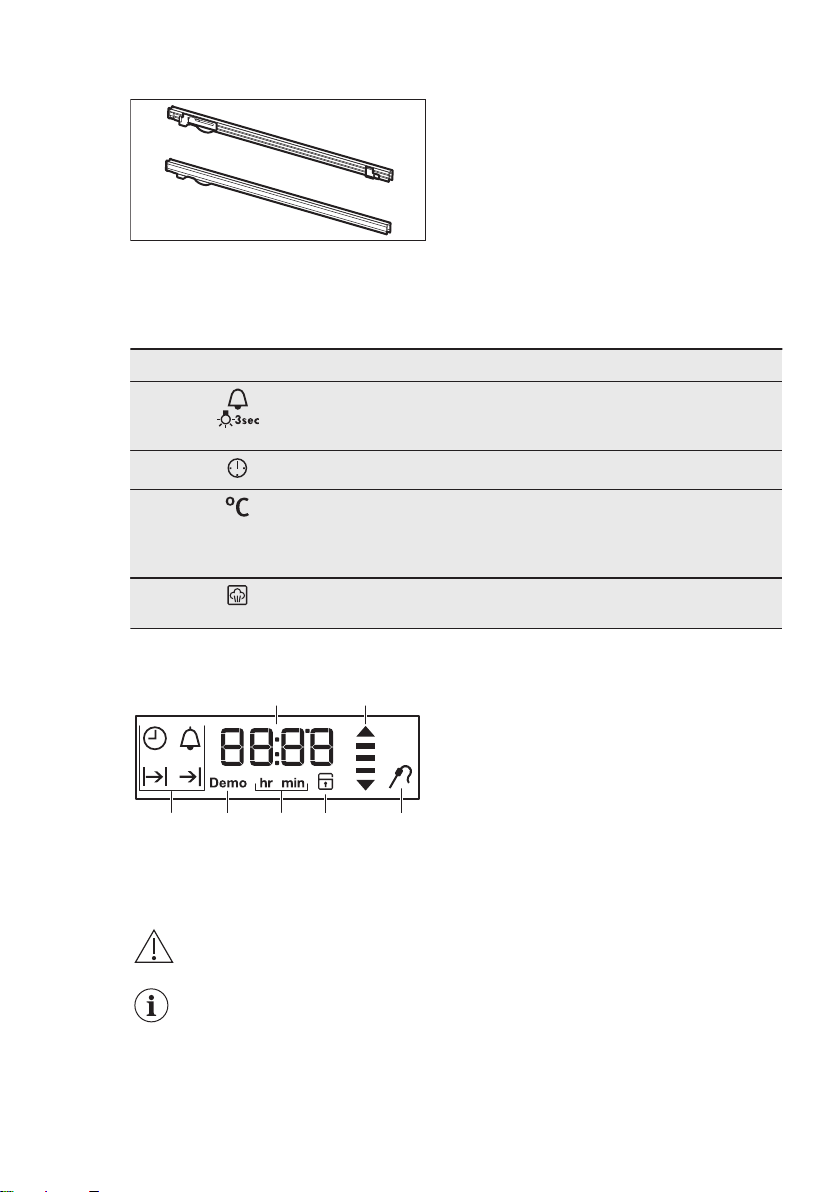

Telescopic runners To insert and remove trays and wireshelf
more easily.
4. CONTROL PANEL
4.1 Buttons
Sensor field / Button Function Description
MINUTE
MINDER
To set the MINUTE MINDER. Hold it
for more than 3 seconds to turn on or
turn off the oven lamp.
CLOCK To set a clock function.
TEMPERA‐
TURE
To check the oven temperature or the
temperature of the core temperature
sensor (if applicable). Use only while a
heating function operates.
PLUS STEAM To turn on the True Fan Cooking PLUS
function.
4.2 Display
A B
DG EF C
A. Timer / Temperature
B. Heat-up and residual heat indicator
C. Core temperature sensor (selected
models only)
D. Door lock (selected models only)
E. Hours / minutes
F. Demo mode (selected models only)
G. Clock functions
5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
To set the Time of day refer
to "Clock functions" chapter.
5.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the oven.
Refer to "Care and cleaning" chapter.
Clean the oven and the accessories
before the first use.
Put the accessories and the removable
shelf supports back to their initial
position.
ENGLISH 9
6. DAILY USE
WARNING!
Refer to Safety chapters.
6.1 Retractable knobs
To use the appliance press the knob.
The knob comes out.
6.2 Heating functions
Oven func‐
tion
Application
Off position
The oven is off.
Fast Heat Up
To decrease the heat-
up time.
True Fan
Cooking /
True Fan
Cooking
PLUS
To bake on up to three
shelf positions at the
same time and to dry
food.
Set the temperature 20
- 40 °C lower than for
Conventional Cooking.
To add humidity during
the cooking. To get the
right colour and crispy
crust during baking. To
give more juiciness dur‐
ing reheating.
Pizza Func‐
tion
To bake pizza. To make
intensive browning and
a crispy bottom.
Conventional
Cooking
To bake and roast food
on one shelf position.
Bottom Heat
To bake cakes with
crispy bottom and to
preserve food.
Oven func‐
tion
Application
Defrost
To defrost food (vegeta‐
bles and fruit). The de‐
frosting time depends
on the amount and size
of the frozen food.
Moist Fan
Baking
This function is de‐
signed to save energy
during cooking. For the
cooking instructions re‐
fer to "Hints and tips"
chapter, Moist Fan Bak‐
ing. The oven door
should be closed during
cooking so that the
function is not interrup‐
ted and to ensure that
the oven operates with
the highest energy effi‐
ciency possible. When
you use this function,
the temperature in the
cavity may differ from
the set temperature.
The residual heat is
used. The heating pow‐
er may be reduced. For
general energy saving
recommendations refer
to "Energy Efficiency"
chapter, Energy Sav‐
ing.When you use this
function the lamp auto‐
matically turns off after
30 seconds.
Grill
To grill flat food and to
toast bread.
Turbo Grilling
To roast larger meat
joints or poultry with
bones on one shelf po‐
sition. To make gratins
and to brown.
www.electrolux.com10
Table of contents
Other Electrolux Oven manuals
Electrolux
Electrolux Air-O-Speed 922003 User manual
Electrolux
Electrolux EH7K1-2WE User manual
Electrolux
Electrolux CombiSteam Deluxe EOB8857AA User manual
Electrolux
Electrolux E30SO75ESS - 30" Wall Oven User manual
Electrolux
Electrolux EOB 6680 Operation manual
Electrolux
Electrolux EOC 68342 User manual
Electrolux
Electrolux SteamBoost 800 Series User manual
Electrolux
Electrolux EOG 23400 User manual
Electrolux
Electrolux EOCP5803AX User manual
Electrolux
Electrolux ICON E30MC75JPS User manual
Electrolux
Electrolux EVY 9741 AAX Operating instructions
Electrolux
Electrolux EOA3450AAX User manual
Electrolux
Electrolux Air-O-Steam 268504 User manual
Electrolux
Electrolux EOB977 Specification sheet
Electrolux
Electrolux COP826V User manual
Electrolux
Electrolux EOA9S31CX User manual
Electrolux
Electrolux CVE612 User manual
Electrolux
Electrolux U25041 DDO61GA User manual
Electrolux
Electrolux EOC68000X User manual
Electrolux
Electrolux E 5745-7 User manual
Popular Oven manuals by other brands
Bosch
Bosch HVA531NS0 instruction manual
NEFF
NEFF B44S32 5GB Series instruction manual
Combi
Combi BLODGETT BC142GDS Specifications
AEG
AEG COMPETENCE 311704300 Installation and operating instructions
Falcon
Falcon DOMINATOR PLUS G3106 Series Servicing instructions
Rational
Rational SCC WE 61G installation manual
