Electrolux FHH 6885 GK User manual

Electric cooker

Cucina elettrica

FHH 6885 GK

instruction booklet

istruzioni per l’uso

2electrolux

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully

will provide you with lots of pleasure in the future.

The Electrolux ambition is to offer a wide variety of quality products that make

your life more comfortable.

You find some examples on the cover in this manual. Please take a few minutes

to study this manual so that you can take advantage of the benefits of your new

machine.

We promise that it will provide a superior User Experience delivering Ease-of-

Mind.

Good luck!

electrolux 3

The following symbols will be found in the text to guide you throughout the

Instructions:

Safety Instructions

Step by step instructions for an operation

Hints and Tips

Environmental information

Guide to Use the instructions

This appliance complies with the following E.E.C. Directives:

••

•73/23 - 90/68373/23 - 90/683

73/23 - 90/68373/23 - 90/683

73/23 - 90/683 (Low Voltage Directive);

••

•89/33689/336

89/33689/336

89/336 (Electromagnetical Compatibility Directive);

••

•93/6893/68

93/6893/68

93/68 (General Directives) and subsequent modifications.

Important safety information .............................................................................. 4

Description of the appliance .............................................................................. 7

Before the first use of the appliance ................................................................... 7

Ceramic glass hob ............................................................................................ 8

Electric oven.................................................................................................... 11

Electronic programmer .................................................................................... 13

Hints and tips for using the oven ..................................................................... 18

Cooking tables ................................................................................................ 22

Cleaning and maintenance .............................................................................. 25

Something not working ................................................................................... 29

Original spare parts ......................................................................................... 33

For the user

For the installer

Technical data ................................................................................................. 30

Instructions for the installer .............................................................................. 31

Electrical connection ....................................................................................... 32

Contents

4electrolux

Installation

"The work of installation must be

carried out by competent and

qualified installers according to the

regulations in force.

• Any modifications to the domestic

electrical mains which may be

necessary for the installation of the

appliance should be carried out only

by competent personnel.

• Avoid installation of the cooker near

inflammable material (e.g. curtains,

tea towels, etc.).

• The appliance has to be placed on

the floor and it cannot be placed on

a base.

Child Safety

"This appliance has been designed for

use by adults. Take care, therefore,

that children do not attempt to play

with it.

• The appliance remains hot for a long

time after being switched off.

Supervise children at all times,

paying attention that they do not

touch surfaces or remain in the

vicinity of the appliance when in use

or when not completely cooled.

• This appliance is not intended for use

by children or other persons whose

physical, sensory or mental

capabilities or lack of experience and

knowledge prevents them from using

the appliance safely without

supervision or instruction by a

responsible person to ensure that

they can use the appliance safely.

During Operation

"This product is intended for the

cooking of food and must not be

used for other purposes.

• It is dangerous to modify, or attempt

to modify, the characteristics of this

appliance.

• The appliance becomes very hot with

use, and retains the heat for a long

period after use. Care should be

taken to avoid touching heating

elements inside the oven.

"Always stand back from the oven

when opening the oven door

during cooking or at the end of it

to allow any build up of steam or

heat to release.

"Unstable or deformed pans should

not be placed on the burners or

plates in order to avoid accidents

caused by upsetting or boiling over.

• Particular care should be taken when

cooking with oil or fat.

•Always ensure that the knobs are

in the «» or «00

0» (Stop) position

when the appliance is not in use.

• Always insert the dripping pan when

using the grill or when cooking meat

on the grid. Pour a little water into the

dripping pan to avoid grease burning

and creating unpleasant smells.

• Always use oven gloves to remove

dishes from the oven.

• The accessories should be washed

before using for the first time.

• Take care when using cleaning

products in spray form: never direct

the spray onto the resistance or the

thermostat bulb.

This warnings has been given for the safety of you and others. We therefore

ask you to carefully read the procedures of installing and using this cooker.

Important safety information

ENGLISHENGLISH

ENGLISH

electrolux 5

• If, when placing food in the oven, or

when removing it, a large quantity of

oil, juice, etc. spills onto the bottom

of the oven, re-clean before starting

to cook to avoid unpleasant smoke

and also the possibility of these

substances catching fire.

• For reasons of hygiene and safety

this appliance must always be kept

clean. A build up of grease or other

food can cause fires.

• The oven becomes hot with the

movement of air. The holes on the

bottom of the oven must never be

obstructed. Do not cover the sides of

the oven with aluminium foil, in

particular the lower part of the

opening.

• The appliance is heavy, move it

carefully.

• Before maintenance and cleaning

disconnect the appliance and allow

to cool.

• This appliance cannot be cleaned

with steam or with a steam cleaning

machine.

• Do not use harsh abrasive cleaners

or sharp metal scraper to clean the

oven door glass since they can

scratch the surface, which may result

in shattering of the glass.

• Ensure that the oven grids are

inserted correctly (see instructions).

• If there are self-cleaning panels they

should only be cleaned with soap

and water (see cleaning instructions).

• Only heat-resistant plates may be

placed in the drawer situated under

the oven. Do not put combustible

materials there.

Service

"In case of repairs, do not attempt to

correct yourself. Repairs carried out

by unqualified persons can cause

damage. Contact an authorized

Technical Assistance Centre and

insist an original spareparts.

Environmental Information

"After installation, please dispose of

the packaging with due regard to

safety and the environment.

• When disposing of an old appliance,

make it unusable, by cutting off the

cable.

The symbol on the product or

on its packaging indicates that this

product may not be treated as

household waste. Instead it shall be

handed over to the applicable collection

point for the recycling of electrical and

electronic equipment. By ensuring this

product is disposed of correctly, you will

help prevent potential negative

consequences for the environment and

human health, which could otherwise

be caused by inappropriate waste

handling of this product. For more

detailed information about recycling of

this product, please contact your local

city office, your household waste

disposal service or the shop where you

purchased the product.

6electrolux

It is very important that this instruction book should be kept safely forIt is very important that this instruction book should be kept safely for

It is very important that this instruction book should be kept safely for

future consultation. If the appliance should be sold or given to anotherfuture consultation. If the appliance should be sold or given to another

future consultation. If the appliance should be sold or given to another

person, please ensure that the booklet goes together with it, so that theperson, please ensure that the booklet goes together with it, so that the

person, please ensure that the booklet goes together with it, so that the

new owner can know of the functions of the machine and also be aware ofnew owner can know of the functions of the machine and also be aware of

new owner can know of the functions of the machine and also be aware of

the warnings.the warnings.

the warnings.

These instructions are only for the countries stated by the symbol printed

on the front cover of this instruction book.

electrolux 7

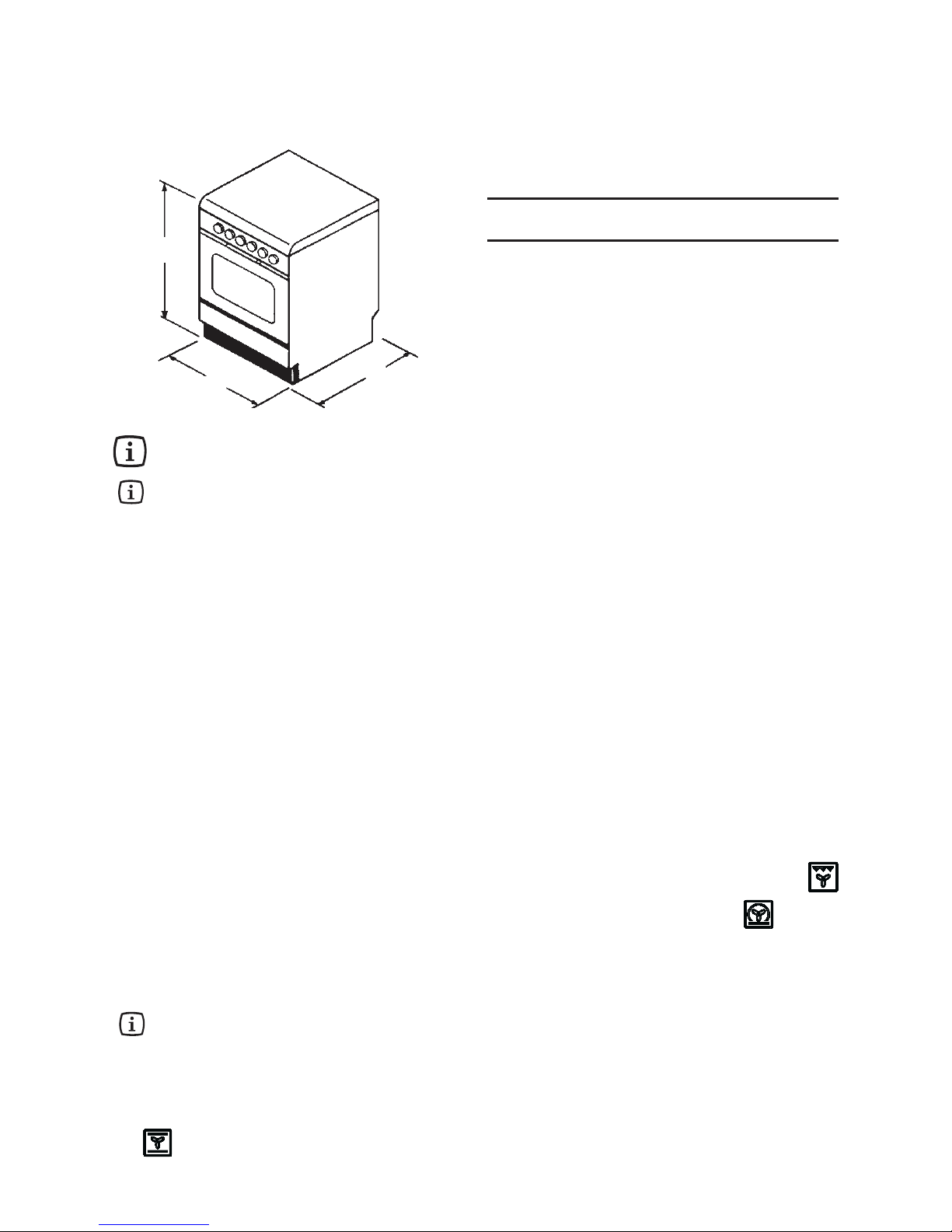

Description of the appliance

HeightHeight

Height ((

((

(HH

H))

))

)WidthWidth

WidthWidth

Width ((

((

(WW

W))

))

) Depth (D)

850 mm 600 mm 600 mm

b) allow the oven to run empty for ap-

proximately 45 minutes;

c) open a window for ventilation.

During this time, an unpleasant odour

may be emitted. This is absolutely nor-

mal, and is caused by residues of manu-

facturing.

Once this operation is carried out, let

the oven cool down, then clean the oven

cavity with a soft cloth soaked in warm

soapy water.

This procedure should be repeated

with the “thermal grilling” function

and “pizza” cooking function for ap-

proximately 5-10 minutes.

Before cooking for the first time,Before cooking for the first time,

Before cooking for the first time,

carefully wash thecarefully wash the

carefully wash the oven accessories.oven accessories.

oven accessories.oven accessories.

oven accessories.

Before the first use of the appliance

Before using the appliance, remove all packaging, both inside and outside

the appliance, including the advertising labels and any protective film.

The ceramic glass hob

When using the hob for the first time:

1) place on all the cooking zones a pan

filled with some water;

2) switch the cooking zones on for

about 10 minutes at “maximum”

position (3) until water inside the

pans boils;

3) open a window for ventilation.

During this time, the plates may

smoke a little and an unpleasant odour

may be emitted. This is absolutely nor-

mal and is caused by residues of

manufacturing.

Once this operation is carried out, let

the cooking zones to cool down, then

clean them with a soft cloth soaked in

warm water.

The ovenThe oven

The oven

The oven will work only if the timeThe oven will work only if the time

The oven will work only if the time

of day has been set (see chapterof day has been set (see chapter

of day has been set (see chapter

"Electronic Programmer")."Electronic Programmer").

"Electronic Programmer").

When using the oven for the first time:

a) set the oven knob to “Fan cooking”

and the thermostat knob to MAX;

8electrolux

Using the hotplates

The control panel incorporates

knobs to operate the four cooking

zones.

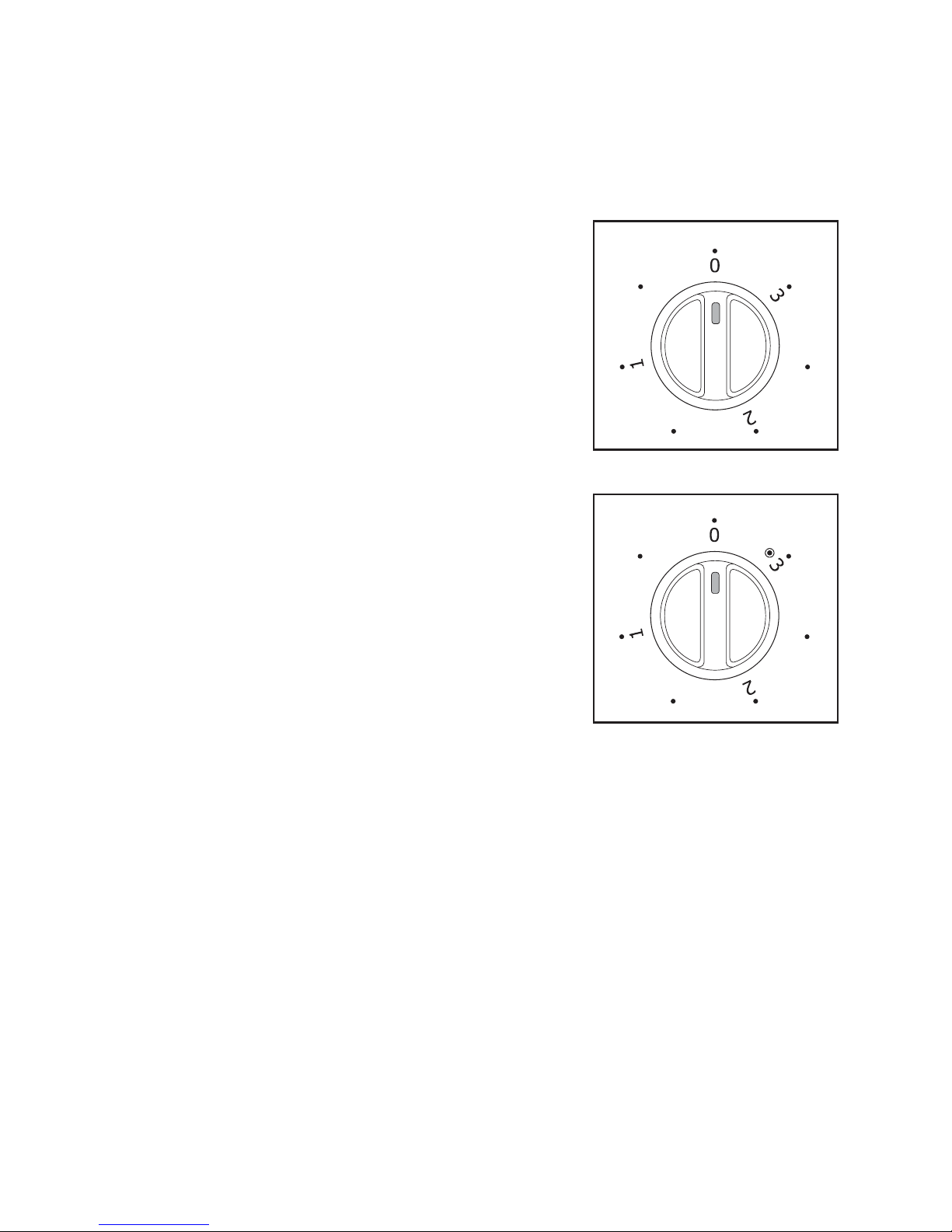

A) This is a 7 position control knob:

0 = off and 1-3 indicate the levels of

power up to the maximum (Fig. 1).

B) Double circuit cooking zone (Fig. 2):

this cooking zone has two heating el-

ements.

- To switch on the smaller cooking

zone, turn the relevant control knob

to the required heat setting between

1 and 3.

- To switch on both heating elements,

turn the control knob to maximum

heat setting (3) then turn the knob

further to nearly reach the “0” sym-

bol. You will hear a “click” and the

wider cooking zone will switch on.

Then turn back the knob and adjust

it to the required heat setting.

Now the two heating elements will

operate together, giving a higher

power output that a normal cooking

zone.

Ceramic glass hob

Fig. 1

Fig. 2

electrolux 9

Practical hints

Hob pilot lights

The ceramic glass hob is equipped

with four pilot lights which turn on when

the surface is too hot; it is a helpful device

which protects users from burns.

This lights turn on some minutes after

the cooking zone has been set into opera-

tion, and they stay on during the whole

time of functioning and also when the

cooking zone is off to show the presence

of residual heat in the pyroceram surface.

The pilot lights turn finally off only when

the surface temperature decreases to

safety values (lukewarm temperature),

more o less 50°C, allowing users to clean

the cooking zones with no risk.

The ceramic glass hob is resistent to

sudden changes in temperature, it is

insensitive to heat and cold and hals also

a good resistence to mechanical blows;

a sharpened object, however, no matter

if it is small (for example a point of a knife)

can irreparably damage the cooking sur-

face, jeopardising its functionality.

Before using the cooking plate for the

first time, carefully wash the pyroceram

plate with a non-abrasive detergent, dry

it and then wsitch it on for about 10 mi-

nutes at the highest position.

When using the cooking plate for the

first time, unpleasant smells, or smell of

burnt material, might be smelt: this is

absolutely normal and it is due to the

evaporation of greasy working residues

and of hte dope used during the installa-

tion. These smells will vanish after some

time of working.

ATTENTION! If scratches or

cracks are noticed, disconnect

the appliance from the

electrical supply to avoid the

risk of electric shock and call

your nearest Service Force

Centre.

10 electrolux

Suitable pans and pots

Remember that a large pan offers a

larger surface to heat and therefore

cooks food quicker than a narrow pan.

Always use pans of a size suitable for

the food to be cooked. In particular, take

care that pans are not too small for liquid

preparations which could easily spill over

or that they are not too big for food

which must be cooked quickly;

uncovered areas on the bottom are

easily burnt by fats and juice.

For cakes, it is preferable to use tins

which do not open. A tin which opens

lets out fruit juices and sugar which,

when spilling onto the bottom of the

oven, caramelize and are difficult to

clean. Avoid placing pans with plastic

handles in the oven as they may not

support the heat.

Saucepans suitable for use on solid

plate hobs should have several

characteristics:

- they should be heavy duty.

- they should fit the heat area exactly,

or be slightly larger for efficient use,

NEVER smaller.

- they should have a flat base to

ensure good contact with the plate.

This is particularly important when

using pans for high temperature frying or

pressure cooking.

Ensure pans are large enough to

avoid liquids being split onto the plates.

Never leave the plates on without a

pan on them or with an empty pan on

them.

During cooking, when using

fats or oils, take particular care

as they can, when over-

heated, self-ignite.

Fig. 3Fig. 3

Fig. 3

Table of contents

Other Electrolux Cooker manuals

Electrolux

Electrolux EKM11340KN User manual

Electrolux

Electrolux EKV 5605 X User manual

Electrolux

Electrolux EKG511106 User manual

Electrolux

Electrolux EKC5611X User manual

Electrolux

Electrolux EKG612A1OX User manual

Electrolux

Electrolux EKG801100 User manual

Electrolux

Electrolux 40036VI-WN User manual

Electrolux

Electrolux EKC607601 User manual

Electrolux

Electrolux CF502 Instruction Manual

Electrolux

Electrolux EKG6121AOK User manual

Electrolux

Electrolux EKG611A1OX User manual

Electrolux

Electrolux EK 5731 User manual

Electrolux

Electrolux EHK13 User manual

Electrolux

Electrolux EKG 60111 User manual

Electrolux

Electrolux Salamander 283001 User manual

Electrolux

Electrolux EHL4X-4 User manual

Electrolux

Electrolux LKI6489SOW User manual

Electrolux

Electrolux EVEP916 Instruction Manual

Electrolux

Electrolux EKC6051FO User manual

Electrolux

Electrolux EKC70751 User manual

Electrolux

Electrolux EVE915 Instruction Manual

Electrolux

Electrolux EKC 6780 User manual

Electrolux

Electrolux EIKG5546 User manual

Electrolux

Electrolux EKM601101 User manual

Popular Cooker manuals by other brands

Modena

Modena FC 7645 SGM User manual book

Stanley

Stanley Donard 60 Installation and operating instructions

Bartscher

Bartscher 201TC manual

Parkinson Cowan

Parkinson Cowan 50 GR/BU installation instructions

Siemens

Siemens HK9P00020U instruction manual

Creda

Creda S150E Installation and user instructions

Creda

Creda HB48309 instructions

Bosch

Bosch HCE743220F instruction manual

Tricity Bendix

Tricity Bendix SE545P manual

NEFF

NEFF E1461A2/01 Instructions for use

Zanussi

Zanussi ZCM 700 X Instruction booklet

Smeg

Smeg SNL61MA9 user manual

RiverGrille

RiverGrille TF2002501-RG Assembly instruction

Vollrath

Vollrath 69504F Operator's manual

Tricity Bendix

Tricity Bendix CSIE500 Operating and installation instructions

AEG

AEG Competence 5731 V Instruction book

Euromaid

Euromaid ES60 Installation and operation manual

Hotpoint

Hotpoint HUI 62 TP Instructions for installation and use
