Electrolux EKC70751 User manual

user manual

Cooker

EKC70751

Welcome to the world of Electrolux

You’ve chosen a first class product from

Electrolux, which hopefully will provide

you with lots of pleasure in the future.

Electrolux ambition is to offer a wide variety

of quality products that would make your

life even more comfortable. You can look at

some examples on the cover in this manual.

But now it’s time to study this manual and

start using and enjoying the benefits from

your new machine. We promise that it’ll

make your life a little easier. Good luck!

Contents

Safety ...........................................................................4

Installation ..................................................................6

Changing plinth height ...................................... 6

Adjusting the level ............................................... 7

Anti-tip guard ..................................................8

Electrical connections ......................................... 9

Base trim ............................................................... 9

Safety functions .......................................................10

Function lock (cooker) ..................................10

Function lock (oven) .....................................10

The extractor fan .........................................10

The door lock .................................................11

Description of product .........................................12

The cooker ....................................................12

The oven ........................................................13

Before using for the first time .............................14

Setting the clock ...........................................14

Heating the oven without food ...................14

Telescopic runners ........................................15

Using the ceramic glass plate ...............................18

The heating zones.........................................19

Using the oven ........................................................26

The oven functions .......................................26

Oven display .................................................27

Choice of oven functions ..............................28

Heat indicator ...............................................29

Other functions .............................................34

Oven safety switch-off ..................................34

Practical use ..................................................35

Cleaning and care ...................................................42

Cleaning the cooker .....................................42

Cleaning the ceramic glass plate ................43

Cleaning the oven .........................................44

Technical data ..........................................................53

European Guarantee.....................................54

Practical advice and tips ........................................56

Problems and remedies .........................................58

Safety

Cookers are being developed the whole time. You cannot always use your new cooker

in the same way as your old one. For this reason, you should read the instructions

carefully and familiarise yourself with your new cooker and what it can do. This cooker

is intended for normal household use. Please let us know if you have views or questions

about your cooker and its use.

Our address and telephone number are in the Service chapter.

Text marked with a

WARNING

TRIANGLE

concerns safety.

READ

THIS

TEXT

VERY

CAREFULLY

, so that you do not injure yourself or others, or damage the

cooker.

Unpacking

Check that the cooker is in good condition

and undamaged. Transport damage must

be reported immediately to the company

where you bought it. For direct deliveries,

any transport damage must be notified to

Customer Services within seven days in

accordance with the consignment note.

The packing material can be recycled.

Contact your local authority if you do not

know where you can deposit it.

Do not forget to remove the packing

material from inside the oven before

using the oven.

Installation

Any work required on the cooker must be

carried out by a qualified expert. Any work

carried out by non-qualified people can

mean poorer cooker performance and result

in personal injury and/or damage to property.

For cookers fitted with a plug: Make

sure that the plug is properly inserted into

the wall outlet.

The cooker is heavy. Edges and

corners with which you do not normally

come into contact, can be sharp. Use

gloves when moving the cooker.

THE

ANTI

TIP

GUARD

must be fitted so

that you avoid the cooker tipping when

subjected to abnormal loading.

IMPORTANT! Do not place the

cooker on an extra plinth or other height-

increasing unit. This meansmore risk that

the cooker will tip over!

Children and the cooker

Children are by nature inquisitive and

interested in most things, including the

cooker. In the interests of safety, we

should like to mention a few things that

you should think about if you have

children or children come to visit:

There must be a bench surface at least

40 cm (16") wide on both sides of the

cooker.

If you have a

HEATING

PLATE

GUARD

for

your cooker, then this must be fitted.

THE

DOOR

LOCK

must also function properly.

Never allow children to use the blade-

scraper.

Let children help you at the cooker,

but teach them that pots and pans, hobs

and ovens become very hot and retain

heat for some time after use.

TOUCHING

THEM

CAN

RESULT

BURNS

Use

Never use a cracked ceramic glass plate.

Liquids could, if they boil over, or during

cleaning, penetrate down into the live

electrical components. Disconnect the

electricity to the cooker and contact

service for repairs.

Never lay aluminium foil, plastic

material or similar on the ceramic glass

plate. If a heating zone is turned on by

mistake, paper/plastic could burn or melt.

Never leave a deep fat fryer, melting

fat, paraffin or other easily ignited

material without supervision. in the event

of fire, turn off the cooker knobs and

switch off the extractor fan.

EXTINGUISH

THE

FIRE

WITH

POT

LID

, never use water.

Never stand on the ceramic glass

plate.

Check that the cooker is properly

turned off when not in use, with all the

knobs at zero.

Warning! Alcohol and similar

substances, which can form explosive

gases,or othersubstances that cancause a

fire or explosion must not be used in the

oven.

The ceramic glass plate must be used

with the greatest care. For example,

flaming with brandy or other forms of

alcohol can result in traces of fact in the

extractor fan igniting and causing serious

fires. In the same way, flames and

burning fat can cause injuries.

Do not place chemicals or cleaning

agents in the drawer.

Cleaning

Keep the ceramic glass plate and the oven

clean. Fat and spilled material can cause

much smoke when heated and are also a

possible fire hazard.

While the oven is still hot, you must

use the scraper blade immediately to

remove sugar and boiled-over material

with a high sugar content, for example

marmalade, as well as melted plastic and

foil to avoid damaging the ceramic glass

plate. Be careful,the blade scraper is very

sharp.

Maintenance & service

Turn all the knobs to zero before

replacing a burned-out oven light bulb.

Before you change the bulb, make sure

that the cooker is disconnected from the

mains. For cookers with a cable, pull out

the plug. For other cookers, disconnect

the power supply by using the universal

pole switch.

Service and repairs should be carried

out by a company that is approved by the

supplier. Use only original spare parts.

At the end of the appliances

life

The symbol on the product or on its

packaging indicates that this product may

not be treated as household waste. Instead

it shall be handed over to the applicable

collection point for the recycling of

electrical and electronic equipment.

By ensuring this product is disposed

of correctly, you will help prevent

potential negative consequences for the

environment and human health, which

could otherwise be caused by

inappropriate waste handling of this

product.

For more detailed information about

recycling of this product, please contact

your local city office, your household

waste disposal service or the shop where

you purchased the product.

Installation

Any work required on the cooker

must be carried out by

QUALIFIED

EXPERT

The cooker is heavy. Edges

and corners with which you do not

normally come into contact, can be

sharp.

USE

GLOVES

when moving the

cooker.

When delivered, the cooker is adapted to a

bench height of 900 mm. The cooker has a

telescopic plinth. You can change the height

so that the cooker suits a bench height from

848 mm up tol 933 mm.

Take care when positioning the cooker

so that it does not block the ventilation

outlets (behind the cooker and above the

hood). The cooker must not be pushed in

under a tiled edge or similar.

The cooker must have a bench area on

both sides (see “Safety”).

Make sure that the cooker cable is not

crushed when the cooker is moved.

Changing plinth height

If you want to change the height, first read

through all the points below before you start.

1 Lay down the cooker gently (

SEE

ILLUSTRATION

). Use, for example, the

polystyrene from the packaging

between the cooker and the floor as

protection. Think about placing a

protective layer under the rear lower

corners of the cooker to protect the

floor.

2 Unscrew the screws A(4

SCREWS

SEE

ILLUSTRATION

). Pull out the inner base

slightly if you only wish to change the

height. Pull the brackets on which the

wheels and feet are fitted.

IMPORTANT

! Be careful, there are

sharp edges under the cooker.

3 Screw in the screws again Ain one of

the holes for a bench height of 850 to

920 mm. The distance between the

holes varies from 7 to 14 mm (

SEE

ILLUSTRATION

4 Lift the cooker upright and connect it

up electrically. Push the cooker back

into position and make sure that it is

absolutely level before fitting the

safety equipment.

Adjusting the level

The cooker must stand level, for example to

ensure that fat is evenly divided in the

frying-pan. Place a spirit level or a frying

pan containing water on the ceramic glass

plate when you want to check whether the

cooker is level.

If necessary, from the front of the plinth,

you can adjust the cooker wheels and feet by

15 mm. Use a screwdriver to adjust the rear

wheels and a Polygrip for the front feet.

14 7714 14 14

920

850

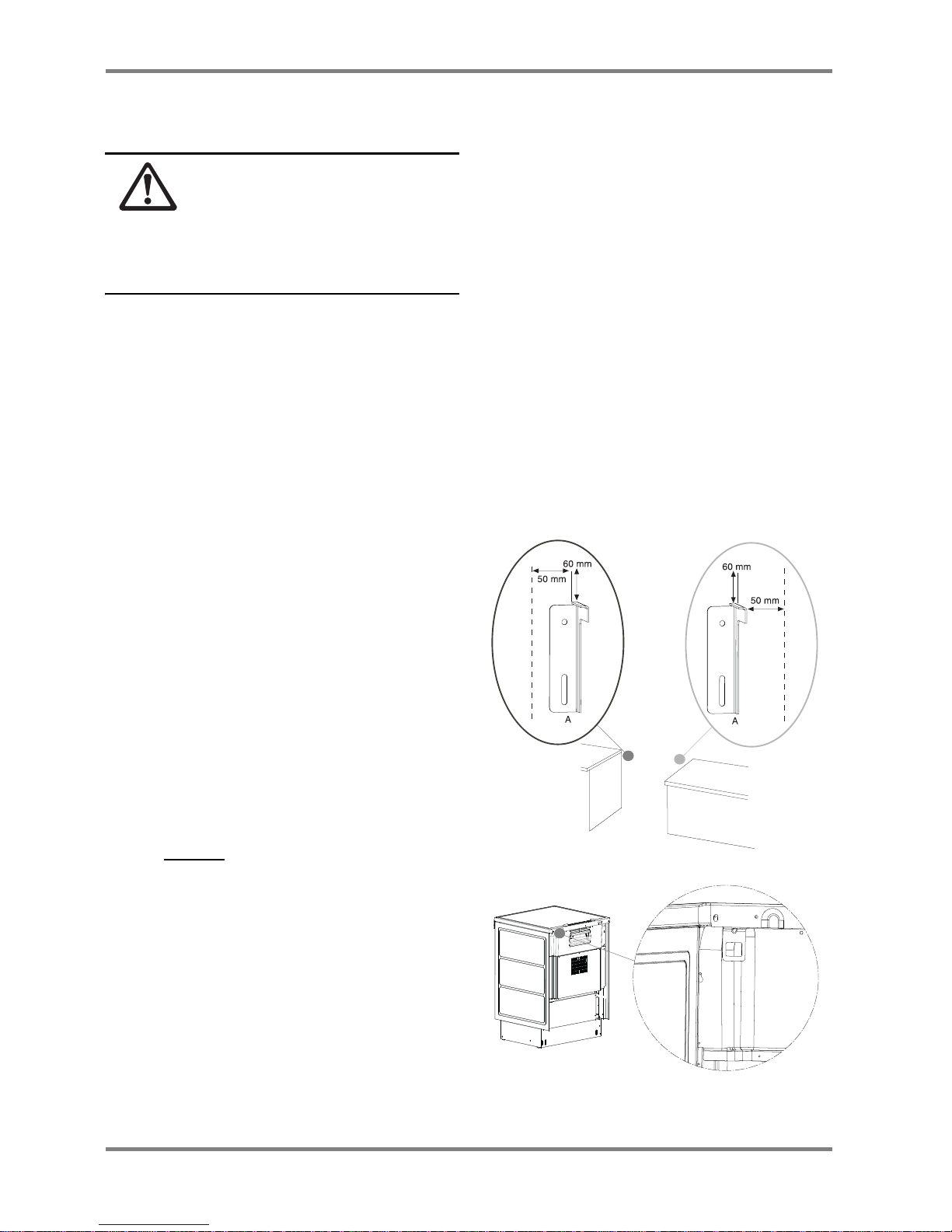

The anti-tip guard

The anti-tip guard must be fitted to

prevent the cooker from tipping under

abnormal loading.

The anti-tip guard only functions

when the cooker has been pushed

into position.

HOW

FIT

THE

ANTI

TIP

GUARD

THE

COOKER

Before fitting the anti-tip guard, make

sure that the cooker has been

adjusted to the correct height and

is standing level (see page 7).

2The attachment (B) is fitted to the

left side when delivered. Measure

out where the anti-tip guard (A) is

to be located, 60 mm (2.4") down

from the edge of the ceramic glass

plate and 50 mm (2.0") from the

wall(cupboard). Screw it firmly

into solid material or use suitable

reinforcement. The entire anti-tip

guard (A+B) can also be located

on the right-hand side (

SEE

. 1).

Make sure that the surface

behind the cooker is smooth.

If there are tiles or a moulding

behind the edge of the ceramic

glass plate then there must be a

space with the same dimension

between the anti-tip guard and

the wall. This is so that the anti-

tip guard is firmly attached to

the cooker and functions

correctly.

Check that the anti-tip guard

projects at least 20 mm (0.8")

into the hole in the back of the

cooker (B) when the cooker is

pushed in (

SEE

. 2).

NOTE! If the space between the bench

cupboards is greater than the width of the

cooker, then you must adjust the side

measurement if you want to centre the

cooker.

Electrical connections

Any work required on the cooker

must be carried out by a

QUALIFIED

EXPERT

. Work carried out by non-

qualified people can impair the

cooker and cause injury to people

and/or damage to property.

The electrical installation is to include a

device whereby it is possible to separate all

the poles of the equipment from the power

supply, with a contact opening of at least

3 mm.

This requirement must be satisfied for

safety reasons.

The connected rating and voltage are

shown on the data plate. There is a wiring

diagram on the back of the cooker.

Base trim (optional accessory)

CAUTION! Take due care when

fitting the base trim to the cooker.

Edges which you do not normally

come into contact with can be sharp.

IMPORTANT

ONLY

FITS

COOKERS

WITH

HEIGHT

900

Remove the protective film before fitting the

base trim.

1 Remove the drawer from the cooker

by lifting it diagonally upwards and

then pulling it all the way out.

2 Fit the base trim by pressing it firmly

onto the plinth (snap attachment, no

tools needed).

3 Replace the drawer.

Other manuals for EKC70751

Table of contents

Other Electrolux Cooker manuals

Electrolux

Electrolux FEH60P2102 User manual

Electrolux

Electrolux EVEP627 User manual

Electrolux

Electrolux Insight EKG6046 User manual

Electrolux

Electrolux Premier DSO51EL User manual

Electrolux

Electrolux EK 5734 User manual

Electrolux

Electrolux EKG 101199 X User manual

Electrolux

Electrolux EKC7051BOW User manual

Electrolux

Electrolux FGH50K3-100 User manual

Electrolux

Electrolux LKR66040SW User manual

Electrolux

Electrolux Electric and Gas Cookers Instruction Manual

Electrolux

Electrolux EVEP916 User manual

Electrolux

Electrolux EVEP916SB Instruction Manual

Electrolux

Electrolux EH K10-4 User manual

Electrolux

Electrolux LKI6489SOW User manual

Electrolux

Electrolux EKC6461AOK User manual

Electrolux

Electrolux EHL2X-4 User manual

Electrolux

Electrolux EKG 603301 User manual

Electrolux

Electrolux EK 5741 User manual

Electrolux

Electrolux EVEP604 User manual

Electrolux

Electrolux EK 5701 User manual

Electrolux

Electrolux Premier DSO51DF User manual

Electrolux

Electrolux EKM 6701 X User manual

Electrolux

Electrolux EKC6461AOX User manual

Electrolux

Electrolux Elco 700 Instruction manual

Popular Cooker manuals by other brands

Modena

Modena FC 7645 SGM User manual book

Stanley

Stanley Donard 60 Installation and operating instructions

Bartscher

Bartscher 201TC manual

Parkinson Cowan

Parkinson Cowan 50 GR/BU installation instructions

Siemens

Siemens HK9P00020U instruction manual

Creda

Creda S150E Installation and user instructions

Creda

Creda HB48309 instructions

Bosch

Bosch HCE743220F instruction manual

Tricity Bendix

Tricity Bendix SE545P manual

NEFF

NEFF E1461A2/01 Instructions for use

Zanussi

Zanussi ZCM 700 X Instruction booklet

Smeg

Smeg SNL61MA9 user manual

RiverGrille

RiverGrille TF2002501-RG Assembly instruction

Vollrath

Vollrath 69504F Operator's manual

Tricity Bendix

Tricity Bendix CSIE500 Operating and installation instructions

AEG

AEG Competence 5731 V Instruction book

Euromaid

Euromaid ES60 Installation and operation manual

Hotpoint

Hotpoint HUI 62 TP Instructions for installation and use
