Electrolux EASE09P5AHLW User manual

INSTRUCTIONS MANUAL

SPLIT TYPE ROOM AIR CONDITIONER

MODELS:

Please read this manual completely before operating your room air conditioner.

1300807A

S5(20-23)EM_ENGLISH

R410a_50Hz

EAS(C,E)09P5AHLW / EAS(C,E)12P5AHLW

EAS(C,E)18P5AHLW / EAS(C,E)24P5AHLW

Thank you for choosing Electrolux. This manual contains all of the information

required to guarantee your safety and the appropriate use of your air

conditioner.

Please read all of the instructions before using the air conditioner and keep this

manual for future reference.

We know you will enjoy your new air conditioner and thank you for choosing our

product. We hope you will consider us for future purchase.

The packaging material used is recyclable; we

recommend that you separate plastic, paper and

cardboard and give them to recycling companies.

According to WEEE (Waste of Electrical and

Electronic Equipment) guidelines, waste from

electrical and electronic devices should be

collected separately. If you need to dispose of this

appliance in the future, do NOT throw it away with

the rest of your domestic garbage. Instead, please

take the appliance to the nearest WEEE collection

point, where available.

The air conditioner you purchased has R410a gas

refrigerant a environmental friendly gas which does

not damage the ozone layer.

Environmental Advices

Welcome to the world of

simple handling and no worries.

01 electrolux welcome

Contents

contents electrolux 02

Welcome.........................................................................................................01

Environmental advices.........................................................................................01

Contents..........................................................................................................02

Safety precautions..........................................................................................04

Choosing the installation site.....................................................................08

Parts list.........................................................................................................10

Indoor unit installation ...........................................................................................12

Outdoor unit installation...........................................................................16

Refrigerant pipe connection...................................................................18

Electrical work.....................................................................................20

Electrical safety.................................................................................28

Operation test........................................................................................................29

Preparing the device for operation.......................................................................30

Product description..................................................................................31

Remote control....................................................................................................33

Remote control description ..................................................................................35

LCD display indicators .........................................................................................38

How the air conditioner works .............................................................................39

How to use the indoor unit.....................................................................................46

Manual operation (without remote control) ..........................................................48

Maintenance..........................................................................................49

Operation tips...................................................................................51

Solutions for problems..............................................................................53

Technical specifications........................................................................................54

03 electrolux contents

To prevent injury to the user or other people and property damage, the following

instructions must be followed.

Incorrect operation due to ignoring of instructions may cause harm or damage.

The seriousness is classified by the following indications.

Safety precautions

1. Connect with the power properly.

Otherwise, it may cause electric

shock or fire due to excess heat

generation.

2. Do not modify power cord length

or share the outlet with other

appliances. It may cause electric

shock or fire due to heat

generation.

3. Always ensure effective earthing.

No earthing may cause electric

shock.

4. Disconnect the power if strange

sounds, smell, or smoke comes

from it. It may cause fire and

electric shock.

5. Keep firearms away. It may cause

fire.

6. Do not operate or stop the unit by

switching on or off the power. It

may cause electric shock or fire

due to heat generation.

7. Do not operate with wet hands or

in damp environment. It may cause

electric shock.

8. Do not allow water to run into

electric parts. It may cause failure

of machine or electric shock.

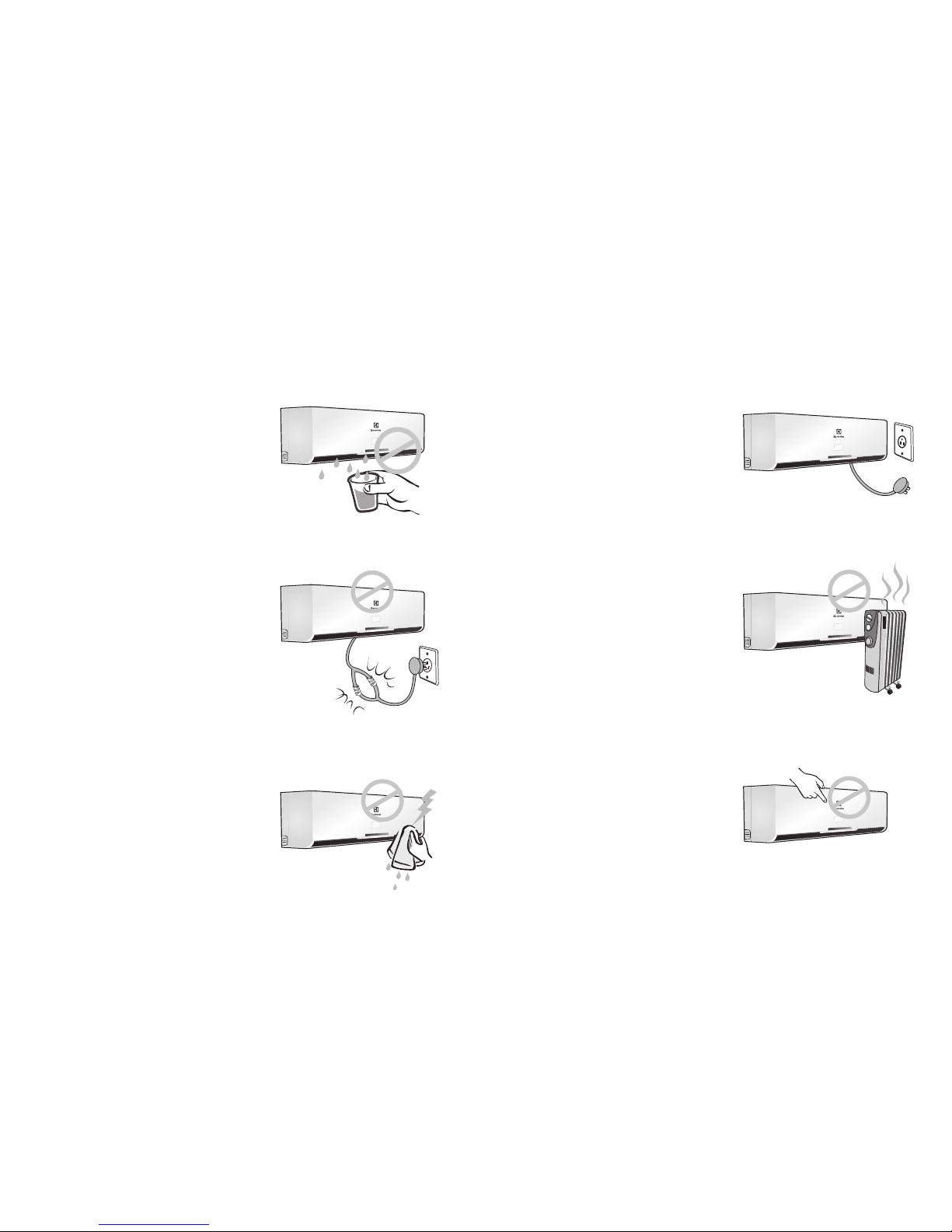

9. Do not drink water drained from air

safety precautions electrolux 04

The air conditioner that you have

bought may be slightly different

from the one illustrated in this

manual. Please refer to the

information related to the model

you have.

This air conditioner is for

domestic use only. It is not

reccomended for commercial or

industrial use.

The air conditioner you have may

carry a different plug than the one

illustrated in this manual. The plug

that comes with the product

follows the electrical specification

of the country where it is sold.

conditioner. It contains contaminants

and could make you sick.

10.Do not use the power cord close to

heating appliances. It may cause

fire and electric shock.

11.Do not damage or use an

unspecified power cord. It may

cause electric shock or fire.

12.Do not direct airflow at room

occupants only. This could damage

your health.

13.Always install circuit breaker and a

dedicated power circuit. No

installation may cause fire and

electric shock.

14.Do not open the unit during

operation. It may cause electric

shock.

15.Do not use the power cord near

flammable gas or combustibles,

such as gasoline, benzene, thinner,

etc. It may cause an explosion or

fire.

16.Ventilate room before operating air

conditioner if there is a gas leakage

from another appliance. It may

cause explosion, fire and, burns.

17.Do not disassemble or modify unit.

It may cause failure and electric

shock.

18.When the air filter is to be removed,

do not touch the metal parts of the

unit. It may cause an injury.

19.Do not clean the air conditioner

with water. Water may enter the

unit and degrade the insulation. It

may cause an electric shock.

05 electrolux safety precautions

20.Ventilate the room well when used

together with a stove, etc. An

oxygen shortage may occur.

21.When the unit is to be cleaned,

switch off, and turn off the circuit

breaker. Do not clean unit when

power is on as it may cause fire

and electric shock, it may cause

an injury.

22.Do not put a children, pet or house

plant where it will be exposed to

direct air flow. This could injure the

pet or plant.

23.Do not use for special purposes.

Do not use this air conditioner to

preserve precision devices, food,

pets, plants, and art objects. It

may cause deterioration of quality,

etc.

24.Stop operation and close the

window in storm or hurricane.

Operation with windows opened

may cause wetting of indoor and

soaking of household furniture.

25.Turn off the main power switch

when not using the unit for a long

time. It may cause failure of

product or fire.

26.Do not use strong detergent such

as wax or thinner. Use a soft cloth

for cleaning. Appearance may be

deteriorated due to change of

product color or scratching of its

surface.

27.Ensure that the installation bracket

of the outdoor appliance is not

damaged due to prolonged

exposure. If bracket is damaged,

there is concern of damage due to

safety precautions electrolux 06

falling of unit.

28.Always insert the filters securely.

Clean filter once every two weeks.

Operation without filters may

cause failure.

29.Do not place heavy object on the

power cord and take care so that

the cord is not compressed. There

is danger of fire or electric shock.

30.Do not place obstacles around air-

inlets or inside of air-outlet. It may

cause failure of appliance or

accident.

07 electrolux safety precautions

7. The indoor unit must be at least 2.3

meters (7.5 feet) from the ground.

8. The site must allow for the easy

removal of the connector pipe and

drain hose.

9. The unit must be installed at a site

protected from direct sunlight.

Precautions for Installation

Installation at the following sites may cause problems. If you must inevitably

install the unit at one of these sites, please consult your local distributor

beforehand:

1. Site with machine oil.

2. Sites with a high concentration of salinity, such as coastal areas.

3. Sites with sulfuric gas, such as hot water springs.

4. Sites with high frequency equipment, such as wireless equipment, welding

machines and medical installations.

5. Sites with flammable gases or volatile material.

6. Sites with special environmental conditions.

7. Laundry rooms.

Indoor Unit

1. The unit must be installed at a site

that does not obstruct the flow of

air.

2. The site must support the weight

of the indoor unit.

3. The site must be easily accessible

for maintenance and replacement

of the air filter.

4. The site must allow for the

necessary space around the

indoor unit, as shown in the

following figure.

5. There should be at least 1 meter (3

feet) between the unit and radio

and television devices. It is ideal

that the unit be installed at the

center of the environment.

6. It must be far from fire, smoke or

flammable gases.

Choosing the installation site

than 15cm

than 12cm

than 200cm

than 12cm

choosing the installation site electrolux 08

Outdoor Unit

1. The outdoor unit must be installed

at a convenient site that is not

exposed to strong winds. The site

should be dry and well ventilated.

2. The site must support the weight

of the outdoor unit and allow for

vertical installation.

3. There must not be the possibility of

increased noise and vibration at

the site.

4. The unit must be installed at a site

where the noise produced by its

operation and air discharge does

not disturb the neighbors or

animals.

5. The site cannot have any leakage

of flammable gases.

6. The site must allow for a piping

extension of no less than 5 meters

(16 feet) and for pipes measuring

at least 10 meters (33 feet) in

length.

7. The site must provide enough

space around the unit, as shown in

the diagram.

8. Children must not be able to

access the installation site.

than 60cm

than 30cm

than 200cm

than 30cm

than 60cm

09 electrolux outdoor unit

Parts list

NUMBERING PART NAME

Installation plate

Clip anchor

Self-tapping screw A ST3.9x25

Seal

Drain Joint

QTY.

5-8

Connecting

pipe

assembly*

Liquid side Ø6,35

Gas side Ø9,52

Parts you must

purchase

Ø12,7

8 7

Indoor unit

Outdoor unit

parts list electrolux 10

Ø16

Ø9,52

Remote controller

Self-tapping screw B ST2.9x10 (optional)

Remote controller holder (optional)

Air freshening filter(installed on Air filter)

1. This illustration is for explanation purposes only.

2. Copper lines must be insulated independently

Indoor unit

Outdoor

unit

6More than 12cm

More than 12cm

Air filter

More than 200cm

More than

60cm

More than 30cm

More than 60cm

More than 15cm

11 electrolux parts list

Indoor unit installation

Installation plate description

indoor unit installation electrolux 12

2,3m or more

Fixing the installation plate

Drilling the Hole

1. Install the installation plate

horizontally over the structural

parts on the wall using the spaces

indicated on the plate, as shown in

the figure above.

2. In the case of tiled, concrete or

similar walls, create 5 mm-

diameter holes. Place anchorage

supports for the appropriate

assembly screws.

3. If expansion screws are used, the

holes must measure 11x20 or

11x26, with a distance of 450 mm

between each.

4. Fix the installation plate to the wall.

1. Determine the position of the hole

for the pipe using the installation

plate and drill the pipe hole (ø

65mm) so that it is titled slightly

downward.

2. Always use a pipe cover with an

opening when drilling a metal bar.

Placa de instalación

Fit the Installation Plate and drill holes

in the wall according to the wall

structure and corresponding mounting

points on the installation plate

(Dimensions are in “mm” unless

otherwise stated).

Wall

Indoor unit Outdoor unit

5-7mm

Do not put the end

of drain hose into water.

Do not block

water flow

by a rise.

Connective pipe and drainage installation

Drainage

1. Run the drain hose sloping

downward. Do not install the drain

hose as illustrated below.

2. When connecting extension drain

hose, insulate the connecting part

of extension drain hose with a

shield pipe, do not let the drain

hose slack.

13 electrolux indoor unit installation

Connective pipe installation

1. For the left-hand and right-hand

piping, remove the pipe cover from

the side panel.

2. For the rear-right-hand and rear-left-

hand piping, install the piping as

shown. Bend the connective pipe to

be laid at 43mm height or less from

the wall.

3. Fix the end of the connective pipe.

Right back

piping

Pipe cover

(left)

Pipe

holder

Pipe cover

(right)

Right piping

Connective

pipe

Indoor unit

outline

43mm

indoor unit installation electrolux 14

Do not block

water flow

by a rise.

1. Pass the piping through the hole in

the wall.

2. Put the upper claw at the back of the

indoor unit on the upper hook of the

installation plate, move the indoor

unit from side to side to see that it is

securely hooked (see Fig.10 &

Fig.11).

Fastening the Indoor Unit

Upper hook

Lower hook

24k Btu models

MODEL Width (mm)

9000 Btu

12000 Btu

18000 Btu

24000 Btu

Height (mm) Depht (mm)

680

770

905

1030

255

275

315

180

188

198

220

Piping and wrapping

1. Bundle the tubing, connecting

cable, and drain hose with tape

securely, evenly as shown.

2. Because the condensed water

from rear of the indoor unit is

gathered in ponding box and is

piped out of room. Do not put

anything else in the box.

1. Connect the indoor unit first, then the outdoor unit.

2. Do not allow the piping to let out from the back of the indoor unit.

3. Be careful not to let the drain hose slack.

4. Heat insulated both of the auxiliary piping.

5. Be sure that the drain hose is located at the lowest side of the bundle.

Locating at the upper side can cause drain pan to overflow inside the unit.

6. Never intercross nor intertwist the power wire with any other wiring.

7. Run the drain hose sloped downward to drain out the condensed water

smoothly.

15 electrolux indoor unit installation

1. Install the outdoor unit on a rigid

base to prevent increasing noise

level and vibration.

2. Determine the air outlet direction

where the discharged air is not

blocked. In the case that the

installation place is exposed to

strong wind such as a seaside,

make sure the fan operating

properly by putting the unit

lengthwise along the wall or using

a dust or shield plates.

3. Specially in windy area, install the

unit to prevent the admission of

wind. If need suspending

installation, the installation bracket

should accord with technique

requirement in the installation

bracket diagram.

4. The installation wall should be solid

brick, concrete or the same

intensity construction, or actions to

reinforce, damping supporting

should be taken. The connection

between bracket and wall, bracket

and the air conditioner should be

firm, stable and reliable.

5. Be sure there is no obstacle which

block radiating air.

Outdoor unit installation

Strong wind

outdoor unit installation electrolux 16

Indoor unit

Cable

de conexión

Ponding

box

Pipe room

Wrapping

belt

Drain hose

Connective

pipe

3. Piping can easily be made by lifting

the indoor unit with a cushioning

material between the indoor unit

and the wall. Get it out after finish

piping.

4. Push the lower part of the indoor unit

up on the wall, then move the

indoor unit from side to side, up and

down to check if it is hooked

securely.

Cushioning

material

Air outlet

Outdoor unit dimension

mm - (WxHxD)

Mounting dimensions

A(mm) B(mm)

700x540x240

685x430x260

780x540x250

760x590x285

845x700x320

775x545x310

670x540x250

760x590x285

820x590x330

845x700x320

458

460

549

530

560

600

481

530

526

560

250

276

290

335

320

276

290

340

335

24k Btu models

Settlement of outdoor unit

Anchor the outdoor unit with

a bolt and nut 10 or 8 tightly

and horizontally on a concrete

or rigid mount.

Drain joint installation

Fit the seal into the drain elbow, then

insert the drain joint into the base pan

hole of outdoor unit, rotate 90 to

securely assemble them.

Connecting the drain joint with an

extension drain hose (Locally

purchased), in case of the water

draining off the outdoor unit during the

heating mode.

17 electrolux outdoor unit installation

Flaring work

Main cause for refrigerant leakage is

due to defect in the flaring work.

Carry out correct flaring work using

the following procedure:

1. Cut the pipes and the cable.

A) Use the piping kit accessory or

pipes purchased locally.

B) Measure the distance between the

indoor and the outdoor unit.

C) Cut the pipes a little longer than

the measured distance.

D) Cut the cable 1.5m longer than the

pipe length.

2. Burr removal

A) Completely remove all burrs from

the cut cross section of pipe/tube.

B) Put the end of the copper

tube/pipe in a downward direction as

you remove burrs in order to avoid

dropping burrs into the tubing.

3. Putting nut on

A) Remove flare nuts attached to

indoor and outdoor unit, then put

them on pipe/tube having completed

burr removal.(not possible to put them

on after flaring work)

Refrigerant pipe connection

refrigerant pipe connection electrolux 18

Air inlet

Air

inlet

Air outlet

Base pan hole

of outdoor unit

Seal Drain joint

Seal

Drain pipe

+ =

Pipe

Correct Wrong

Oblique Roughness Burr

Pipe

Reamer

Point

down

Flare nut

Cooper tube

This manual suits for next models

Table of contents

Other Electrolux Air Conditioner manuals

Electrolux

Electrolux EPF09V1K8 User manual

Electrolux

Electrolux KSV26HRC User manual

Electrolux

Electrolux EAW05E3AJW User manual

Electrolux

Electrolux EXP26U339CW User manual

Electrolux

Electrolux EXP12HN1W6 User manual

Electrolux

Electrolux Kelvinator KSV Series User manual

Electrolux

Electrolux EXM12HJESI User manual

Electrolux

Electrolux WAC060K7A User manual

Electrolux

Electrolux EPV09CRA User manual

Electrolux

Electrolux CAL61.206 Manual

Electrolux

Electrolux BCC-12I User manual

Electrolux

Electrolux Frigidaire GHWQ083WC1 Owner's manual

Electrolux

Electrolux FAH14EQ2 Manual

Electrolux

Electrolux EPS09V57HW User manual

Electrolux

Electrolux BCC-2M 18I User manual

Electrolux

Electrolux EXS09V38HW User manual

Electrolux

Electrolux ES18K11BCCI User manual

Electrolux

Electrolux EXS12V38HW User manual

Electrolux

Electrolux FAM18EQ2 User manual

Electrolux

Electrolux EXS09JEIW User manual

Electrolux

Electrolux Frigidaire FHWW253WC2 Owner's manual

Electrolux

Electrolux EXS09V38HW User manual

Electrolux

Electrolux EXO27HEIWE User manual

Electrolux

Electrolux EXP08CN1W6 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
