Elba ESH-M7598(BK) User manual
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate
Owner’s Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
COOKER HOOD
ESH-M7598(BK)
ESH-M9098(BK)
Please read this instruction carefully. It is advisable to keep this instruction
manual in a safe place for future reference.
SAFETY PRECAUTIONS
1. Keep electrical appliances out of reach from children. Do not let them to
operate the appliances without supervision.
2. To protect against the risk of electrical shock, do not immerse the product,
cord or plug into water or any other liquid.
3. This product is for household and indoor use only.
4. This product is not intended for use by person (including children) with
reduced physical, sensory or mental capabilities unless they have been
given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
5. If the power cord or plug is damaged, it must be replaced by the service
centre or a qualified service technician to avoid hazard.
6. Before installation, check if the mains supply voltage is matched with the
voltage stated on the rating plate of the hood.
7. There must be adequate air ventilation of the room when the cooker hood
is used with the cooking appliances with burning gas or other fuels.
8. Ensure that the installation of exhaust complies with the standard of local
building, gas and electrical authorities.
9. Do not ignite flames in the pans.
10.There is a risk of fire if cleaning is not carried out in accordance with this
instruction.
ASSEMBLY INSTRUCTIONS
Please check the following before installation:
•Installation of hood must be carried out by an authorized or qualified technician.
•For optimum air extraction, avoid having too many windows surrounding the
cooker hood which will cause air convection.
•Make sure the hood is in level after installation to avoid oil spill over.

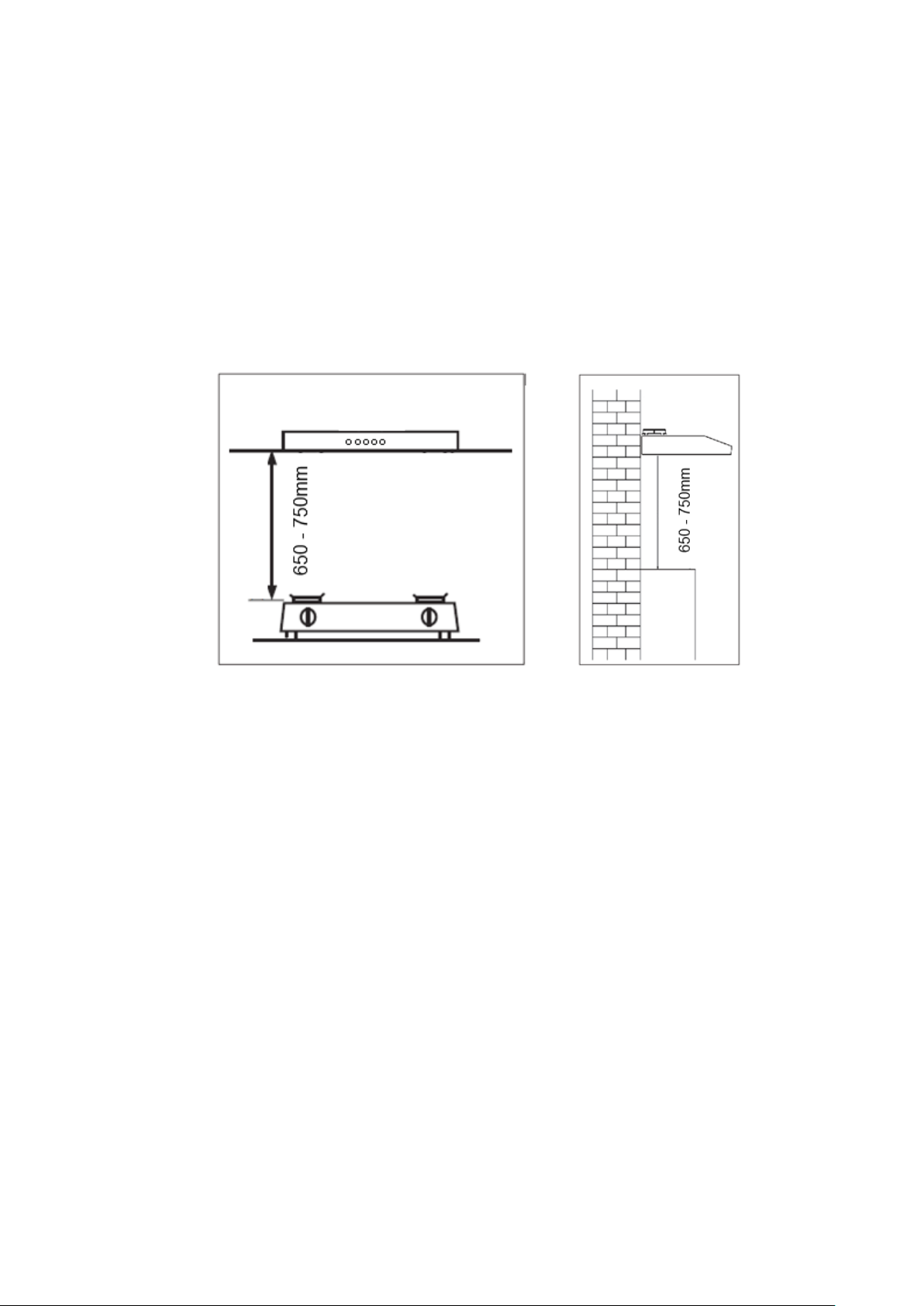

•The optimum height for the installation is between 650 to 750mm which
measure from the bottom of the hood to the top of the hob.
•Remove all packaging materials from the cooker hood.
Please ensure the power supply is OFF when installing the hood.

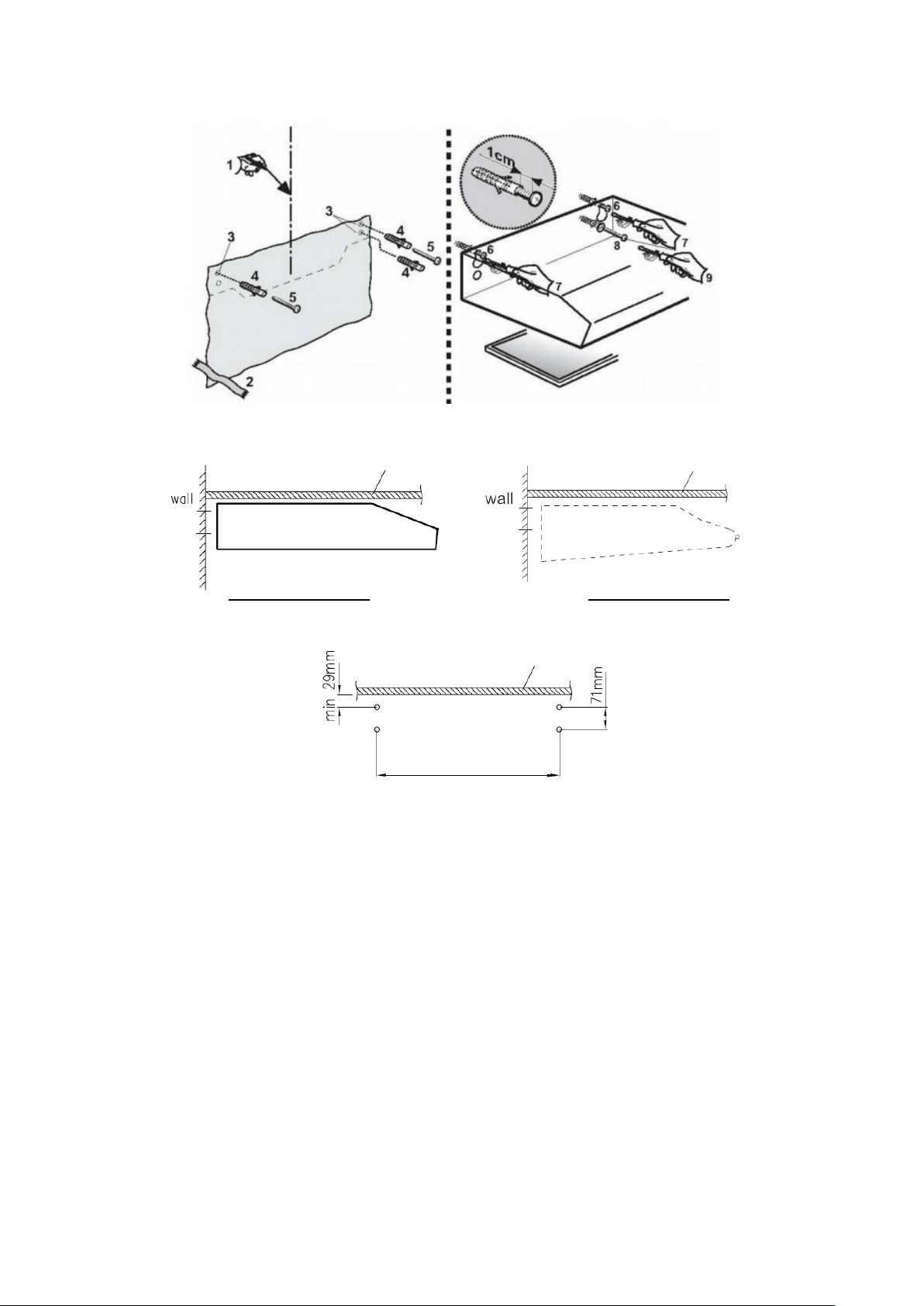

1. Loosen the screws on the metal hook but do not loosen completely. Allow the
metal hook to move up and down slightly.
2. Using the metal hook provided, determine the height of the cooker hood to be
installed on the wall. Mark the wall with two markers left and right then drill
the hole.
3. Plug the plastic anchor into the holes tightly. Fix the installation screws by
leaving 5mm gap from the wall.
4. Hang the cooker hood to the installation screws of 5mm gap and tighten the
screws firmly.
5. Plug in the wall plug and switch on the power.
Note: Ensure that the plug is installed to the power point with proper earthing.

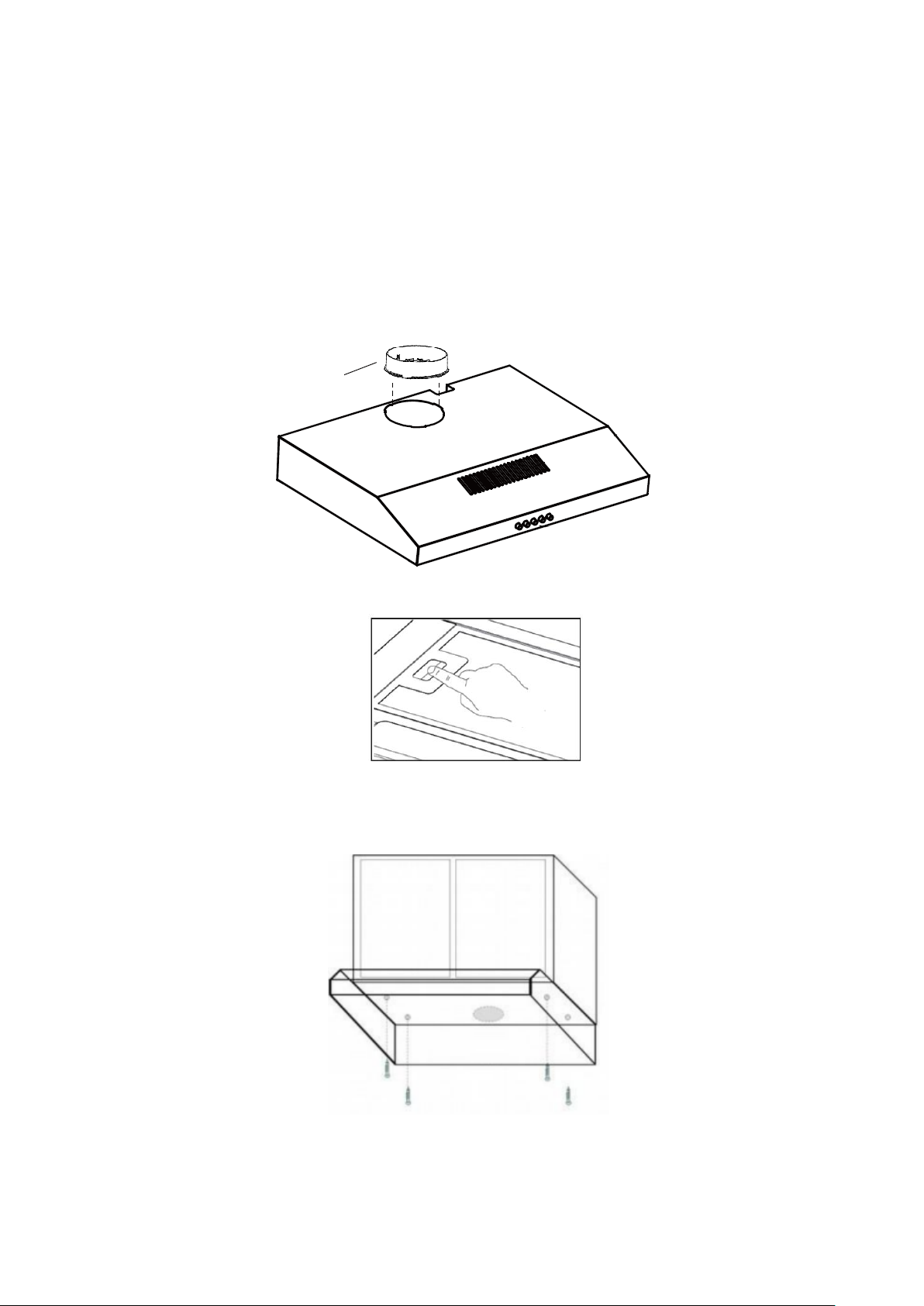

MOUNTING UNDER THE CABINET
1. This cooker hood has two work methods which is ducted mode or
recirculating mode.
2. For ducted mode, cut a minimum Ø120mm hole on the cabinet base. (To
activate ducted mode, please refer to ducted mode instruction page).
3. Place the air outlet socket on the top of the hood. Rotate to lock the air outlet
socket.
4. Remove the grease filter.
5. Lift the hood into cabinet as below and secure 4 screws under the cabinet
with the guideline below.
Air outlet
socket
6. Connect the duct pipe with 120mm and fix it with a pipe-tightening ring on air
outlet socket.
NOTE: Charcoal filter is an optional filter to install in this ducted mode to
purified air.
Min 55mm
Min 88mm

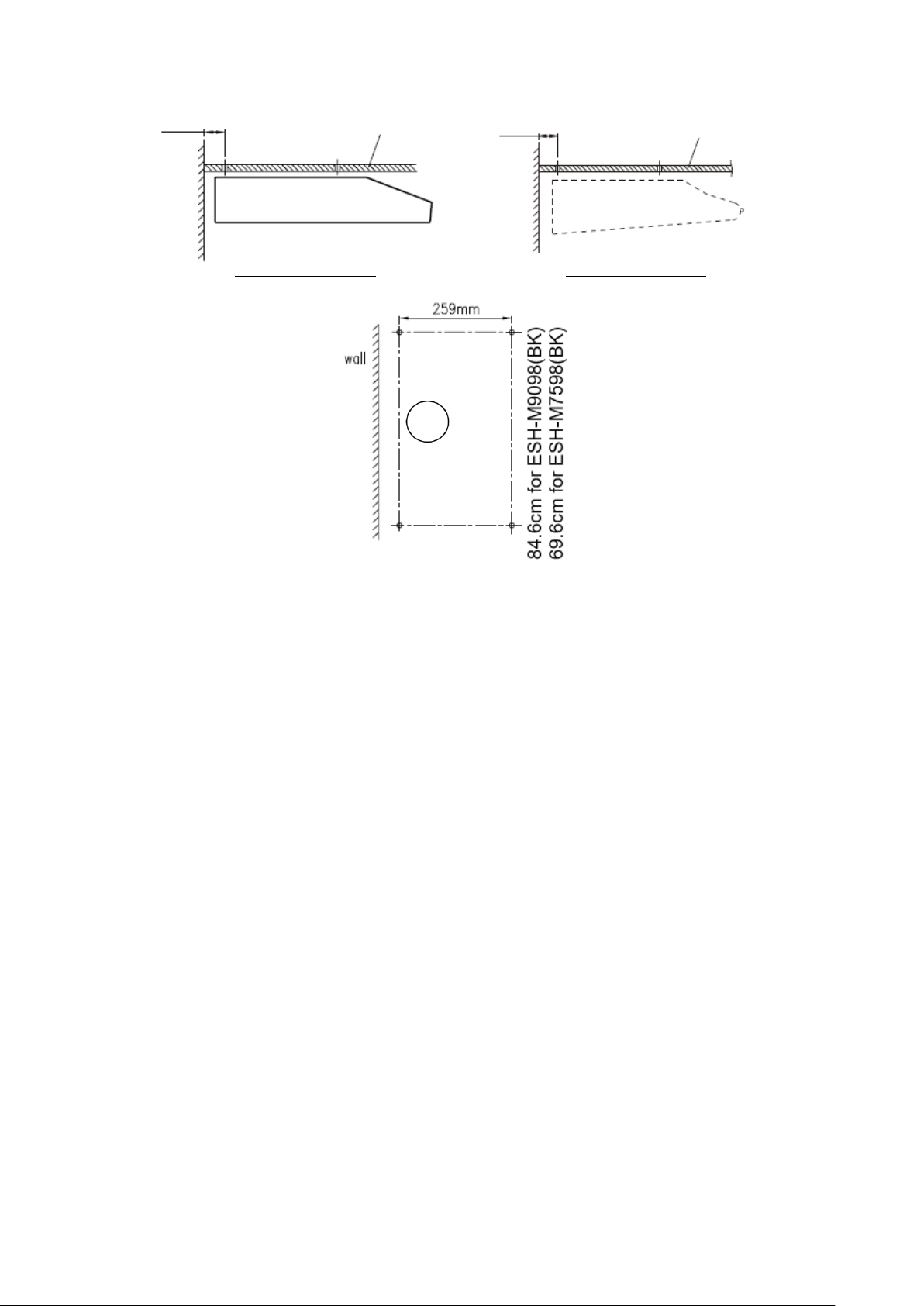

Bottom of cabinet
Bottom of cabinet
ESH-M7598(BK)
ESH-M9098(BK)

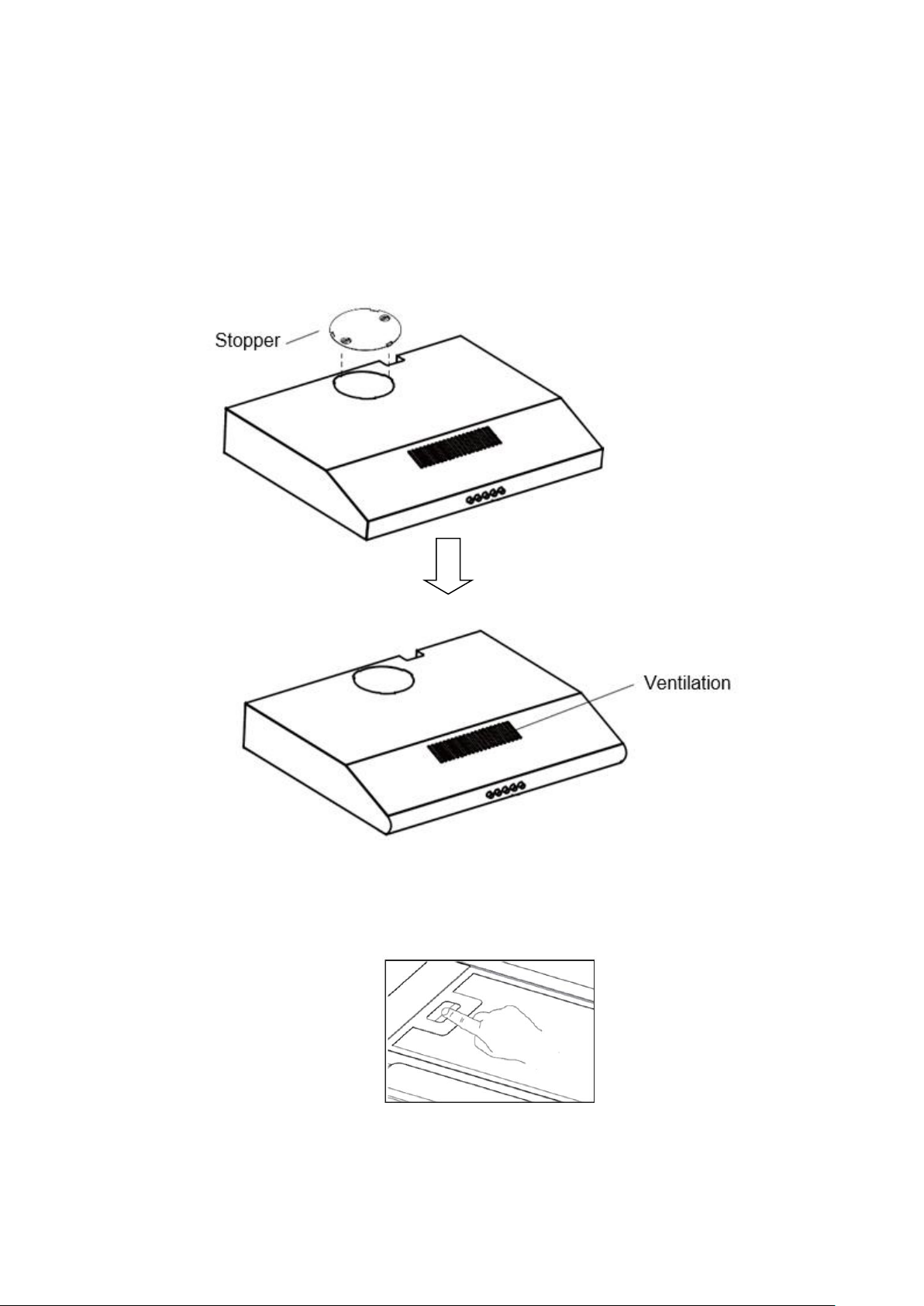

MOUNTING ON WALL
1. This cooker hood has two work methods which is ducted mode or
recirculating mode.
2. For recirculating mode, place the stopper on the top of the hood. Rotate to
lock the stopper (To activate recirculating mode, please refer to recirculating
mode instruction page).
NOTE: Stopper serve as a purpose to turn cooker for front ventilation.
3. Remove the grease filter.
4. Lift the hood and secure 4 screws behind the wall.
NOTE: In this recirculating mode, you must install charcoal filter to
purified air.
Bottom of cabinet
Bottom of cabinet
Bottom of cabinet
84.6cm for ESH-M9098(BK)
69.6cm for ESH-M7598(BK)
ESH-M7598(BK)
ESH-M9098(BK)

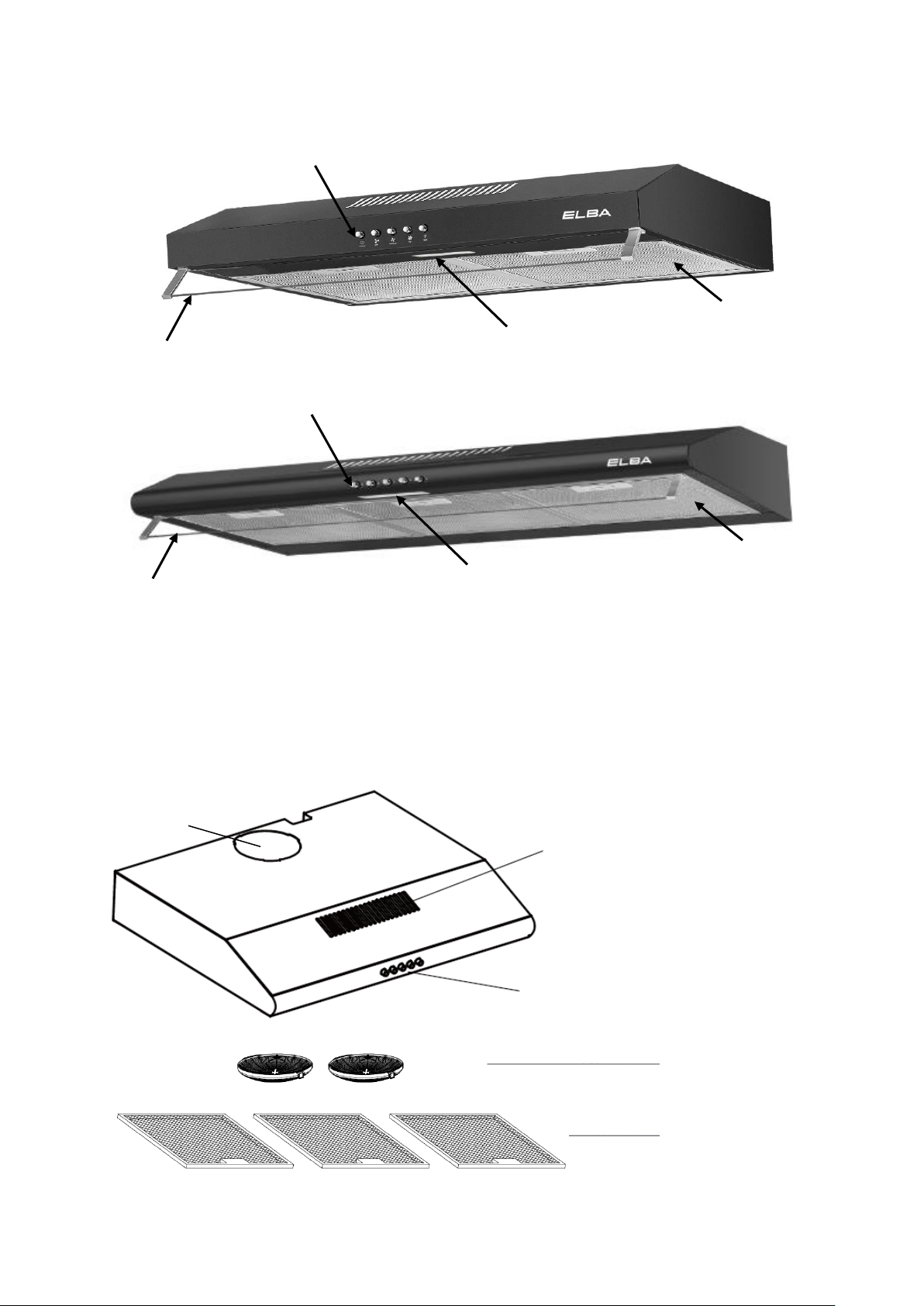

PRODUCT DESCRIPTION
1. Glass Visor
2. Control Switch
3. LED Light
4. Grease Filter
Ventilation
Control Panel
Charcoal Filter
Grease Filter
2
1
3
4
1
2
3
4
Ventilation

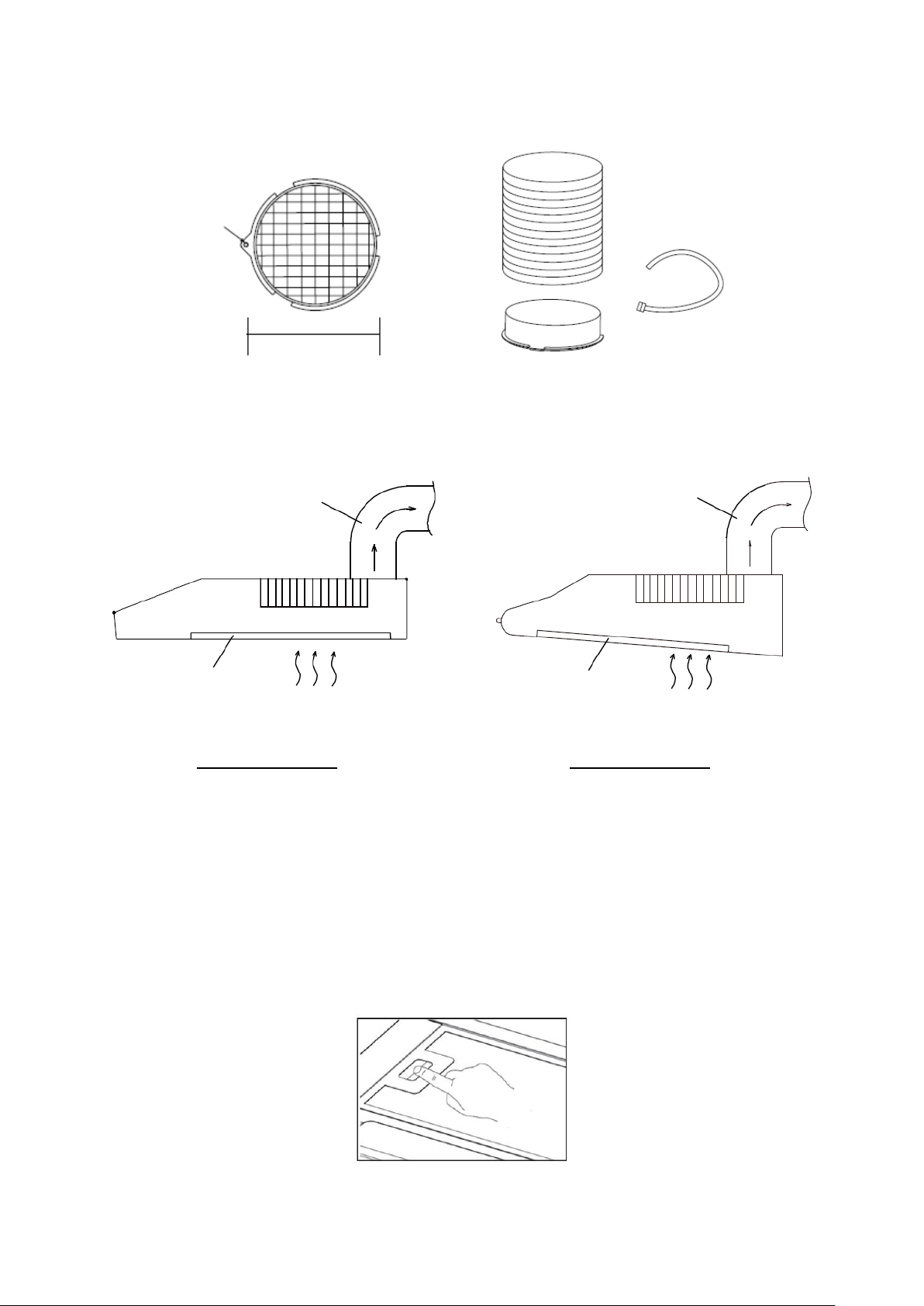

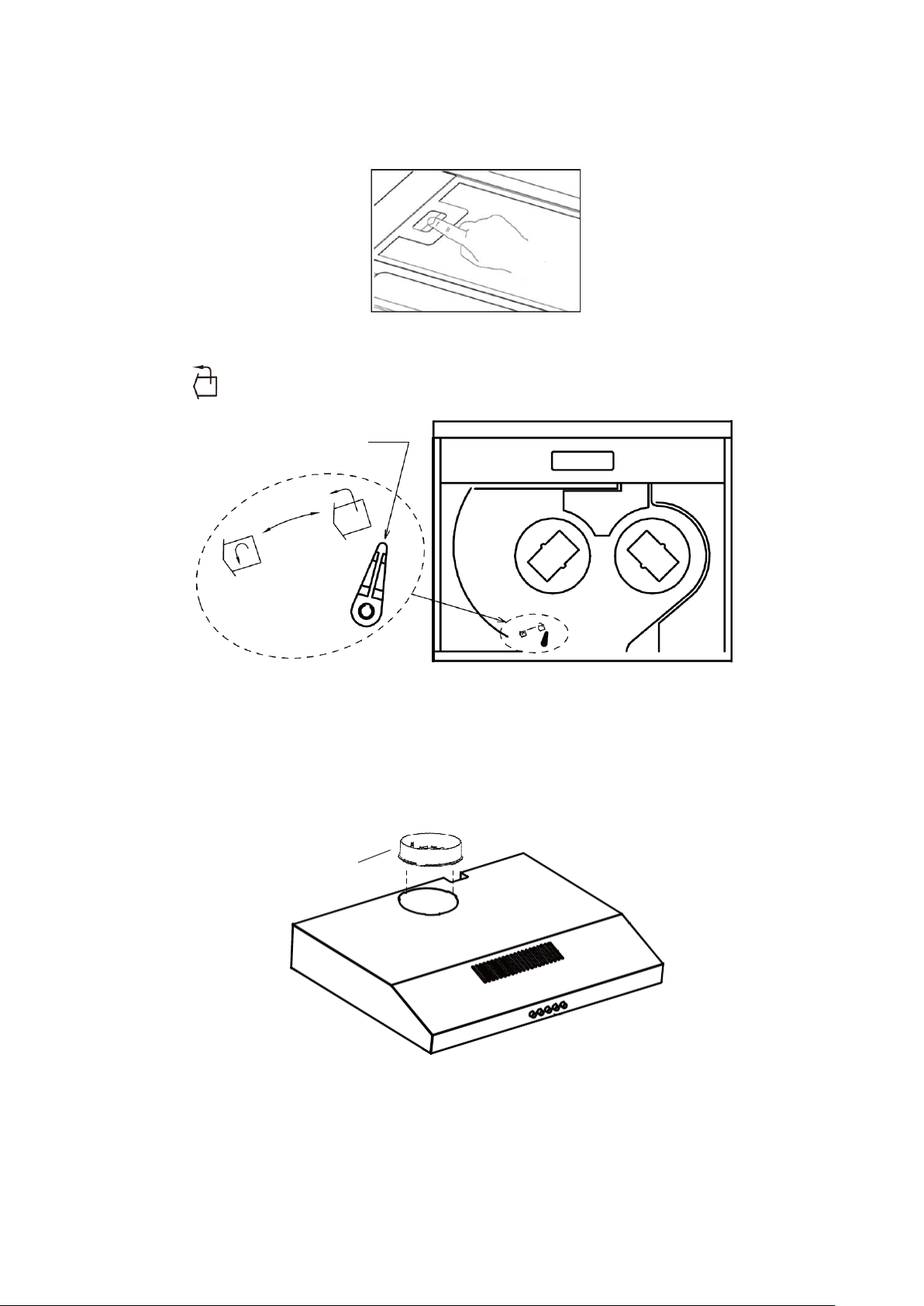

DUCTED MODE
1. Remove the grease filter.
2. Turn to active the ducting mode.
3. Place the air outlet connector on the top of the hood. Rotate to lock the air
outlet connector.
Turn to right
Air outlet
connector
4. Use Ø120mm duct pipe (not provided) and fix it with a pipe-tightening ring
(not provided) on air outlet connector.
NOTE: The accessory - duct pipe and pipe-tightening ring are not provided
in box.
ESH-M7598(BK) ESH-M9098(BK)
RECIRCULATING MODE
1. Remove the grease filter.
120mm
Grease filters
Grease filters
Cooking fumes
Cooking fumes
Duct
Duct
