Elba 2937/90MC User manual
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate
Owner’s Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
COOKER HOOD
MODEL: 2937/90MC
Please read this instruction carefully. It is advisable to keep this instruction
manual in a safe place for future reference.
SAFETY PRECAUTIONS
1. Keep electrical appliances out of reach from children. Do not let them to
operate the appliances without supervision.
2. To protect against the risk of electrical shock, do not immerse the product,
cord or plug into water or any other liquid.
3. This product is for household and indoor use only.
4. This product is not intended for use by person (including children) with
reduced physical, sensory or mental capabilities unless they have been
given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
5. If the power cord or plug in damaged, it must be replaced by the service
centre or a qualified service technician to avoid hazard.
6. Before installation, check if the mains supply voltage is matched with the
voltage stated on the rating plate of the hood.
7. There must be adequate air ventilation of the room when the cooker hood
is used with the cooking appliances with burning gas or other fuels.
8. Ensure that the installation of exhaust complies with the standard of local
building, gas and electrical authorities.
9. Do not ignite flames in the pans.
10.There is a risk of fire if cleaning is not carried out in accordance with this
instruction.
ASSEMBLY INSTRUCTIONS
Please check the following before installation:
Installation of hood must be carried out by an authorized or qualified technician.
For optimum air extraction, avoid having too many windows surrounding the
cooker hood which will cause air convection.
Make sure the hood is in level after installation to avoid oil spill over from the oil
cup collectors.
The optimum height for the installation is between 650 to 750mm which
measure from the bottom of the hood to the top of the hob.
Remove all packaging materials from the cooker hood. Check if both sides of
the cooker hood have a metal hook installed.
1) Loosen the screws on the metal hook but do not loosen completely. Allow the
metal hook to move up and down slightly.
2) Using the metal hook provided, determine the height of the cooker hood to be
installed on the wall. Mark the wall with two markers left and right then drill the
hole at the size 1.4”
3) Plug the plastic anchor into the holes tightly. Fix the installation screws by
leaving 5mm gap from the wall.
4) Hang the cooker hood to the installation screws of 5mm gap and tighten the
screws firmly.
5) Plug in the wall plug and switch on the power.
PRODUCTION DESCRIPTION
1) Mounting Screws (Left & Right)
2) Switch
3) LED lamp
4) Cover
5) Safety Net
6) Oil Cup
7) Activated Carbon Filter
OPERATING INSTRUCTIONS
1. Press the ON/OFF button to turn the unit on and off.
2. Press the Left and Right button to operate the fan blower. Press again
to turn off.
3. Press the Light button to illuminate the LED lamp on/off.
(Remarks: The Light function is independent from the ON/OFF button)
CLEANING AND MAINTENANCE
The hood must always be disconnected from the electricity supply before
carrying out the maintenance.
Clean the hood with damp cloth, hot water and mild detergent. Do not use
chemical, steel, wooden or abrasive cleaners to clean the hood.
Clean the oil cups when they are more than half filled to avoid the oil from
spilling.
Remove the oil cups, wash in hot soapy water, dry and fit back into the
hood. Do not use the hood without the oil cup installed.
MAIN SPECIFICATION
Rated Voltage : 220-240V/50Hz
Light : 2 x 1.5W
Motor : Twin Motor
Exhaust Diameter : 6”
Suction Power : 1023m³/hr
Motor Power : 160W
Motor Speed : 1,450 RPM
Product Dimension : 896mm(W) x 140mm (H) x 527mm(D)
Product Weight : 14.2KG
NOTICE
This product must not be disposed together with domestic waste. It has to be disposed at an
authorized place for recycling of electrical and electronic appliances. By collecting and recycling
waste, you help to save natural resources and make sure the product is disposed in an
environmental friendly and healthy way.
This manual suits for next models
4
Table of contents
Other Elba Ventilation Hood manuals
Elba
Elba STELLA 90-IS BGX User manual
Elba
Elba EH-G9325ST User manual
Elba
Elba EH-H9329TFT(BK) User manual
Elba
Elba ESH-M7598(BK) User manual
Elba
Elba ARIA EH-A9024ST User manual
Elba
Elba EH-J9031ST(SS) User manual
Elba

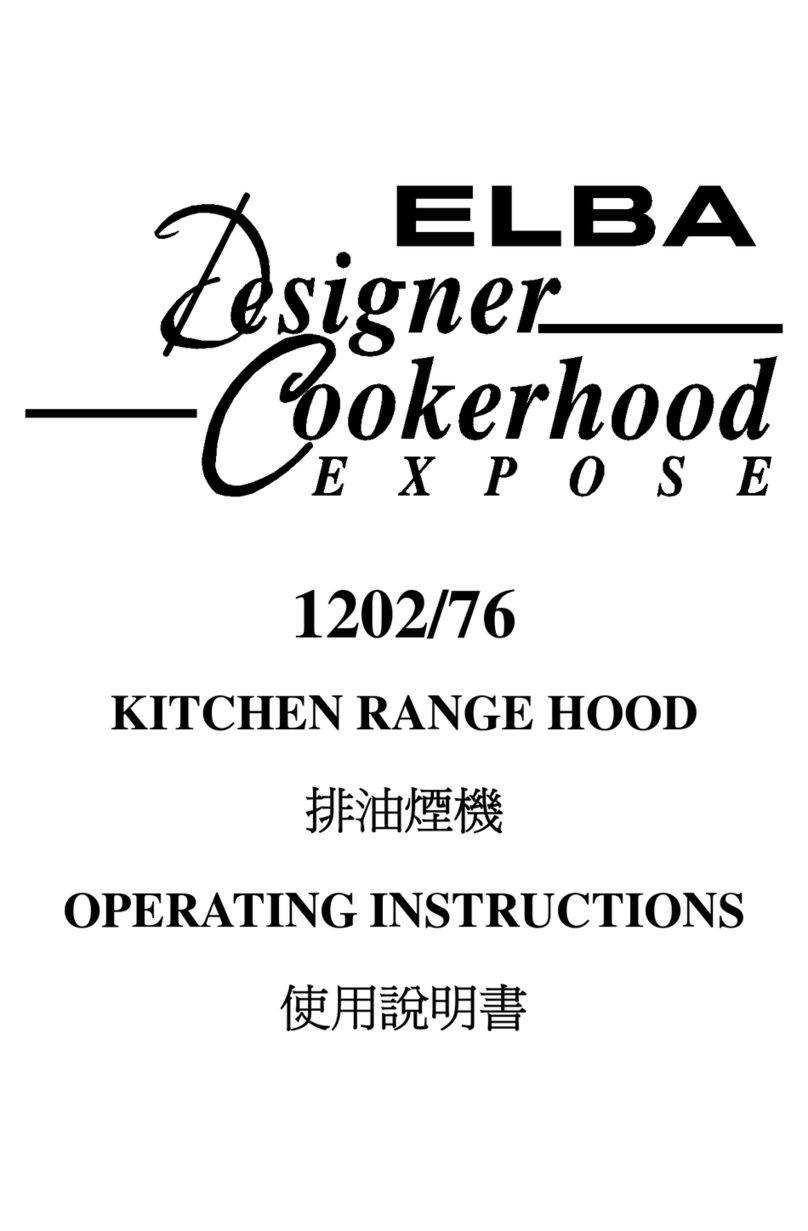

Elba 1202/76 User manual
