Edimax EW-7708Pn User manual

Multi-Language QIG in Driver CD

================================================

Český: Českého průvodce rychlou instalací naleznete na

přiloženém CD s ovladači

: Auf der beiliegend Treiber CD finden Sie deutsche

Anleitung zur Schnellinstallation.

Español: Incluido en el CD el QIG en Español

Français: Veuillez trouver l’français QIG ci-joint dans le CD

Italiano: Incluso nel CD il QIG in Italiano

Magyar: A magyar telepítési útmutató megtalálható a mellékelt

CD-n

Nederlands: De nederlandse QIG treft u aan op de bijgesloten

Polski: Skrócona instrukcja instalacji w języku polskim znajduje

sięna załączonej płycie CD

Português: Incluído no CD o QIG em Portugues

Русский: Найдите QIG на pусскoмязыке на приложеном CD

Romana: Cd-ul cuprinde Ghid de instalare rapida in limba

romana

Slovensky: Anglického sprievodcu rýchlou inštaláciou nájdete

na priloženom CD s ovládačmi.

Türkçe: Ürün ile beraber gelen CD içinde Türkçe HızlıKurulum

Kılavuzu'nu bulabilirsiniz

简体中文: 产品包装 CD 光盘中含有简体中文版快速安装手冊

繁體中文: 產品包裝隨附 CD 中含有繁體中文版之快速安裝指南

this publication may be reproduced, transmitted, transcribed, stored in a

retrieval system, or translated into any language or computer language, in

any form or by any means, electronic, mechanical, magnetic, optical,

chemical, manual or otherwise, without the prior written permission of this

company.

This company makes no representations or warranties, either expressed

or implied, with respect to the contents hereof and specifically disclaims

any warranties, merchantability or fitness for any particular purpose. Any

software described in this manual is sold or licensed "as is". Should the

programs prove defective following their purchase, the buyer (and not this

company, its distributor, or its dealer) assumes the entire cost of all

necessary servicing, repair, and any incidental or consequential damages

resulting from any defect in the software. Further, this company reserves

the right to revise this publication and to make changes from time to time

in the contents hereof without obligation to notify any person of such

revision or changes.

The product you have purchased and the setup screen may appear

slightly different from those shown in this QIG. For more detailed

information about this product, please refer to the User's Manual on the

CD-ROM. The software and specifications are subject to change without

notice. Please visit our web site www.edimax.com for the update. All right

reserved including all brand and product names mentioned in this manual

are trademarks and/or registered trademarks of their respective holders.

Contents

1. Product Information............................................................5

2. Package Contents ...............................................................6

3. Network Card Installation...................................................8

3.1 Hardware Installation..................................................8

3.2 Software Installation .................................................11

4. Connect to Wireless Access Point ................................. 14

of this publication may be reproduced, transmitted, transcribed, stored in

a retrieval system, or translated into any language or computer language,

in any form or by any means, electronic, mechanical, magnetic,optical,

chemical, manual or otherwise, without the prior written permission of this

company.

This company makes no representations or warranties, either expressed

or implied, with respect to the contents hereof and specifically disclaims

any warranties, merchantability or fitness for any particular purpose.

Any software described in this manual is sold or licensed "as is". Should

the programs prove defective following their purchase, the buyer (and not

this company, its distributor, or its dealer) assumes the entire cost of all

necessary servicing, repair, and any incidental or consequential damages

resulting from any defect in the software. Further, this company reserves

the right to revise this publication and to make changes from time to time

in the contents hereof without obligation to notify any person of such

revision or changes.

The product you have purchased and the setup screen may appear

slightly different from those shown in this QIG. For more detailed

information about this product, please refer to the User's Manual on the

CD-ROM. The software and specifications are subject to change without

notice. Please visit our web site www.edimax.com for the update. All right

reserved including all brand and product names mentioned in this manual

are trademarks and/or registered trademarks of their respective holders.

1. Product Information

Main Features

zComplies with 802.11n, 802.11g and 802.11b standards.

zProvides further coverage, less dead spot and high throughput (11n

Adapter Up to 300Mbps with MIMO technology).

zSupports WMM, WMM-PS (IEEE 802.11e QoS standard).

zSupports 64/128-bit WEP, WPA (TKIP with IEEE 802.1x),WPA2 (AES

with IEEE 802.1x) for high security level.

zSupports operating system: Windows OS 2000/XP/Vista, MAC OS

10.4.x /10.5.x and Linux

zSupports WPS configuration button. (EW-7717Un, EW-7727In only)

zSupports USB 2.0/1.1 interface. (EW-7717Un, EW-7718Un,

EW-7318Ug, EW-7318USg, only)

2. Package Contents

Before you starting to use this wireless network card, please check if

there's anything missing in the package, and contact your dealer of

purchase to claim for missing items:

EW-7717Un / EW-7718Un

□Wireless USB Adapter x1

□USB Cable with Stand x1

□Quick Installation Guide x1

□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &

User Manual) x1

EW-7318Ug

□Wireless USB Adapter x1

□USB Cable x1

□Quick Installation Guide x1

□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &

User Manual) x1

EW-7318USg

□Wireless USB Adapter x1

□USB Cable x1

□4dBi Antenna x1

□Quick Installation Guide x1

□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &

User Manual) x1

EW-7108PCg / EW-7708Pn

□Wireless Cardbus Adapter x1

□Quick Installation Guide x1

□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &

User Manual) x1

EW-7128g

□Wireless PCI Adapter x1

□Antenna with cable x1

□Quick Installation Guide x1

□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &

User Manual) x1

EW-7727In

□Wireless PCI Adapter x1

□3dBi Antenna x2

□Quick Installation Guide x1

□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &

User Manual) x1

EW-7728In

□Wireless PCI Adapter x1

□3dBi Antennas x3

□Quick Installation Guide x1

□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &

User Manual) x1

EW-7738Pn

□Wireless ExpressCard x1

□Quick Installation Guide x1

□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &

User Manual) x1

EW-7748In

□Wireless PCI Express Adapter x1

□3dBi Antenna x3

□Quick Installation Guide x1

□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &

User Manual) x1

3. Network Card Installation

Please follow the following instructions to install your new USB wireless

network card:

3.1 Hardware Installation

EW-7318Ug / EW-7318USg / EW-7717Un / EW-7718Un

1. Fasten the antennas to the antenna connectors on the network card by

clockwise direction. (EW-7318USg only)

2. Insert the USB wireless network card into an empty USB 2.0 port of

your computer when computer is switched on.

Never use force to insert the card, if you feel it’s stuck, flip the

card over and try again.

3. The following message will appear on your computer, click ‘Cancel’.

EW-7128g / EW-7727In / EW-7728In / EW-7748In

1. SWITCH THE COMPUTER OFF, remove the cover and insert the

wireless network card into an empty PCI slot (EW-7128g/EW-7728In/

EW-7727In) or PCI Express slot (EW-7748In) of your computer.

2. Fasten the antennas to the antenna connectors on the network card by

clockwise direction.

3. You can bend the antenna to fit actual needs.

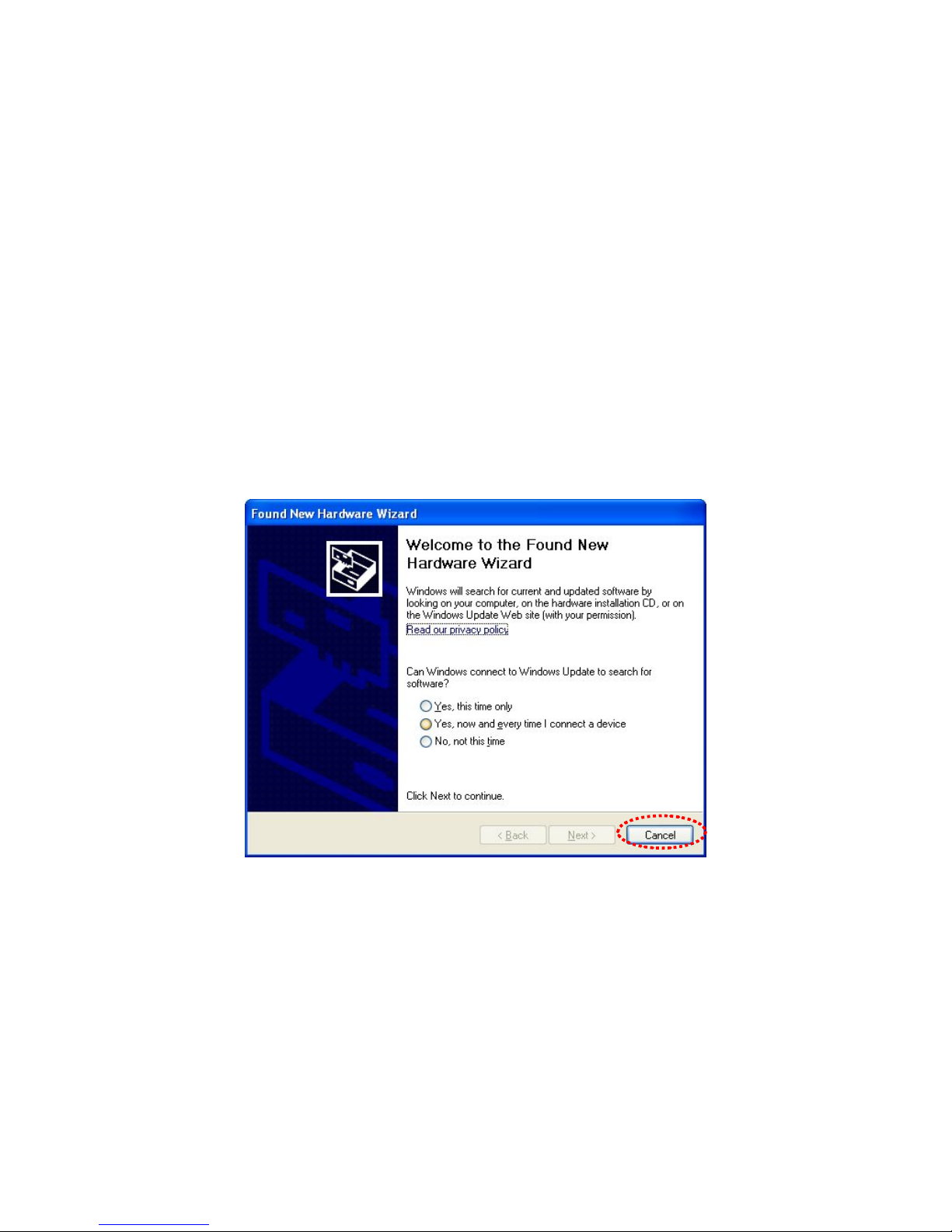

4. Switch the computer on, the following message will appear on your

computer, please click ‘cancel’.
