Dynamic DYN-6220-01 User manual
1
Infrared Sauna Instruction Manual
Models: DYN-6220-01 / DYN-6306-02 / DYN-6330-01 / DYN-6440-01
2, 3 & 4 Person FAR Infrared Saunas
CARBON MODEL SAUNA
FOR INDOOR USE ONLY
120VAC 15AMP Dedicated Circuit Required (2 Person Model)
120VAC 20AMP Dedicated Circuit Required (3 & 4 Person Models)
Carefully and thoroughly read this Owner’s Manual before using/operating the
sauna. We recommend keeping this Owner’s Manual for regular review and
future reference.
2
TABLEOFCONTENTS
Packing List 2
Visual Assembly Diagrams 6
Parts Description 10
Assembly Instructions 17
Operating the Sauna 24
Tips for Using Your Sauna 27
Safety Instructions 28
Safeguards for Your Sauna 30
Troubleshooting Guide 30
Warranty 36
Warranty Card 39
WARNING: Visually inspect all heaters before assembly to make sure they are
not damaged. Any excessive vibrations during transport could cause damage to
the heating elements. DO NOT START the sauna if damage is detected! Contact
your dealer or manufacturer for troubleshooting and replacement parts.
Packing List (main panels)
1pc Front Panel 1pc Rear Panel 1pc Right Side Panel
1pc Left Side Panel 1pc Roof Panel 1pc Roof Cover
1pc Bench 1pc Bench Heat Emitter Panel 1pc Floor Panel
NOTE: Your model sauna has been completely assembled and tested prior to
packaging. The rear wall panel is intentional warped as part of the overall design.
Two adults will be needed to assemble the sauna room.
CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy, Or
Any Discomfort.
3
What Are Infrared Rays?
Infrared is the band of light we perceive as heat. We cannot see this band of light with the
naked eye, but we can feel this type of light in the form of heat. Our sun produces most of
its energy output in the infrared segment of the spectrum. Infrared rays heat your body
without having to heat the air in-between. This process is called conversion.

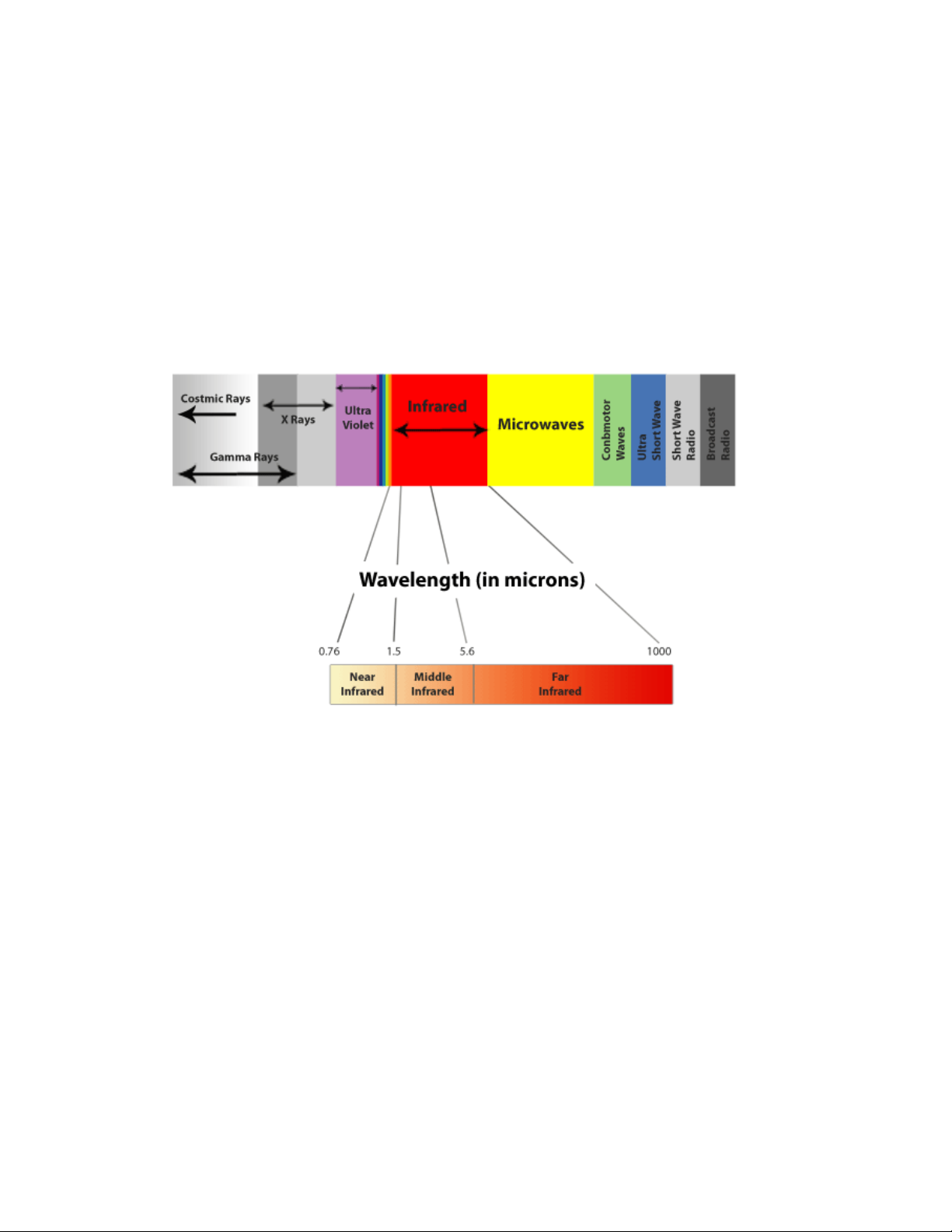

The infrared is divided into 3 segments by wavelengths measured in microns: Near
Infrared –0.76-1.5 microns; Middle Infrared –1.5-5.6 microns; and Far Infrared –5.6-1000
microns. Among these segments, Far Infrared penetrates organic substances such as the
human body two to three inches so that the warming effect is very uniform.
ARE INFRARED RAYS SAFE?
Because infrared rays are part of sunlight, they are not only safe but also highly beneficial
to our bodies on a cellular level. Health professionals have used infrared heat lamps for
decades to treat muscle and joint problems. In hospital baby care units, incubators are
often equipped with infrared heating systems to keep newborn babies warm.
WHAT IS AN ELECTROMAGNETIC FIELD (also known as EMF)?
An Electromagnetic Field is a physical field produced by electrically charged objects. It is
one of the fundamental forces of nature. The field can be viewed as the combination of
an electric field and a magnetic field. The electric field is produced by stationary charges
and the magnetic field by moving charges referred to as currents. Although all of our
sauna products have been developed to have low EMF, this specific model uses our
advance carbon panel technology which significantly reduces the amount of EMF
exposure resulting in less than 10 milligauss (mG).
4

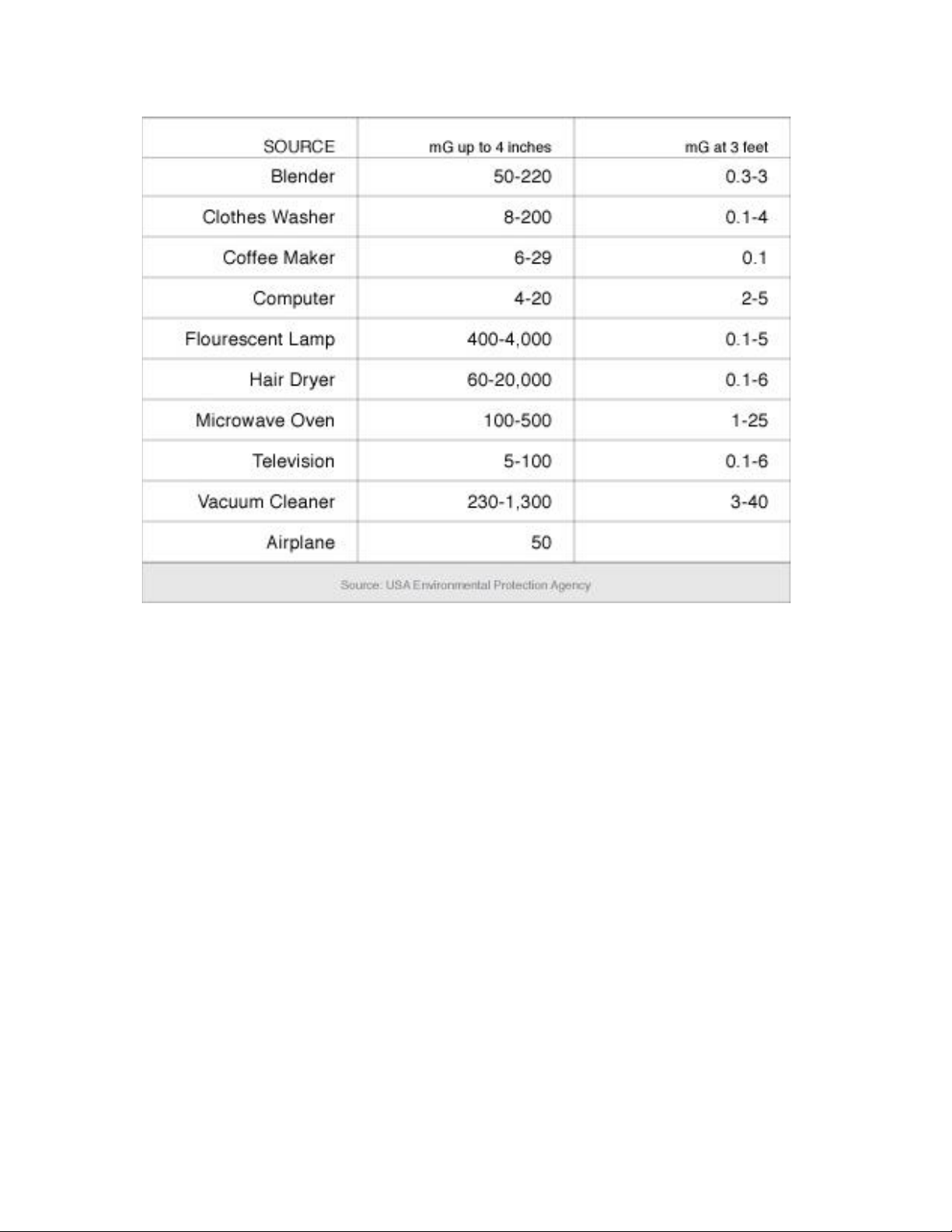

EMF Levels from Common Homes Sources
After many years and numerous studies on EMF exposure, no government body including
the Occupational Safety and Health Administration (OSHA) have established permissible
exposure limits (PEL). Currently, there is no consensus on the potential health hazard from
any exposure to EMF. The mainstream scientific evidence suggests that low-power, low-
frequency, electromagnetic radiation associated with household currents like that of the
infrared sauna does not constitute a short or long term health hazard.
DISCLAIMER
The infrared rays emitted by your sauna are reported to offer a wide range of possible
therapeutic benefits based on research completed over the last 40 years from all around
the world. These benefits are presented for reference purposes only and no implication of
infrared saunas creating a cure for or treating any disease is implied nor should it be
inferred. If you have a medical/health condition, are taking prescription drugs, or have
acute joint injuries, please consult with your medical physician before using the sauna.
Persons with surgical implants (metal pins/rods, artificial joints, silicone, or other types of
surgical implants) typically do not experience any adverse effects, but should also consult
their medical physician or surgeon before using the sauna room.
5

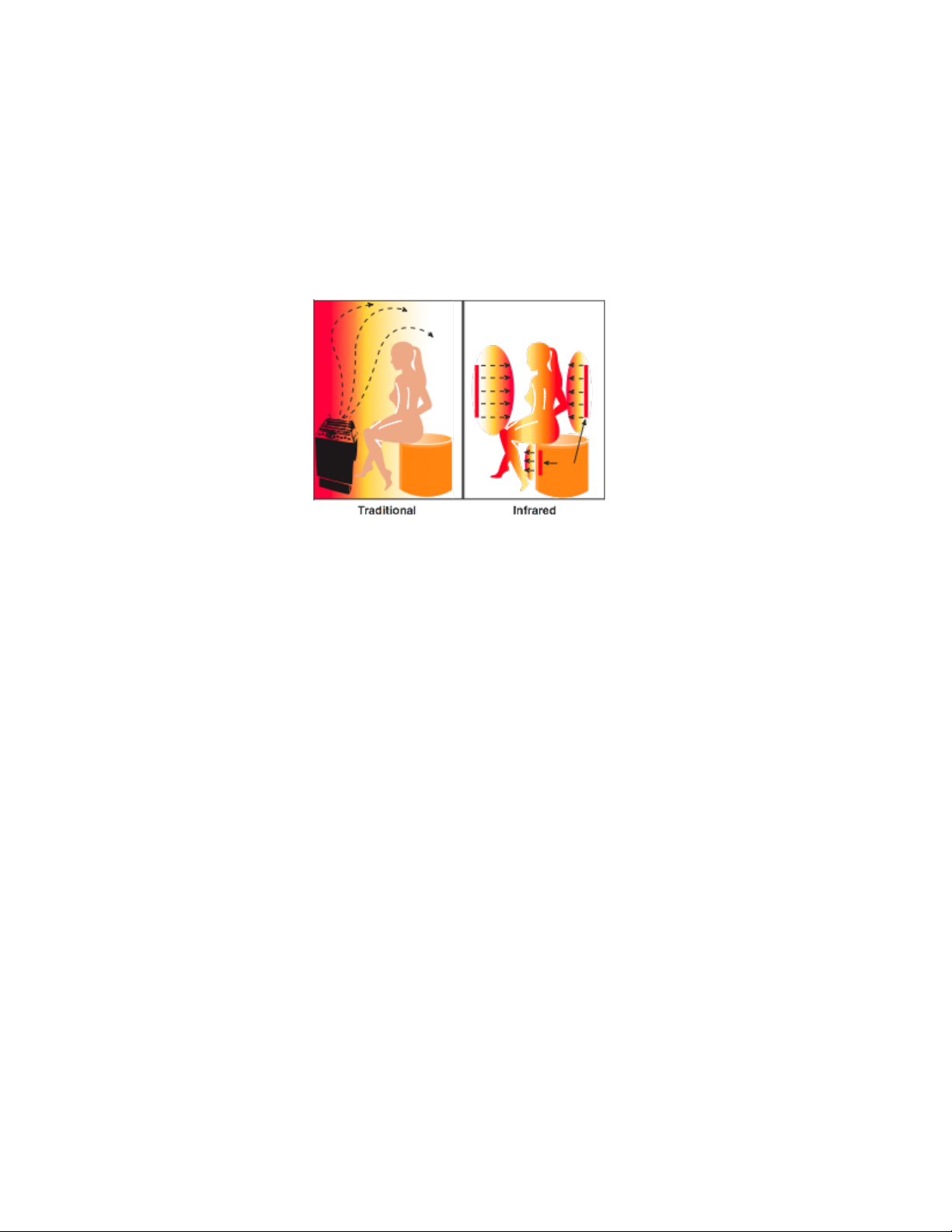

HOW IT WORKS
Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to
directly penetrate into the body's tissue to produce perspiration. Traditional saunas use
steam to heat the air inside the sauna, which then heats your body until you begin to
perspire. In order for this to be effective, temperatures would need to reach in the
upwards of 190 degrees Fahrenheit. Infrared saunas only need a temperature of up to 120
degrees Fahrenheit to obtain the same effect. This lower temperature makes the
environment more tolerable and allows you to breathe easier.
Health Benefits
Because infrared rays penetrate the body through conversion, there is a deep heating
effect in both the muscle tissues and internal organs without putting too much burden on
the heart.
Our body reacts to the increased heating through the natural cooling process of perspiring.
Through the perspiration process, acid and waste residue like toxins, sodium, alcohol,
nicotine, cholesterol, and the potentially carcinogenic heavy metals are removed from the
cells (especially zinc, lead, nickel, cadmium, etc.). The pores of our skin open and
discharge waste products shedding any old skin cells leaving the skin glowing and clean,
with improved tone, elasticity, texture, and color.
Health Benefits Include, But Are Not Limited To:
*Pain relief from Rheumatoid Arthritis *Relaxes muscle spasms *Reduces cellulite
*Increases blood circulation *Clears, rashes, acne *Enhances skin tone
*Cardiovascular conditioning *Reduces stress & fatigue *Removes toxins
Sauna Maintenance
Since infrared saunas do not require hot rocks, water, or steam to operate, they require
very little maintenance. You can simply wipe it down with water –use a damp, soft, and
clean cloth. Do not use any chemical based cleaning agents as they can be absorbed
into the wood and be released into your sauna during use.
6

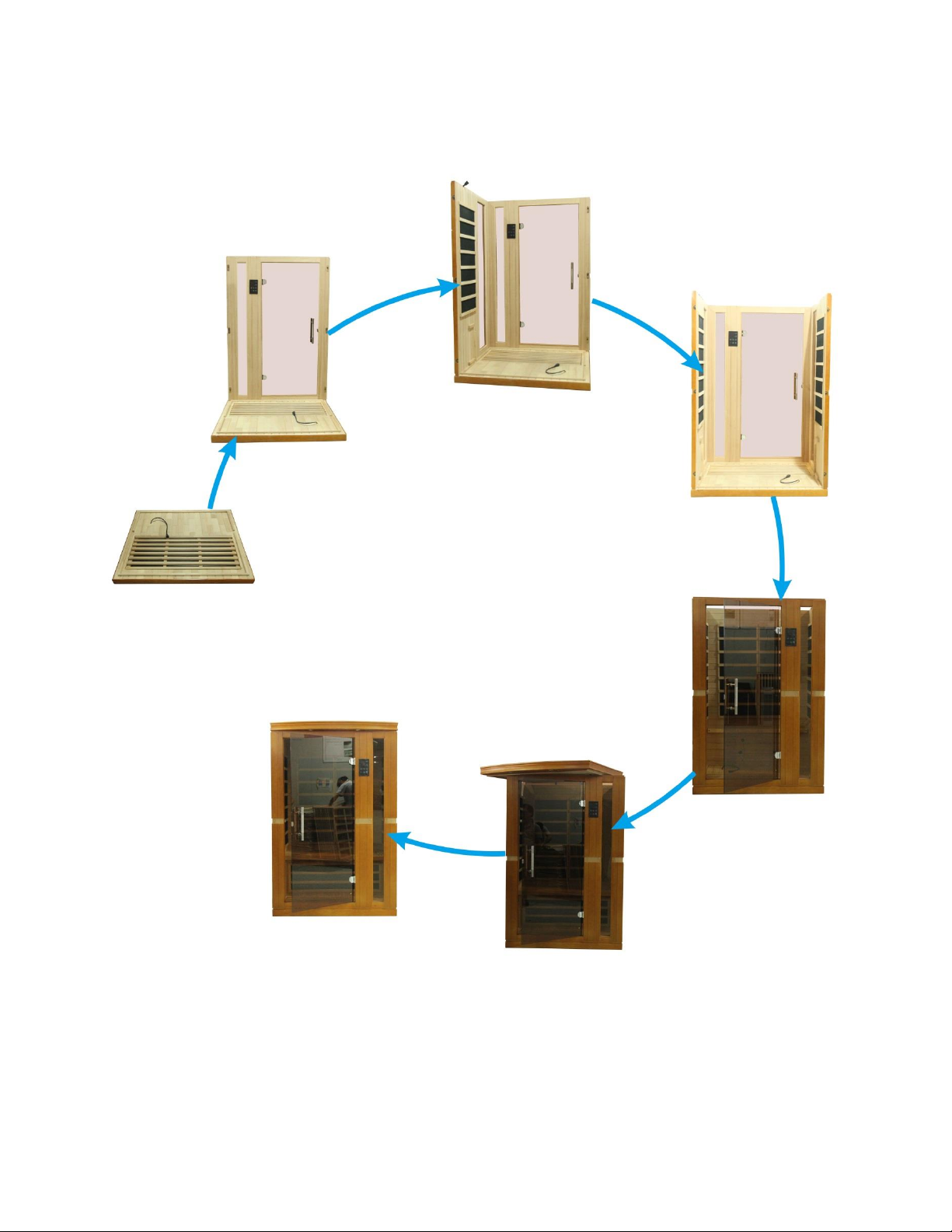

*PLEASE READ INSTRUCTIONS BEFORE
ASSEMBLY*
DYN-6220-01
*The above assembly diagram is for a quick
reference
visual guide only. All
sauna models are not shown. Parts and accessories may
vary and are subject
to change. Backrests are sold separately. We have found that starting the
assembly process with the floor and front wall panel first may be the easiest,
but it is not mandatory.
7

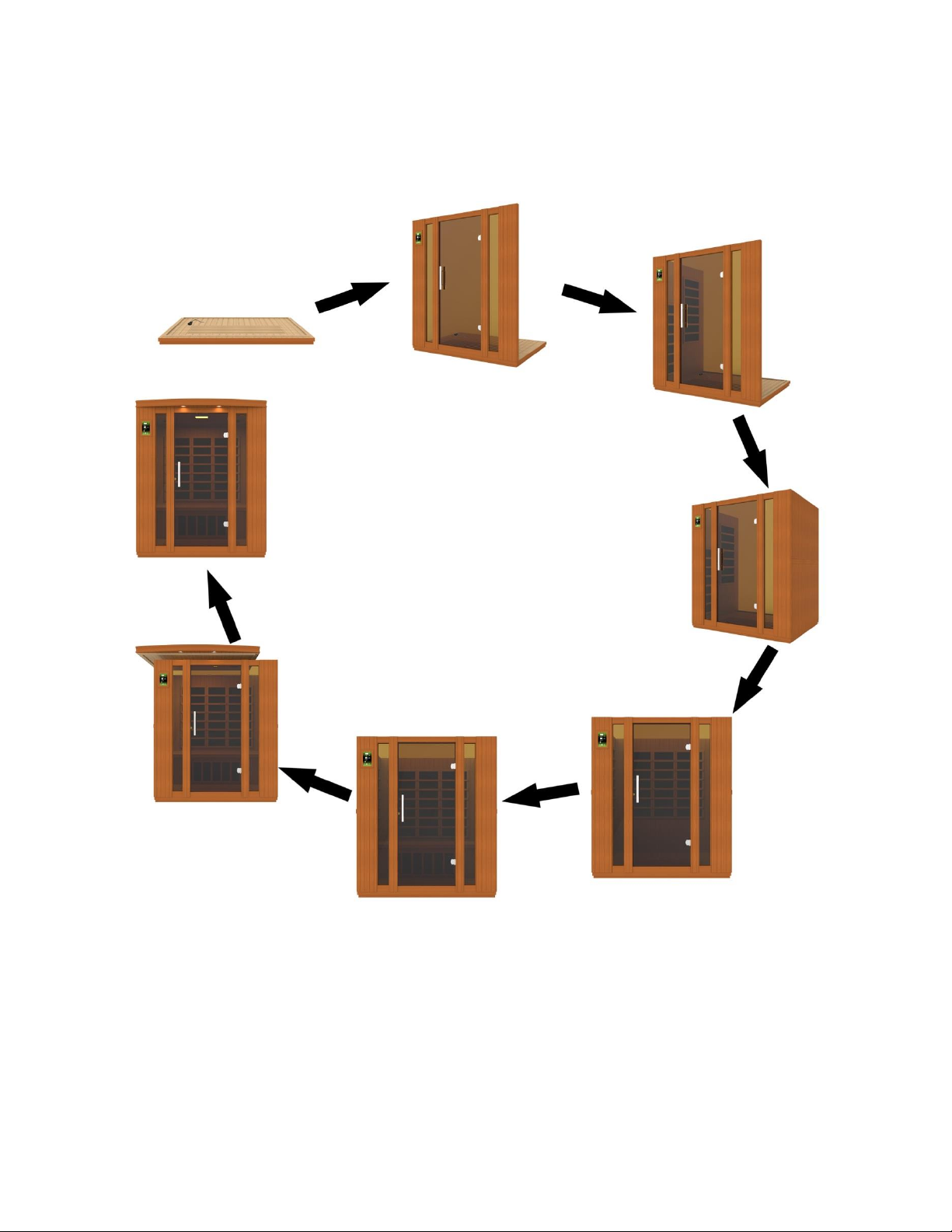

*PLEASE READ INSTRUCTIONS BEFORE
ASSEMBLY*
DYN-6306-02
*The above assembly diagram is for a quick
reference
visual guide only. All
sauna models are not shown. Parts and accessories may
vary and are subject
to change. Backrests are sold separately. We have found that starting the
assembly process with the floor and front wall panel first may be the easiest,
but it is not mandatory.
8

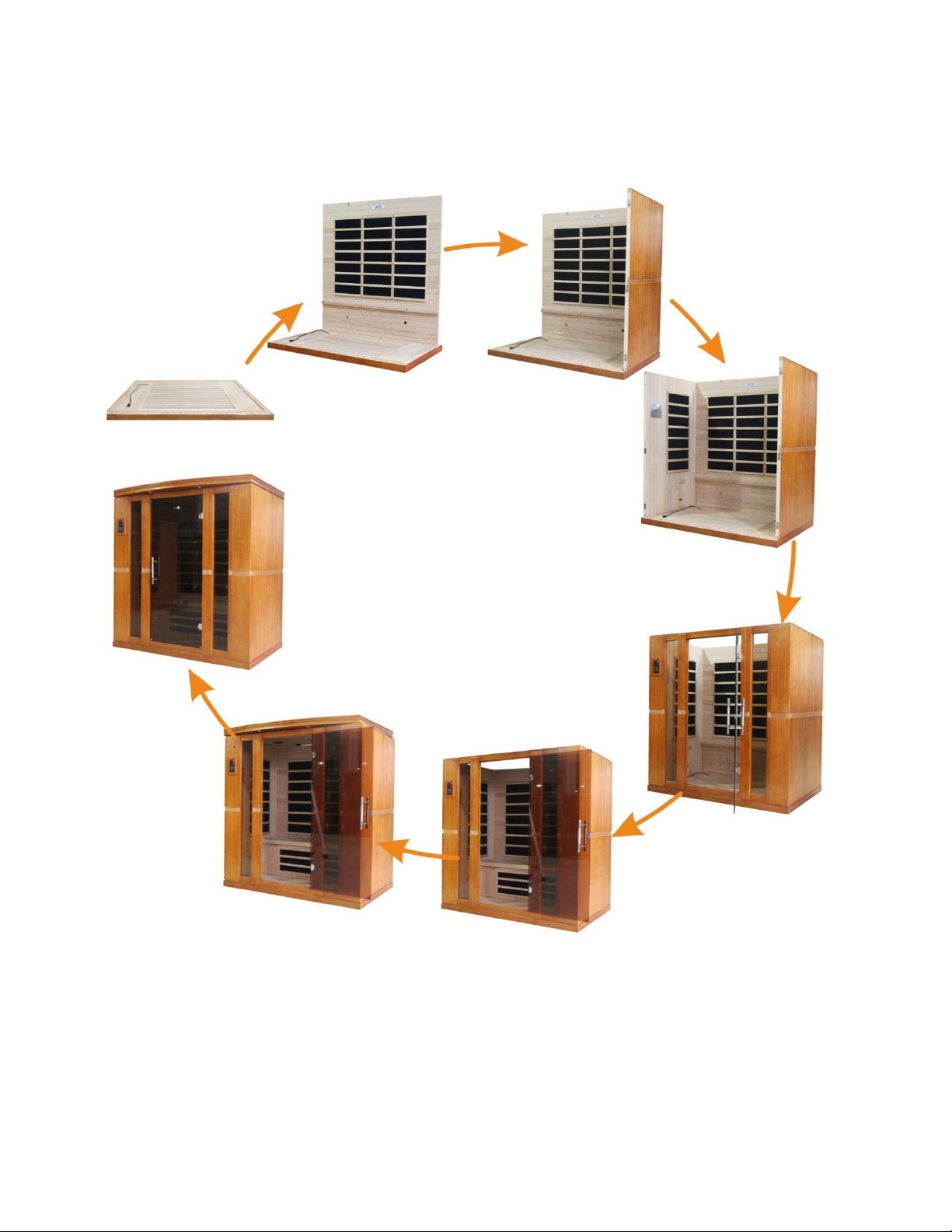

*PLEASE READ INSTRUCTIONS BEFORE
ASSEMBLY*
DYN-6330-01
*The above assembly diagram is for a quick
reference
visual guide only. All
sauna models are not shown. Parts and accessories may
vary and are subject
to change. Backrests are sold separately. We have found that starting the
assembly process with the floor and front wall panel first may be the easiest,
but it is not mandatory.
9

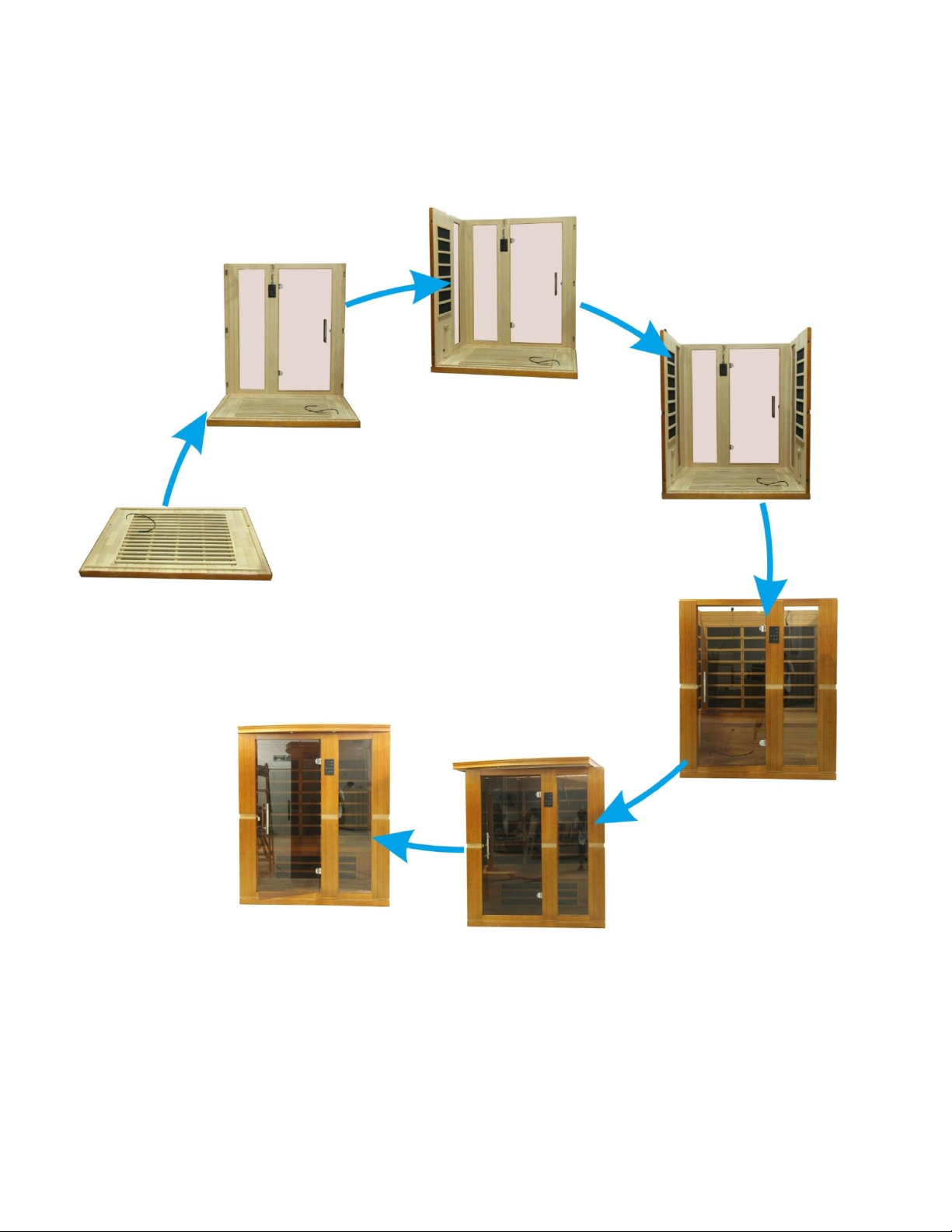

*PLEASE READ INSTRUCTIONS BEFORE
ASSEMBLY*
DYN-6440-01
*The above assembly diagram is for a quick
reference
visual guide only. All
sauna models are not shown. Parts and accessories may
vary and are subject
to change. Backrests are sold separately. We have found that starting the
assembly process with the floor and front wall panel first may be the easiest,
but it is not mandatory.
10

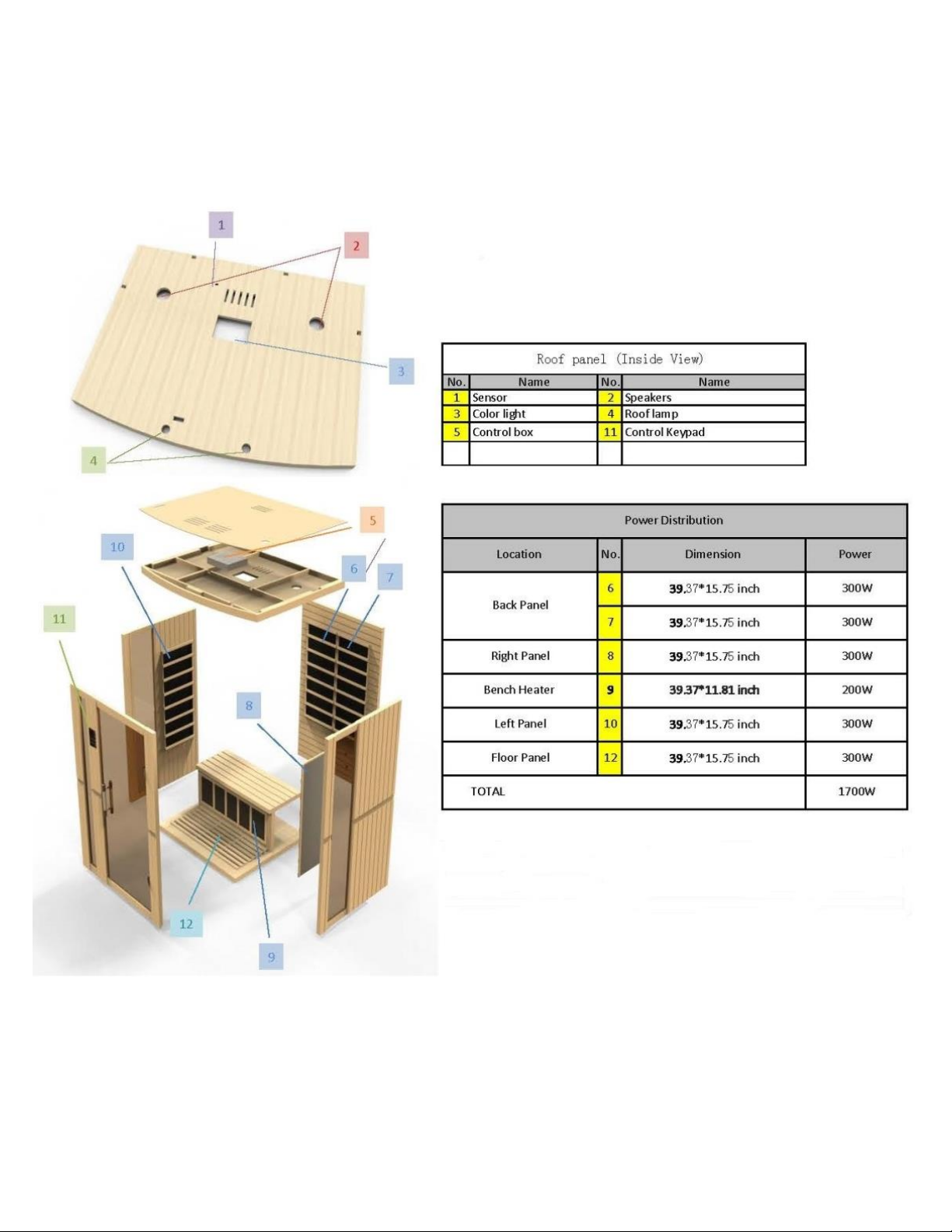

PARTS DESCRIPTION
DYN-6220-01
NOTE: The pictures and diagrams shown within this owner’s manual are
representations of this model. Actual model may vary. Design and Construction
are subject to change. Backrests are sold separately.
This manual suits for next models
3
