DW DWC-V562D User manual
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
960H Vandal Dome Camera
DWC-V562D
DWC-V562DIR
User Manual
11192012
Value
2
PRECAUTIONS
FCC COMPLIANCE
WARNING: Changes or modifications are not expressly approved by the manufacturer.
Do not open or modify.
Do not open the case except during maintenance and installation,
for it may be dangerous and can cause damages.
Do not put objects into the unit.
Keep metal objects and flammable substances from entering the camera.
It can cause fire, short-circuits, or other damages.
Be careful when handling the unit.
To prevent damages, do not drop the camera or subject it to shock or vibration.
Do not install near electric or magnetic fields.
Protect from humidity and dust.
Protect from high temperature.
Be careful when installing near the ceiling of a kitchen or a boiler room,
as the temperature may rise to high levels.
Cleaning:
To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.
Mounting Surface:
The material of the mounting surface must be strong enough to support the camera.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a residential environment. This equipment generates, uses, and radiates
radio frequency energy; and if it is not installed and used in accordance with the
instruction manual, it may cause harmful interference to radio communications.
Table of Contents
Introduction
Installation
Camera OSD Menu and Glossary
Troubleshooting
Warranty Information
Specifications
Features
Parts and Descriptions
Dimensions
Included Accessories
Base Installation
Connecting to Monitors
Adjusting the Camera
4
5
6
7
8
9
10
12-23
24
25-26
27-28
Adjusting the 3-Axis Gimbal 11
3
FEATURES*
DWC-V562D / DWC-V562DIR
1/3” 960H High Resolution CCD
700 TV Lines
2.8 ~ 11mm Varifocal Auto Iris Lens
Electronic Day and Night
HME (Highlight Masking Exposure)
AGC / SMART BLC / AWB
Night-Up
Mirror Image Control
Programmable Privacy Zones (8) & Motion Detection
Easy Icon Driven OSD Menu with Built-In Joystick
Auto Sensing 12VDC or 24VAC with Line Lock
Secondary Video-BNC Output
Video Test Output Included
IP66 Certified (Weatherproof)
85ft Range IR with Intelligent Camera Sync, Smart IR (DWC-V562DIR)
4

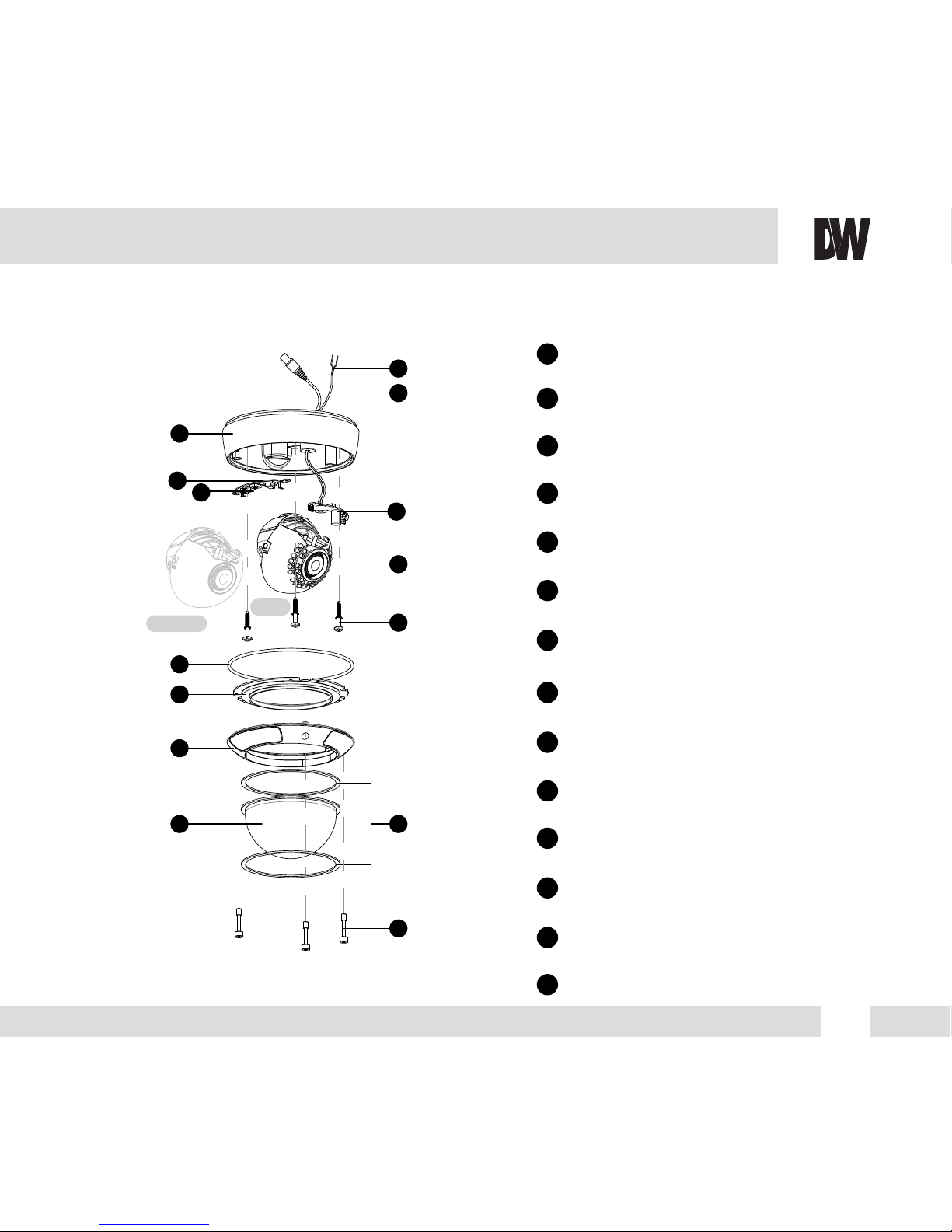

PARTS & DESCRIPTIONS*
1Lens
4Upper Case
5Dome Cover
2Power Input Connector
12VDC/24VAC Dual Voltage
3Video Output Connector - BNC
6Dome Cover Rubber
7Mounting Plate
Assembly Screws
9
Camera Base
10
Control Board
11
Power Board
12
Mounting Screws
13
8Upper Ring
11
10
12
14
3
2
1
6
9
7
8
4
5
NO IR
IR
13
Joystick
14
5

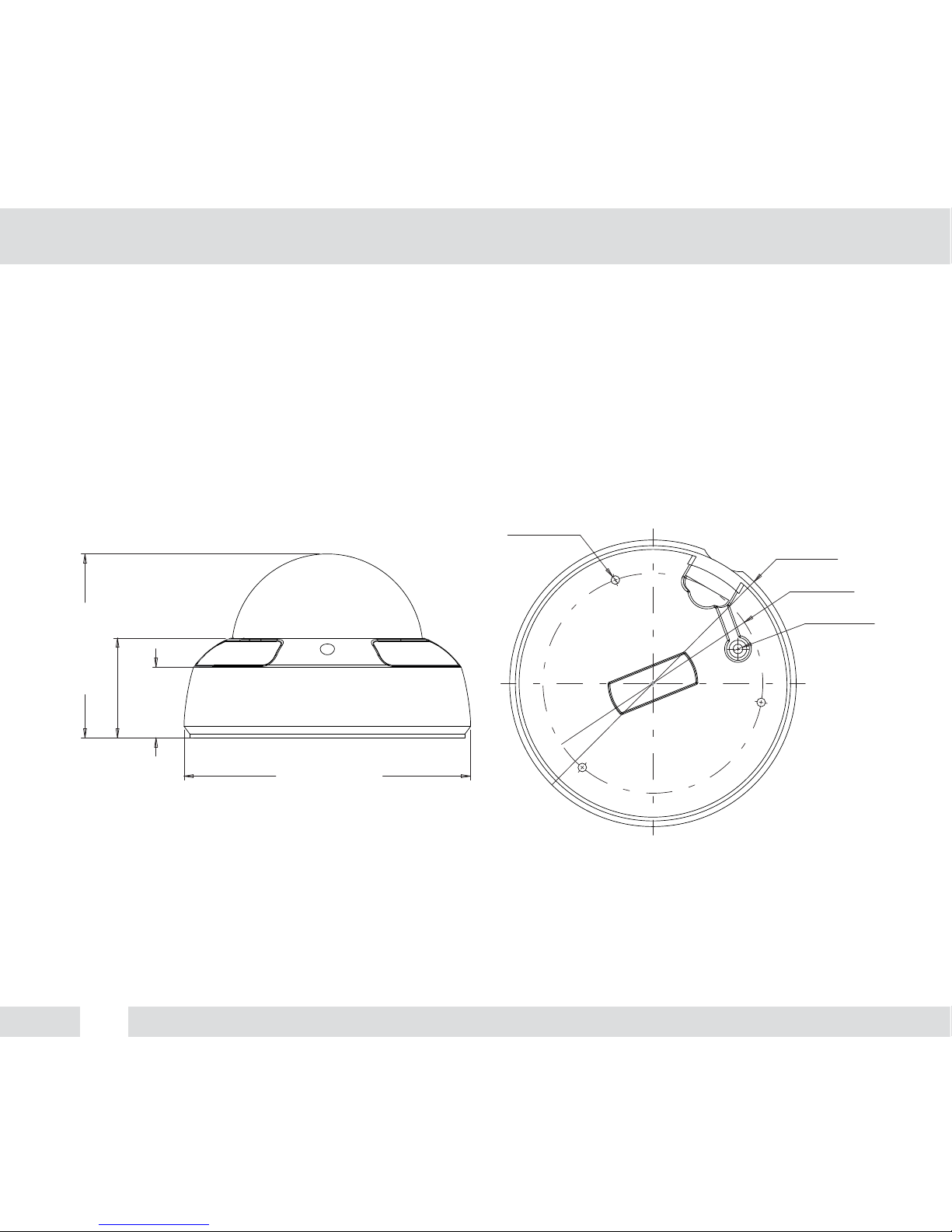

DIMENSIONS IN MILLIMETERS (INCHES)*
See below for diagrams of the exact dimensions for Surface Mount Housing.
52.2(2.05”)
96.2(3.79”)
Ø149.9(Ø5.9”)
37.0
(1.46”)
Ø149.9
(Ø5.9”)
Ø115.0
(Ø4.53”)
Ø5.0
(Ø0.2”)
3- Ø4.5
(3- Ø0.18”)
6
INSTALLATION*

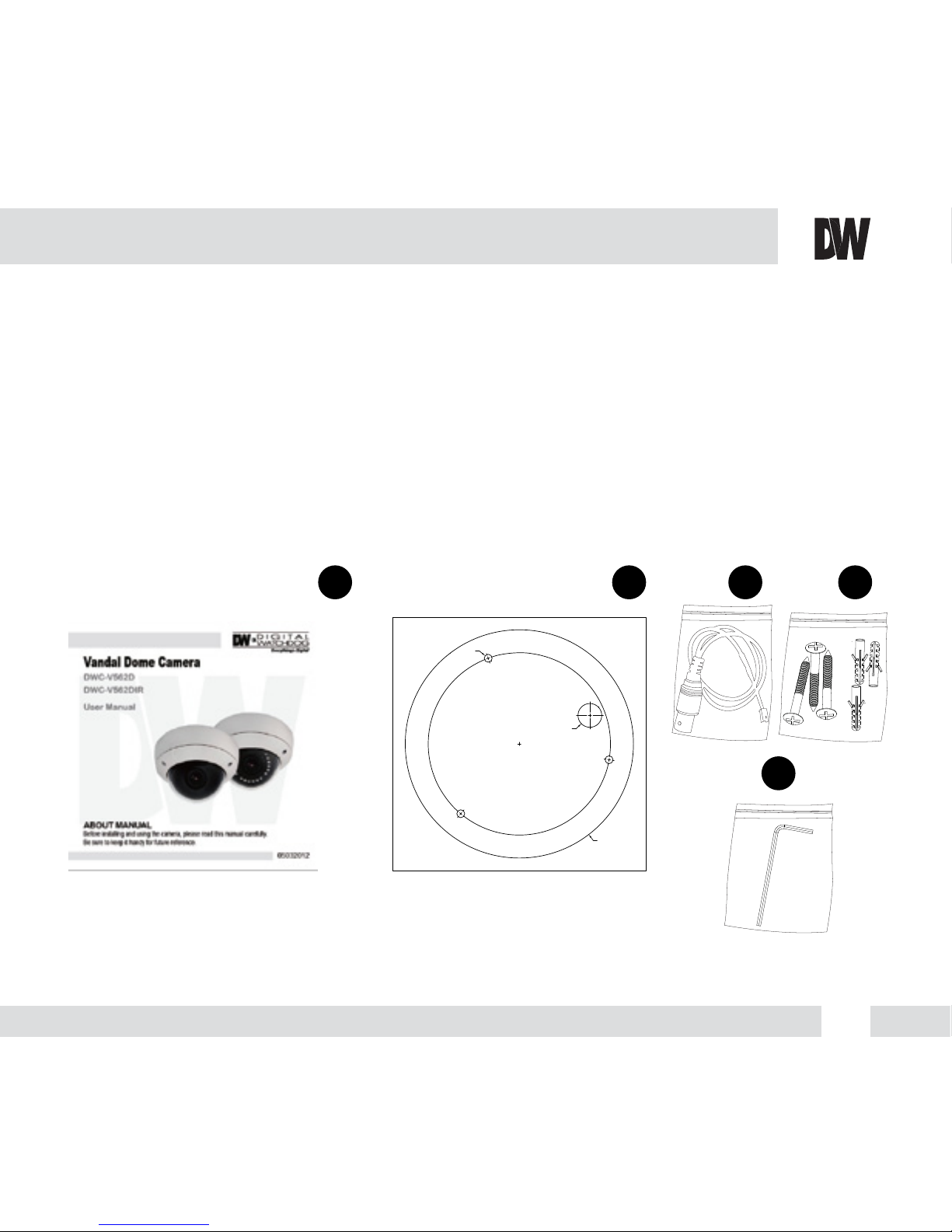

Included with Value Line Vandal Dome Camera
1. User Manual
2. Mounting Template
3. Second Video Jack
4. Three (3) Screws and Three (3) Dry Wall Anchors
5. L-Wrench
12
Ø144.0
Ø5.0
Mounting Template
VD101
Ø15.0
34
5
7

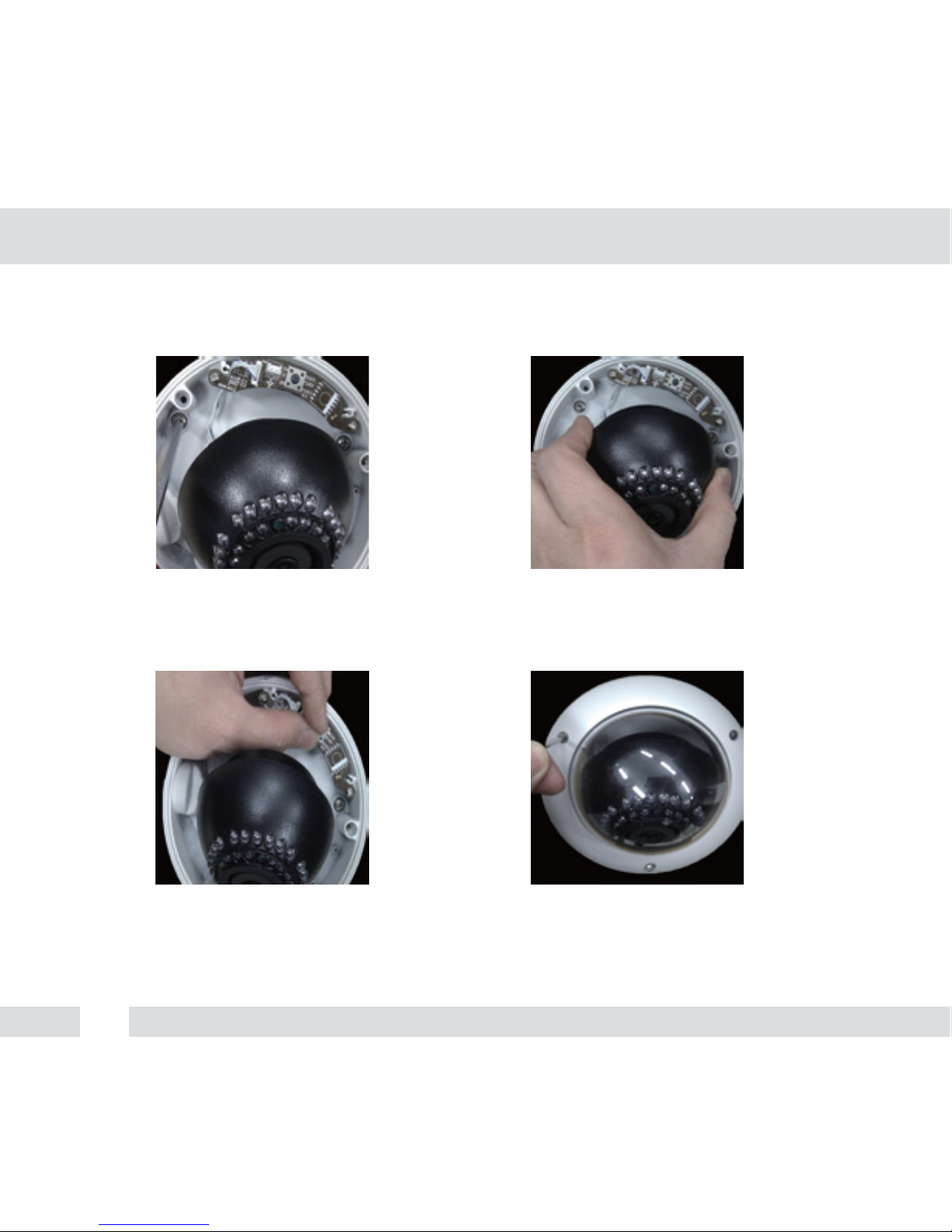

BASE INSTALLATION*
1. Pull wires through and make connections.
Refer to page 9. Use mounting template to
mount camera with dry wall mounts and
wood screws.
3. Use the joystick to adjust the OSD menu.
See pages 12~23 for details.
2. Adjust the camera’s 3-Axis Gimbal, zoom,
and focus. See pages 10-11 for details.
4. Secure the dome cover to the camera base by
using the assembly screws. Make sure the camera
is tightly secured to avoid damage to the camera
module.
8

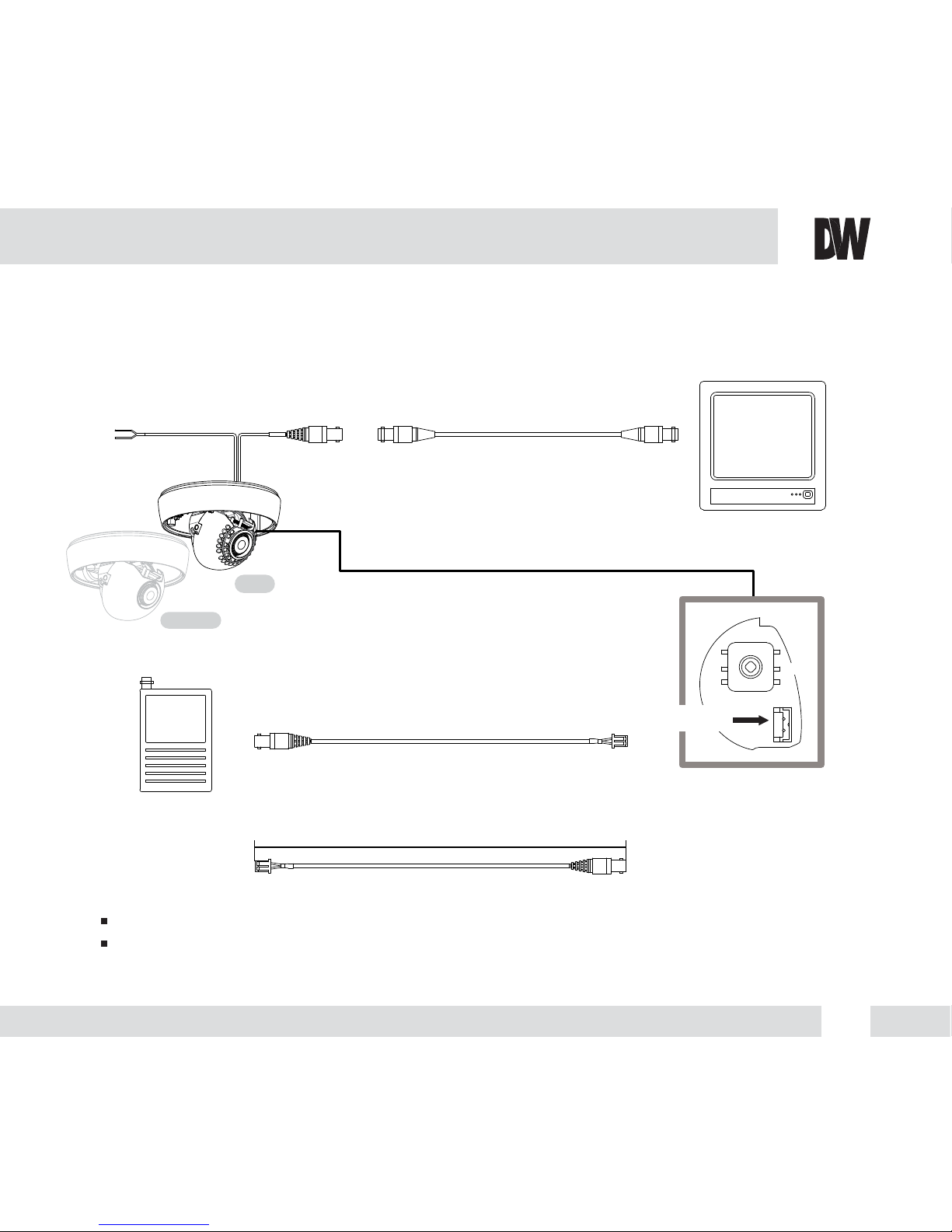

CONNECTING TO MONITORS*
2nd Video Output
Right
Left
Up Down
CCTV Monitor
Monitor
11.8in
12VDC/24VAC
Power connection - 12VDC/24VAC Dual Voltage. (Auto polarity detection and protection.)
All cameras are equipped with a second video output on the camera’s Control Board for
easy on-site configuration.
NO IR
IR
9

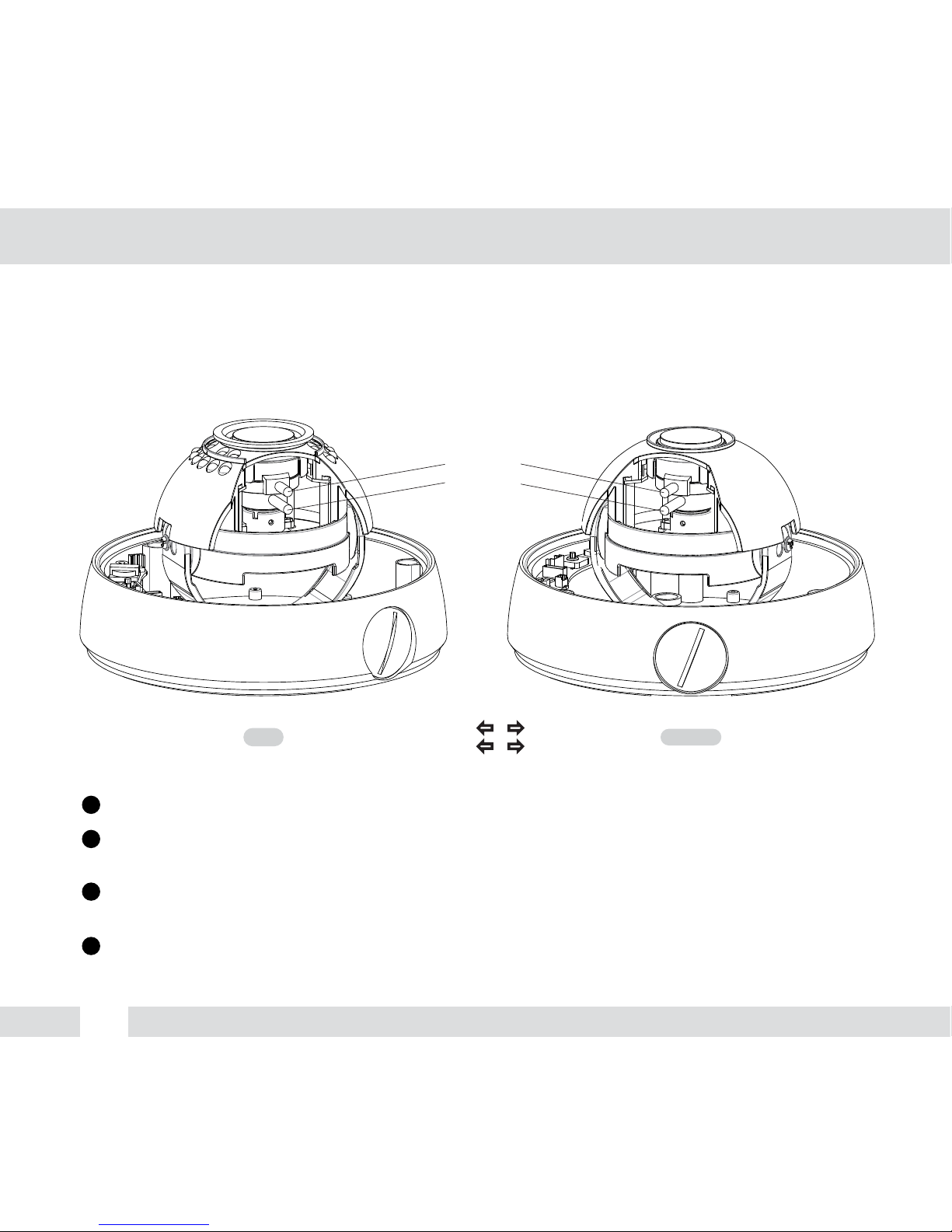

ADJUSTING THE CAMERA*
ZOOM
FOCUS
NO IRIR Zoom:
Focus:
Tele - Wide
Far - Near
Loosen the zoom and focus handles by rotating them counter-clockwise.
1
Adjust the field of view by moving the handle to the RIGHT (tele) to zoom in, or to the
LEFT (wide) to zoom out.
2
Adjust the focus the same way as described above AFTER the desired zoom position
is established.
3
Once the desired adjustments have been made, please tighten the handles back by
turning them clockwise.
4
10
