Durafly SlowPoke User manual

5

7

6

8

8

9

10

Spare Parts Listing 11

Slowpoke

37940

1660g.58

12”x6” 2 bladed propeller

AeroStar 40A ESC

2200mah 3S Lipo Battery

① ②

③ ④

⑥⑤

1.Fuselage

3.Horizontal Tail

5.Main landing gear

2.Main wing

4.Vertical tail

6.Propeller/Spinner

In its ‘Durafly Slow Poke’ 1200mm’ will still require some additional electronic companents to get it

‘flight ready’. Durafly recommends the products below for optimum performance and great value.

Available at hobbyking.com

Turnigy 2650mAh 3S 30C

Lipo Pack w/XT-60

9067000246-0

OrangeRx Tx6i Full Range

2.4GHz DSM2/DSMX compatible

6ch Radio System

9171001327-0 (mode 1)

9171001328-0 (mode 2)

9067000134-0

Turnigy Graphene 2200mAh 3S 45C

LiPo Pack w/ XT60 - for Battery

9067000134-0 sku

3

2.Insert vertical ﬁn into horizontal stabilizer. Then carefully ﬁt it to the fuselage. Then glue

as below show. Then using a pair of pliers(ball link pliers preferably )connect the elevator

push rod to the elevator control horn(A) and connect the Rudder push rod to the rudder

control horn(B).

1.Out of the box your Slowpoke comes with reinforced foam hinges. However before

assembly can begin, each hinge line must be ﬂexed back and forth5-6 times to reduce

tension and load on the servo. Do this for all control surfaces before continuing.

KM 2x10mm

M 2mm

3.With the aileron control horns at 90 degrees to the wing surface (neutral) insert the aileron push

rod in the top hole of the control horn. (A). then Install the main wing. put the wing span to into the

hole in the main wing. And glue the main wing .

Slow Po ke

Slo w Poke

PA 3x25mm 2pcs

① ② ③

PM 3x50mm 2pcs

①②PM 3x35mm 2pcs

③

④

④

PA 2x6mm 2pcs

A. B.

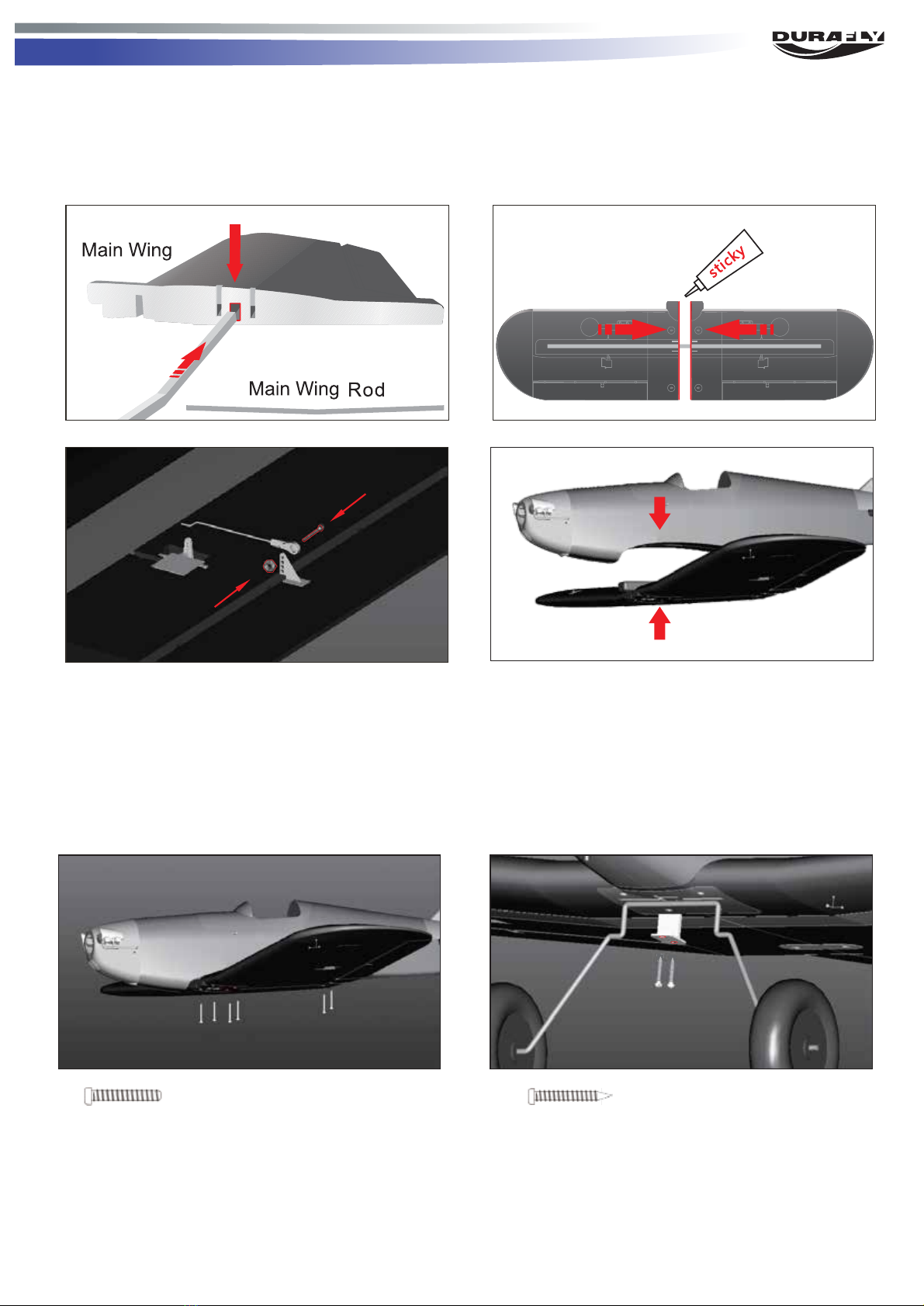

4.As show put the main wing to the fuselage with 2xPM3x25mm and 2xPM3x50mm 2xPM3x35mm

coarse thread screws . Screws are inserted on the under side of the wing/fuselage seam D . Attach

the landing gear to fuselage with two PA2*6mm machine screws. As picture show .

4

A

C.

Short wire: connecting Horizontal tail and Vertical tail

Long wire: connecting Fuselage and the Main wing

x4

x2

7.Install the spring and Exhaust stacks. As picture show:

6.Install the propeller. Using spinner to lock the on motor shaft like the picture show.

The center gravity(CG) for the Slowpoke is approximately 85-88mm from the leading edge

of the wing.

Slowpoke

CG

80-85mm

Slowpoke

Slowpoke

This manual suits for next models

1
