Dunster House EBAR1 User manual

Manufacturer:

Dunster House Ltd.

Caxton Road

Bedford

Bedfordshire

England

MK41 0LF

Customer Service:

cs@dunsterhouse.co.uk

www.dunsterhouse.co.uk

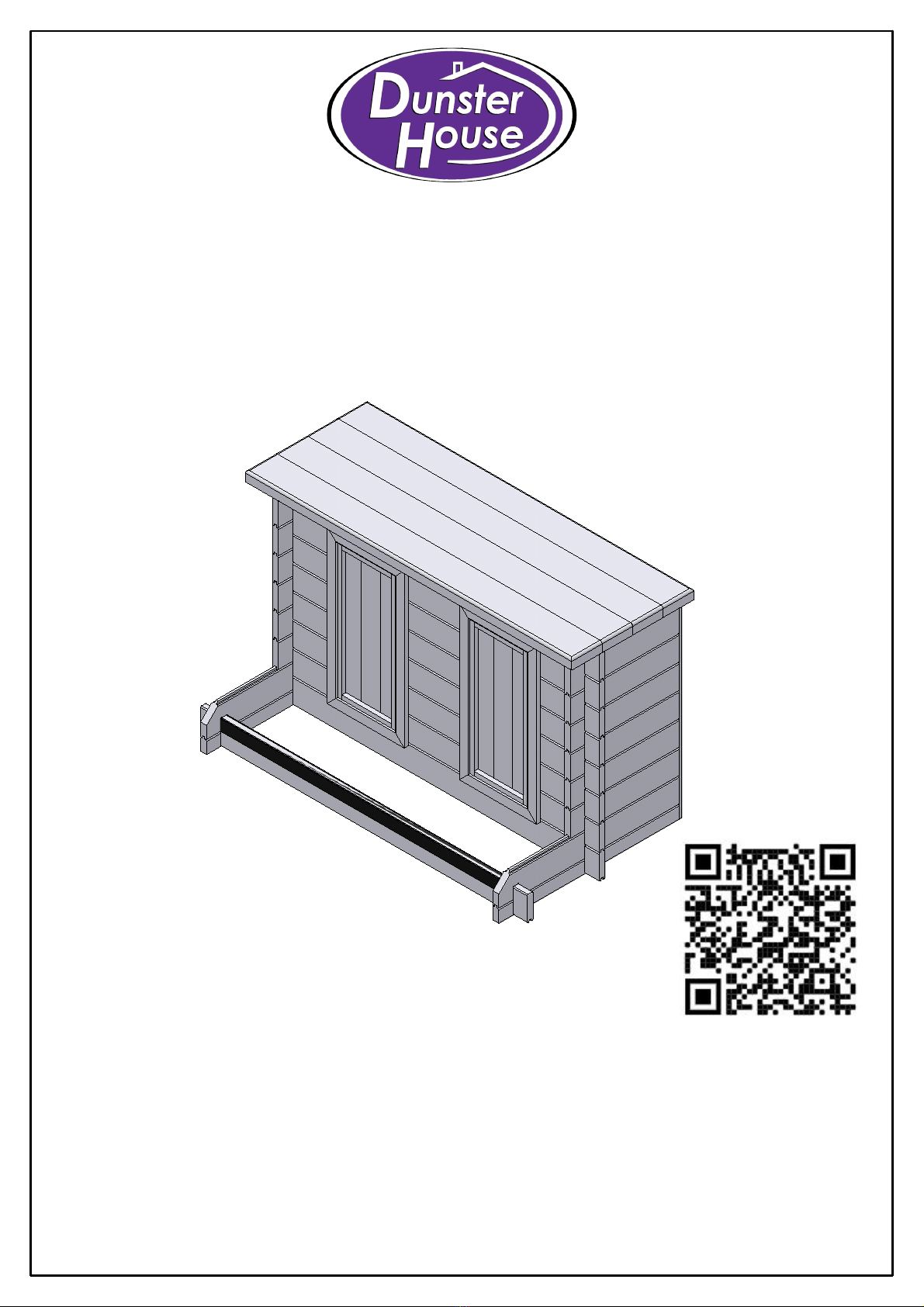

Log Cabin Bar

EBAR1

INSTALLATION MANUAL

Please read this installation manual carefully

before proceeding construction

Important!

All dimensions are approximate, shown in millimeters (mm), and subject to the limitations of the materials used and the methods of

manufacture

Unique Reference Number

_____________________________

Construction Videos

C:\$VaultWorkspace\Designs\EBAR-LogCabinBar\EBARLogBarInstallationManual.idw20/07/202305:04

Bar - Wall frame

2 of required

A28.1500.70.70.0.A

2 of required

A28.1500.70.70.0

1 of required

A28.285.70.0.0

12 of required A28.285.0.0.0

6 of required

A28.500.70.0.0

12 of required

A28.830.0.0.400.A

2 of required

B28.830.70.0.400

2 of required

A28.500.70.0.0.A

2 of required

Page 1

Packing List

This list may include some extra components and fixings

C:\$VaultWorkspace\Designs\EBAR-LogCabinBar\EBARLogBarInstallationManual.idw20/07/202305:04

Bar Countertop

1 of required

28x10x950 TRIM

2 of required Metal Cover

1 of required

Page 2

Packing List

This list may include some extra components and fixings

C:\$VaultWorkspace\Designs\EBAR-LogCabinBar\EBARLogBarInstallationManual.idw20/07/202305:04

Accessories List

Item Quantity

25mm Screw 20

55mm Screws 10

70mm Screws 10

Assembly Steps

Page 3

Pre-drill parts before fixing with screws or bolts

C:\$VaultWorkspace\Designs\EBAR-LogCabinBar\EBARLogBarInstallationManual.idw20/07/202305:04

1. Side wall

x2 required

2. Front wall

x1 required

B28.830.70.0.400

A28.830.0.0.400.A

A28.500.70.0.0

A28.1500.70.70.0

A28.285.70.0.0

Bar - Wall frame

A28.285.0.0.0

A28.1500.70.70.0.A

A28.500.70.0.0.A

Assembly Steps

Page 4

Pre-drill parts before fixing with screws or bolts

C:\$VaultWorkspace\Designs\EBAR-LogCabinBar\EBARLogBarInstallationManual.idw20/07/202305:04

3. ASSEMBLY

Front Wall

A28.1500.70.70.0.A

Metal Cover

Side Wall

28x10x950 TRIM

Side Wall

Bar Countertop

25mm Screw

25mm screws

Assembly Steps

Page 5

Pre-drill parts before fixing with screws or bolts

C:\$VaultWorkspace\Designs\EBAR-LogCabinBar\EBARLogBarInstallationManual.idw20/07/202305:04

x2 screws 55mm x2 screws 55mm x2 screws 55mm

4. Rear view
