Directed Electronics Rattler 250 User manual

Model 250

Owner's Guide

Downloaded from: http://www.guardianalarms.net

Limited Lifetime

Consumer Warranty

For a period of one calendar year from the date of purchase of this auto-security

device, Directed Electronics, Inc. promises to the ORIGINAL PURCHASER to repair or

replace (with a comparable reconditioned model), free of cost, any electronic control

module which proves to be defective in workmanship or material under normal use,

SO LONG AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A PROFESSIONAL

AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH THE SYSTEM WAS ORIGINALLY

INSTALLED. If warranty service is necessary you must have a clear copy of your sales

receipt containing all of the information shown on the following page.

After the first calendar year, from the date of purchase of this auto-security device,

Directed Electronics, Inc., promises to the ORIGINAL PURCHASER to repair or replace

(with a comparable reconditioned model) any electronic control module which proves

to be defective in workmanship or material under normal use FOR A CHARGE OF

$45.00, SO LONG AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A PRO-

FESSIONAL AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH THE SYSTEM WAS

ORIGINALLY INSTALLED. If warranty service is necessary you must have a clear copy

of your sales receipt containing all of the information shown on the following page.

This warranty contains the entire agreement relating to warranty and supersedes all

previous and contemporaneous representations or understandings, whether written or

oral. IN ANY EVENT, DEI IS NOT LIABLE FOR THE THEFT OF THE VEHICLE AND/OR ITS

CONTENTS.

This warranty is void if the product has been damaged by accident, unreasonable use,

neglect, improper service or other causes not arising out of defects in materials or

construction. This warranty is nontransferable and does not apply to any unit that

has been modified or used in a manner contrary to its intended purpose and does not

cover batteries. The unit in question must be returned to the manufacturer, postage

prepaid. This warranty does not cover labor costs for the removal, diagnosis, trou-

bleshooting or reinstallation of the unit. For service on an out-of-warranty product a

flat rate fee by model is charged. Contact your authorized dealer to obtain the ser-

vice charge for your unit.

These systems are a deterrent against possible theft. Directed Electronics, Inc. is not

offering a guarantee or insuring against the theft of the automobile or its contents

and disclaims any liability for the theft of the vehicle and/or its contents. Directed

Electronics does not authorize any person to create for it any other obligation or lia-

bility in connection with this security system.

TO THE MAXIMUM EXTENT ALLOWED BY LAW, ANY AND ALL WARRANTIES ARE EXCLUD-

ED BY THE MANUFACTURER AND EACH ENTITY PARTICIPATING IN THE STREAM OF COM-

MERCE THEREWITH. THIS EXCLUSION INCLUDES BUT IS NOT LIMITED TO THE EXCLU-

SION OF ANY AND ALL WARRANTY OF MERCHANTABILITY AND/OR ANY AND ALL WAR-

RANTY OF FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY AND ALL WARRANTY OF

NON-INFRINGEMENT OF PATENTS, IN THE UNITED STATES OF AMERICA AND/OR

ABROAD. NEITHER THE MANUFACTURER OR ANY ENTITIES CONNECTED THEREWITH

SHALL BE RESPONSIBLE OR LIABLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT

NOT LIMITED TO ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, TOWING,

REPAIR, REPLACEMENT, DAMAGES FOR LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL

LOSS, LOSS OF ECONOMIC OPPORTUNITY AND THE LIKE. NOTWITHSTANDING THE

ABOVE, MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR

THE CONTROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on

how long an implied warranty will last or the exclusion or limitation of incidental or

consequential damages. This warranty gives you specific legal rights, and you may

also have other rights which vary from state to state.

IMPORTANT NOTE:

This product warranty is automatically void if its date code or serial number is

defaced, missing, or altered. This warranty will not be valid unless you have com-

pleted the warranty card and mailed it to Directed Electronics, Inc. within 10 days

after purchase to the address listed on the warranty registration card.

Make sure you have all of the following information from your dealer:

A clear copy of the sales receipt, showing the following:

■Date of purchase

■Your full name and address

■Authorized dealer's company name and address

■Type of alarm installed

■Year, make, model and color of the automobile

■Automobile license number

■Vehicle identification number

■All security options installed on automobile

■Installation receipts

Table of Contents

Limited Lifetime Consumer Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

What Is Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Your Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

FCC/ID Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Transmitter Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Standard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Using Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Disarming Without a Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Panic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Silent Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Valet Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Remote Valet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Nuisance Prevention Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Arming Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Disarming Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Table of Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Code-Hopping™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

High Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Programming Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Security & Convenience Expansions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Glossary Of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Quick Reference Guide (Removable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Standard Configuration

What is Included

■A control module

■Two 2-button remote transmitters

■Stinger®DoubleGuard®dual-stage shock sensor on-board the

control module

■A Revenger®Soft-Chirp®six-tone siren

■A Failsafe®starter kill relay on-board the control module

■A red status LED indicator light

■A push-button Valet®switch

Important Information

Congratulations on the purchase of your state-of-the-art vehicle

security system. This system has been designed to provide years of

trouble-free operation. By carefully reading this guide prior to

using your system, you will maximize the use of this product and

its features. Additional or replacement copies of this manual may

be obtained by logging on to DEI’s website at www.directed.com.

Your vehicle security system has no specific maintenance require-

ments. The remote transmitter is powered by a miniature 12V

battery, type GP23A, which has an approximate lifetime of one year

System Maintenance

under normal use. When the battery begins to weaken, the LED on

the remote transmitter will light dimly and you will notice reduced

operating range when using the remote transmitter.

Your warranty card must be returned and the barcode serial number

must not be removed. If the warranty card is not returned, no

warranty will be honored on your unit. It is also necessary to keep

your proof of purchase, which reflects that the product was

installed by an authorized dealer. Make sure you receive the

warranty card from your dealer.

This device complies with Part 15 of FCC rules. Operation is subject

to the following two conditions: (1) This device may not cause

harmful interference, and (2) This device must accept any inter-

ference received, including interference that may cause undesired

operation.

Caution: Changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority to

operate this device.

FCC/ID Notice

Your Warranty

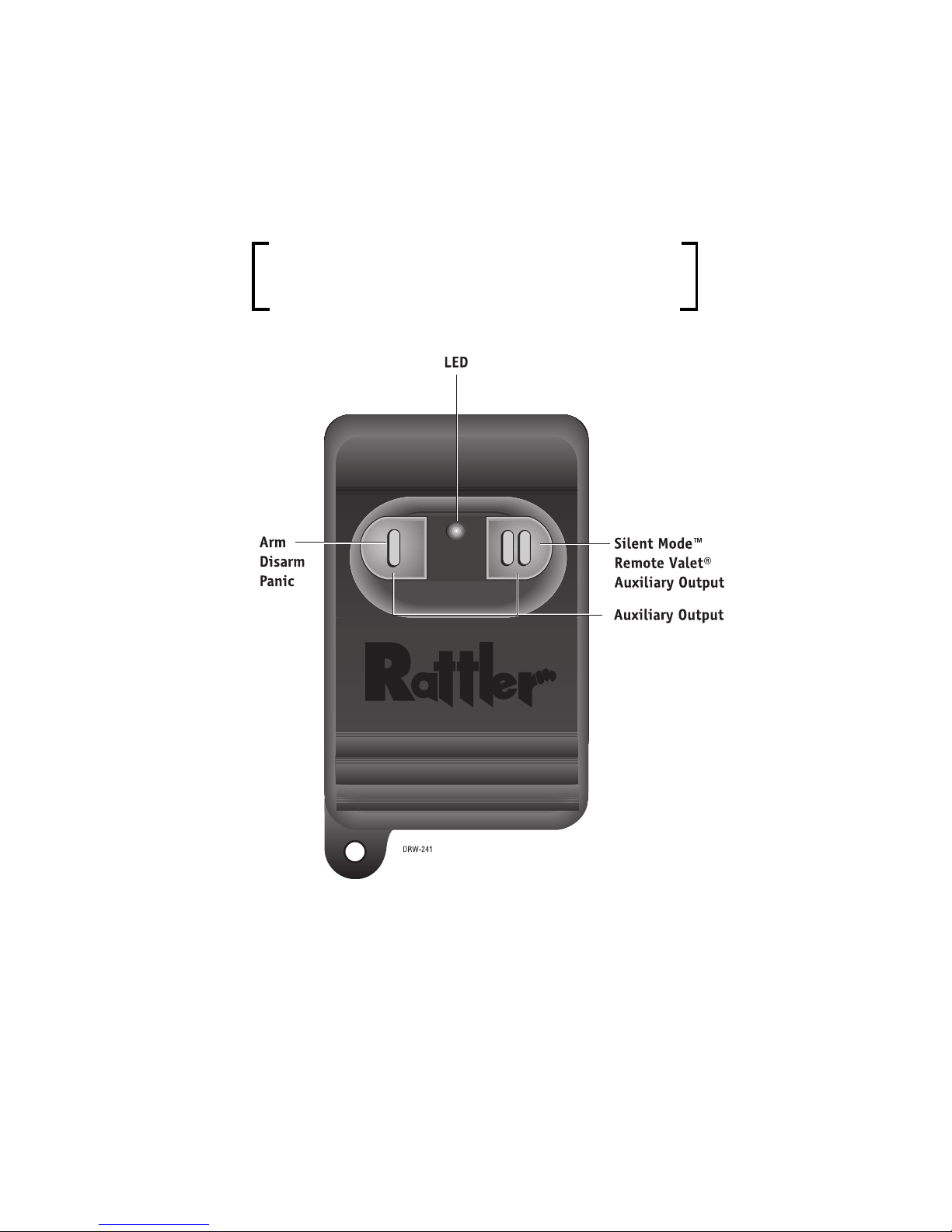

Transmitter Functions

This system is programmable, making it possible to assign any trans-

mitter button to any specific receiver function. The remote initially

comes programmed with Standard Configuration, but may also be

customized by an authorized dealer. The buttons in all of the instruc-

tions in this manual correspond to a Standard Configuration remote.

Button I

The arm/disarm/panic functions are usually controlled by .

Button II

Silent Mode™, Remote Valet®, and an optional auxiliary function

(such as trunk release) are usually controlled by . (Silent Mode

and Remote Valet work by pressing for less than one second.

An optional auxiliary output is controlled by pressing and holding

for 1.5 seconds.)

This auxiliary output controls ____________________________.

Buttons I and II

A user-assigned convenience or expansion option that you have

added to your system can be activated by pressing and

simultaneously.

This auxiliary output controls_____________________________.

NOTE: If using an optional four-button remote, the Standard

Configuration may be assigned to buttons III and IV of the transmitter.

Standard Configuration

Using Your System

The buttons described in all instructions in this manual correspond

to a standard configuration transmitter, unless otherwise specified.

You can arm the security system by pressing for one second.

When the system arms, you will hear a short siren sound (chirp)

and the parking lights will flash once. Once armed, the status LED

will flash once per second to indicate that the system is actively

protecting your vehicle. If you hear a second chirp after arming

and notice that the status LED is flashing in a grouped pattern,

this signals Bypass Notification. Bypass Notification is described in

detail in the Diagnostics section of this manual.

Your security system can also be programmed for Passive Arming.

With Passive Arming, the system automatically arms itself 30 seconds

after the ignition has been turned off and the last door has been

closed. During the 30-second Passive Arming countdown, the status

LED will flash twice as fast as it does when the system is armed.

NOTE: If any protected entry point, such as a door or switch-protected

trunk or hood, is open, Passive Arming will not engage. Additionally, each

time a sensor is triggered during the Passive Arming countdown, the

countdown starts over.

Arming your system protects your vehicle in the following ways:

■Light impacts trigger a Warn Away®response, causing the siren

to chirp and the parking lights to flash for a few seconds.

Arming

■Heavy impacts trip a trigger sequence, which consists of the

siren sounding continuously and the parking lights flashing

for 30 seconds.

■If a door is opened, the siren immediately starts chirping and

the parking lights start flashing to provide an instant

response. Three seconds later, the siren output changes to a

continuous blast. This two-stage progressive response allows

you time to disarm the security system with your remote

transmitter, in case the door is inadvertently opened while

the system is armed.

■Turning on the ignition key triggers the same two-stage pro-

gressive response as opening a door.

■The starter kill prevents the vehicle’s starter from cranking.

Press to disarm the system when it is already armed. Disarming

is confirmed when the parking lights flash twice and the siren

emits two chirps. The status LED will also stop flashing. The siren

chirping either four or five times when disarming indicates Tamper

Alert, which is described in the Diagnostics section of this guide.

If your remote transmitter is lost or damaged, you can manually

disarm your vehicle security system. To disarm the system without

a transmitter, you must have the vehicle's ignition key and know

where the Valet switch is located. Be sure to check with your installer

at the time of installation for the location of the Valet switch.

Disarming Without a Transmitter

Disarming

This manual suits for next models

Table of contents

Other Directed Electronics Car Alarm manuals

Directed Electronics

Directed Electronics G322R Quick start guide

Directed Electronics

Directed Electronics 200 User manual

Directed Electronics

Directed Electronics AutoCommand 20095 User manual

Directed Electronics

Directed Electronics 100 ESP User manual

Directed Electronics

Directed Electronics 554R User manual

Directed Electronics

Directed Electronics ProSecurity SR6000 User manual

Directed Electronics

Directed Electronics 600 ESP User manual

Directed Electronics

Directed Electronics 625 User manual

Directed Electronics

Directed Electronics Model 3000 ESP User manual

Directed Electronics

Directed Electronics Viper 211HV User manual

Directed Electronics

Directed Electronics 381 Series User manual

Directed Electronics

Directed Electronics 555X User manual

Directed Electronics

Directed Electronics VIPER 1000 User manual

Directed Electronics

Directed Electronics Auto mate 552 User manual

Directed Electronics

Directed Electronics 6000 User manual

Directed Electronics

Directed Electronics VIPER 3203 User manual

Directed Electronics

Directed Electronics Intelliguard 750 User manual

Directed Electronics

Directed Electronics 4400 User manual

Directed Electronics

Directed Electronics SmartStart 5000-series User manual

Directed Electronics

Directed Electronics 1000 User manual

Directed Electronics

Directed Electronics Matrix 1 User manual

Directed Electronics

Directed Electronics 417 User manual

Directed Electronics

Directed Electronics Viper 5501 User manual

Directed Electronics

Directed Electronics PS-7870TWE-FM User manual

Popular Car Alarm manuals by other brands

Clifford

Clifford 3606X owner's guide

Ultra Start

Ultra Start 2500M SERIES install guide

Ultra Start

Ultra Start 650 Series owner's manual

Audiovox

Audiovox Prestige Platinum+ APS-511C owner's manual

Sparkrite

Sparkrite SRA8 Guide

Viper

Viper 4708V owner's manual

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Installation and maintenance manual

Falcon

Falcon Predator XL3 Installer manual

Audiovox

Audiovox Auto Security XR91 Programming guide

Clifford

Clifford Sabre II owner's manual

CrimeStopper

CrimeStopper CS-8717 Wiring diagram

Ultra Start

Ultra Start 450 SERIES install guide

Scytek electronic

Scytek electronic Vectra X3 product manual

Excalibur

Excalibur AL-1860-EDPB Operation guide

Clifford

Clifford CYBER 2 owner's manual

Gemini

Gemini 7057 user manual

FlashLogic

FlashLogic FLRSBA PRESTIGE Product guide

Magicar

Magicar FAI-440 manual
