Directed Electronics 2000 MAX User manual

Owner’s Guide for the

2000 MAX and 2200 MAX models (Rev C)

Recreationnal Vehicle Security System

[Table of contents]

Your Warranty................................................................ 1

What’s included.............................................................. 2

System maintenance....................................................... 2

Transmitter Functions .................................................... 3

Arming the system ...................................................... 3

Disarming the system .................................................. 3

High security disarm .................................................... 3

Disarming without a transmitter .................................... 4

Valet mode................................................................ 4

Auxiliary Function ....................................................... 4

Panic mode................................................................ 5

Silent mode ............................................................... 5

Transmitter standard configuration ............................... 5

Multi Level Arming ......................................................... 6

System protection .......................................................... 7

I2002DirectedElectronics,(Canada).Inc.

Limited Lifetime warranty: Models 2000/2200MAX

Directed Electronics, Inc. (Canada) promises tothe original purchaser to repair or replace with a compa-

rable reconditioned model any DEI unit (hereafter the “unit”), which proves to be defective in workmanship

or material under reasonable use during the lifetime of the vehicle provided that the unit was profession-

ally installed and serviced by an authorised DEI dealer. All components other than the unit, carry a

one-year warranty from the date of purchase of the same. This warranty is non-transferable and is auto-

matically void if: the unit has been modified or used in a manner contrary to its intended purpose; the unit

has been damaged by accident, unreasonable use, neglect, improper service, installation or other causes

not arising out of defects in materials or construction. The warranty does not cover damage to the unit

caused by installation or removal of the unit. The warranty does not cover the batteries. The defective unit

must be returned to DEI, shipping prepaid. This warranty does not cover labor costs for maintenance,

removal or reinstallation of the unit or any consequential damages of any kind.

IMPORTANT: The unit and its components are water resistant and not waterproof; the warranty

will be void if the product is damage because of prolong use or a total immersion in water.

It is understood that this system is deterrent against theft. Directed Electronics, Inc. (Canada) is not

offering a garantee or insurance against vandalism, damage or theft of the vehicle or its content. Directed

Electronics, Inc. (Canada) has not authorized any person or entity to create for it any other obligation,

promise, duty or obligation in connection with this security system. The warranty on this product is auto-

matically void if the date, code or serial number is erase or altered.

Make sure you have all of the following information

from your dealer

A clear copy of the sales receipt, showing the following:

• Date of purchase • Vehicle license number

• Full name and address • Vehicle identification number

• Name and addresse of dealer • All security options installed on vehicle

• Type of security system installed • Installation receipts

• Year, make model and color of vehicle

Important Notice! This product must be installed by an Authorized DEI®dealer, if otherwise

the warranty will be void. Ask your dealer to present his Authorized dealer Certificat.

2002DirectedElectronics, (Canada).Inc.

[ What’s included ]

• One control module

• A pair of four-button remote transmitters

• A Stinger® DoubleGuard® shock sensor (for motorcycle only)

• A push-button Valet® switch

• A mercury tilt switch (for motorcycle only)

• An electronic tilt motion sensor

(included for ATV/snowmobile and optional for motorcycle)

• A Fail-Safe® Starter Kill

• A back-up battery siren

• A Validation Certificat request form

(Must be filled out and returned with a copy of the invoice to DEI)

• HF+ external/receiver antenna

[ System maintenance ]

The system requires no specific maintenance. Your remote transmitter is pow-

ered by a small, lightweight 3 volts lithium battery that will last approximately

one year under normal use. When the battery weakens, operating range will

be reduced and the LED on the transmitter will dim.

NOTE: When you store your vehicle, before removing your battery, you will

have to deactivate the siren with the key included with the remote.

POWER SAVER MODE : Your system will automatically enter Power Saver Mode while armed or in Valet,

after a period of time in which no operation has been performed. This feature will lowers the current draw to

the recreationnal vehicle’s battery.

POWER CONSUMPTION : Even if your security system is one of the most innovative on the market, it’s

power consumption may become excessive in some particular situation. We recommend that you use your

recreationnal vehicle and that yoiu should drive it for an extensive period of time once in a while. If the

recreationnal vehicle is used periodically, we recommend that you buy a low current battery charger to

preserve the vehicle’s battery life span.

22002DirectedElectronics,(Canada).Inc.

Model #820041

[ Transmitter Functions ]

Arming the system

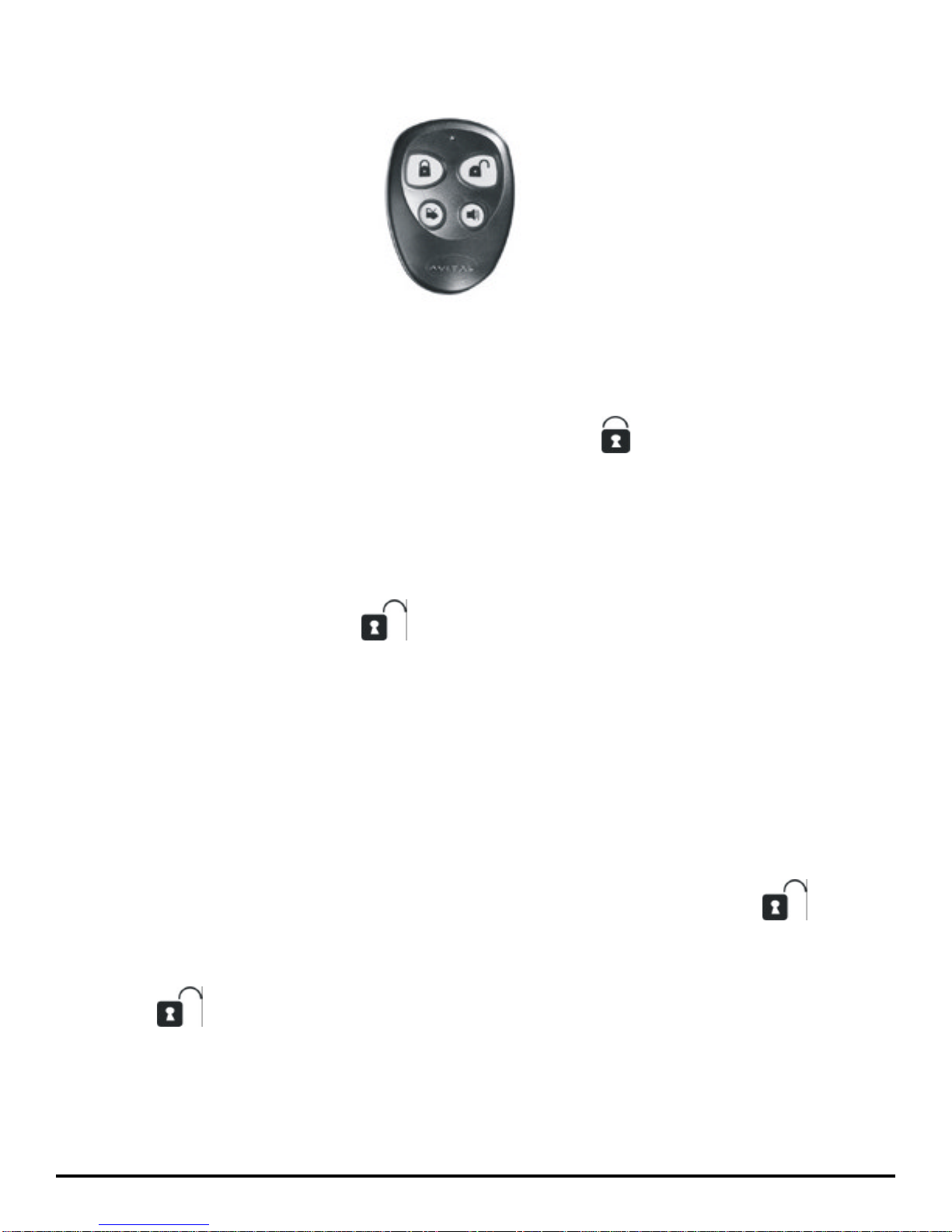

You can activate, or arm, the system by pressing on your transmitter for

one second. When the system arms, you will hear a short siren sound, or

chirp, and the brake light will flash once (If installed).

Disarming the system

To disarm the system press . You will hear two chirps, and the brake light

will flash twice (If installed). If the siren chirps either four or five times when

disarming, that means that the security system has been trigger while you

were away.

High Security Disarm

This security system offers High Security Disarm. High Security Disarm is a

feature that makes it possible to silence and reset the system while it is trig-

gering , without disarming the system. If the system is triggered and the

siren has been sounding for longer than six seconds, pressing on the

transmitter will stop the trigger and return the unit to the arm state. The

system will not disarm but rather reset. This prevents you from disabling the

system should you wish to disarm it without visually checking the vehicle.

Pressing , after resetting the system, will disarm the system; pressing

this button during the first 5 seconds of the triggered sequence will disarm

the security system immediately.

NOTE: On some motorcycle, it is also possible to get a brake light flash when arming and disarming, along

when in full trigger. However in some cases, connecting the security system to the brake light may damage

the brake light circuit.

2002DirectedElectronics, (Canada).Inc.

Disarming without a transmitter

This feature allows you to disarm the security system without the remote

transmitter should it be lost, damaged or disabled. In order to disarm the

system without the transmitter, you must have the vehicle’s ignition key and

know where the Valet button is located.

To disarm the security system, turn the ignition to the “ON” position. Press

the Valet button the preset number of times (one to five times) within 15

seconds. After 5 seconds, the system will now disarm. If the system does not

disarm, you may have waited too long; turn the ignition “OFF” and “ON” and

try again

Location of the Valet button : ______________________________

Number of pulses : _______________________

Valet Mode

You can prevent your security system from automatically arming and trig-

gered by using the Valet Mode. This is very useful when washing the

recreationnal vehicle or having it serviced. In Valet mode, the security system

will not arm, even with the remote transmitter.

To enter or exit Valet mode :

1. Turn the ignition “ON”

2. Turn the ignition “OFF”

3. Press and release the Valet button within 10 seconds.

You are now in Valet mode , to exit Valet mode repeat step 1 thru 3 again.

Auxiliary function

Press on buttons and together for 2.5 seconds, this will activate

optionnal 508 D Microwave perimeter sensor.

42002DirectedElectronics,(Canada).Inc.

Panic Mode

If you are threatened near your recreationnal vehicle, you can attract atten-

tion by triggering the system with the remote transmitter. Just press for

2.5 seconds, and you will enter Panic Mode. The siren will sound and the

brake light will flash (If installed) for the programmed siren duration. to stop

Panic Mode at any time, press on the remote transmitter again.

Silent Mode

To temporarily turn off the arm or disarm chirps, use the Slent Mode. Simply

press for less than one second before arming or disarming, and confirma-

tion chirp(s) will be eliminated for the one operation only. If you want the

arm/disarm chirps turned off permanently, your dealer can do this for you.

NOTE: The warn Away response to lighter impact is bypassed if the system is armed using Slient Mode. This

ensures that no chirps will beemitted by the siren in an area you want chirp-free. The system is still capable

of triggering, only the Warn Away response is bypassed.

Standard transmitter configuration

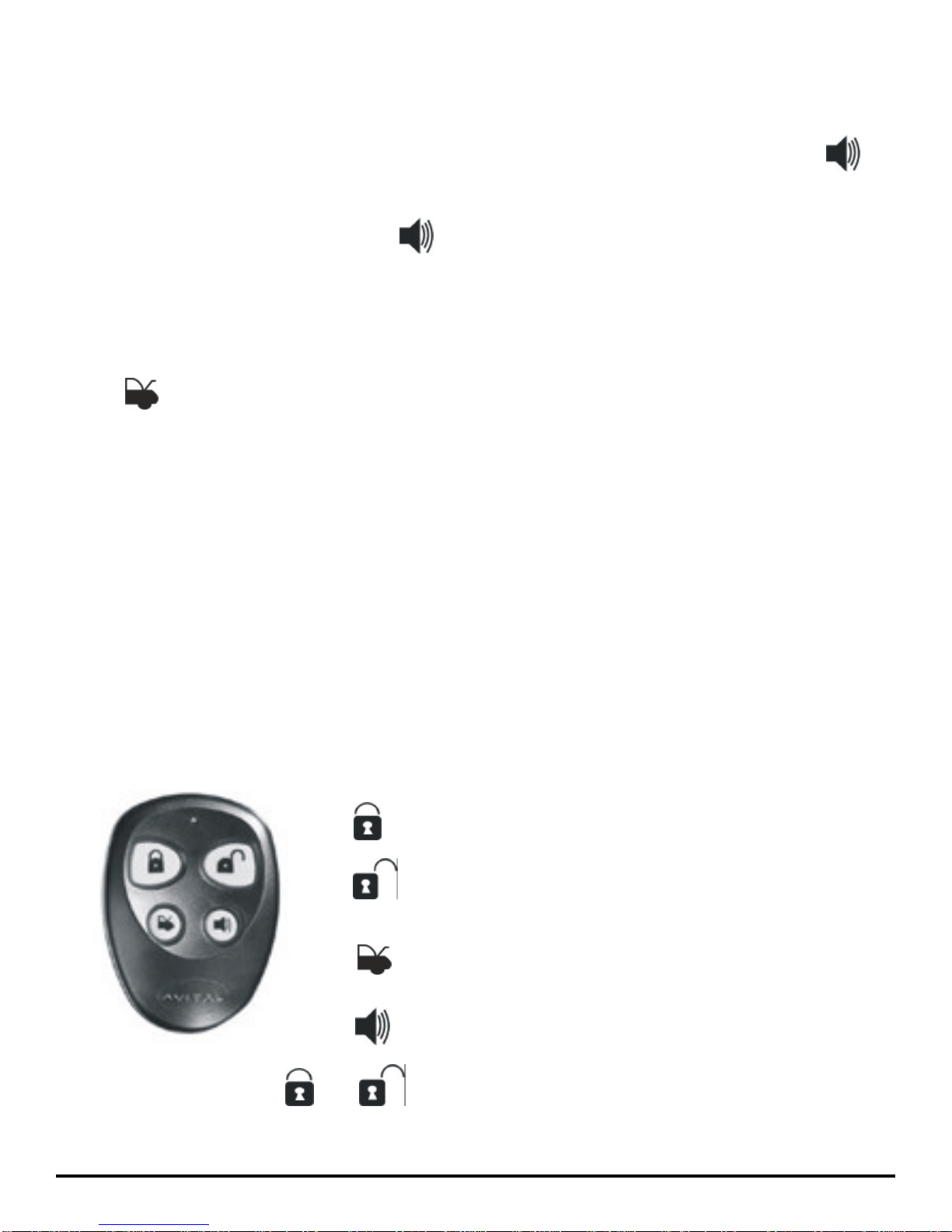

The security system is suplplied with 2- 4 button remote transmitter, when

using the auto configuration of the Transmitter Learn Routine, here’s the stand-

ard configuration you will get of the 820041 remote transmitter, will be :

Arms the security system

Disarm the security system

Silent Mode activation

Panic Mode activation, press for 1.5 seconds

AND Channel 3 for auxiliary function 508 D activa

tion

2002DirectedElectronics, (Canada).Inc.

Multi-Level Arming

Multi-Level security arming allows you to select which of the security system’s inputs or

sensors will be active and which will be bypassed at the time that the system is armed.

Pressing again within five seconds of arming the security system will activate the

Multi-Level security arming feature.

Press one time: The siren will chirp once.

(Thesecuritysystemisarmed)

Press a secoind time within 5 seconds :

The siren chirps twice followed by a long chirp

(The Tilt /Motion sensor is bypass (optionnal on

motorcycle))

Press a third time within 5 seconds :

The siren will chirps 3 time followed by a long

chirp

(The shock sensor is bypass (optionnal on ATV and

snowmobile))

Press a fourth time within 5 seconds :

The siren chirps 4 times followed by a long chirp

(The shock sensor and the Tilt/Motion sensor are now both

bypass( only if both sensor are installed))

Press a fifth time within 5 seconds :

The siren chirps 5 times followed by a long chirp

(All inputs zones, except the ignition, are now bypassed)

Continued pressing of will begin multi-level security arming cycle over again :

The siren will give a long chirp

(The security Level Security Arming is back to square one)

NOTE : Multi-LevelSecurityArming onlyappliestoa singlearmingcycle.Once thesystemisdisarmed

and then re-armed, all the zones will be active again

62002DirectedElectronics,(Canada).Inc.

[ Protection Features ]

Mercury tilt switch :This detector is for motorcycles only. It is used to

trigger the alarm if the motorcycle is raised off the side stand.

Electronic tilt motion sensor: This sensor is used with ATV ‘s and

snowmobiles sytems, but is sold as an option with motorcycles systems.

When arming the system, the detector reads the position of the vehicle and

won’t allow a motion of more than three degrees. Even if it is pushed for-

wards or backwards, it will trigger the alarm.

Note: When arming the system, the detector requires 30 seconds to auto-calibrate. To testing should be

performed during that period of time.

Doubleguard pre adjust shock sensor: This detector is integrated to the

control module, and is used for motorcycles systems. The ATV’s and

snowmobiles systems uses electronics digital Tilt/Motion sensor instead of the

Double Guard shock sensor. Doubleguard means two stages of protection, a

light impact will cause five warning chirps and a stronger impact will trigger

the alarm.

Starter Kill: When arming the security system, it becomes impossible to

start the recreationnal vehicle. At the same time, the ignition is protected.

The system will detect any power in the ignition circuit and it will trigger the

alarm.

Back-up battery siren: This siren has a built-in rechargeable battery. Dis-

connecting the power or ground will trigger the siren until the internal battery

is discharged or the power is re-connected.

A push-button Valet®switch: This button should be hidden and it’s known

only by the owner . It has two functions. The first one allows you to disarm

the system without the transmitter should it be lost or damaged.The second

one is to change the system features or get into transmitter Learn Routine

mode.

2002DirectedElectronics, (Canada).Inc.

The Company behind Merlin

recreationnal vehicle security sys-

tems is Directed Electronics, Inc.

Since it’s inception, Directed Electron-

ics has had one purpose, to provide

consumer’s with the finest vehicle se-

curity and car audio products and ac-

cessories. The recipient of nearly 100

patents and Innovations Awards in the

field of advanced electronic technology,

Directed Electronics is ISO 9001 and QC

9000 registered.

Quality Directed electronics products

are sold and serviced throughout North

America and around the world.

Call (800) 361-7271 for more infor-

mation about our products and services.

Visit our website at

www.directed.ca

Directed Electronics sis committed to delivering

world class quality products and services that ex-

cite and delight our customers .

This manual suits for next models

Table of contents

Other Directed Electronics Car Alarm manuals

Directed Electronics

Directed Electronics CLIFFORD 320.3X User manual

Directed Electronics

Directed Electronics 550ESP User manual

Directed Electronics

Directed Electronics 425 Series User manual

Directed Electronics

Directed Electronics Viper 350HV User manual

Directed Electronics

Directed Electronics Python 450 ESP User manual

Directed Electronics

Directed Electronics Intelliguard 750 User manual

Directed Electronics

Directed Electronics Matrix RS 2 User manual

Directed Electronics

Directed Electronics 3000 User manual

Directed Electronics

Directed Electronics AM1 User manual

Directed Electronics

Directed Electronics Python 990 User manual

Directed Electronics

Directed Electronics PYTHON 210P User manual

Directed Electronics

Directed Electronics Valet 561T User manual

Directed Electronics

Directed Electronics 736T User manual

Directed Electronics

Directed Electronics Hornet 563T User manual

Directed Electronics

Directed Electronics VIPER 1000 User manual

Directed Electronics

Directed Electronics Viper 5904 User manual

Directed Electronics

Directed Electronics Clifford RS2.1 User manual

Directed Electronics

Directed Electronics 700J User manual

Directed Electronics

Directed Electronics SmartStart 5000-series User manual

Directed Electronics

Directed Electronics 871XP User manual

Directed Electronics

Directed Electronics Avital 2300 User manual

Directed Electronics

Directed Electronics 4100 User manual

Directed Electronics

Directed Electronics WASP 718W User manual

Directed Electronics

Directed Electronics AdvantGuard 5 User manual

Popular Car Alarm manuals by other brands

Clifford

Clifford 3606X owner's guide

Ultra Start

Ultra Start 2500M SERIES install guide

Ultra Start

Ultra Start 650 Series owner's manual

Audiovox

Audiovox Prestige Platinum+ APS-511C owner's manual

Sparkrite

Sparkrite SRA8 Guide

Viper

Viper 4708V owner's manual

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Installation and maintenance manual

Falcon

Falcon Predator XL3 Installer manual

Audiovox

Audiovox Auto Security XR91 Programming guide

Clifford

Clifford Sabre II owner's manual

CrimeStopper

CrimeStopper CS-8717 Wiring diagram

Ultra Start

Ultra Start 450 SERIES install guide

Scytek electronic

Scytek electronic Vectra X3 product manual

Excalibur

Excalibur AL-1860-EDPB Operation guide

Clifford

Clifford CYBER 2 owner's manual

Gemini

Gemini 7057 user manual

FlashLogic

FlashLogic FLRSBA PRESTIGE Product guide

Magicar

Magicar FAI-440 manual
