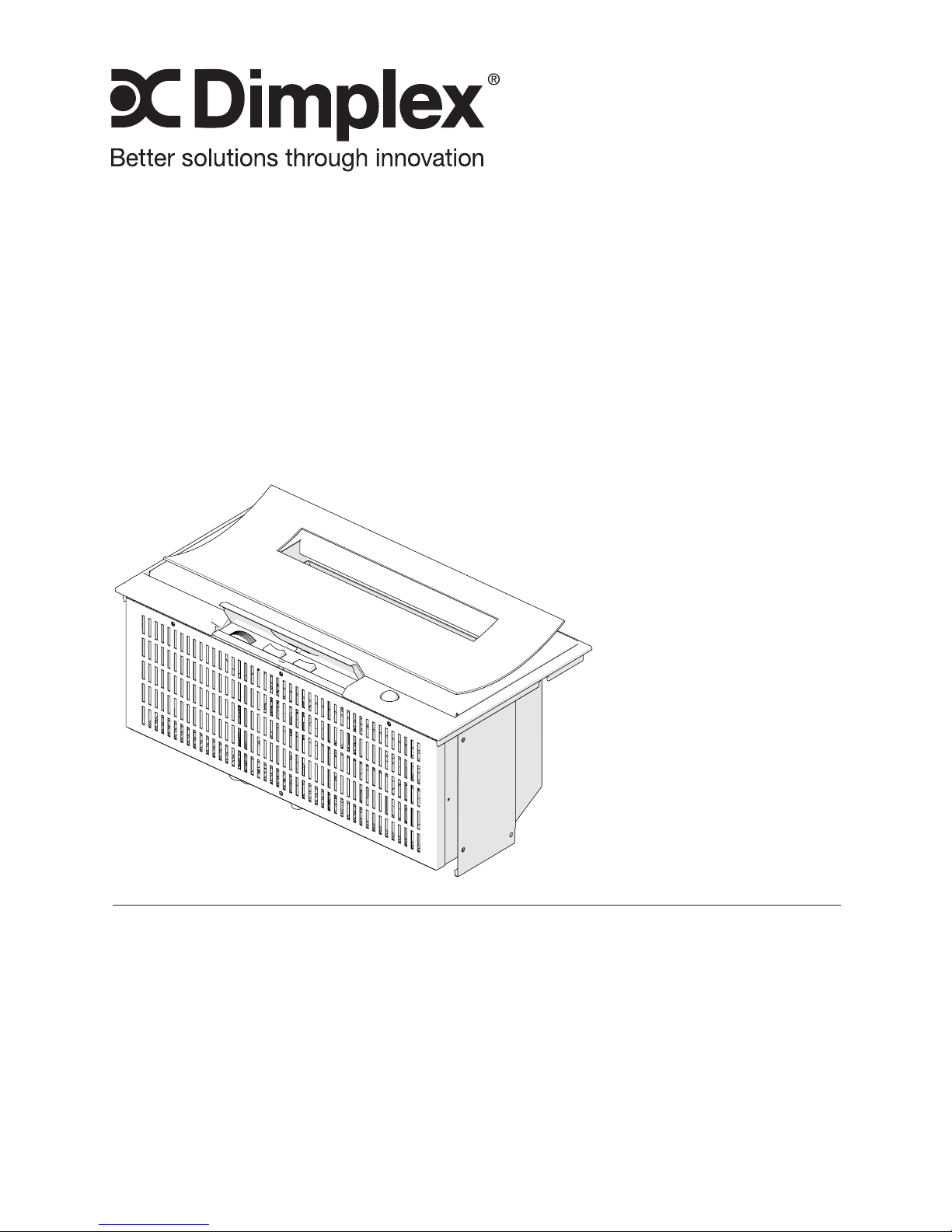

Dimplex DFI400R User manual
Owner’s Manual
Model
DFI400R (6909051242)
CDFI400C/DFI400C (6909051243)
DFI600R (6909051262)
DFI600C (6909051263)
CDFI600L (6909051261)
7213750100R02
IMPORTANT SAFETY INFORMATION: Always read this manual
rst before attempting to install or use the Optimyst® cassette. For
your safety, always comply with all warnings and safety instructions
contained in this manual to prevent personal injury or property
damage.
To view the full line of Dimplex products, please visit
www.dimplex.com
2 www.dimplex.com
Table of Contents
Always use a qualied technician
or service agency to repair
this cassette.
!NOTE: Procedures and
techniques that are considered
important enough to
emphasize.
CAUTION: Procedures and
techniques which, if not
carefully followed, will result in
damage to the equipment.
WARNING: Procedures
and techniques which, if not
carefully followed, will expose
the user to the risk of re,
serious injury, or death.
Welcome & Congratulations....................3
IMPORTANT INSTRUCTIONS ..................4
Installation..................................6
Assembly...................................8
Operation..................................10
Maintenance...............................12
Warranty .................................14
Replacement Parts ..........................16
3
Welcome & Congratulations
Thank you and congratulations for choosing to purchase an Optimyst®
cassette from Dimplex, the world leader in electric replaces.
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result in a
possible electric shock, re hazard and will void the warranty.
Please record your model and serial numbers below for future
reference: model and serial numbers can be found on the Model and
Serial Number Label of your cassette.
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
Please have your model number and product serial
number ready. (See above)
Model Number
Serial Number
4 www.dimplex.com
IMPORTANT SAFETY INSTRUCTIONS
THE ELECTRICAL RATING
FOR THESE MODELS
(6909051242, 6909051243,
6909051262,6909051263,
6909051261) IS 120VAC, 60 HZ,
200W.
When using an electrical furnish-
ing, basic precautions should
always be followed, including the
following:
Read all instructions before using
(this furnishing).
DANGER: To reduce the risk
of electric shock always unplug
this furnishing from the electri-
cal outlet before cleaning.
WARNING: To reduce the risk
of burns, re, electric shock, or
injury to persons:
① Unplug from outlet before putting
on or taking off parts.
② Close supervision is necessary
when this furnishing is used by, or
near children, invalids, or disabled
persons.
③ Use this furnishing only for its
intended use as described in these
instructions. Do not use attach-
ments not recommended by the
manufacturer.
④ Never operate this furnishing if it
has a damaged cord or plug, if it is
not working properly, if it has been
dropped or damaged, or dropped
into water. Contact Dimplex Techni-
cal Service at 1-888-346-7539 for
replacement parts.
⑤ Keep the cord away from heated
surfaces.
⑥ Never operate the furnishing with
the air openings blocked. Keep the
air openings free of lint, hair, and
the like.
⑦ Never drop or insert any object
into any opening.
⑧ Do not use outdoors.
⑨ Do not operate where aerosol
(spray) products are being used
or where oxygen is being adminis-
tered.
⑩ To disconnect, turn all controls to
the off position, then remove plug
from outlet.
WARNING: Risk of Electric
Shock – Connect this furnishing
to a properly grounded outlet
only. See Grounding Instruc-
tions.
⑪ This electrical appliance has hot
and arcing or sparking parts inside.
Do not use in areas where gaso-
line, paint, or ammable liquids are
used or stored.
5
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
⑫ Do not modify the unit. Use it
only as described in this manual.
Any other use not recommended by
the manufacturer may cause re,
electric shock or injury to persons.
⑬ To reduce the risk of electric
shock, this appliance has a three
pronged plug. This plug will t in a
grounded outlet only one way. If the
plug does not t, contact a quali-
ed electrician to install the proper
outlet. Do not change the plug in
any way. Always plug this appliance
directly into a wall outlet/receptacle.
Never use with an extension cord
or relocatable power tap (outlet/
power strip).
⑭ Keep away from curtains, drap-
eries and similar materials.
⑮ Always use a certied electrician
should new circuits or outlets be
required.
⑯ Always use properly grounded,
fused and polarized outlets.
⑰ When transporting or storing the
unit and cord, keep in a dry place,
free from excessive vibration and
store so as to avoid damage.
⑱ This furnishing has not been
evaluated for ammability or ciga-
rette ignition resistance.
⑲ Do not submerse.
⑳ Light bulb requirement: 45W,
12VAC halogen bulbs type MR 16.
Contact Dimplex Technical Service
at 1-888-346-7539 for replacement
bulbs.
㉑ The electric fireplace shall be
installed in an enclosure no smaller
than that indicated. (See Figure 2)
!NOTE: Changes or modica-
tions not expressly approved by the
party responsible for compliance
could void user's authority to oper-
ate the equipment.
WARNING: Remote control con-
tains small batteries. Keep away
from children. If swallowed, seek
medical attention immediately.
WARNING: Do not install bat-
tery backwards, charge, put in re
or mix with used or other battery
types - may explode or leak caus-
ing injury.
6 www.dimplex.com
Installation
WARNING: Ensure the power
cord is not installed so that it is
pinched or against a sharp edge
and ensure that the power cord is
stored or secured to avoid tripping
or snagging to reduce the risk
of re, electric shock or injury to
persons.
Grounding Instructions
This product must be grounded.
If it should malfunction or break-
down, grounding provides a path
of least resistance for electric
current to reduce the risk of
electric shock. This product is
equipped with a cord having an
equipment-grounding conductor
and a grounding plug. The plug
must be plugged into an appropri-
ate outlet that is properly installed
and grounded in accordance with
all local codes and ordinances.
DANGER: Improper connec-
tion of the equipment-grounding
conductor can result in a risk
of electric shock. Check with a
qualied electrician or serviceman
if you are in doubt as to whether
the product is properly grounded.
Do not modify the plug provided
with the product – if it will not t
the outlet, have a proper outlet
installed by a qualied electrician.
This product is for use on a
nominal 120-volt circuit and has
a grounding plug that looks like
the plug in Figure 1. Make sure
that the product is connected to
an outlet having the same con-
guration as the plug. No adapter
should be used with this product.
CAUTION: Risk of Electric
Shock. Unplug the cord before
moving or servicing this furnishing.
!NOTE: A 15 Amp, 120 Volt cir-
cuit is required. A dedicated circuit
is preferred but not essential in
all cases. A dedicated circuit will
be required if, after installation,
the circuit breaker trips or fuse
blows on a regular basis when the
cassette is operating. Additional
appliances on the same circuit
may exceed the current rating of
the circuit breaker.
Mantel Installation
Install the replace into the
mantel (refer to mantel assembly
instructions).
Figure 1
7
Installation
Figure 2
New Construction
1. Mark the desired location on
the oor and store the replace
in a safe, dry and dust free
location.
2. Use studs to frame an enclo-
sure with the following mini-
mum internal/opening dimen-
sions (Figure 2).
!NOTE: An air inlet is required
for optimum mist production, see
Figure 2 for minimum dimen-
sions.
!NOTE: For optimal perfor-
mance, 12 in. (305 mm) mini-
mum clearance between the in-
stallation surface and any surface
above should be maintained.
3. Secure unit through the two
holes in the bottom of the unit
into supports to prevent the
unit from hanging from the top
ange, see gure 3 for dimen-
sions.
4. The unit is equipped with a
power supply plug, the plug
should be plugged directly into
a 15 A, 120 V outlet.
8.5 in.
(216mm)
6.7 in.
(170mm)
Exit for Cord
Installation
Surface
Supports: 0.75 in. (19 mm) high
DFI400: 15.75 in. (400mm)
DFI600: 22.05 in. (560mm)
Air Inlet
DFI400: 100cm2
DFI600: 150cm2
Figure 3
FRONT
1.2 in.
(30.0 mm)
3.5 in.
(90.0 mm)
3.1 in.
(80.0 mm)
4.8 in.
(122.0 mm)
5.4 in.
(137.0 mm)
1.2 in.
(30.0mm)
8 www.dimplex.com
Assembly
Figure 4
1. Carefully unpack all of the
components from the box.
(Figure 4)
2. Remove top cover by turning
the retaining tabs on both
ends of the water reservoir.
(Figure 5)
3. Install the light bulbs by
aligning the pins on the bulbs
and the xture and pressing
down until they are fully
inserted. (Figure 6)
4. Install the transducer so that
it is sitting level in the circular
holding area in the reservoir.
5. Orient transducer wire so that
it does not sit directly above
the emitter and the wire
passes through the slot in the
side of the tank. (Figure 5)
6. Reinstall the top cover and
ensure both retaining tabs
have been turned so that they
are pointing inwards.
7. Fill and install the Rell
Container.
!NOTE: Normal tap water can
be used in the Optimyst® as long
as the tap water is not considered
to be hard water. In the event
your tap water is hard, you may
use softened water or distilled
water with 1/8 tsp of salt (0.5
mL) added to the water reservoir.
(The addition of additional salt
should only be used when you
notice that the unit is not produc-
ing mist as expected.)
!NOTE: During initial
installation, the Rell Container
Transducer
Rock
Media
Removable Rell
Container
Light Bulbs
Remote
Control
Curved Tray
Housing
Media
Tray
Logset
9
Figure 5
Top
Cover
Transducer
Emitter
Wire Slot
Assembly
should be relled after the
Reservoir has lled to ensure the
maximum operating time.
8. Install the media on top, media
tray and media (if applicable),
so that the opening is not
blocked (Figure 6).
CAUTION: Do not arrange the
media while the unit is running,
since the media and/or tray may be
hot.
9. Make sure the On/Off switch
is switched to Off (refer to
Operating Instruction section).
10. Plug the unit into a 15 Amp/
120 volt outlet.
Retaining
Tab
Figure 6
!NOTE: Rock media shown, install
other medias in the same way.
Fan
Housing
Water Tank
10 www.dimplex.com
Operation
!NOTE: Always ensure that the
appliance is in an upright position
before operating the unit.
!NOTE: When the cassette
is used in an environment where
background noise is very low, it
may be possible to hear a sound
which is related to the operation
of the ame effect. This is normal
and should not be a cause for
concern.
!NOTE: Always ensure that
the appliance is in a level position.
The manual controls for the cas-
sette are located on the top of
the unit, below the control cover.
(Figure 7)
A. On/Off Switch
Supplies power to the cassette.
B. Mode Selector Switch
Press once to turn on the ame
effect. This will be indicated by an
audible “beep”. Although the lights
turn on immediately it will take 30
seconds before the ame effect
starts.
Press to put re in to standby
mode. This will be indicated by
one “beep”.
C. Flame Intensity Control
Adjusts the intensity of the ame
effect when the cassette has
been activated.
Turning the control knob clock-
wise to decrease the intensity
of the ame effect. Turning the
control knob counter-clockwise
will increase the ame effect.
!NOTE: Give the ame genera-
tor some time to react to changes
you may make on the ame
control knob.
!NOTE: When the water tank is
empty the unit will turn off after 30
seconds. See instructions under
Maintenance Section for rell-
ing tank. When this procedure is
complete, the main lamps will illu-
minate but it will take 30 seconds
before the ames return.
BA
C
Figure 7
Remote Control
Sensor
This manual suits for next models
5
Table of contents
Other Dimplex Indoor Fireplace manuals
Dimplex
Dimplex DF28L-PRO User manual
Dimplex
Dimplex EWMC-CC-SS User manual
Dimplex
Dimplex GDS23L8-1904GB User manual
Dimplex
Dimplex BF36 Series User manual
Dimplex
Dimplex DF2524G User manual
Dimplex
Dimplex Revillusion RBF24DLX User manual
Dimplex
Dimplex DF1870L User manual
Dimplex
Dimplex DIMPLEX ELECTRIC FIREPLACE User manual
Dimplex
Dimplex 7206560100R00 Installation guide
Dimplex
Dimplex PF2325 User manual
Dimplex
Dimplex Vivente Plus V V T75 Manual
Dimplex
Dimplex XHD23L User manual
Dimplex
Dimplex MIDI FIRE MIDI32B User manual
Dimplex
Dimplex EF3003 User manual
Dimplex
Dimplex Auvergne Log 2920 User manual
Dimplex
Dimplex OPTIMYST RTOPCS20 User manual
Dimplex
Dimplex XLF60 User manual
Dimplex
Dimplex 5011139048455 User manual
Dimplex
Dimplex DFB6016 Quick start guide
Dimplex
Dimplex YEO20 User manual
Popular Indoor Fireplace manuals by other brands
Brigantia
Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual
Nordpeis
Nordpeis Bergen Installation and user manual
Superior
Superior BCT2536TMN Installation and operation instructions
Quadra-Fire
Quadra-Fire 5100I-GD-B owner's manual
Renaissance
Renaissance RUMFORD 1000 user manual
Lacunza
Lacunza IV-800 Instruction book
Baxi
Baxi 940 Installer and owner guide
Dru
Dru Maestro 60/2 Tall RCH installation manual
Diamond Fireglass
Diamond Fireglass SS-O22 General assembly, installation, and operation instructions
HearthStone
HearthStone Windsor Bay 8830 Owner's manual and installation guide
Napoleon
Napoleon ASCENT B42 quick start guide
Enviro
Enviro E33GI owner's manual
Smeg
Smeg L30 FABE Installation & user's instructions
KEDDY
KEDDY K700 Installation instructions care and firing instructions
Godin
Godin 3451 manual
Jøtul
Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions
Austro Flamm
Austro Flamm Heidi Back 2.0 945048 operating manual
Desa
Desa CCFPDFT Owner's operating & installation manual
