Digitus DA-70452 User manual

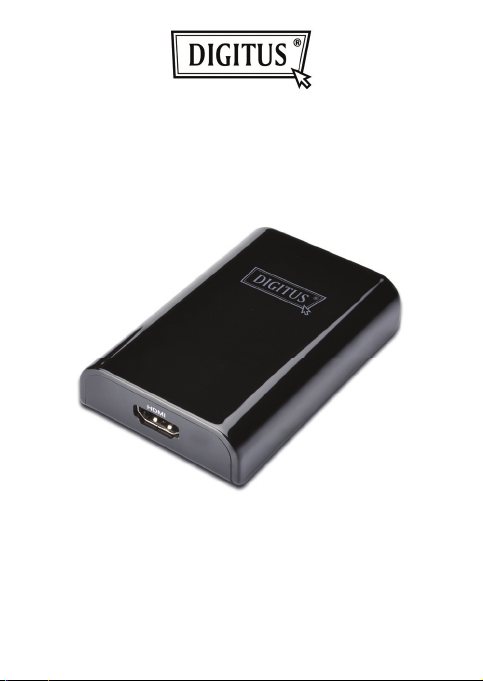

USB 3.0 TO HDMI

GRAPHIC ADAPTER

Quick Installation Guide

DA-70452

1. Installing the Driver

Caution: DO NOT connect the adapter to your

computer before installing the provided driver.

Insert the provided CD into a computer's disc drive and the

AutoPlay will be launched automatically. If the AutoPlay

does not appear, locate and double-click on the Setup.exe

file in the driver folder.

For Windows Vista

®

/ Windows 7

®

users:

A. Please click <Run Setup.exe> to execute

the installer program.

B. If you encounter a User Account Control dialog box

when attempting to install a program, enter an

administrator password or click <Allow> / <Yes> to

start the installation.

C. The License agreement will be prompted.

Click <I Accept> to start the driver installation.

D. Click <Yes> to restart or <No> to manually restart later,

if a promoting to restart computer message appears.

For Windows XP

®

users:

A. The License agreement will be prompted.

Click <I Accept> to start the driver installation.

B. Click <Yes> to restart or <No> to manually restart later,

if a promoting to restart computer message appears.

2. Making the Connection

A. Connect the USB 3.0 Display Adapter to a monitor and a

computer. The screen may temporarily go black or flash

during this process.

B. The reminder message will appear on the system tray,

when the adapter has been detected by the operating

system.

3. Changing the Display Mode

There are several ways to utilize the monitor attached on

the adapter. The add-on monitor can be configured to use

either “Mirror mode”, “Extended mode” or be the Primary

display as described in this section.

Utility:

A. Click < (utility icon) > in

t

B. Select a preferred option, an

d

Windows configuration:

Position the mouse anywhere on

t

right-click and select <Screen Re

s

Personalize > Display Settings

o

Properties > Settings on Windo

w

t

he Windows System Tray.

d

then click it using mouse.

t

he computer desktop,

s

olution> on Windows 7

®

,

o

n Windows Vista

®

or

w

s XP

®

.
