Digital Watchdog Star-Light Plus DWC-VA853WTIR User manual

Quick Start Guide Quick Start Guide

1. The mounting surface must withstand ﬁve times the camera weight.

2. Do not let the cables get caught in improper places or the electric line

cover can be damaged. This may cause a short or ﬁre.

3. Use the mounting template to mark and drill the necessary holes in

the mounting surface.

4. This product is intended to be supplied by a UL Listed Power Supply

Unit marked “Class 2” or “LPS” or “PS2” and rated 12 Vdc, 0.38A min.

STEP 1 – PREPARING TO MOUNT THE CAMERA

Pass the wires through the mount bracket and make all necessary

connections. Connect the BNC cable and power cables to the camera.

STEP 2 – CABLING THE CAMERA TO

EXTERNAL DEVICES

Power

requirements Power consumption

DC12V DC12V (LED o): 3W (250mA)

DC12V (LED on): 4.54W (378mA)

Tel: +1 (866) 446-3595 / (813) 888-9555

Technical Support Hours:

9:00 AM – 8:00 PM EST, Monday through Friday

digital-watchdog.com

DWC-VA853WTIR

WHAT’S IN THE BOX

Hegaxonal

Wrench

(HEX2.0)

1Mounting

template 1

Screw and

plastic

anchor-2pcs

1 set

Quick

setup

guide

DC plug

cable 1

Manual

Template Sheet

for installing by Bolt & Nut

Mount Bolt & Nut

Screw &

Plasc Anchor-2pcs

Torx Wrench

Test Video Cable

Manual

Template Sheet

for installing by Bolt & Nut

Mount Bolt & Nut

Screw &

Plasc Anchor-2pcs

Torx Wrench

Test Video Cable

Manual

Template Sheet

for installing by Bolt & Nut

Mount Bolt & Nut

Screw &

Plasc Anchor-2pcs

Torx Wrench

Test Video Cable

Manual

Template Sheet

for installing by Bolt & Nut

Mount Bolt & Nut

Screw &

Plasc Anchor-2pcs

Torx Wrench

Test Video Cable

Mounting template

Attention: This document is intended to serve as a quick reference for the

initial setup. It is recommended that the user read the entire instruction

manual for complete and proper installation and usage.

NOTE: Download all your support materials and tools in one place.

1. Go to: http://www.digital-watchdog.com/resources

2. Search your product by entering the part number in

the ‘Search by Product’ search bar. Results for

applicable part numbers will populate automatically

based on the part number you enter.

3. Click ‘Search’. All supported materials, including manuals

and quick start guide (QSGs) will appear in the results.

1. Once all cables have been connected, use the screws included with the camera to properly mount and secure the camera to the

mounting surface.

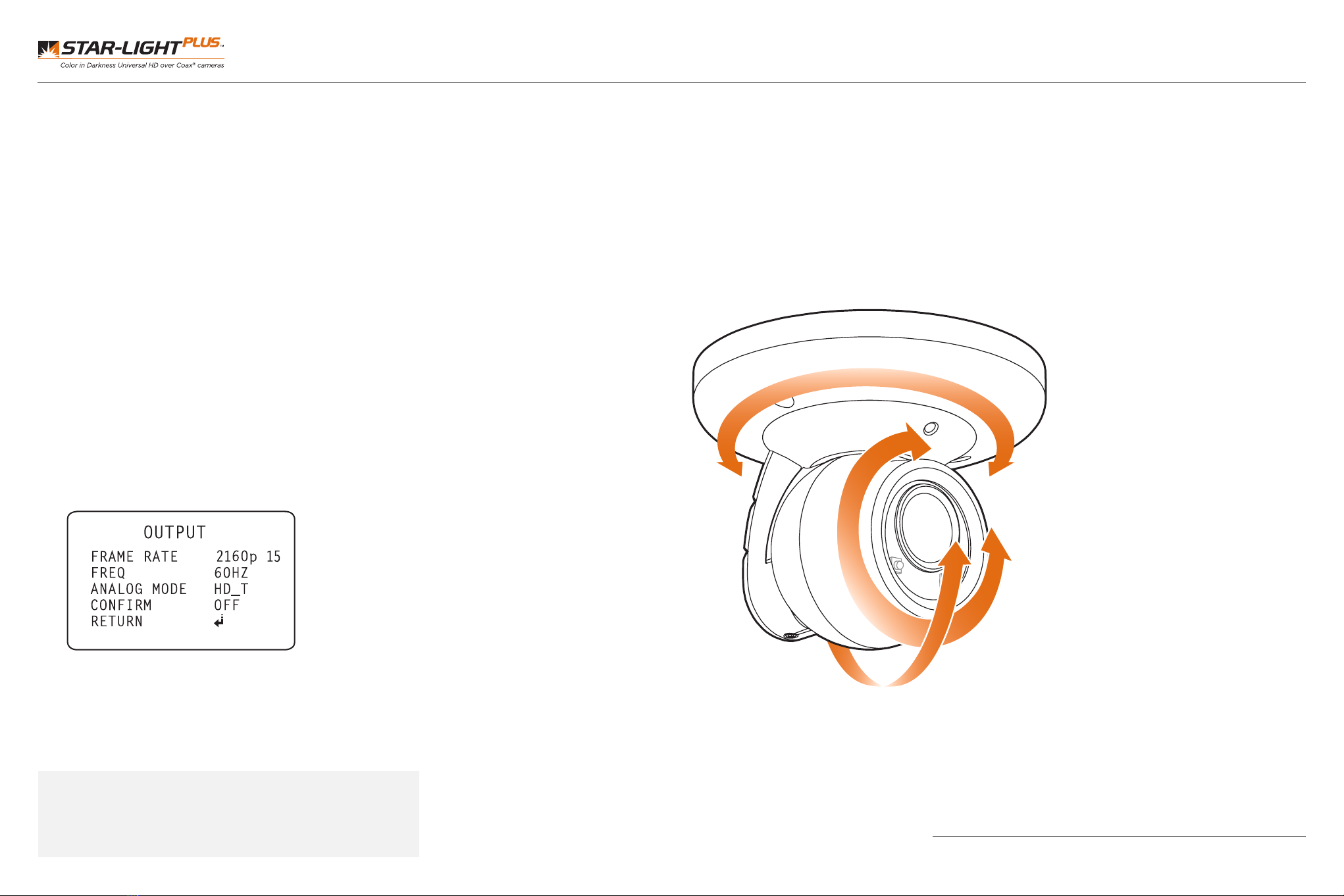

2. Adjust the camera’s pan, tilt and position to achieve the desired view. The cameras’ max angles are:

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

3. Once the installation is complete, tighten the pan/tilt/rotation screw until it’s secure.

Quick Start Guide

STEP 4 – INSTALLING THE CAMERA

Rev Date: 02/22

Speciﬁcations and pricing are subject to change without notice.

Rotation 360°

Titling 90°

Panning 360°

STEP 3 – CHANGING THE SIGNAL IN

THE CAMERA

1. The camera supports HD-Analog, HD-CVI and HD-TVI signals as

well as CVBS up to 960H. To switch between the signals:

a. Enter the camera’s OSD menu. You can access it locally from

using the camera’s joystick in the body of the camera, or from a

recorder supporting UTC communication.

Go to SETUP > OUTPUT.

b. Set the camera’s resolution from the following options:

- 4K/2160p @15fps.

- 5MP/1440 @30fps.

- 2.1MP/1080p @30fps.

c. Set the camera’s analog signal output from the following options:

- HD-A - HD-Analog

- HD-T - HD-TVI

- HD-C - HD-CVI

- CVBS - legacy analog signal

d. Change CONFIRM to ON to save the changes.

e. Go to the EXIT menu and select SAVE&EXIT to save all changes.

The camera signal automatically.

NOTE: To use your Star-Light Plus™ 4K cameras at a lower

resolution, you must use a VMAX® A1 4K DVR to access the

camera’s menu due to the cameras being set to 4K as the

default. A DVR that does not support 4K resolution may

recognize the camera, but will not deliver a picture.
