Digital Watchdog INFINITY 960H DWC-B1567WD User manual

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

960H Outdoor Bullet Camera

Double Arm Bracket

11192012

DWC-B1567WD

DWC-B1567WTIR

PRECAUTIONS

FCC COMPLIANCE

WARNING : Changes or modifications are not expressly approved by the manufacturer.

Do not open or modify.

Do not open the case except during maintenance and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of a kitchen or boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a residential environment. This equipment generates, uses,

and radiates radio frequency energy; and if it is not installed and used in accordance with the instruction

manual, it may cause harmful interference to radio communications.

Table of Contents

Introduction

Installation

Camera OSD Menu and Glossary

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Included Accessories

Easy Installation

Control Board _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Connecting to Monitors _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

13-29

31-32

33-34

Adjusting the Lens 11

Camera Setting Angle 12

FEATURES*

DWC-B1567WD / DWC-B1567WTIR

1/3” 960H High Resolution CCD

700 TV Lines

3.3~12mm Varifocal Auto Iris Lens

True Day and Night (DWC-B1567WTIR only)

Star-Light (Super Low Light Technology)

EWDR (Electronic Wide Dynamic Range)

3D-DNR (3D Digital Noise Reduction)

HME (Highlight Masking Exposure)

AGC / BLC / AWB

Negative Imaging

Mirror Image Control

RS485 Built-in

Programmable Privacy Zones (6) & Motion Detection

Easy Icon Driven OSD Menu with Built-In Joystick

Auto Sensing 12VDC or 24VAC with Line Lock

Secondary Video-BNC Output

100ft Range IR with Intelligent Camera Sync (B1567WTIR only)

IP66 Certified, No Fog or Condensation

910

1Front Case

2Zoom, Focus Housing

3Sunshield

4Lens

5Rear Case

6Control Board

7Control Cap

8Double Arm Bracket

9BNC Jack

Assembly Screw

Fixing Screw

Set Screw

10 Power Input Connector

DC 12V / AC24V Voltage

RS 485

No IR

PART & DESCRIPTIONS*

DIMENSIONS IN MILLIMETERS (INCHES)*

No IRIR

230(9.05”)

86.5(3.40”)

122(4.80”) 96.5(3.79”)

68.0(2.67”)

86.5(3.40”)

78.0(3.07”)

5(0.19”)

96.0(3.77”)

1. User Manual

2. Mounting Template

3. Four (4) Screws and Four (4) Dry Wall Anchors

4. Second Video Jack

5. Tool

6. L-Wrench

 





INSTALLATION*

EASY INSTALLATION*

Use the 4 mounting screws to install the camera on the

wall or ceiling.

Then, follow the next step on the pages 9-12.

NPT 3/4” Pipe



*Installation Using a Junction Box

*Note: Electrical junction box and required screws sold separately.

CONNECTING TO MONITORS*

12VDC/24VAC

Monitor

30cm

CCTV Monitor

2nd Video Output

RightLeft

Down

Power Connection - 12VDC/24VAC Dual Voltage (Auto polarity detection and protection)

All cameras are equipped with a service monitor output on the camera module.

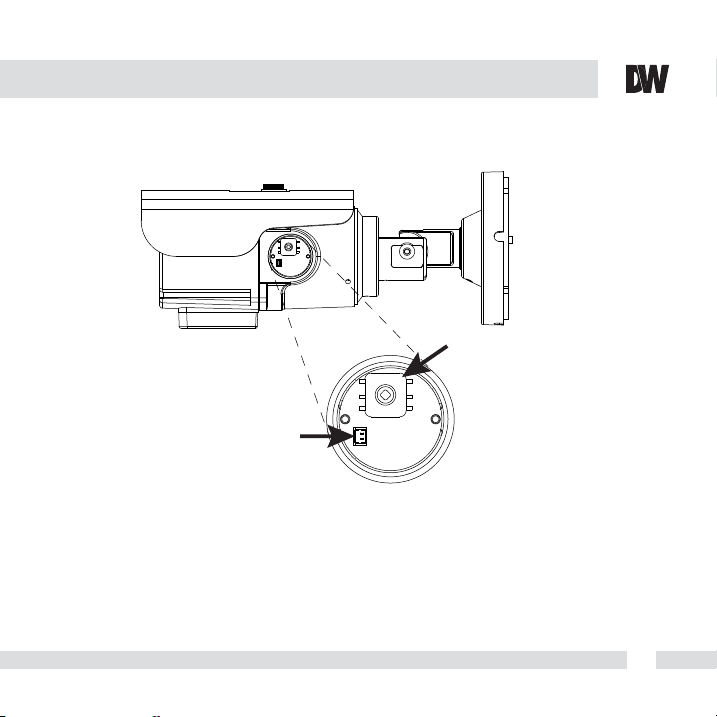

CONTROL BOARD*

Joystick

Secondary Connector

[1] Joystick -

Controls the OSD menu.

[2] Secondary Connector -

Tests video output connector.

To Access Control Board:

[1] Remove clear plastic ring from the

control cap.

[2] Turn Control Cap counter-clockwise

until cap separates completely from the

camera body.

Functions:
