Digital Watchdog DWC-D4365T User manual

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

SNAP-IT

Indoor Dome Camera

DWC-D4363D

DWC-D4363TIR

DWC-D4367WD

DWC-D4367WTIR

DWC-D4382TIR

DWC-D4365T

03022011

PRECAUTIONS

FCC COMPLIANCE

WARNING : Changes or modifications are not expressly approved by the manufacture.

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface.

The material of the mounting surface must be strong enough to support the camera.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC rules. These limits are designed to

Provide reasonable protection against harmful interference. when the equipment is

operated in a residential environment. This equipment generates, uses, and radiates

radio frequency energy; and if it is not installed and used in accordance with the

instruction manual, it may cause harmful interference to radio communications.

TROUBLESHOOTING

No VIDEO

Out-of-Focus VIDEO

Before sending your camera for repair, check the following or contact our technical specialist.

Check the coaxial cable and make sure it is connected securely.

Check the lens’ iris adjustment at the menu setup of the camera.

Check the power supply and make sure the camera has the proper voltage and current.

Check the clear dome cover and the lens for dirt or fingerprints. Use a soft cloth and gently clean.

Check the lens manual focal and zoom adjustment. Field test monitor is recommended.

PART & DESCRIPTIONS*

Lens

3UTP

4RS 485

Power Input Connctor

12VDC/24VAC Dual Voltage

Video Output Connector - BNC

2nd Video Connector

Camera Control Board

Bubble

Upper Case

Mounting Screws

NOTE : These assembly screws located on the dome

cover and not with mounting hardware.

NO IR IR

INSTALLATION*

Included with DW Indoor Dome Camera

1. User Manual

2. Mounting Template

3. Two(2) Screw and Two(2) Dry Wall Anchors

4. 2nd Video Jack

5. IR Remote Controller

DWC-D4382TIR

DIMENSIONS IN MILLIMETERS*

108

Surface Mount Indoor

TOP VIEW

40,5

56,3

96,8

108

BASE INSTALLATIONS*

OSD

Philips #8-32 x 0.75

Surface Mount

22S

NO IR IR

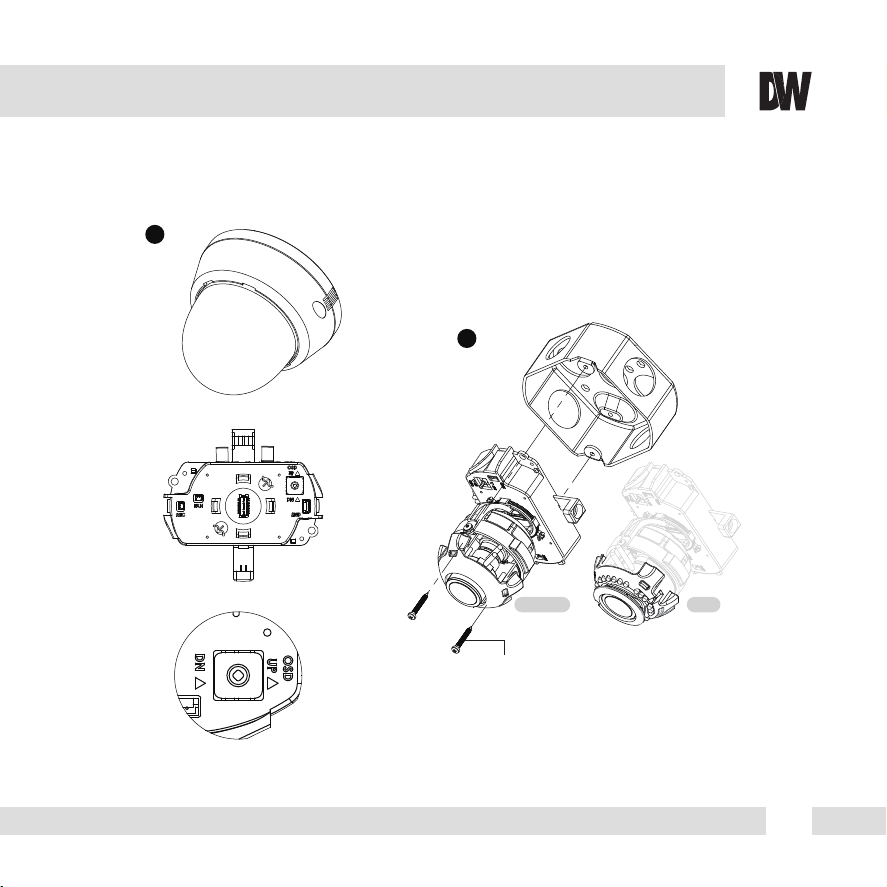

MOUNTING ON ELECTRICAL JUNCTION BOX*

NOTE : Screws required for electrical junction boxes are not supplied.These

screws are readily available at well-stocked electrical supply store.

Philips #8-32 x 0.75

NO IR IR

CONNECTING TO MONITORS*

Power Connection - 12V DC / 24V AC Dual Voltage(Auto Polarity Detection and Protection)

All cameras are equipped with a 2nd video output on the camera Main Board.

DC 12V / AC 24V

CCTV Monitor

Monitor

300.0

2nd Video Output

Down

Left Right

NO IR

ADJUSTING THE VARI-FOCAL DC AUTO IRIS LENS*

Follow the instructions provided below to make any lens adjustments

1Loosen the Zoom & Focus screws.

2Using the screw, move it RIGHT or LEFT to the desired position.

3Once the desired adjustments have been made, tighten the screw to lock in place.

4Adjust the Field of View by moving the screw towards the RIGHT(Tele) to zoom in, or

towards the LEFT(Wide) to zoom out.

5Adjust the Focus the same way as described above after the desired zoom position is

estabilished.

NO IR IR

ZOOM

FOCUS

Zoom:

Focus:

Tele - Wide

Far - Near

DWC-D4363D

DWC-D4367WD

DWC-D4365T

DWC-D4363TIR

DWC-D4367WTIR

DWC-D4382TIR
