Thank you for purchasing this Denon product.

To ensure proper operation, please read this owner’s manual carefully before using the product.

After reading this manual, be sure to keep it for future reference.

Accessories

Check that the following parts are supplied with the product.

Cable labelsNotes on radioSafety InstructionsQuick Start Guide

Sound calibration

microphone

AM loop antennaFM indoor antenna

R03/AAA batteries

Remote control unit

(RC-1254)

Cautions on Using Batteries

Power cord

(Australian model only)

Power cord

(European model only)

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Inserting the batteries

1Remove the rear lid in the direction of the arrow and

remove it.

2Insert two batteries correctly into the battery

compartment as indicated.

Batteries

3Put the rear cover back on.

NOTE

0To prevent damage or leakage of battery fluid:

0Do not use a new battery together with an old one.

0Do not use two different types of batteries.

0Remove the batteries from the remote control unit if it will not be in use for long

periods.

0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

compartment and insert new batteries.

Operating range of the remote control

unit

Point the remote control unit at the remote sensor when operating it.

30° 30°

Approx. 7 m

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Features

High quality sound

0With discrete circuit technology, the power amplifier provides

identical quality for all 5-channels (90 Watts x 5-channels)

For optimum realism and stunning dynamic range, the power amplifier

section features discrete power devices (not integrated circuitry).

By using high current, high power discrete power devices, the amplifier

is able to easily drive high quality speakers.

High performance

08K 60Hz input/output supported

8K,

4K 120Hz

8K,

4K 120Hz

When 8K Ultra HD (High Definition) is used, an input/output speed of 60

frames per second (60p) is achieved for video signals. When connected

to 8K Ultra HD and 60p video signal input compatible TV, you can enjoy

the sense of realism only available from high-definition images, even

when viewing fast-moving video.

This unit supports a wide range of HDR content, delivering even higher

definition video.

0HDCP 2.3

This unit is compatible with HDCP 2.3 copyright protection standard.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

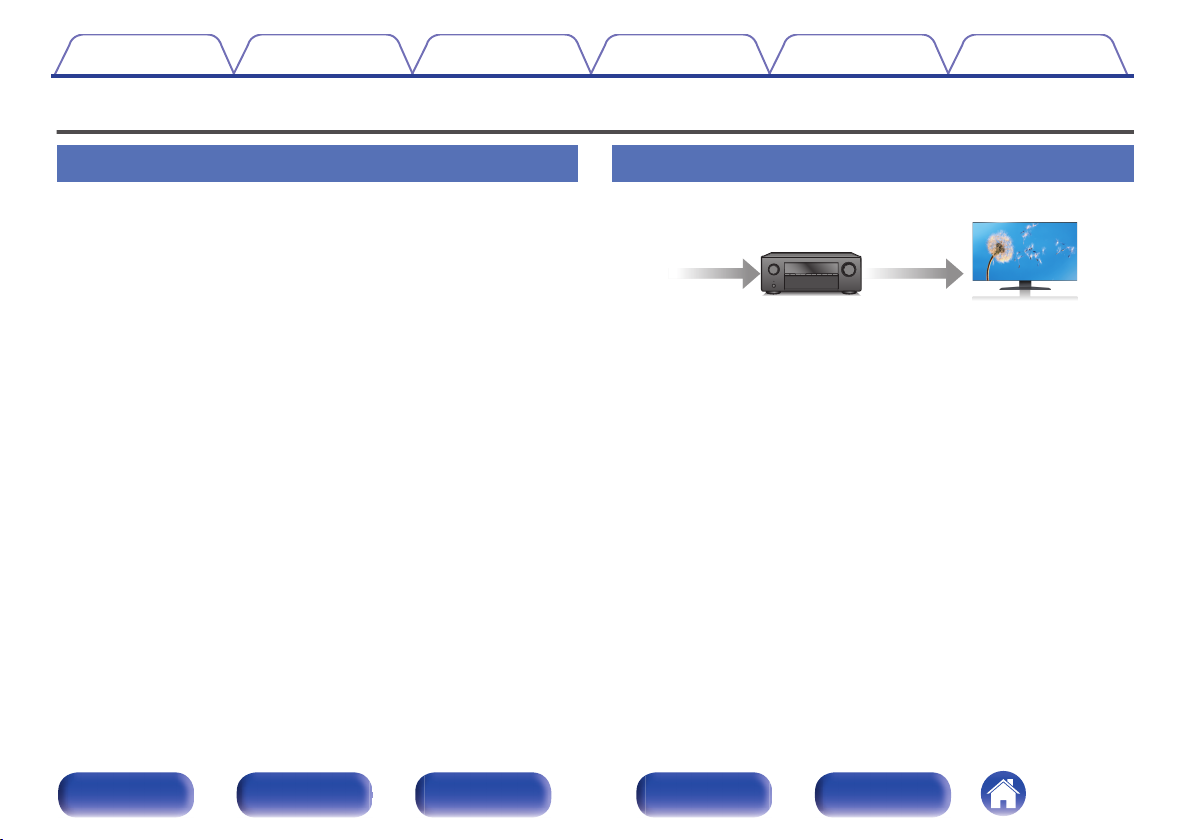

0Digital video processor upscales 1080p / 4K to 8K

8K Ultra HD

8K 8K

1080p/4K 60Hz

up scaling

This unit is equipped with a 8K video upscaling function that allows

1080p/4K video to be output via HDMI at 8K (7680 × 4320 pixels)

resolution. This function enables the device to be connected to a TV

using a single HDMI cable, and produces high definition images for any

video source.

0eARC (Enhanced Audio Return Channel) function compatibility

The eARC function is compatible with conventional ARC function-

compatible audio formats in addition to multichannel linear PCM, Dolby

TrueHD, DTS-HD and other audio formats a conventional ARC function

cannot transmit.

Additionally, connecting to an eARC function-compatible television

enables enjoyment of higher-quality surround playback of the audio

content played from your television.

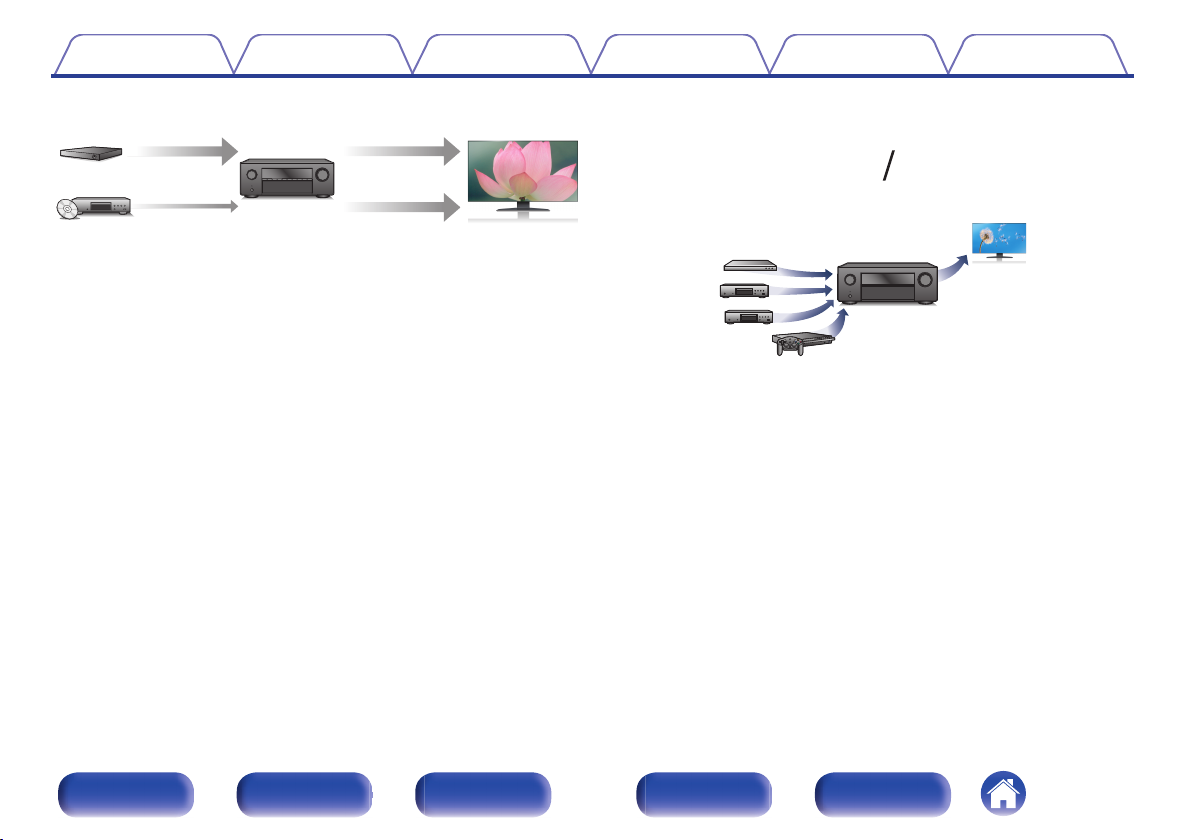

0HDMI connections enable connection to various digital AV

devices (4 inputs, 1 output)

OutIn

This unit is equipped with 4 HDMI inputs and 1 HDMI output enabling

connection to various HDMI compatible devices such as Blu-ray Disc

players, game consoles and HD video camcorders.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

0Wireless connection with Bluetooth devices can be carried out

easily (v p. 44)

You can enjoy music simply by connecting wirelessly with your

smartphone, tablet, PC, etc.

0Energy-saving design

This unit is equipped with an ECO Mode function that allows you to

enjoy music and movies while reducing the power consumption during

use, and also an auto-standby function that automatically turns off the

power supply when the unit is not in use. This helps reduce

unnecessary power use.

Easy operation

0“Setup Assistant” provides easy-to-follow setup instructions

First select the language when prompted. Then simply follow the

instructions displayed on the TV screen to set up the speakers etc.

0Easy to use Graphical User Interface

This unit is equipped with a Graphical User Interface for improved

operability.

0Compatible with the “Denon 500 Series Remote” app performing

basic operations of the unit with an iPad, iPhone or Android™

devices (Google, Amazon Kindle Fire)

The “Denon 500 Series Remote”z application allows you to wireless

control this unit from an iPhone, iPad, Android smartphone or tablet

when paired and connected via Bluetooth. Basic functions include:

Power ON/OFF, volume, mute, and source selection.

zDownload the appropriate “Denon 500 Series Remote” for your iOS or Android

devices. In order to use “Denon 500 Series Remote”, your iOS or Android device

needs to be paired with this unit in advance.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Other manuals for AVR-X580BT

Other Denon Receiver manuals

Denon

Denon DRA-365R User manual

Denon

Denon AVR-1602 User manual

Denon

Denon AVR-3312CI Quick start guide

Denon

Denon AVR-S500BT User manual

Denon

Denon AVR-X3200W User manual

Denon

Denon AVR-5805 Manual

Denon

Denon AVR-3805 Administrator guide

Denon

Denon AVR-987 Administrator guide

Denon

Denon AVR 688 - AV Receiver User guide

Denon

Denon In-Command AVR-2313CI User manual

Denon

Denon AVR-1713 User manual

Denon

Denon AVR-1708 User manual

Denon

Denon AVR-S960H User manual

Denon

Denon AVR-X2000 User manual

Denon

Denon AVR-X2100W User manual

Denon

Denon AVR 2808CI - AV Receiver User manual

Denon

Denon AVR-X1000 User manual

Denon

Denon AVR 2308CI - AV Receiver User manual

Denon

Denon AVR 689 - AV Receiver Dimensions

Denon

Denon AVR-X3200W User manual

Denon

Denon AVR-5805-UPGRADE User manual

Denon

Denon AV Surround Receiver AVR-5803 User manual

Denon

Denon AVR-1912E3 User manual

Denon

Denon DHT-591BA User guide

Popular Receiver manuals by other brands

Garmin

Garmin GA 23 Owner's manual and reference guide

Aiphone

Aiphone PS-12F instructions

IMES

IMES TCS-01CA-PMI Original Operating Instruction

BWI Eagle

BWI Eagle AIR-EAGLE SR Product information bulletin

AMIMON

AMIMON AMN12310 WHDI datasheet

Dual

Dual DMCPA79BT Installation & owner's manual

Sound Associates

Sound Associates SA652P Operation manual

Sherwood

Sherwood NewCastle R-772 Service manual

Audio

Audio A10-RX Series user guide

AllSee

AllSee PushShare PSRV1.1 user manual

DEMAG

DEMAG DRC-DR D2 operating instructions

Teleco

Teleco TVRCL868A02 manual

Bosch

Bosch RF3222E installation instructions

Kramer

Kramer 631R user manual

Xpress

Xpress xmc10 installation guide

JVC

JVC KD-MR1BTS instruction manual

Omega Engineering

Omega Engineering UWTC-REC3 user guide

e-survey

e-survey E300 Pro user manual
