Denon AVR-X510BT User manual

AVR-X510BT

AV SURROUND RECEIVER

Owner’s Manual

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Accessories 5

Inserting the batteries 6

Operating range of the remote control unit 6

Features 7

High quality sound 7

High performance 7

Easy operation 9

Part names and functions 10

Front panel 10

Display 13

Rear panel 14

Remote control unit 16

Connections

Connecting speakers 20

Speaker installation 20

Speaker connection 22

Standard speaker configuration and connection 24

Connecting a TV 25

Connection 1 : TV equipped with an HDMI connector 26

Connection 2 : TV equipped without an HDMI connector 27

Connecting a playback device 28

Connecting a DVD player or Blu-ray Disc player 29

Connecting a set-top box (Satellite tuner/cable TV) 30

Connecting a video camcorder or game console 31

Connecting a USB memory device to the USB port 32

Connecting an FM/AM antenna 33

Connecting the power cord 35

Playback

Basic operation 37

Turning the power on 37

Selecting the input source 37

Adjusting the volume 38

Turning off the sound temporarily (Muting) 38

Playback a DVD player/Blu-ray Disc player 38

Playing a USB memory device 39

Playing files stored on USB memory devices 40

Listening to music on a Bluetooth device 41

Pairing with a Bluetooth device 42

Playing a Bluetooth device 43

Pairing with the Pairing Mode 44

Contents Connections Playback Settings Tips Appendix

Contents

Front panel Display Rear panel Remote Index

Listening to FM/AM broadcasts 45

Listening to FM/AM broadcasts 46

RDS search 47

PTY search 48

TP search 49

Radio Text 49

Tuning in to stations and presetting them automatically (Auto

Preset) 50

Presetting the current broadcast station (Preset Memory) 51

Listening to preset stations 51

Skipping preset broadcast stations (Preset Skip) 52

Cancelling Preset Skip 52

Convenience functions 53

Performing repeat playback (Repeat) 54

Performing random playback (Random) 54

Adjusting the tone (Tone) 55

Optimizing the night time listening volume (Night Mode) 56

Displaying your desired video during audio playback (Video

Select) 57

Selecting a sound mode 58

Adjusting the volume of each channel to match the input

source (Ch Level Adjust) 62

Sleep timer function 63

Using the sleep timer 63

Quick select plus function 64

Calling up the settings 65

Changing the settings 65

Settings

Menu map 66

Menu operations 69

Audio 70

Surr.Parameter 70

Restorer 73

Audio Delay 74

Volume 74

Room EQ 75

Video 76

HDMI Audio Out 76

HDMI PassThrough 76

Pass Source 77

Inputs 78

Input Assign 78

Source Level 78

Input Select 79

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Speakers 80

Auto Setup 80

Procedure for speaker settings (Auto Setup) 82

Error messages 84

Manual Setup 85

Speaker Config. 85

Distances 86

Levels 87

Crossovers 87

Bass 88

General 89

Language 89

ECO 89

Front Display 91

Firmware 91

Setup Lock 91

Checking the information 92

Tips

Tips 94

Troubleshooting 95

Resetting factory settings 106

Appendix

About HDMI 107

Playing back a USB memory devices 109

Playing back a Bluetooth device 110

Personal memory plus function 111

Last function memory 111

Sound modes and channel output 112

Sound modes and surround parameters 113

Types of input signals, and corresponding sound modes 114

Explanation of terms 115

Trademark information 120

Specifications 121

Index 125

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Thank you for purchasing this Denon product.

To ensure proper operation, please read this owner’s manual carefully before using the product.

After reading this manual, be sure to keep it for future reference.

Accessories

Check that the following parts are supplied with the product.

. . .

Quick Start Guide CD-ROM

(Owner’s Manual) Safety Instructions Notes on radio Power cord

FM indoor antenna AM loop antenna Sound calibration

microphone Remote control unit

(RC-1196) R03/AAA batteries

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

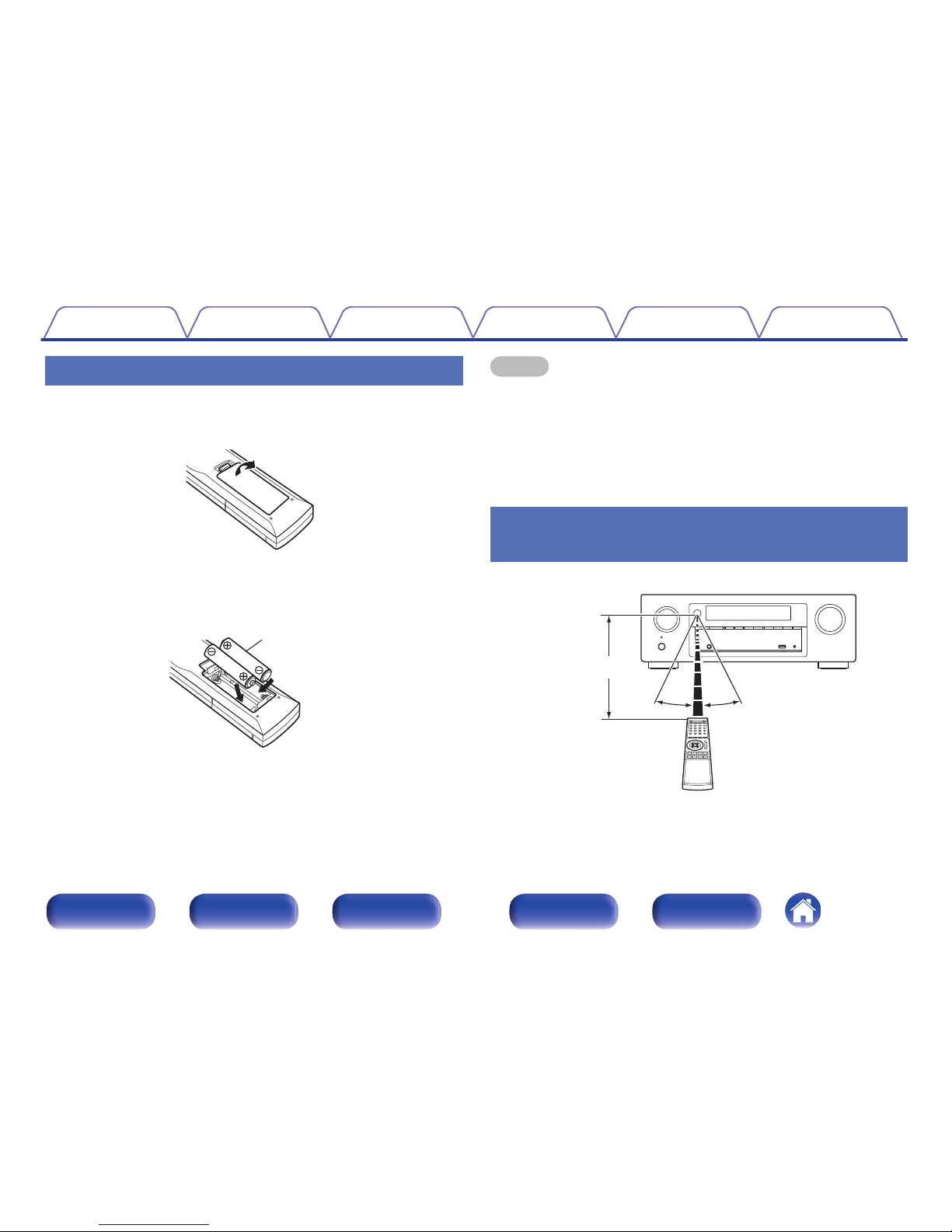

Inserting the batteries

1Remove the rear lid in the direction of the arrow and

remove it.

2Insert two batteries correctly into the battery

compartment as indicated.

R03/AAA batteries

3Put the rear cover back on.

NOTE

0To prevent damage or leakage of battery fluid:

0Do not use a new battery together with an old one.

0Do not use two different types of batteries.

0Remove the batteries from the remote control unit if it will not be in use for long

periods.

0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

compartment and insert new batteries.

Operating range of the remote control

unit

Point the remote control unit at the remote sensor when operating it.

Approx. 7 m

30° 30°

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Features

High quality sound

0With discrete circuit technology, the power amplifier provides

identical quality for all 5-channels (90 Watts x 5-channels)

For optimum realism and stunning dynamic range, the power amplifier

section features discrete power devices (not integrated circuitry).

By using high current, high power discrete power devices, the amplifier

is able to easily drive high quality speakers.

High performance

04K 60Hz input/output supported

4K 60p

4:4:4

4K 60p

4:4:4

When 4K Ultra HD (High Definition) is used, an input/output speed of 60

frames per second (60p) is achieved for video signals. When connected

to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy

the sense of realism only available from high-definition images, even

when viewing fast-moving video.

This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit

videos. By processing the video at the original resolution, this unit lets

you enjoy flawless, high-definition picture quality.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

0HDMI connections enable connection to various digital AV

devices (5 inputs, 1 output)

In Out

This unit is equipped with 5 HDMI inputs and 1 HDMI output enabling

connection to various HDMI compatible devices such as Blu-ray Disc

players, game consoles and HD video camcorders.

0Wireless connection with Bluetooth devices can be carried out

easily (v p. 41)

You can enjoy music simply by connecting wirelessly with your

smartphone, tablet, PC, etc.

0Energy-saving design

This unit is equipped with an ECO Mode function that allows you to

enjoy music and movies while reducing the power consumption during

use, and also an auto-standby function that automatically turns off the

power supply when the unit is not in use. This helps reduce

unnecessary power use.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Easy operation

0“Setup Assistant” provides easy-to-follow setup instructions

First select the language when prompted. Then simply follow the

instructions displayed on the TV screen to set up the speakers etc.

0Easy to use Graphical User Interface

This unit is equipped with a Graphical User Interface for improved

operability.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Part names and functions

Front panel

MASTER VOLUME

SOURCE SELECT

SETUP MIC

PHONES

5V/ 1A

uoQ0 Q1i

tqw y

Q4Q3Q2

A B C D E F

G H I J K

L M N

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index
