Denon AVR-S650H User manual

Lisez-moi en premier.... / Lea esto primero....

ENGLISH

FRANÇAIS

ESPAÑOL

AVR-S650H

INTEGRATED NETWORK AV RECEIVER

Quick Start Guide

Read Me First....

Guide de démarrage rapide / Guía de inicio rápido

Please do not return this unit to the

store.

If you need help…

Check our AVR setup tips online

Usa.denon.com/SetupTips

Ca.Denon.com/SetupTips

Call for Assistance

1-855-MY.DENON (USA) 1-855-693-3666

1-800-668-0652 (Canada)

Monday – Friday 10:00AM to 10:00PM E.S.T

Saturday 12:00PM to 8:00PM E.S.T

1. AVR-S650HE3_QSG_ENG_10A_190130.indd 1 2019/01/30 14:56:00

PrintingColor:Black

Thank you for choosing a Denon AV

receiver. This guide provides step-by-

step instructions for setting up your AV

receiver.

Welcome Before You Begin

Required for Setup

TV Speaker cables

HDMI cable Subwoofer cable Speakers

Optional

LAN cable Wi-Fi router

• When connecting this unit to a device that is compatible with the Deep Color, 4K, ARC and eARC

functions, use a “High Speed HDMI cable with Ethernet” that displays the HDMI logo.

• These drawings are for illustrative purposes only and may not represent the actual product(s).

1. AVR-S650HE3_QSG_ENG_10A_190130.indd 1 2019/01/30 14:56:00

PrintingColor:Black

What’s In the Box

Quick Start Guide

FM indoor antenna

Safety Instructions AM loop antenna

Notes on radio Sound calibration

microphone

Warranty

(for North America

model only)

Sound calibration

microphone stand

Cable labels Remote control unit

(RC-1226)

Receiver R03/AAA batteries

• The included sound calibration microphone stand is convenient for use

when performing Speaker Calibration. Using your own tripod or the supplied

Sound calibration microphone stand enables settings to be automatically

conﬁgured to the optimum listening environment, providing exceptionally

high performance.

1. AVR-S650HE3_QSG_ENG_10A_190130.indd 2 2019/01/30 14:56:01

PrintingColor:Black

1Installing batteries in the

remote control unit

Batteries

There are four steps to the setup

process.

1Installing batteries in the remote control unit

2Connecting the receiver

3Following the On-Screen Setup Assistant

4Downloading the Mobile Apps

Setup

1. AVR-S650HE3_QSG_ENG_10A_190130.indd 3 2019/01/30 14:56:01

PrintingColor:Black

2Connecting the receiver

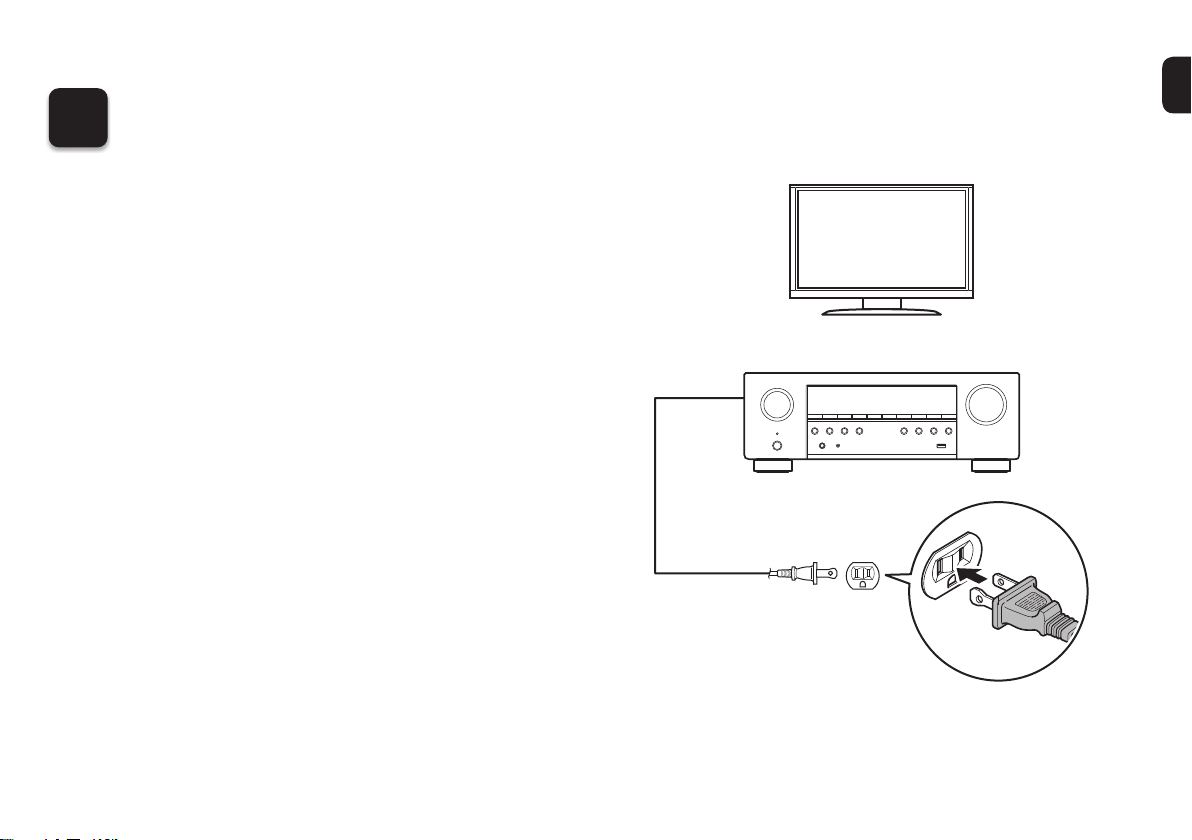

1) Place the receiver near your TV and

connect the power cord

Receiver

Power cord

Connect to household

power outlet

(AC 120 V, 60 Hz)

1. AVR-S650HE3_QSG_ENG_10A_190130.indd 4 2019/01/30 14:56:01

PrintingColor:Black

2) Connect the receiver to your home network

Wired LAN

Connect an Ethernet cable (not included) between your

receiver and your network router.

PRE OUT

SUBWOOFER

AUDIO

(ASSIGNABLE)

AUDIO

CBL/SAT

MEDIA

PLAYER

1 TV

AUDIO

OPTICAL

DIGITAL AUDIO

(ASSIGNABLE)

COAXIAL

MONITOR

VIDEO

OUT

CBL/SAT

AUX

CBL/SAT

AUX

(ASSIGNABLE)

SIGNAL GND

PHONO

ANTENNA

FMAM

VIDEO

Router

To LAN port

Wireless LAN

Rotate the two antennas located on the back of the receiver

upwards for maximum performance.

PRE OUT

SUBWOOFER

AUDIO

(ASSIGNABLE)

AUDIO

CBL/SAT

MEDIA

PLAYER

1 TV

AUDIO

OPTICAL

DIGITAL AUDIO

(ASSIGNABLE)

COAXIAL

MONITOR

VIDEO

OUT

CBL/SAT

AUX

CBL/SAT

AUX

(ASSIGNABLE)

SIGNAL GND

PHONO

ANTENNA

FMAM

VIDEO

1. AVR-S650HE3_QSG_ENG_10A_190130.indd 5 2019/01/30 14:56:01

PrintingColor:Black

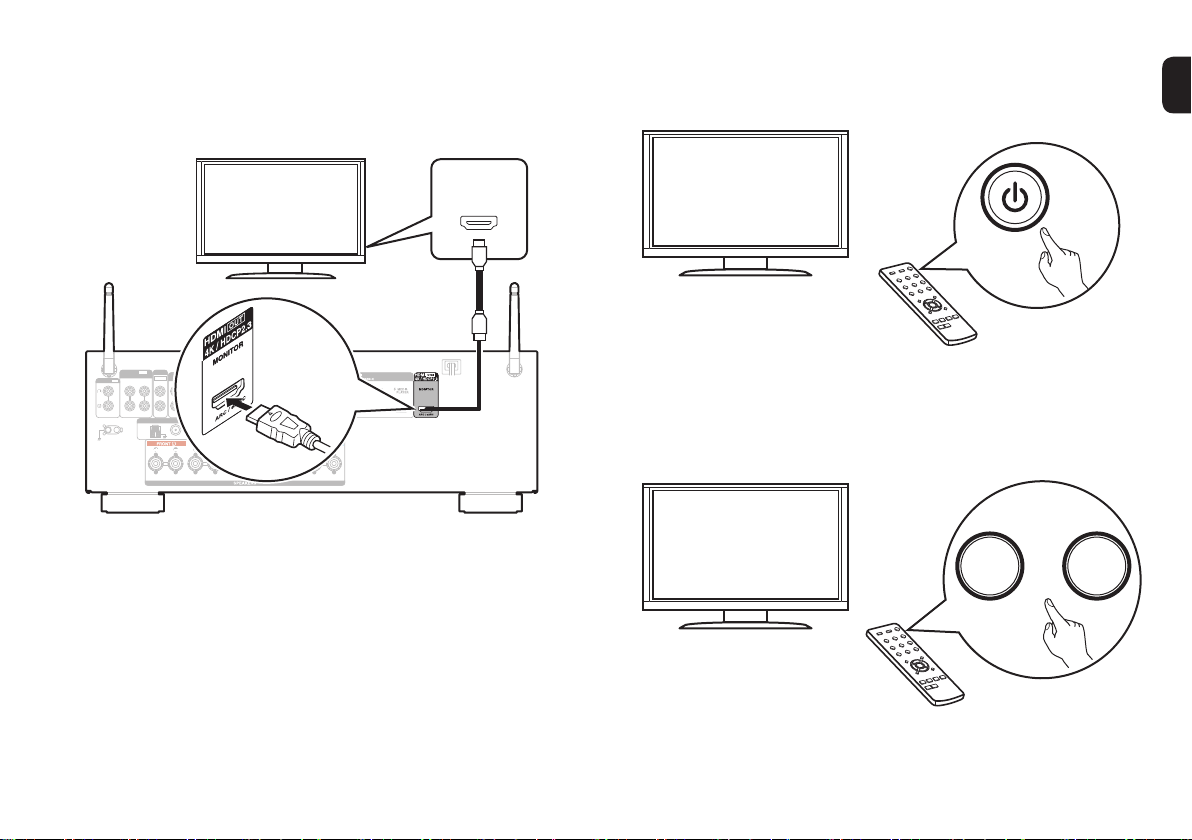

3) Connect the receiver to your TV with

an HDMI cable

PRE OUT

SUBWOOFER

AUDIO

(ASSIGNABLE)

AUDIO

CBL/SAT

MEDIA

PLAYER

1 TV

AUDIO

OPTICAL

DIGITAL AUDIO

(ASSIGNABLE)

COAXIAL

MONITOR

VIDEO

OUT

CBL/SAT

AUX

CBL/SAT

AUX

(ASSIGNABLE)

SIGNAL GND

PHONO

ANTENNA

FMAM

VIDEO

(ARC/eARC)

HDMI IN

HDMI OUT

MONITOR

(ARC/eARC)

HDMI cable

Receiver (Rear panel)

ARC (Audio Return Channel) and eARC (Enhanced Audio

Return Channel) support:

If your TV supports ARC, your TV can send audio back to the AV receiver

when you are using your TV’s built-in video sources (TV tuner, Smart TV

streaming services, etc.) ARC requires that you enable HDMI CEC on your

TV. Please refer to your TV’s Owner’s Manual for instructions on how to

setup HDMI CEC. In addition, if your TV supports eARC, it can also send

back high bitrate audio formats such as Dolby TrueHD and DTS-HD Master

Audio. Please refer to your TV’s Owner’s Manual for additional information

about enabling the eARC function.

4) Turn on the TV

TV remote control unit

5) Select the appropriate HDMI input on

your TV

HDMI

TV/

VIDEO

INPUT or

TV remote control unit

1. AVR-S650HE3_QSG_ENG_10A_190130.indd 6 2019/01/30 14:56:02

PrintingColor:Black

6) Turn on the receiver

• Press Xto turn on the receiver.

7) Verify the connection

• Verify that you can see this screen on your TV.

Setup Assistant

Please select a language...

English

Français

Español

If this screen is not displayed, please go back and retry

the steps again in the recommended sequence.

1. AVR-S650HE3_QSG_ENG_10A_190130.indd 7 2019/01/30 14:56:02

PrintingColor:Black

3Following the On-Screen Setup Assistant

Now TV is connected to the receiver.

The Setup Assistant will walk you through connecting and

conﬁguring your speakers and components to your Denon

receiver. Please use the remote control and follow the

on-screen instructions.

Setup Assistant

Please select a language...

English

Français

Español

1. AVR-S650HE3_QSG_ENG_10A_190130.indd 8 2019/01/30 14:56:02

PrintingColor:Black

4Downloading the Mobile Apps

Download both the “HEOS” App and the “Denon 2016 AVR Remote” App for the full home entertainment experience.

The HEOS App is required to access online music through your AVR.

HEOS

The HEOS App allows you to explore,

browse, and play music from many online

streaming services or from your own music

library.

Denon 2016 AVR Remote

Control your new AVR with the latest

Denon 2016 AVR Remote App. Volume

control, sound mode selection and

advanced settings are always only a tap

away.

1. AVR-S650HE3_QSG_ENG_10A_190130.indd 9 2019/01/30 14:56:02

PrintingColor:Black
