Delta 44075 User manual

87260 Rev. C107/10/20194

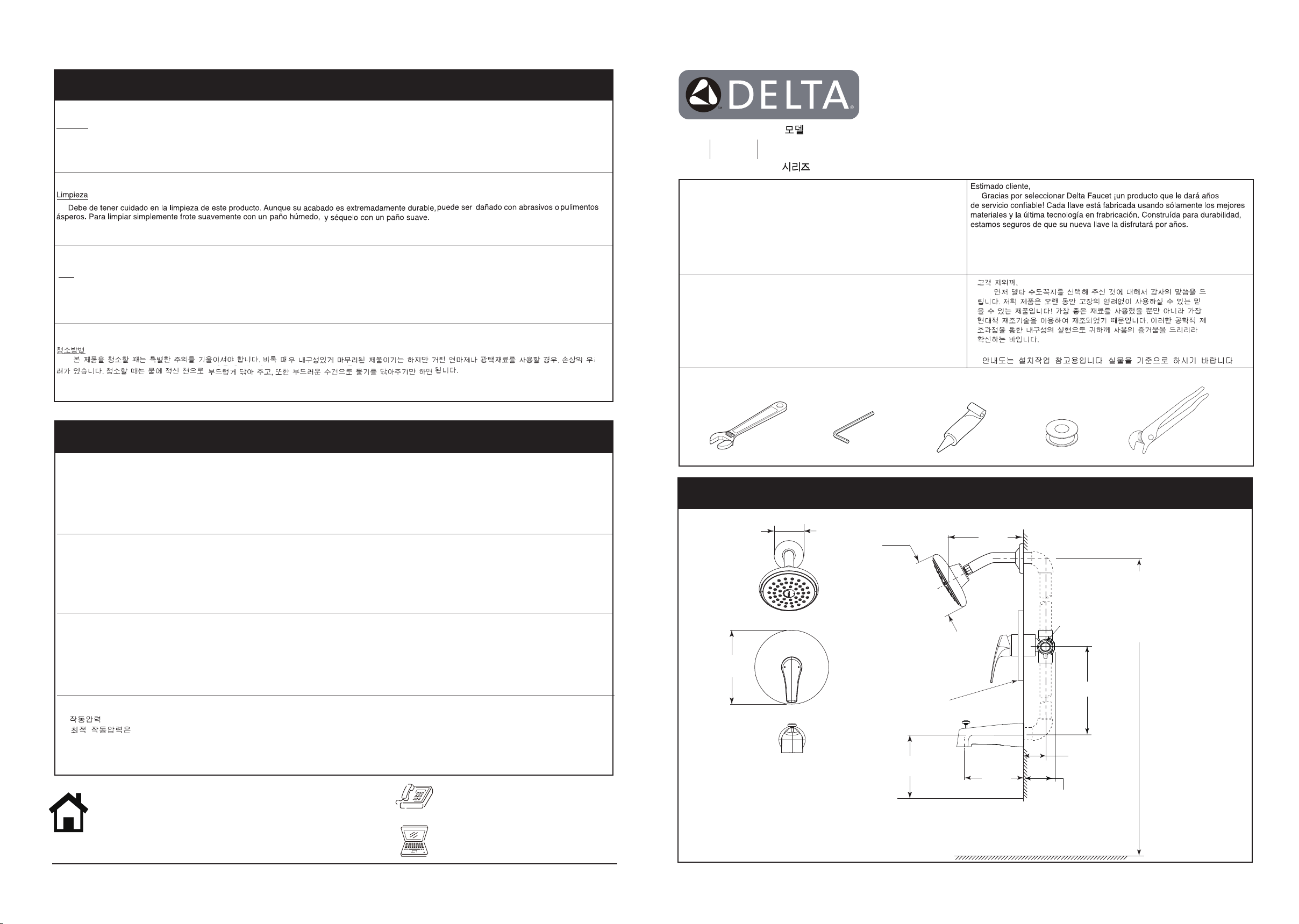

Installation dimensions / Dimensiones de la instalación / 安装尺寸 / 설치 치수

87260 Rev. C

6 9/16"

(167mm)

Φ 5"

( 128mm)

5 "

(127mm)

浴缸上边沿

Top edge of tub

En el borde de la bañera

욕조윗변두리

推荐安装高度

Recommended installation height

72 13/16

~77 15/16

(1850 mm~1980 mm)

Altura de montaje recomendada

설치높이를 추천

Floor/Suelo/地面/바닥

1 1/2"~2 1/8"

(38mm~53mm)

The escutcheon should

be flush with finish wall line

Grupo especial debe estar al

面板应与墙面平齐

패널은 벽면과 일치할것

ras con la pared

3 15/16"~4 7/16"

(100mm~120mm)

8"~18"

(203mm~457mm)

G 1/2 -

ISO228/1

2 1/4"~2 7/8"

(57mm~72mm)

Model / Modelo / 型号 / / Modelo

44075 44075-LP 44075-SQ

44076 44076-LP 44076-SQ

Series / Series / 系列 / / Série

Φ6 5/8"

(168 mm)

Φ2 1/2"

(64 mm)

In-wall tub/shower

Oculto grifo de baño

暗装浴缸龙头

매장 욕조 수도꼭지

Cleaning

Care should be given to the cleaning of this product. Although the finish is extremely durable, it can be damaged by harsh abrasives or polish.

To clean simply wipe gently with a damp cloth, and wipe dry with a soft towel.

清洗

2.本公司保留对德雅产品进行修改，改进的权利，技术参数如有改变，恕不另行通知。

清洗本产品时需加小心，尽管本产品的表面镀层极其耐用，但仍有可能被尖利摩擦物或打光物所损伤。清洗时只需用湿布轻轻擦拭，然后用软毛巾

拭干即可。

Cleaning / Limpieza / 清洗 / 클리닝

2. Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models,

both without notice or obligation.

Note / Nota / 注意 /참고

1. Working pressure:

0.05Mpa-0.7Mpa

Recommended working pressure:

0.2Mpa-0.5Mpa

1. Presión de trabajo:

0.05Mpa-0.7Mpa

Presión de trabajo recomendada:

0.2Mpa-0.5Mpa

1.工作压力:

0.05Mpa-0.7Mpa

最佳工作压力为:

0.2Mpa-0.5Mpa

0.05Mpa-0.7Mpa

0.2Mpa-0.5Mpa

2. Delta reserva los derechos(1) de hacer modificaciones sobre las especificaciones y materiales y (2) de modificar los modelos, sin obligación de

notificar por separado.

2.더얼다회사는 제품에 대한 수선,개량의 권리를 보류하고 있으며 기술참수에 대한 변경을 별도로 통보하지 않는다.

Delta Faucet Company

A division of Masco Corporation of Indiana

55 East 111th Street, Indianapolis, Indiana 46280

United States of America

Helpline:

400-880-0360 (China)

(877) 509-2680 (International)

worldwide.deltafaucet.com (International )

www.deltafaucet.com.cn (China)

Website:

Dear Customer,

Thank you for selecting Delta Faucet, a product that will give you years of

dependable service! Each faucet is built using only the very best materials

and the latest manufacturing technology. Engineered for durability, we are

confident you will enjoy your new faucet for years to come.

* El dibujo solo sirve de instrucción de montaje. Refiérase al producto.

尊敬的顾客：

非常感谢您选择德雅水龙头，本产品选用高质量材料，采用最新的生产

技术，具有极好的耐久性，将为您提供多年可靠的服务。

图示仅限于安装指引，请以实物为准。

* Illustrations are only for installation instruction.

Recommended tools / Herramientas recomendadas / 建议工具 /

권장도구

SILICONE

87260 Rev. C 287260 Rev. C

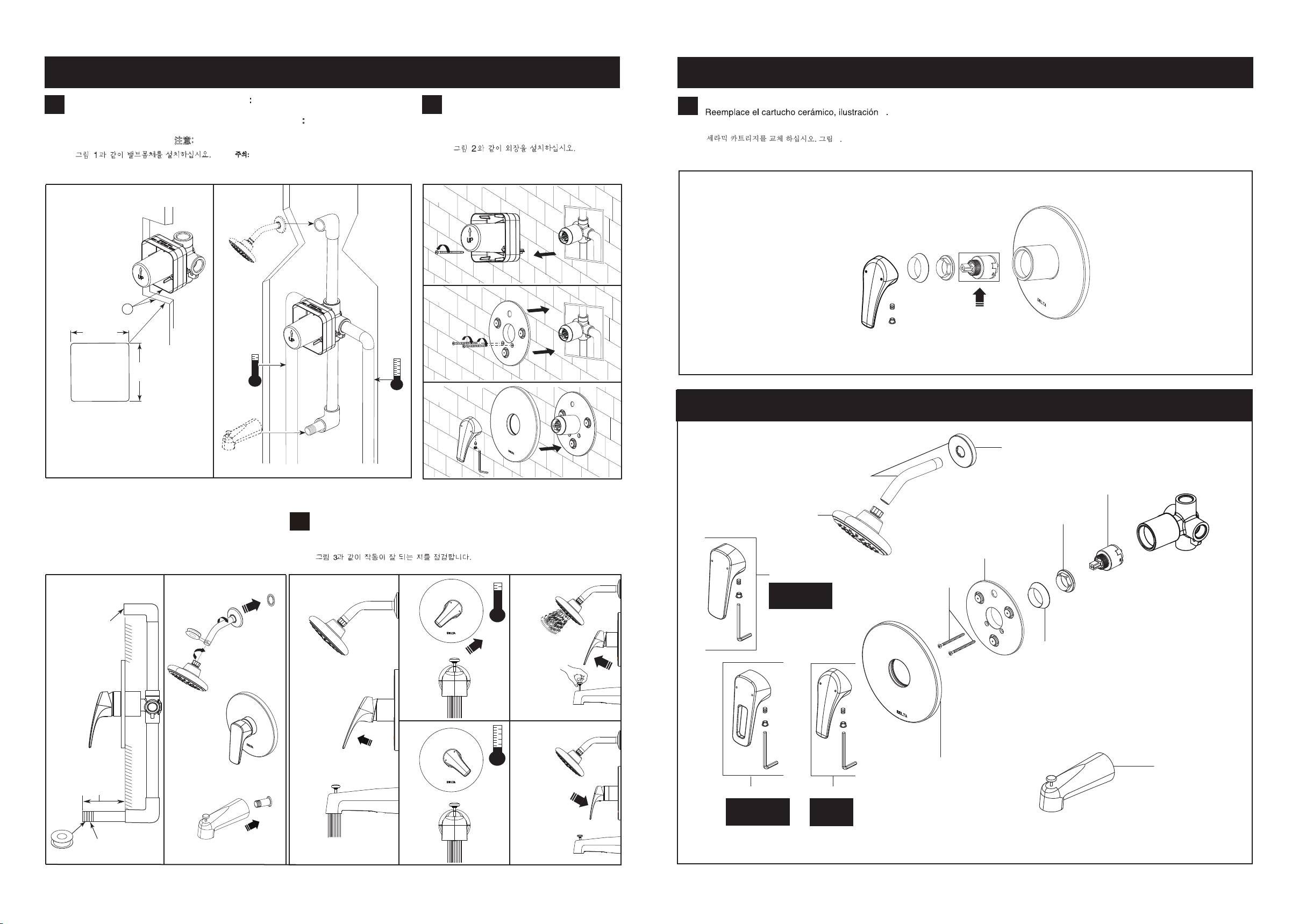

Parts / Piezas / 零件图 / 부품

Installation and Connections / Instalaci

ón y conesiones /

安装和连接 /설치 및 연결을

1B.1A.

2D. 2E. 3D.

3E.

3A. 3B.

3C.

(101mm~105mm)

3 15/16"~4 1/8"

G 1/2 -

ISO228/1

ITS62440

RP46866

RP40709

RP36445

RP76208

RP81373

RP76211

RP196

G 1/2 -

ISO228/1

Install valve body and plumbing, figure 1.Note:

Face of plasterguard (1) should be flush

Instale el cuerpo de la válvula y el fontanería, figura 1.

Nota:

Manguito protectorial (1)

按照图1安装阀体和管道。注意:

保护套 (1) 应与墙面平齐.

1. 2.

Install trim figure 2.

Instale la guarnici

ón, figura 2.

按照图2安装明处部分。

및배관.

주의:

보호 슬리브

(1)

커버 벽면과 일치할것.

with finish wall line.

debe estar al ras con la pared.

Check for correct operation, figure 3.

Pruebe si funciona correctamente, figura 3.

按照图3检查龙头工作是否正常。

Maintenance / Mantenimiento / 维护 / 유지

RP73437

RP48959

RP48963

44075

44076

RP81374

44075-LP

44076-LP

RP81375

44075-SQ

44076-SQ

Hole Size

Tamaño de Agujero

钻孔尺寸

홀사이즈

4 1/8"

(105 mm)

4 1/8"

(105 mm)

Replace the ceramic cartridge, figure 4.

按照图4更换阀门系统。

2A.

2B.

2C.
