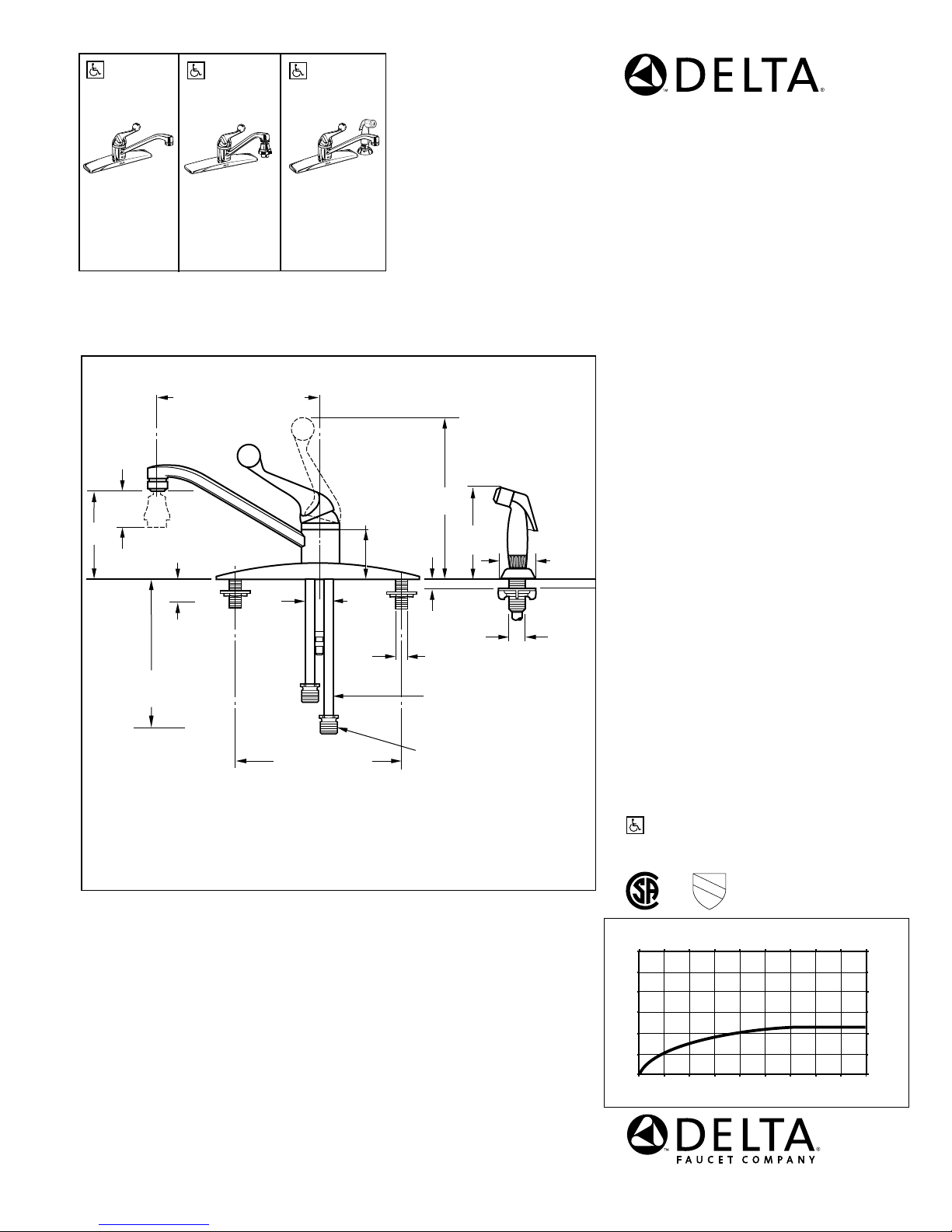

Delta 400-ELT User manual

1″

(25 mm)

Max. Deck

Thickness

3/8″ (10 mm) Dia.

Tubes 10″ (254 mm) Long

18″ (305 mm) Long on

100-ELT & 400-ELT

1 3/16″

(30 mm)

Dia.

7 13/16″

(198 mm)

8 3/4″

(221 mm)

Max.

4″(102 mm) -6″(152 mm) -8″(203 mm)

-10″(254 mm) -12″(305 mm)

360 Swing Spout

CL 2 1/16″

(52 mm)

8″ (203 mm) Centers 1/2″-14 NPSM - Adapter

Suffix WF Models Only

3/8″

(10 mm)

Dia.

1 1/4″ (32 mm)

Max. Deck

Thickness

1 7/16″

(37 mm)

7/8″

(22 mm)

Dia.

2″

(51 mm)

Dia.

4 1/2″

(114 mm)

COMPLIES WITH:

•

ASME A112.18.1/ CSA B125.1

•

NSF 61

Indicates ADA compliance to

ICC/ANSI A117.1

•

IAPMO Listed

•

CSA Certified

KITCHEN

FAUCETS

■Classic Series

■Single Handle Deck Mount

■3 and 4 Hole Sink Applications

Submitted Model No.: _______________________________________________

Specific Features: __________________________________________________

STANDARD SPECIFICATIONS:

•Solid brass fabricated body.

•Standard 8” (203 mm) long spout swings 360°.

•10” (254mm) long spout swings 360°. Standard

on models 100-WF10, 110-WF10 and 400-10.

•Lever handle. Control mechanism shall be of the

rotating stainless steel ball type with replaceable

non-metallic seats operating in stainless steel

lined sockets.

•Control handle shall return to neutral position

when valve is turned off.

•Model 400 series with spray attachment has anti-

siphon device as integral part of valve body.

•Model 100, 110 and 400 series without

dispenser can be field converted from 8" (203

mm) to 6" (152 mm) centers.

•Quick Snap® vegetable sprayer hose with white

sprayhead on model 400 series - 45” (1143mm)

long hose.

•3/8” O.D. copper tube inlets - 10” (854mm) long.

•Models with suffix “WF” supplied with 1/2"-14

NPSM adapters.

•Model 400-ELT has 18’” (457mm) extra long

supply tubes.

•Model 110-WF10 ships with 360° swivel

spray aerator (RP2189).

100

100-WF

100-WF10

DSP-K-100 Rev. E

0 102030405060708090

Pressure (PSI)

Flow (U.S. Gallons Per Minute)

60 69 138 207 276 345 414 483 552 621

3.8

7.6

11.4

15.1

18.9

22.7

Pressure (kPa)

Flow (Liters Per Minute)

110-WF10

400

400-10

400-ELT

UPC

Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue

models, both without notice or obligation. Dimensions are for reference only. See current full-line price book for

finish options and product availability. Indianapolis, Indiana 46280

A Division of Masco Corporation of Indiana

WARRANTY

•Lifetime Faucet and Finish Limited Warranty to the

original consumer purchaser to be free from

defects in material and workmanship.

•5 Year Limited Warranty for usage in all industrial,

commercial and business applications.

Dimension A

1 7/8”(48mm) - 4”(102mm) Spout (RP5881)

3 1/2”(89mm) - 6”(152mm) Spout (RP9633)

5”(127mm) - 8”(203mm) Spout (Standard)

5 1/4”(133mm) - 10”(254mm) Spout (RP5653)

6 1/4”(159mm) - 12”(305mm) Spout (RP6042)
