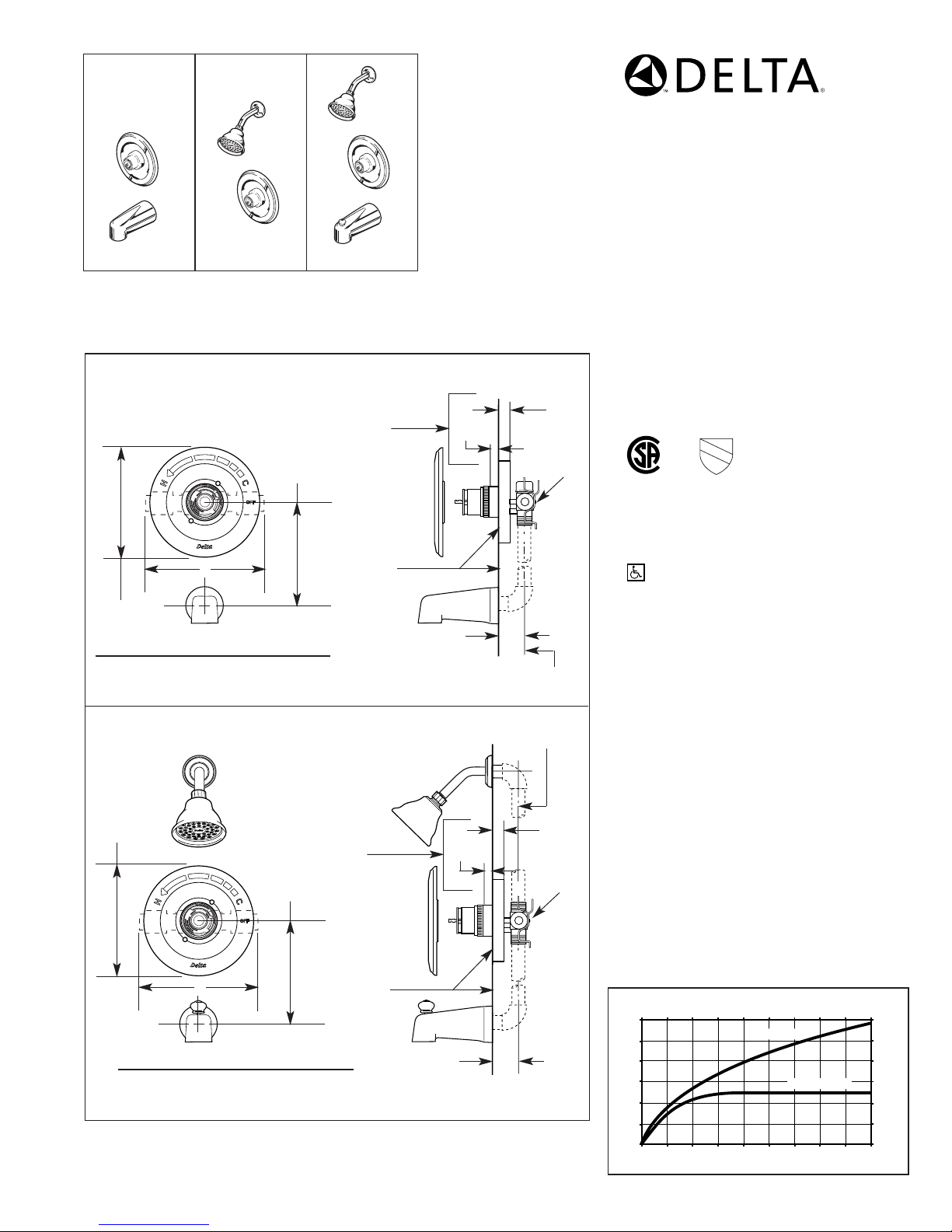

Delta 14178-LHP User manual

UPC

Submitted Model No.: _______________________________________________

Specific Features: __________________________________________________

STANDARD SPECIFICATIONS:

• Pressure balanced single handle bath

mixing valve.

• Requires 1 1/2" (38 mm) wall cavity.

• Back-to-back installation capability.

• Solid brass fabricated body.

• Monitor®with Scald-Guard®valve. Maintains

a balanced pressure of hot and cold water

even when a valve is turned on or off

elsewhere in the system.

• Temperature only controlled with handle.

• Field adjustable to limit handle rotation into

hot water zone.

• 120° maximum handle rotation.

• All parts shall be replaceable from the front

of the valve.

• LHP- less handle program. See available

handle options on back

14178-LHP 14278-LHP

0 102030405060708090

Pressure (PSI)

Flow (U.S. Gallo s Per Mi ute)

0 69 138 207 276 345 414 483 552 621

3.8

7.6

11.4

15.1

18.9

22.7

Pressure (kPa)

Flow (Liters Per Mi ute)

Showerhead

Tub Filler

BATH MIXING

VALVES

■ Leland™Series

■ Tub Only (14178)

■Shower Only (14278)

■Tub/Shower (14478)

■Single Handle

■Monitor®with Scald-Guard®Valve

■Pressure Balance

■Temperature Only Controlled

with Handle

■Universal Fittings

COMPLIES WITH:

•

ASME A112.18.1

•

ASSE 1016

•

CSA B125

Indicates ADA compliance to

ICC/ANSI A117.1

•

CSA Certified

•

IAPMO Listed

Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only.

8 (203 mm) Min.-

18 (457 mm) Max.

(178 mm)

(51 mm)

1/2

(13 mm)

Face of plasterguard

should be flush with

finish wall line

Maximum

Allowable Deviation

Supply

CL Supply

Lines

Dime sio s

I.P.S. or C.W.T. 2 3/8 5/8

I.P.S. or C.W.T. with stops 5 5/16 3/8

14278 & 14478

14478-LHP

14178

8 (203 mm) Min.-

18 (457 mm) Max.

(178 mm)

(51 mm)

1/2

(13 mm)

Face of plasterguard

should be flush with

finish wall line

Maximum

Allowable Deviation

Supply

CL Supply

Lines

Dime sio s

I.P.S. or C.W.T. 2 3/8 5/8

I.P.S. or C.W.T. with stops 5 5/16 3/8

Standard

Features

Washerless ◆ ◆ ◆ ◆ ◆ ◆

1/2" I.P.S. Inlets and Outlets

◆ ◆ ◆ ◆ ◆ ◆

1/2" C.W.T. Sweat Inlets and Outlets

◆ ◆ ◆ ◆ ◆ ◆

Less Handle Program-See Handle Kit Options*

◆ ◆ ◆ ◆ ◆ ◆

Metal Shower Arm and Flange

◆ ◆ ◆ ◆

Single Spray Touch-Clean®Showerhead

◆ ◆ ◆ ◆

Tub Filler w/Pull-Up Diverter

◆◆

Chrome Finish ◆ ◆ ◆

Brilliance ®Stainless Finish ◆ ◆ ◆

DSP-B-14178

14278-SSLHP

14178-LHP

14178-SSLHP

14478-SSLHP

14278-LHP

Available Options for Field Conversion:

•Screwdriver Stops. Order two RP5876s for I.P.S. or two RP6005s for C.W.T.

•Shower Arm. Order RP6023▲.

•Shower Flange.

•Non-Metallic Push Clean™showerhead/1 spray pattern. Order RP28599▲.

•Non-Metallic Dual Spray Touch-Clean®showerhead/2 spray patterns. Order RP28601▲.

•Non-Metallic Ultimate Touch-Clean®showerhead/3 spray patterns. Order RP28602▲.

•Brass shower arm diverter for hand shower. Order RP4239 (chrome only).

•Personal hand shower with 24" vertical bar, 60" hose. Order RP7245 (chrome only).

•Personal hand shower with 24" vertical bar, 60" hose, vacuum breaker and wall supply elbow.

Order RPW1111HDF (chrome only).

•Personal hand shower with 60" hose, vacuum breaker and wall supply elbow.

Order RPW2222HDF (chrome only).

•Metallic tub filler with pull-down diverter for 1/2" C.W.T. or 1/2" I.P.S. Order RP17454▲.

•Non-metallic tub filler with pull-down diverter for 1/2" C.W.T. or 1/2" I.P.S.

Order RP17453 (chrome only).

•Non-metallic slip-on tub filler with pull-down diverter for 1/2" C.W.T. Order RP5836 (chrome only).

•Metallic tub filler with pull-up diverter for 1/2" C.W.T. or 1/2" I.P.S. Order RP7533▲.

•Non-metallic tub filler with pull-up diverter for 1/2" C.W.T. or 1/2" I.P.S.

Order RP5834 (chrome only).

•Non-metallic slip-on tub filler with pull-up diverter for 1/2" C.W.T. Order RP19820 (chrome only).

•Metallic over-the-rim tub filler for 1/2" I.P.S. Order RP5833▲.

•Metallic over-the-rim slip-on tub filler for 1/2" C.W.T. Order RP5835 (chrome only).

•Bath waste assemblies and bath accessories also available separately.

*Available LHP Ha dle Optio s

▲ = Specify Fi ish

5 1/2

(140 mm)

RP41591▲

Full Spray

3 3/8

(86 mm)

RP41589▲

Indianapolis, Indiana 46280

A Division of Masco Corporation of Indiana

2 1/2

(63.5 mm)

14478-LHP

2 7/8

(73 mm)

5 1/2

(140 mm)

RP41594▲

2 1/2

(63.5 mm)

3 1/2

(89 mm)

3 1/2

(89 mm)

H777▲H778▲
