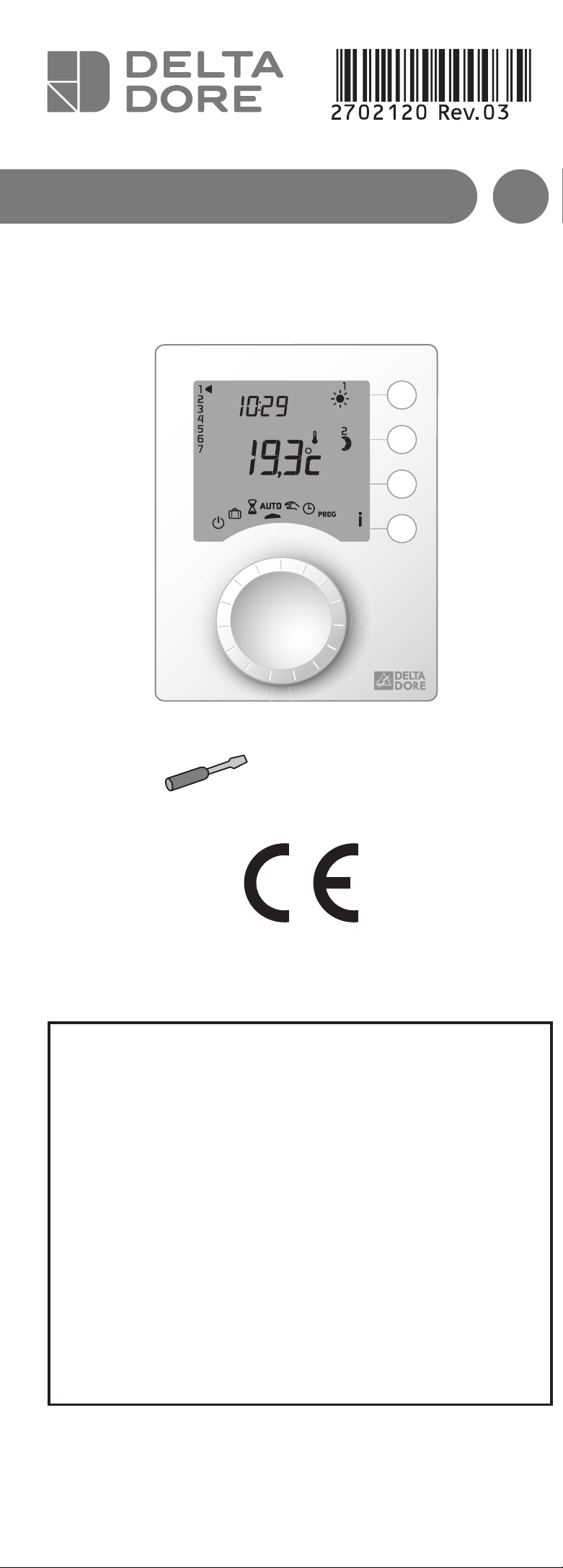

DELTA DORE DRIVER 620 User manual

Because of changes in standards and equipment, the characteristics given in

the text and the illustrations of this document are not binding unless conﬁrmed

by our services.

• Carefully read these instructions prior to installation.

• The unit must be installed in compliance with

current standards.

• Always switch off the mains before installing or

servicing the unit.

• Do not attempt to repair the unit yourself;

an after-sales service is available.

• Check that the fastenings are suited to the surface to

which the unit will be attached (plasterboard, brick, etc.).

• The diagrams provided are simpliﬁed for greater

clarity. Protections and other accessories required

by standards are not illustrated.

Standard NF C15-100 and good practice must be com-

plied with. Connected or nearby units must not generate

excessive interference (directive 2004/108/EC).

1. Technical characteristics

3. Connection

• 230 V, 50 Hz power supply, ±10%

• Consumption: 2 VA

• Class II insulation

• 1 or 2 pilot wires output 0.1A / 230V

• Clock backup in the event of a blackout:

2 hours (per capacitor)

• Dimensions: WxHxD = 80 x 103 x 16 mm

• Protection index: IP 30

• Installation in an environment with normal pollution

levels

• Storage temperature: -10°C to +70°C

• Operating temperature: 0°C to +40°C

Put all of the installation’s convectors on Comfort

(with the set-point on its maximum setting).

When the unit is switched on, a test lasting about

1 minute 30 seconds checks that the outputs are

correctly connected.

If the display remains “normal”, this means there

are no problems.

If a problem exists, the DRIVER displays Pb - - .

Sortie et relance

du mode test

Choix de la sortie à tester

Lancement du test

sortie par sortie

Validation et démarrage

du test de la sortie choisie

Exemple : test de la sortie 2

Output 2 test underway.

Repeat the operations for zone 1.

Check the incorrect connections.

To exit test mode, press the init button.

Checking the pilot wire connections

DRIVER 610 DRIVER 620

Terminal 3 Convectors

zone 1

Convectors

zone 1

Terminal 4 Non Connected Convectors

zone 2

NL NL

Non

connected

Zone 1

Pilot Wire

Convectors

Zone 2

Pilot Wire

Convectors

Zone 1

Pilot Wire

Convectors

DRIVER

610

The room unit must be installed at a height of

approximately 1.5 m, so that it is within arm’s reach

for ease of use. To attach the unit to the wall, you

must separate it from its base. To do so, unlock the

casing.

Unscrew the terminal box cover and

lift it up as high as it will go to block it,

then position the base on the wall

running the wires out through the hole in the cover.

Secure the base using suitable screws

and screw anchors or ﬁt

onto a ﬂush-mounted box

(distance between

centres 60 mm).

Connect the control wires.

Close the box and tighten

the terminal box cover

screw.

DRIVER

620

DRIVER

Room unit mounting

Installation guide

www.deltadore.com

DRIVER 610 - 620

Pilot wire programmer 1 or 2 zones

DELTA DORE - 08/18

Exit and relaunch

test mode

Launch the test

output by output

Choose the output to test

Raccordement de la

sortie 2 correct

Raccordement de la

sortie 2 incorrect

Le numéro de la

sor

tie devient fixe

Le numéro de la

sortie disparaît

Connection of output 2

incorrect

The output’s number

becomes ﬁxed

The output’s

number disappears

Connection of output 2

correct

Approve and restart the test

for the chosen output

Example: test for output 2
