Dell PowerVault 110T LTO User manual

Dell PowerVault Tape Systems

LTO Media Handbook

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

_____________________

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, PowerEdge™, and PowerVault™ are trademarks

of Dell Inc.

Other trademarks and trade names may be used in this publication to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

March 2011 Rev. A03

Contents 3

Contents

Drives and Media . . . . . . . . . . . . . . . . . . . . . 5

PowerVault LTO-1 Tape Drives . . . . . . . . . . . . 5

PowerVault LTO-2 Tape Drives . . . . . . . . . . . . 7

PowerVault LTO-3 Tape Drives . . . . . . . . . . . . 8

PowerVault LTO-4 and LTO-5 Tape Drives . . . . . . 9

Media Types for PowerVault LTO Tape 

Drives . . . . . . . . . . . . . . . . . . . . . . . . 10

Media Color Schemes . . . . . . . . . . . . . . . . . . 11

Invalid Media Symptoms . . . . . . . . . . . . . . . . 12

Cartridge Memory . . . . . . . . . . . . . . . . . . . . 12

Migrating LTO Media . . . . . . . . . . . . . . . . . . 13

WORM Media . . . . . . . . . . . . . . . . . . . . . . 13

Cleaning Media . . . . . . . . . . . . . . . . . . . . . 13

Label Designations on LTO Cleaning 

Media . . . . . . . . . . . . . . . . . . . . . . . . 13

Cleaning Media Usage and Drive Cleaning 

Lights . . . . . . . . . . . . . . . . . . . . . . . . 14

Characteristics of Expired LTO Cleaning 

Tape . . . . . . . . . . . . . . . . . . . . . . . . 16

Stuck Tapes . . . . . . . . . . . . . . . . . . . . . . . 19

Erasing a Pre-Written LTO Tape . . . . . . . . . . . . . 21

Media Handling . . . . . . . . . . . . . . . . . . . . . 22

Media Description . . . . . . . . . . . . . . . . . 22

4Contents

Perform a Thorough Inspection . . . . . . . . . . 23

Handle the Cartridge Carefully . . . . . . . . . . . 23

Ensure Proper Packaging While Shipping 

Tapes . . . . . . . . . . . . . . . . . . . . . . . . 25

Cartridge Storage Conditions . . . . . . . . . . . . 26

Cartridge Life . . . . . . . . . . . . . . . . . . . . 26

Media Do’s and Don’ts . . . . . . . . . . . . . . . 27

LTO Media Handbook 5

This document describes media compatibility, handling, and usage for all Dell

PowerVault Linear Tape Open (LTO) drives.

Drives and Media

Table 1 through Table 4 list the basic characteristics of Dell PowerVault LTO

tape drives.

PowerVault LTO-1 Tape Drives

Table 1. LTO-1 Drive Types and Basic Characteristics

PowerVault 110T LTO PowerVault 110T LTO-1 PowerVault 110T LTO-1

Capacity Native

/Compressed

100 GB/200 GB 100 GB/200 GB 100 GB/200 GB

Native Speed 15 MB/s 15 MB/s 15 MB/s

Primary Media Ultrium-1 Ultrium-1 Ultrium-1

6 LTO Media Handbook

Physical

Device

Description

• Single air intake

at the bottom of

the drive

• Eject button at

top right corner

• Status lights

(vertical)

–Power

– Activity

– Error

–Status

• Ultrium-1 label on

drive bezel

•Splitairintakeson

both the bottom

corners

• Flush mount eject

button

• Status lights

(vertical)

–Ready

– Drive error

– Tape error

–Usecleaning

cartridge

Seven segment display

NOTE: PowerVault

110T LTO-1 is only sold

on 132T drive sled.

Supported

Systems

• PowerVault 110T

LTO (table top

and internal

standalone)

• PowerVault 122T

• PowerVault 136T

• PowerVault 114T

PowerVault 110T

LTO-1 (table top and

internal standalone)

PowerVault 132T

Table 1. LTO-1 Drive Types and Basic Characteristics

PowerVault 110T LTO PowerVault 110T LTO-1 PowerVault 110T LTO-1

LTO Media Handbook 7

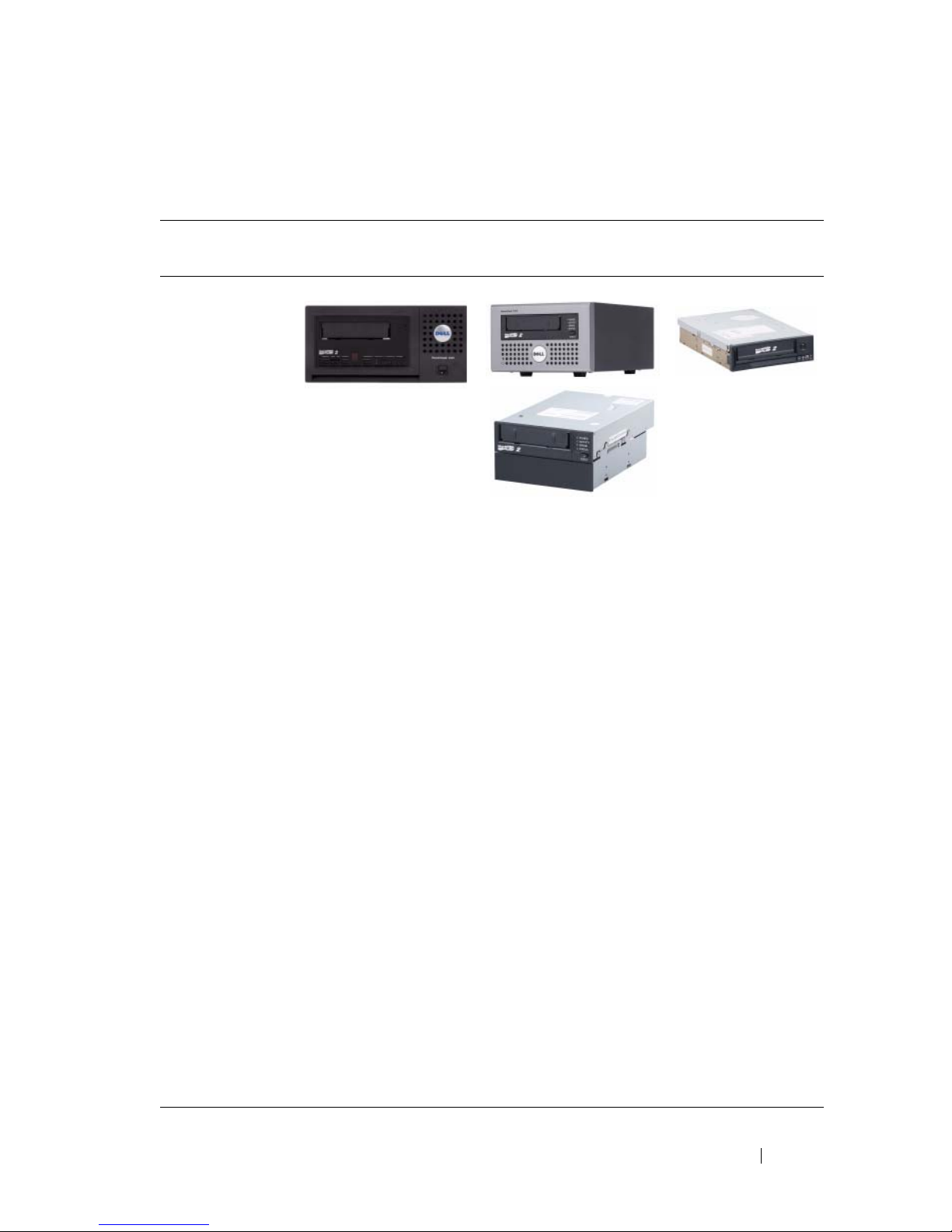

PowerVault LTO-2 Tape Drives

Table 2. LTO-2 Drive Types and Basic Characteristics

PowerVault 110T LTO2 PowerVault 110T LTO-2-L

(Certance)

PowerVault 110T

LTO-2-L (Tandberg)

Capacity (Native/

Compressed)

200 GB/400 GB 200 GB/400 GB 200 GB/400 GB

Native Speed 35 MB/s 24 MB/s 24 MB/s

Primary Media Ultrium-2 Ultrium-2 Ultrium-2

Physical Device

Description

• Seven segment

display

• Full height

• Ultrium-2 label

• Int drive has full

height expander

•LEDs(Vertical)

–Power

–Activity

–Error

– Status

• Ultrium-2 label

• Half height

•LEDsarranged

horizontally

with symbols

Supported

Systems

• PowerVault 132T

• PowerVault 136T

• PowerVault 122T

• PowerVault 110T

LTO-2 table top

and internal

standalone

• PowerVault 114T

• PowerVault 110T

LTO- 2-L (table top

and internal

standalone)

• PowerVault 114T

• PowerVault 124T

• Supported internally

on select systems

•PowerVault

110T LTO-2-L

internal

standalone

•Supported

internally on

select systems

•Supported

externally on

select systems

8 LTO Media Handbook

PowerVault LTO-3 Tape Drives

Table 3. LTO-3 Drive Types and Basic Characteristics

PowerVault 110T LTO 3 PowerVault LTO-3-060 PowerVault LTO-3-080

Capacity (Native

/Compressed)

400 GB/800 GB 400 GB/800 GB 400 GB/800 GB

Native Speed 80 MB/s 60 MB/s 80 MB/s

Primary Media Ultrium-3 Ultrium-3 Ultrium-3

Physical Device

Description

• Seven segment

display

• Ultrium-3 label

• Full height

•Internal/External

drive

• Half height

•LEDs(Vertical)

–Power

– Activity

–Clean

– Error

•Sevensegment

display

• Internal/External

drive

• Half height

Supported

Systems

For a list of supported tape devices, firmware, and driver versions, see

the Dell PowerVault Compatibility Matrix at dell.com/pvmatrix.

LTO Media Handbook 9

PowerVault LTO-4 and LTO-5 Tape Drives

Table 4. PowerVault LTO-4 and LTO-5 Drive Types and Basic Characteristics

PowerVault LTO-4-120

(IBM)

PowerVault LTO-4-120

HH (IBM)

PowerVault LTO-5-140

(IBM)

Capacity

(Native/

Compressed)

800 GB/1600 GB 800 GB/1600 GB 1500 GB/3000 GB

Native Speed 120 MB/s 120 MB/s 140 MB/s

Primary Media Ultrium-4 Ultrium-4 Ultrium-5

Physical

Device

Description

• Seven segment

display

•Ultrium-4label

• Full height

•Internal/External

drive

• Seven segment

display

• Ultrium-4 label

• Half height

• Internal/External

drive

• Seven segment

display

• Ultrium-5 label

• Half height

• Internal/External

drive

Supported

Systems

For a list of supported tape devices, firmware, and driver versions, see

the Dell PowerVault Compatibility Matrix at dell.com/pvmatrix.

10 LTO Media Handbook

Media Types for PowerVault LTO Tape Drives

Table 5. Supported Media Types Per PowerVault 110 LTO Tape Drive

Ultrium-1

Media

Ultrium-2

Media

Ultrium-3

Media

Ultrium-4

Media

Ultrium-5

Media

LTO-3

WORM

Media

LTO-4

WORM

Media

LTO-5

WORM

Media

Part No. 340-7240 340-8701 341-2645 341-4640 342-1103 341-2655 341-4647 342-1105

PowerVault

110T LTO

P✕✕✕✕✕✕✕

PowerVault

110T LTO-1

P✕✕✕✕✕✕✕

PowerVault

110T LTO-2

BC-RW P ✕✕✕✕✕✕

PowerVault

110T 

LTO-2- L

(Certance)

BC-RW P ✕✕✕✕✕✕

PowerVault

110T 

LTO-2- L

(Tandberg)

BC-RW P ✕✕✕✕✕✕

PowerVault

110T LTO 3

(IBM)

BC-R BC-RW P ✕✕ P✕✕

PowerVault

LTO3-060

(IBM)

BC-R BC-RW P ✕✕ P✕✕

PowerVault

LTO3-080

(IBM)

BC-R BC-RW P ✕✕ P✕✕

PowerVault

LTO4-120

✕BC-R BC-RW P ✕BC-RW P ✕

PowerVault

LTO5-140

✕✕BC-R BC-RW P BC-R BC-RW P

✕- Not Supported

BC-R - Backward Compatible - Read Only

BC-RW - Backward Compatible - Read/Write

P - Primary
