Decon wheel MEM6153P User manual

2019-10-03

Assembly instructions for Etac Cross5

MEM6153P and MEM6154P

1. Remove wheels and brakes.

2. Check the correct placement for the eMove, and that it is

Axle Ø12,0 x 51 with Part Number: XOE-2530E-BO

Spacer with Part Number: XOE-25383-00300052

Stop pins are assembled with Part Numbers: 290000, 300001 and XSM8ML.

12

13

2019-10-03

3. Assembly the plate (right side) according to picture.

Placement Options:

It can be mounted in all rows vertically and horizontally, but only the center located in

the respective holes in the frame.

Note! The bracket can be placed in the front column, if you use the left bracket on the

right side and the right bracket on the left side, see the right picture above.

2019-10-03

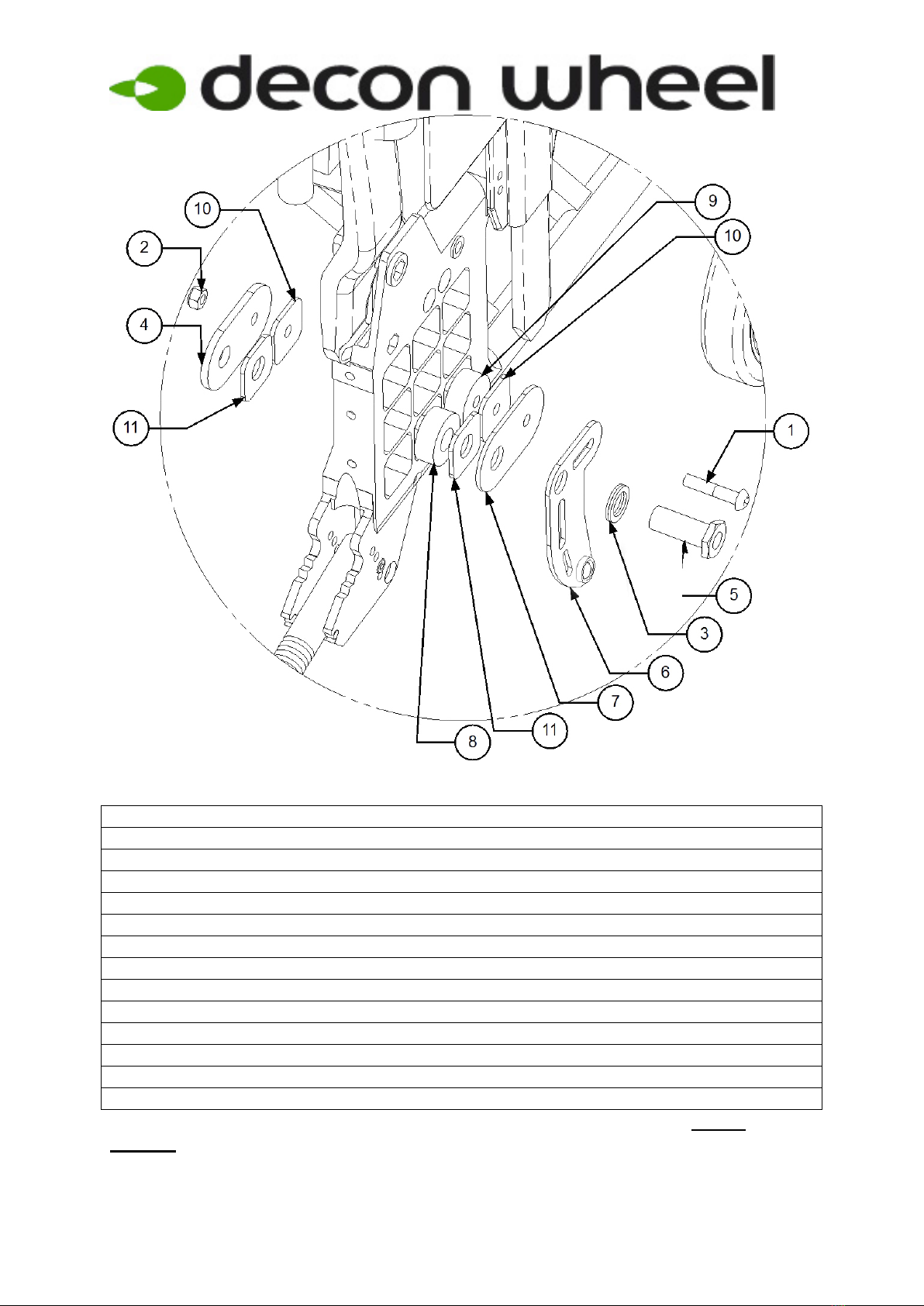

4. See picture above for mount the bracket.

Parts for right side mounting:

Item No. Part Number Qty Description

1 XSM8X40 1 Screw Round M8 x 40

2 XSM8ML 1 Nut Self-Locking M8

3 405239 1 Nordlock Washer

4 MED3100-02 1 Plate Cross5

5 HW063 1 Hub sleeve

6 310022 1 Bracket

7 MED3100-01 1 Plate Cross5

8 100 400 084 1 Spacer Cross5

9 100 400 083 1 Spacer Cross5

10 MED3100-03 2 Spacer Plate

11 MED3100-04 2 Spacer Plate

12 XOE-25383-00 1 Spacer

13 93440-120520 1 Circlip

Note! If you only order the mounting set, the axle, axle spacer and the circlip are not

included, for replacement see the service manual.

2019-10-03

5. Now you can assemble the backrest battery bag on the back or as an alternate

assembly as the pictures bellow.

Note!

Read the User manual before that you use the product. Do this and you get all

information about the products warnings and notes for the operation.
