Datalogic Matrix 320 User manual

Support Through the Website

Datalogic provides several services as well as technical support through its website.

Log on to www.datalogic.com.

For quick access, from the home page click on the search icon , and type in the name of the product you’re looking

for. This allows you access to download Data Sheets, Manuals, Soware & Utilities, and Drawings.

Hover over the Support & Service menu for access to Services and Technical Support.

MATRIX 320™ ACCESSORIES

QUICK START GUIDE

72 LED Illuminator Covers

stored in or introduced into a retrieval system, or transmitted in any form or by any means, or for any purpose,

without the express written permission of Datalogic S.p.A. and/or its aﬃliates • Datalogic and the Datalogic logo

are registered trademarks of Datalogic S.p.A. in many countries, including the U.S. and the E.U.

www.datalogic.com

821012060 (Rev. A) November 2021

Please read the

instructions

contained herein

carefully to

prevent damage to

the reader and its

components.

Please read the

instructions

contained herein

carefully to

prevent damage to

the reader and its

components.

Please read the

instructions

contained herein

carefully to

prevent damage to

the reader and its

components.

Please read the

instructions

contained herein

carefully to

prevent damage to

the reader and its

components.

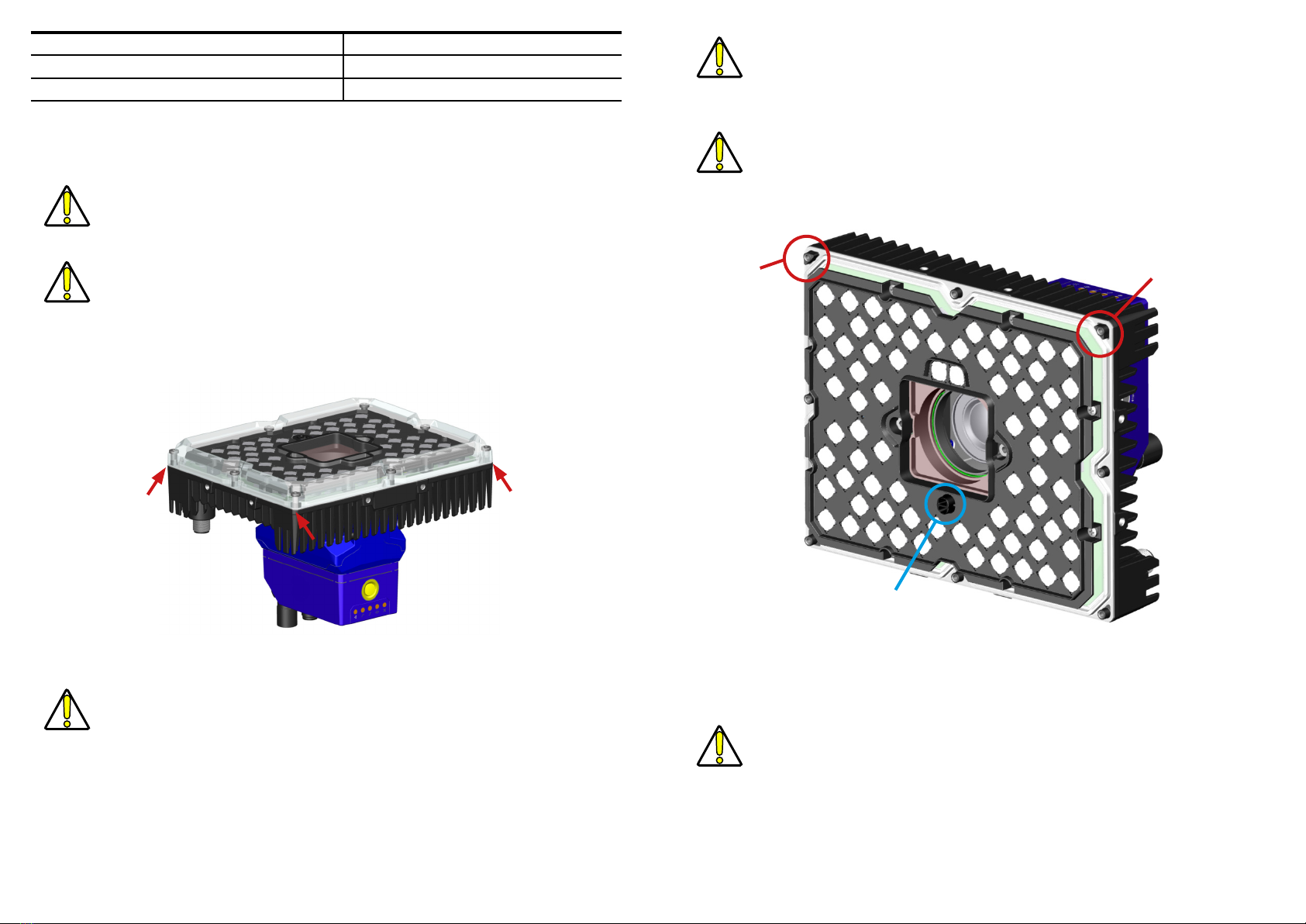

COVER REPLACEMENT

CAUTION: The reader must be disconnected from the power supply during the cover

replacement procedure.

1. Unscrew the eight screws using a 2.5 mm Allen wrench.

2. Remove the cover manually by gently levering it from its corners. See Fig. 1.

CAUTION: Make sure to operate in a dust-free environment during the cover replacement

procedure.

Fig. 1 - Removing the cover

Description Order number

Cover STD LT 72L M320/P2 93ACC0341

Cover Polarizer LT 72L M320/P2 93ACC0342

CAUTION: The cover has a predeﬁned mounting direction. The top two pins of the illuminator

(see Fig. 2) have a diﬀerent shape than the others, which are cylindrical: make sure to align

these special pins with the corresponding cover seats.

4. Place the new cover on the reader.

CAUTION: To avoid damage, do not press on the window.

5. Insert the eight screws and loosely tighten them in a clockwise direction.

6. Finally tighten the screws to a torque of 0.8 N m.

Fig. 2 - Aligning the cover

CAUTION: All cover accessories are supplied with a mounted gasket. Make sure the gasket is

correctly placed on the new cover.

3. Make sure the new cover is free of dust, dirt and ﬁngerprints. If necessary, wipe it clean using so

material and alcohol. Avoid any abrasive substances.

CAUTION: Do NOT bump/extract/tamper with the TOF sensor shield (see Fig. 2).

Special pin Special pin

TOF sensor shield
