Danby Premiere DPAC 5009 Assembly instructions

Owner’s Use and Care Guide

Guide de soin d’utiliser-et

Guía a utilizar y a cuidar

Model • Modèle

DPAC 5009

PORTABLE AIR CONDITIONER

Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

CLIMATISEUR PORTATIF

Table des matières . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Danby Products Ltd, PO Box 1778, Guelph, Ontario Canada N1H 6Z9

Danby Products Inc, PO Box 669, Findlay, Ohio USA 45839-0669

Version 1A.10.08 JF

CAUTION: Read and follow all safety rules and operating instructions before first use

of this product.

MISE EN GARDE : Veuillez lire attentivement les consignes de sécurité et les directives

d'utilisation avant l'utilisation initiale de ce produit.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE: If the Dehumidifier changes ownership,

be sure this manual accompanies the unit.

CONSERVER CES INSTRUCTIONS POUR CONSULTATION ULTÉRIEURE: En cas de revente du

déshumidificateur, ce manuel doit être inclus avec l’appareil.

UNIT SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

PART IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

IMPORTANT SAFETY INFORMATION

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Window Kit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

OPERATION

Features of the Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

LCD Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Dehumidifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Auto Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

TABLE OF CONTENTS

Thank you for choosing a Danby appliance to provide you and your family with all of

the “Home Comfort” requirements of your home, cottage, or office. This Owner’s Use

and Care Guide will provide you with valuable information necessary for the proper

care and maintenance of your new appliance. If properly maintained, your Danby

appliance will give you many years of trouble free operation. Please take a few

moments to read the instructions thoroughly and familiarize yourself with all of the

operational aspects of this appliance.

Your Danby Portable Air-Conditioner is a multi-functional room air-exchanging,

air-processing appliance, designed to offer you the functions of; Air Conditioning,

Dehumidifying, and Independent Fan. Each individual mode is featured with

“oscillating” air swing capabilities. This unit can be conveniently moved from room to

room within your home and set up in just minutes. Imagine the convenience of 4

Season Home Comfort at your fingertips, anywhere, anytime.

For easy reference, may we suggest you attach a copy of your sales slip/receipt to this

page, along with the following information, located on the manufacturers nameplate on

the rear panel of the unit.

Model Number:

Serial Number:

Date of Purchase:

This information will be necessary if your unit requires servicing and/or for

general inquiries. To contact a Customer Service Representative, call Danby TOLL

FREE: 1-800-26- (1-800-263-2629)

Model Number DPAC5009

Voltage/Frequency 115V-60Hz

Noise Level 51.3 dB

Fan Speeds 3

Cooling Capacity 5000BTU

Refrigerant R410A

Unit Weight 21 kg (46.2 lbs)

Airflow CFM High/Med./Low 240 / 210 / 180

Dimensions (W) x (D) x (H)(inches) 16.5”x 13”x 26.4”

Dimensions (W) x (D) x (H) (mm) 420 x 330 x 670

Remote Control Yes

Time of Day Clock No

Auto-Timer Yes

NOTE: Continuing research results in steady improvement. Therefore, this information

and these specifications are subject to change without notice.

WELCOME

UNIT SPECIFICATIONS

READ ALL SAFETY INFORMATION BEFORE USING

1) Check available power supply and resolve

any wiring problems BEFORE installation and

operation of this unit. All wiring must comply

with local and national electrical codes and be

installed by a qualified electrician. If you have

any questions regarding the following

instructions, contact a qualified electrician.

2) This appliance draws 5.8 nameplate amps

under Cooling Mode and may be used in any

properly wired, general purpose 15 amp

household grounded receptacle.

3) For your safety and protection, this unit is

grounded through the power cord plug when

plugged into a matching wall outlet. If you are

not sure whether the wall outlets in your home

are properly grounded, please consult a

qualified electrician.

WARNING: Improper connection of the

grounding plug can result in risk of Fire,

Electric Shock, and/or injury to Persons

associated with the appliance. Check with a

qualified service representative if in doubt that

the appliance is proplery grounded.

4) DO NOT USE PLUG ADAPTERS OR

EXTENSION CORDS WITH THIS UNIT. If it is

necessary to use an extension cord with this

unit, use an approved “air conditioner”

extension cord only (available at most local

hardware stores).

5) To avoid the possibility of personal injury,

always disconnect the power supply to the unit

before installing and/or servicing.

TABLE 1

Suggested Individual Branch Circuit

Nameplate Amps *AWG Wire Size

5.8 18

AWG- American Wire Gauge

*Based on copper wire at 105°C temperature rating.

TABLE 2

Receptacle and Fuse Types

Rated Volts 125

Amps 15

Wall Outlet

Fuse Size 15

Time Delay Fuse Plug Type

(or Circuit Breaker)

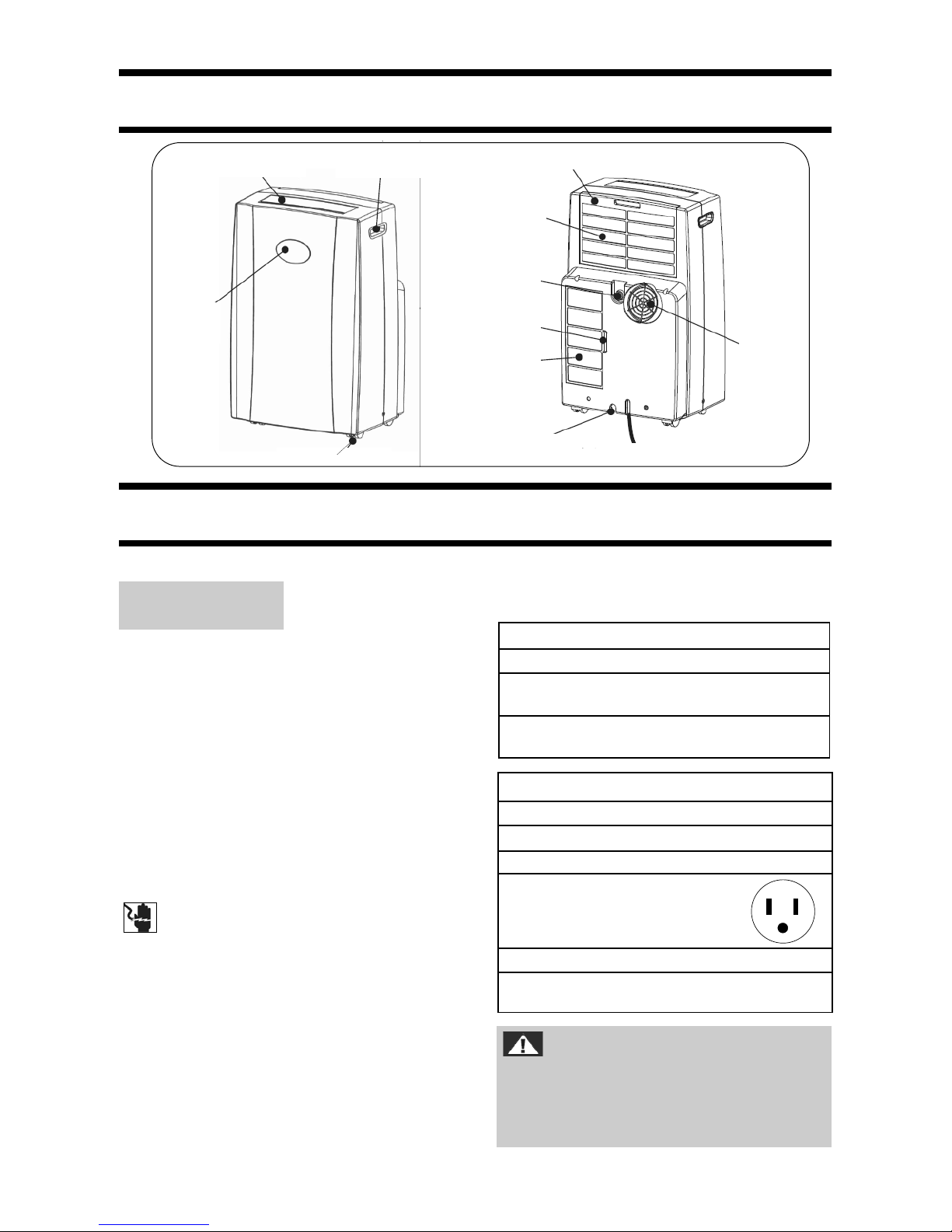

Cool air outlet Handle Recess

On/Off

Switch

Castor

Air filter

Air intake

(evaporator)

Water Drain

outlet

Air filter

Air intake

(condenser)

Water Drain outlet Power supply cord

Exhaust

Air outlet

PART IDENTIFICATION

IMPORTANT SAFETY INFORMATION

ELECTRICAL

SPECIFICATIONS

CAUTION: Do not leave this unit

unattended in a space where people or

animals cannot react to a failed unit are

located. A failed unit can cause extreme

overheating or death in such an

enclosed, unattended space.

The power cord supplied with this air conditioner contains a device that

senses damage to the power cord. To test if your power cord is working

properly, you must do the following:

Your Danby appliance is designed to be highly efficient in energy

savings. Follow these recommendations for greater efficiency.

1) Select a thermostat setting that suits your

comfort needs and leave at that chosen

setting.

2) The air filter is very efficient in removing

airborne particles. Keep the air filter clean at

all times.

3) Use drapes, curtains or shades to keep

direct sunlight from penetrating and heating

room, but do not allow drapes or curtains to

obstruct the air flow around the unit.

4) Start your air conditioner before the

outdoor air becomes hot and uncomfortable, to

avoid an initial period of discomfort while the

unit is cooling off the room. Use of the

automatic start/stop programmable TIMER

feature can be a major asset in this regard if

utilized to the fullest extent.

5) When outdoor temperatures are cool

enough, turn the air conditioner off and use the

FAN MODE. This circulates indoor air,

providing some cooling comfort while utilizing

less electricity.

NOTE: The power cord supplied with this air

conditioner contains a current leakage

detection device designed to reduce the risk of

fire. In the event the power supply cord is

damaged, it cannot be repaired and must be

replaced with a new cord from the product

manufacturer.

• Under no circumstances should this device

be used to turn the unit on or off.

• The “RESET” button must always be pushed

in (engaged) for correct operation.

• The power supply cord must be replaced if it

fails to reset when the “TEST” button is

pushed in.

1) Connect the power supply cord to an

electrical outlet.

2) The power supply cord has two buttons

located on the head of the plug. One button is

marked “TEST”, and the other is marked

“RESET”. Press the “TEST” button; you will

hear a click as the “RESET” button pops out.

3) Press the “RESET” button; you will hear a

click as the button engages.

4) The power supply cord is now energized

and supplying electricity to the air conditioner

(on some products this is also indicated by a

light on the plug head).

IMPORTANT SAFETY INFORMATION

POWER

SUPPLY CORD

ENERGY-

SAVING TIPS

Air Conditioning Mode ONLY

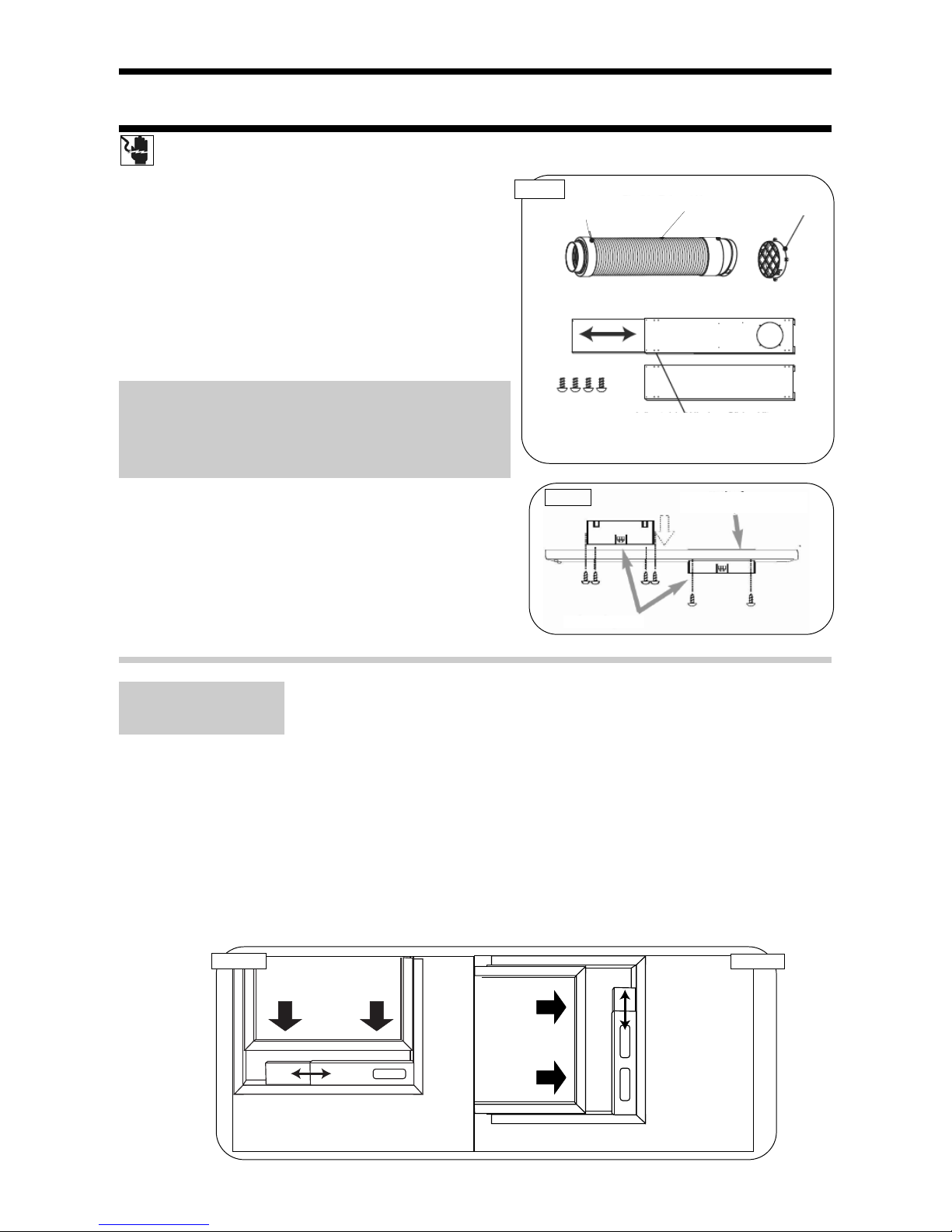

Your window kit has been designed to fit most standard “vertical”/”horizontal” windows up to a

maximum height of 80” (203cm). For vertical window applications, multi lock positions are provided

on the edge of each slider section to secure each sliding section together.

1) Select a suitable location, making sure you have access to an electrical outlet.

2) Install the flexible hose to the rear side of the unit. Insert the hose collar on top of the exhaust

opening and twist to lock into position.

3) Install the adjustable Window Slider Kit as required (see Fig. 3a & 3b).

4) Install the opposite end of the flexible exhaust hose into the window exhaust adapter.

5) Install the window exhaust adapter into the opening in the slider section, making sure the

window slider sections are secure.

6) Plug the unit into a 115V/60Hz grounded electrical outlet.

Window Slider Kit:

Min.: 26 5/8” (67.5cm)

Max.: 80” (203cm)

Window Slider Kit:

Min.: 28 1/3” (72cm)

Max.: 80” (203cm)

Horizontal Window

Vertical

Window

There should be at least 11.8” (30cm) clearance

between the unit and any other objects or

building structures, and should be installed on a

level surface. The unit does not have to be vented

outside during Dehumidifying or Fan Only mode

operation.

Flexible Exhaust Hose (13cm)

Exhaust nozzle connector (fix to unit, 1pc) &

Exhaust nozzle connector (fix to window kit,

1pc).....from 17 7/10” (45cm) to 53 1/6” (135cm)

Ajustable window door slider kit (3 pcs)..... from 28

1/3”(72cm) up to 80” (203cm)

Fixture..... (1 pcs)

Screws......(4 pcs)

NOTE: The exhaust/window kit must be installed at all

times when the unit is operating under AIR

CONDITIONING mode.

ELECTRIC SHOCK HAZARD: To avoid the possibility of personal injury, disconnect power to

the unit before installing or servicing.

Back of Window Pane

Tube Adapters

Fig. 2

Instructions for Assembling the Window Adapter

Kit- Fig. 2

1) Insert tube adapters through the back of the window

panel.

2) Secure each tube adapter with four screws through

the front of the window panel.

3) Insert window panel extensions into window panel.

Lightly tighten the screws in the window panel to hold

the extensions in place.

Fig. 3a Fig. 3b

INSTALLATION ACCESSORIES

Exhaust nozzle

Connector

Flexible Exhaust Hose Fixture

Screws

Adjustable Window Slider Kit

28 1/3” (72cm)- 80” (203cm)

Fig. 1

INSTALLATION

WINDOW KIT

INSTALLATION

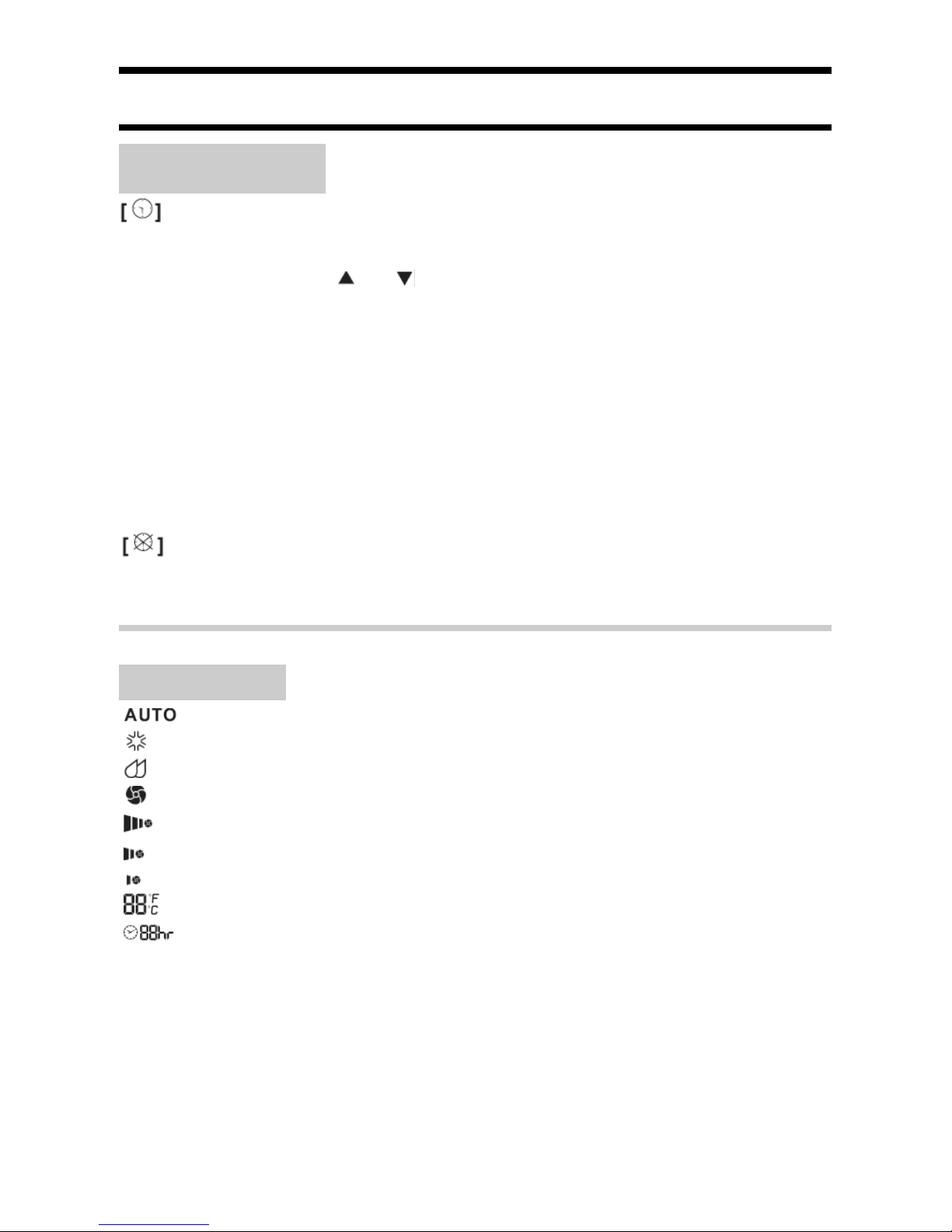

POWER CONTROL

The power control turns the unit on and off.

MODE CONTROL

The mode control has 4 settings:

• Cool • Dehumidifiy • Fan • Auto

The settings are adjustabed by the Mode Control button.

COOLING MODE

During the cooling mode, the air is cooled and hot air is exhausted

outside through the exhaust tube. Adjust fan speed and temperature to

suit your desired comfort level.

Note: The air exchange hoses must vent outside the room when using

Cool mode.

DEHUMIDIFY MODE

Air is dehumidified as it passes through the air conditioner, without

being in full cooling mode. If room temperatures is higher than 25°C

(77°F), fan speed can be adjusted; otherwise fan speed is fixed to

“low”.

FAN MODE

Air is circulated throughout the room with no cooling.

Note: Unit does not need to be vented in Fan mode.

AUTO MODE

In auto mode the unit will switch mode and fan speed automatically based on the ambient

temperature.

On/Off

Switch

LCD

Display

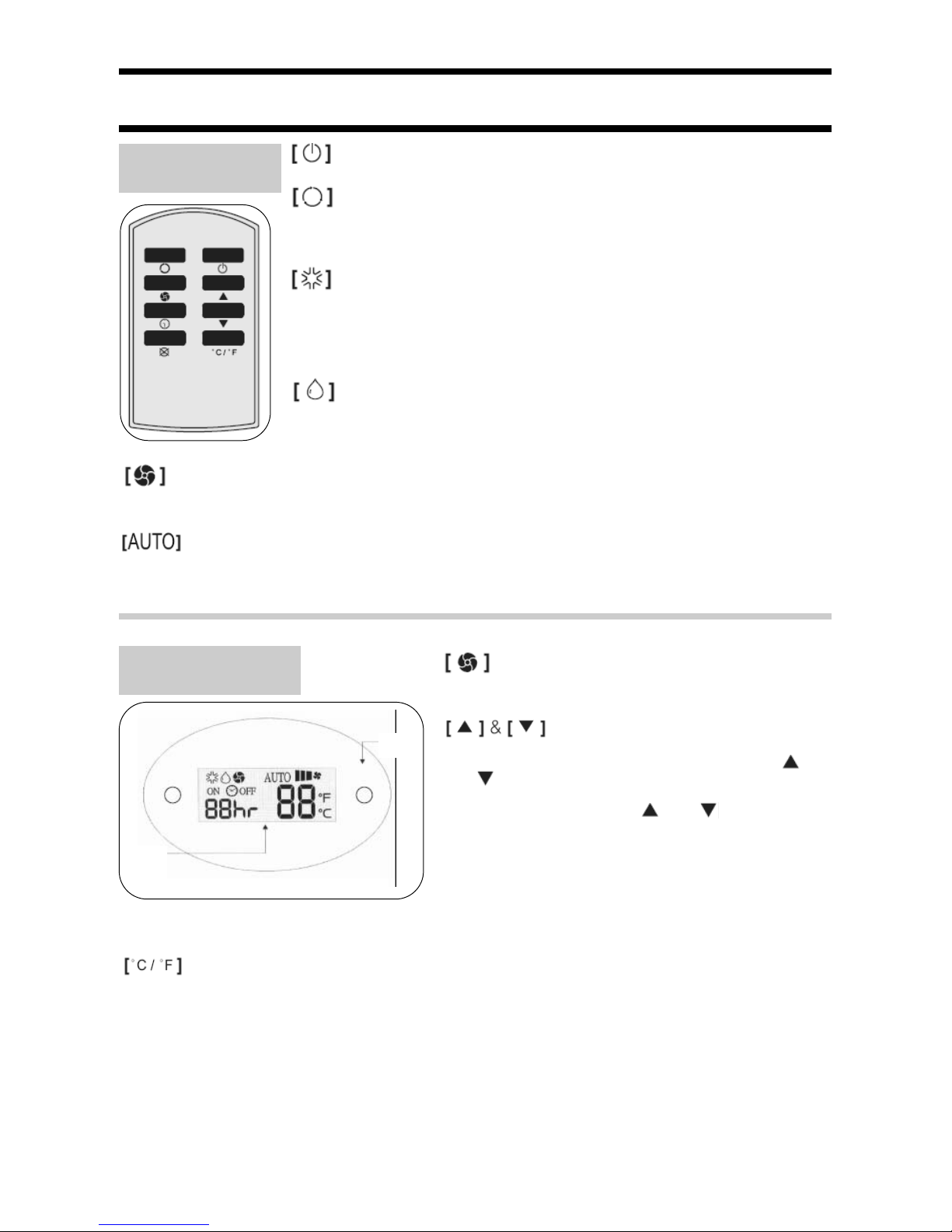

FAN SPEED CONTROL

The fan speed control has 4 settings: Auto (Cooling

only), High, Medium, and Low.

TEMP. SET CONTROLS

The temperature can be set by means of the

and buttons on the remote control. The

temperature can be set between 16°C (61°F ) and

32°C (89°F). Pressing the and buttons will

cause the set temperature to remain in the display

panel for approximately 5 seconds. The display will

then revert back to showing the current room

temperature.

Note: It is only possible to set the temperature when in COOLING MODE. The temperature

can not be set when in AUTO, DEHUMIDIFYING or FAN mode.

FAHRENHEIT / CELSIUS SELECTOR

Pressing this button will switch the display between degrees Celsius and degrees Fahrenheit

Note: Initial setting is °C

OPERATION

REMOTE

CONTROL

FEATURES OF THE

LCD DISPLAY

TIMER SETTING CONTROL

Press the Timer button on the remote control to set the timer. The ON or OFF logos (depending

on timer modes “A” or “B” below) will appear in the display panel, and the clock symbol will

flash for approx. 10 seconds; the display panel will show a time of 8 hrs. While the clock

symbol is flashing, press the and buttons on the remote control to select the time (in

hours between 00 and 24) for either of the timer modes “A” or “B” (see below). The time

selected will be shown on the display panel and after approximately 10 seconds, the clock

symbol will remain illuminated together with either the ON or OFF logo.

Timer Mode A) Auto Turn Off:

With the machine on and running, set the timer to select the number of hours you would like

the unit to run until it automatically shuts off. The set time will be shown in the display together

with the clock symbol and the OFF logo.

Tiimer Mode B) Auto Turn On:

Switch the machine on using the ON / OFF button (either on the machine itself or on the

remote control) so that the machine is running and the desired mode is selected. Press the

ON/OFF button again to put the machine into stand-by mode. Set the timer to select the

number of hours until it is required for the machine to start up automatically. The set time will

be shwon in the display together with the clock symbol and the ON logo.

TIMER CANCEL CONTROL

If the time has been set as in either “A” or “B” above and it is then decided that the timer is not

required, pressing the CANCEL button will turn the timer off.

Auto mode

Cooling mode

Dehumidify mode

Fan only mode

High fan speed

Med. fan speed

Low fan speed

Display set temperature

Display timer setting of auto switch on/off

OPERATION (cont’d)

FEATURES OF THE

LCD DISPLAY (cont’d)

LCD DISPLAY

IMPORTANT: The exhaust hose must be properly vented

(outdoors) during air conditioning mode.

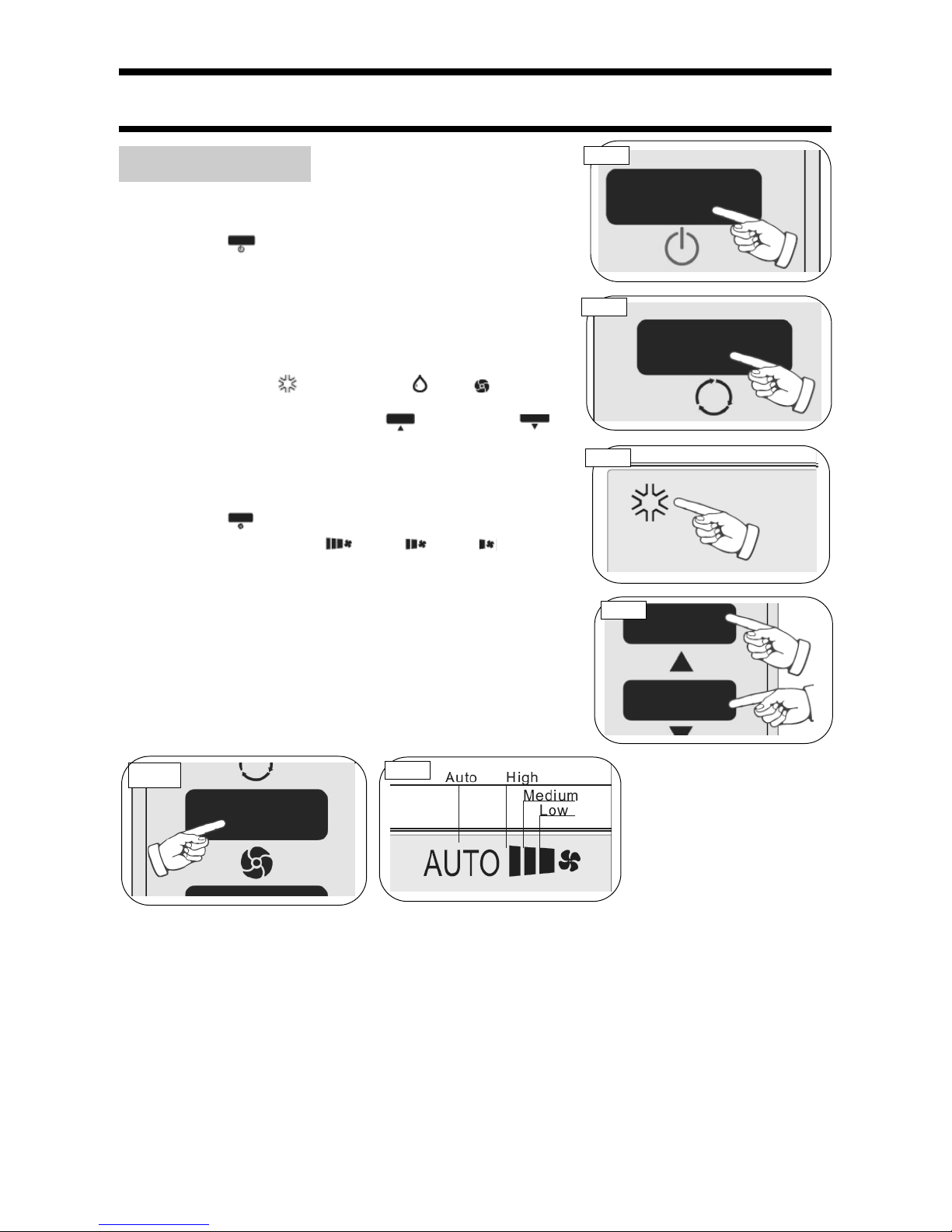

1) Press the POWER SWITCH key (Fig. A) to switch

on the unit, and the previous set temperature will be shown

in the temperature display area of the control panel.

2) Press the MODE key (Fig. B) until the COOL indicator

light illuminates on the control panel (Fig. C). Each

depression of the MODE key will advance to a different

mode setting (Cool - Dehumidifier - Fan )

3) Press the appropriate increase or decrease

buttons (Fig. D) to select a suitable operating temperature

setting. Temperature settings are adjustable between 16°C

(61°F) to 32°C (89°F).

4) Press the FAN key (Fig. E) to select the desired fan

speed setting (Auto High - Med - Low ). Your

selection will appear on the control panel (each depression

of the fan key will advance to a different setting).

• Cooling stops automatically when the set temperature is

achieved. Cooling resumes when the room temperature

rises above the “set” temperature level.

Fig. E

OPERATING INSTRUCTIONS

AIR CONDITIONING Fig. A

Fig. B

Fig. C

Fig. D

Fig. F

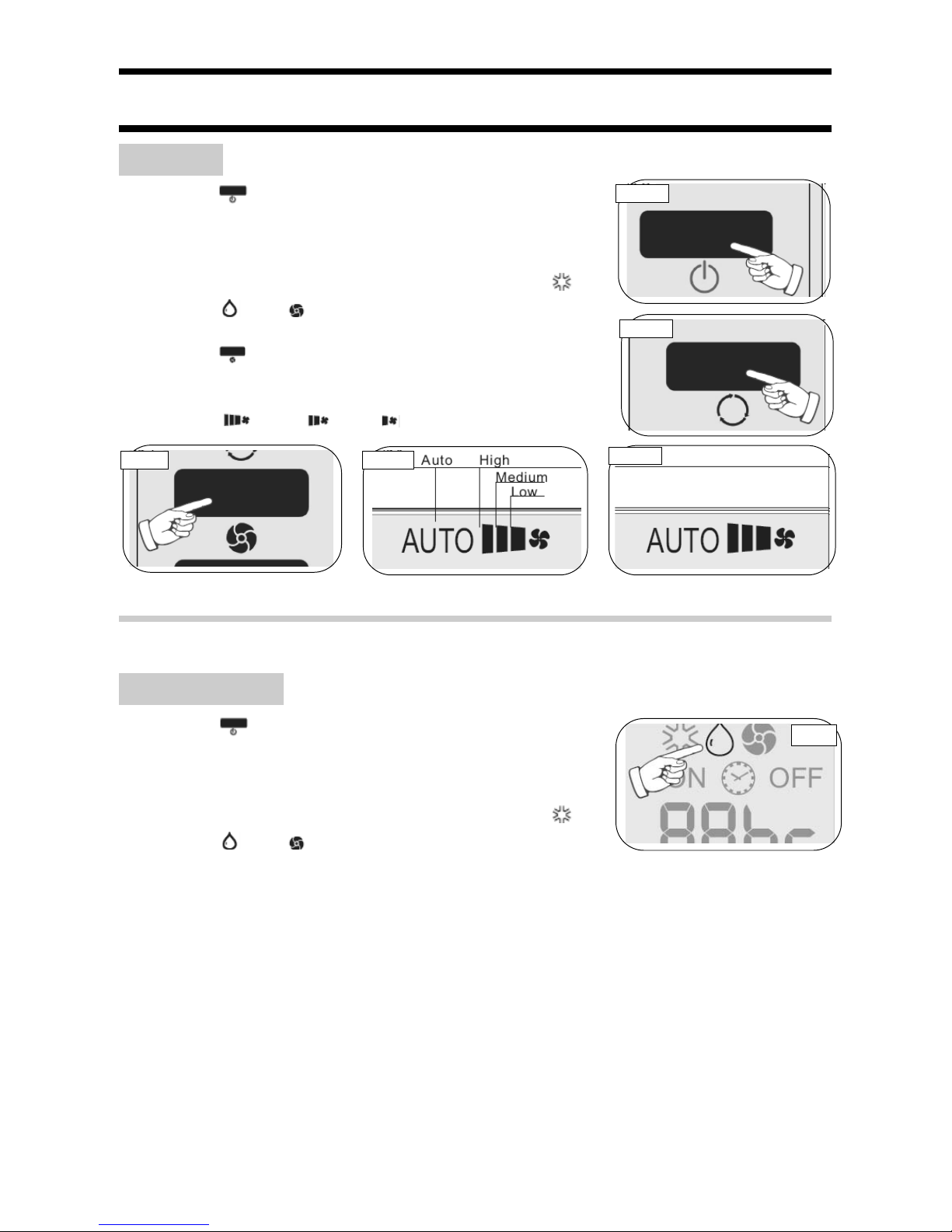

1) Press the (on/off) key pad to switch on the unit (Fig. G).

2) Press the MODE key (Fig. H) until the FAN indicator

illuminates on the control panel (Fig. I). Each depression of the

MODE key will advance to a different mode setting (Cool -

Dehumidifier - Fan ).

3) Press the Fan key (Fig. J) to select the desired FAN

SPEED setting. Your selection will appear on the control panel.

Each depression of the fan key will advance to a different fan

speed (High - Med. - Low ) as shown in Fig. K.

NOTE: During Fan mode, the exhaust hose does not have to be vented outdoors.

1) Press the (on/off) key pad to switch on the unit (Fig. G)

2) Press the MODE key (Fig. H) until the DRY indicator

illuminates on the control panel (Fig. L). Each depression of the

MODE key will advance to a different mode setting (Cool -

Dehumidifier - Fan ).

• Important: There is no temperature adjustment during

dehumidifier mode. If the room temperature is greater than 25°C,

the fan speed can be adjusted, otherwise the fan speed is fixed

at LOW speed.

NOTE: During dehumidifier mode, the exhaust hose does not have to be

vented outdoors.

OPERATING INSTRUCTIONS (cont’d)

FAN

Fig. G

Fig. H

Fig. I

Fig. J Fig. K

DEHUMIDIFIER

Fig. L

Table of contents

Languages:

Other Danby Air Conditioner manuals

Danby

Danby DAC080EB1WDB User manual

Danby

Danby DAC5110M Assembly instructions

Danby

Danby DAC150EUB2GDB Assembly instructions

Danby

Danby DAC12344DE User manual

Danby

Danby DPA140HEAUBDB Assembly instructions

Danby

Danby DPA080UB1GDB Assembly instructions

Danby

Danby ArcticAire AAC5040 User manual

Danby

Danby DPAC7099 Assembly instructions

Danby

Danby DPA120B1WB Assembly instructions

Danby

Danby Premiere DPAC Assembly instructions

Danby

Danby DPAC10010 Assembly instructions

Danby

Danby DAS090BAHWDB User manual

Danby

Danby Designer DAC6003D User manual

Danby

Danby Simplicity SPAC5088 User manual

Danby

Danby DPA058B6WDB User manual

Danby

Danby DPAC10071 User manual

Danby

Danby Premiere DPAC13012H Assembly instructions

Danby

Danby Designer DPAC8020 User manual

Danby

Danby DAC5277EE User manual

Danby

Danby DAC5130 User manual

Danby

Danby DPA100B9IWDB-6 User manual

Danby

Danby DPA120HEAUBDB User manual

Danby

Danby DAC5130 User manual

Danby

Danby DAC0100B5WDB User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
