Danby DAC080EUB6GDB Assembly instructions

OWNER’S USE AND CARE GUIDE

GUIDE D’UTILISATION ET D'ENTRETIEN

DANBY PRODUCTS LIMITED, ONTARIO, CANADA N1H 6Z9

DANBY PRODUCTS INC., FINDLAY, OHIO, USA 45840

AIR CONDITIONER

CLIMATISEUR

DAC080EUB6GDB

DAC100EUB4GDB

DAC120EUB6GDB

2015.12.03

DO NOT RETURN THIS UNIT TO THE RETAILER

WITHOUT FURTHER INSTRUCTIONS

Dear valued customer, we hope your Danby product purchase fulfills all

your requirements. Your satisfaction is our priority!

Please contact us at our toll free consumer service number for any inquiries

you may have about your new unit.

NE PAS RETOURNER CET APPAREIL CHEZ LE

DÉTAILLANT SANS CONSIGNES SUPPLÉMENTAIRES

Cher(ère) client(e) important(e), nous espérons que votre produit Danby

répond à tous vos besoins. Votre satisfaction est notre priorité!

Veuillez nous contacter au numéro gratuit de service après-vente, si

vous avez des questions quelconques à propos de votre nouvel appareil.

NO DEVUELVA ESTA UNIDAD A LA TIENDA SIN

INSTRUCCIONES ADICIONALES

Estimado cliente, esperamos que el producto Danby que ha comprado

satisfaga completamente sus necesidades. Su satisfacción

es nuestra prioridad!

Por favor, contáctenos gratuitamente a nuestro número de Servicio al

Cliente para cualquier pregunta que tenga sobre su nuevo electrodoméstico.

1-800-263-2629

(1-800-26-DANBY)

Danby 28.08.2014

TO OBTAIN WARRANTY SERVICE YOU MUST PROVIDE A VALID PROOF OF

PURCHASE. PLEASE STAPLE YOUR RECEIPT TO THIS PAGE FOR FUTURE

REFERENCE.

_____________________________________________________________________

POUR OBTENIR LE SERVICE SUR GARANTIE, VOUS DEVEZ FOURNIR UNE

PREUVE D’ACHAT VALIDE. VEUILLEZ AGRAFER VOTRE REÇU À CETTE PAGE

POUR RÉFÉRENCE FUTURE.

_____________________________________________________________________

This product is factory equipped with a power supply cord that has a three-pronged grounded plug. It must

be plugged into a mating grounding type receptacle in accordance with the National Electrical Code and

applicable local codes and ordinances. If the circuit does not have a grounding type receptacle, it is the

responsibility and obligation of the customer to exchange the existing receptacle in accordance with the

National Electrical Code and applicable local codes and ordinances. The third ground prong should not,

under any circumstances, be cut or removed. Never use the cord, the plug or the appliance when they show

any sign of damage. Do not use your appliance with an extension cord unless it has been checked and test-

ed by a qualiﬁed electrician or electrical supplier.

IMPORTANT - GROUNDING METHOD

Ce produit arrive d’origine avec un cordon d’alimentation équipé d’une prise à trois ﬁches. Il doit être

branché dans une prise avec une ﬁche de mise à la terre en conformité avec le Code national de l’électricité

et les codes et règles locaux applicables. Si la prise murale n’a pas de mise à la terre, il est de la

responsabilité et l’obligation du client de changer la prise existante pour la rendre conforme au Code

national de l’électricité et aux codes et règles locaux applicables. La ﬁche de mise à la terre ne doit pas, en

aucune circonstance, être coupée ou retirée. Si vous apercevez des signes de dommage, n’utilisez jamais le

cordon d’alimentation, la prise ou l’appareil. N’utilisez jamais l’appareil avec une rallonge sauf si elle a été

vériﬁée et testée par un électricien qualiﬁé ou un fournisseur de matériel électrique.

IMPORTANT - MÉTHODE POUR LA MISE À LA TERRE

AIR CONDITIONER

Owner’s Use and Care Guide ................................1-18

• Welcome

• Important Safety Information

• Features

• Installation Instructions

• Operation Instructions

• Care and Maintenance

• Troubleshooting

• Warranty

CLIMATISEUR

Guide d’utilisation et d’entretien............................19-36

• Bienvenue

• Consignes de sécurité importantes

• Caractéristiques

• Consignes d’installation

• Consignes d’utilisation

• Soins et entretien

• Dépannage

• Garantie

CONTENTS

Model • Modèle

CAUTION:

Read and follow all safety rules and operating

instructions before ﬁrst use of this product.

AVERTISSEMENT :

Veuillez lire attentivement les consignes de

sécurité et les instructions d’utilisation avant

l’utilisation initiale de ce produit.

TABLE DES MATIÈRES

DAC080EUB6GDB / DAC100EUB4GDB / DAC120EUB6GDB

WELCOME

Welcome to the Danby family. We are proud of our quality products, and we believe in dependable service, like you will

ﬁnd in this Owner’s Use and Care Guide, and like you will receive from our friendly customer service department. Best of

all, you will experience these values each and every time you use your Danby appliance. That is important, because your

new appliance will be a part of your family for a long time.

For easy reference, we suggest you attach a copy of your sales slip/receipt to this page, along with the following

information, located on the manufacturer’s nameplate on the right side of the unit above the powercord.

Note the information below; you will need this information to obtain service under warranty.

To receive service, you must provide the original receipt.

NOTE: THIS UNIT IS NOT DESIGNED FOR “THROUGH-THE-WALL” INSTALLATION.

Model No:

Serial No:

Date Purchased:

NEED HELP?

Before you call for service, here are a few things you can do to

help us serve you better:

Read this Owner’s Use and Care Guide:

It contains instructions to help you use and maintain your

appliance properly.

If you received a damaged appliance:

Immediately contact the retailer (or builder) that sold you the

appliance.

Save time and money:

Check the Troubleshooting section at the end of the guide

before calling. This section helps you solve common problems

that may occur.

If you do need service, you can relax, knowing help is only a

phone call away.

WARNING

Improper connection of the grounding plug can result in risk of

ﬁre, electric shock and/or injury to persons associated with the

appliance. Check with a qualiﬁed service representative if in doubt

that the appliance is properly grounded.

1-800-26-

(1-800-263-2629)

Important Safety Information

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

FOR YOUR SAFETY: Read these instructions carefully before operating the unit.

1. All wiring must comply with local and national electrical codes and must be installed by a qualiﬁed electrician. If you

have any questions regarding the following instructions, contact a qualiﬁed electrician.

2. Check available power supply and resolve any wiring problems BEFORE installing and operating this unit.

3. This 115V air conditioner uses 8.7 or less nameplate amps and may be used in any properly wired, general-purpose

household receptacle. See Table 1 for the speciﬁcations for the individual branch circuit.

4. For your safety and protection, this unit is grounded through the powercord plug when plugged into a matching wall

outlet. If you are not sure whether your wall outlet is properly grounded, please consult a qualiﬁed electrician.

5. The wall outlet must match the 3-prong plug on the service cord supplied with the unit. DO NOT use plug adapters.

See Table 2 for receptacle and fuse information.

6. The rating plate on the unit contains electrical and other technical data. The rating plate is located on the right side of

the unit, above the powercord.

ELECTRICAL SPECIFICATIONS

TABLE 1

DAC100EUB4GDB

DAC120EUB6GDB

Suggested Individual Branch Circuit

Nameplate Amps

8.7 or less *AWG Wire Size

AWG- American Wire Gauge

*Based on copper wire at 60°C temperature rating

TABLE 2

Receptacle and Fuse Types

Rated Volts 125

Amps 15

Wall Outlet

Fuse Size 15

Time Delay Fuse Plug Type

(or Circuit Breaker)

TABLE 1

DAC080EUB6GDB

Suggested Individual Branch Circuit

Nameplate Amps

5.9 *AWG Wire Size

AWG- American Wire Gauge

*Based on copper wire at 60°C temperature rating

FEATURES

Your appliance is designed to be highly efﬁcient in energy savings. Follow these recommendations for greater efﬁ-

ciency.

1. Select a thermostat setting that suits your comfort needs and leave at that chosen setting.

2. The air ﬁlter is very efﬁcient in removing airborne particles. Keep the air ﬁlter clean at all times (usually cleaned every

2 weeks depending on indoor air quality).

3. Use drapes, curtains or shades to keep direct sunlight from penetrating and heating the room, but do not allow drapes

or curtains to obstruct the air ﬂow around the unit.

4. Start your air conditioner before the outdoor air becomes hot, to avoid an initial period of discomfort while the unit is

cooling the room.

Important Safety Information

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

FOR YOUR SAFETY: Read these instructions carefully before operating the unit.

ENERGY SAVING TIPS

5. When outdoor temperatures are cool enough, use the FAN MODE only, on HIGH, MED., or LOW setting. This

circulates indoor air, providing some cooling comfort, and utilizes less electricity than operating on a cooling setting.

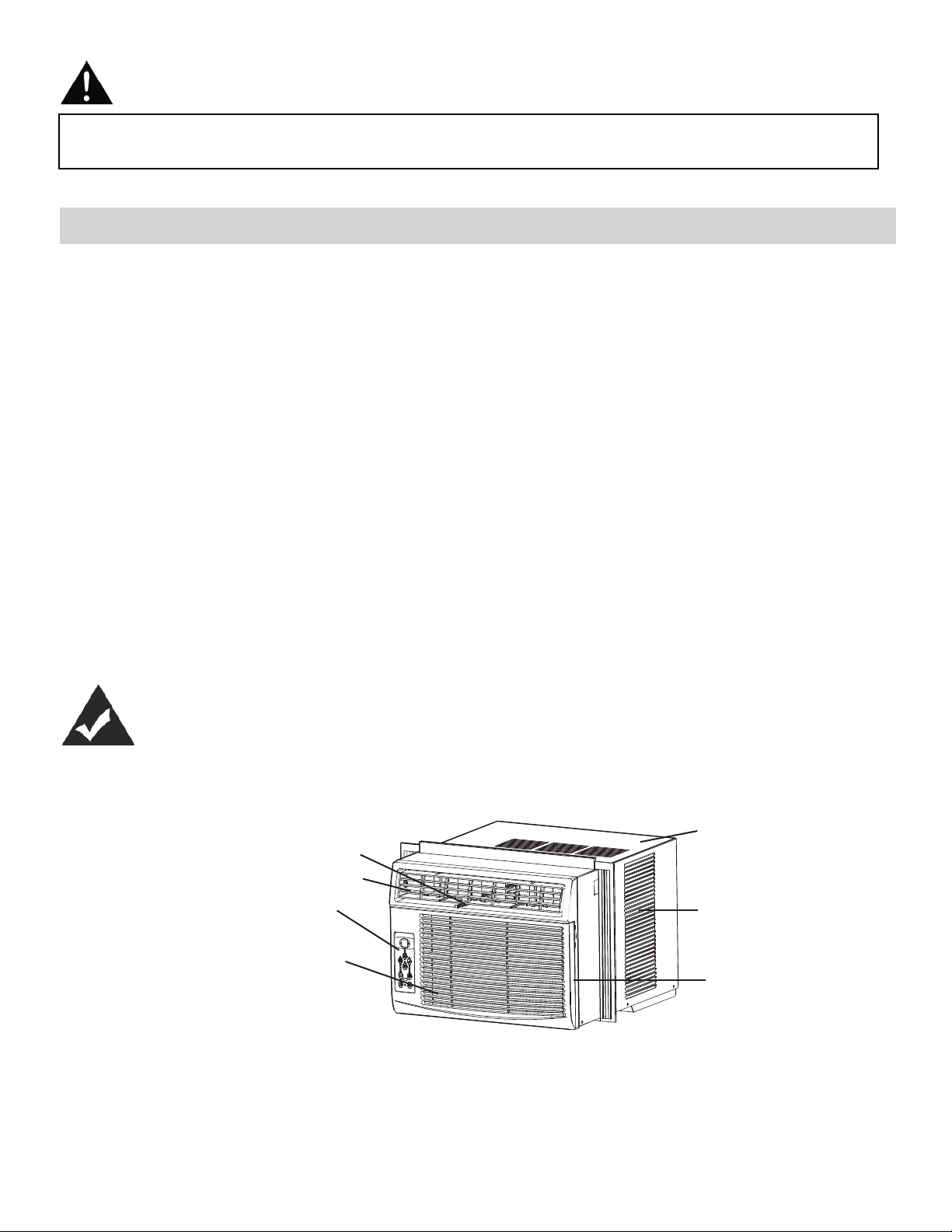

Air Filte

Exterior

Air Inlet

Cabinet

Interior Air Inlet

Control Panel

available in some models

only)

*Fresh Air Ventilation Switch

Interior Air Outlet

(open for Fan only operation,

*Pushed in, means the vent is closed.

Pulled out, means the vent is open.

INSTALLATION INSTRUCTIONS

TOOLS NEEDED FOR INSTALLATION:

• Screwdrivers: Phillips and ﬂat head.

• Power Drill: 1/8in. (3.2mm) diameter drill bit

• Pencil

• Measuring Tape

• Scissors

• Carpenter’s Level

NOTE: Save the shipping carton and packing materials for future storage or transportation. From

the carton, remove the plastic bag containing the installation hardware kit necessary for the in-

stallation of your air conditioner. Please check the contents of the hardware kit against the corre-

sponding model check list, prior to installation of the unit. See Fig. 1.

ELECTRIC SHOCK HAZARD

To avoid the possibility of personal

injury, disconnect power to the unit

before installing or servicing.

NOTE: Your RoomAir Conditioner is designed for easy

installation in a single or double-hung window. This unit

is NOTdesigned for vertical (slider type) windows and/or

through-the-wall applications.

Because the compressor is located on the controls side of the unit (left side), this side

will be heavier and more awkward to manipulate. Inadequate support on the control side

of the unit can result in personal injury and damage to your unit and property. Therefore,

it is recommended that you have someone assist you during the installation of this unit.

CAUTION

INSTALLATION

HARDWARE

1/2in. (13 mm)

screws (7) Safety Lock (1)

3/8in. (9.5mm) screws

(4) *Factory installed

on some models

“L” Shaped

mounting

bracket (1)

* Factory installed

on some models

Sash bracket (2)

Adhesive

Foam Seal(1)

Side Curtain LH (1)

Side Curtain RH (1)

Regular

Foam Seal(1)

Foam insert

2 pieces

Weather-stripping

(5)

Fig. 1

1. This room air conditioner is designed to ﬁt easily into a single or double hung window. However, since window designs

vary, it may be necessary to make some modiﬁcations for safe, proper installation.

2. Make sure window and frame are structurally sound and free from dry and rotted wood.

3. For maximum efﬁciency, install the air conditioner on a side of the house or building which favours more shade than

sunlight. If the unit is in direct sunlight, it is advisable to provide an awning over the unit.

4. Provide sufﬁcient clearance around the cabinet to allow for ample air circulation through the unit (See Fig. 2). The

rear of the unit should be outdoors. It should not be in a garage, or inside a building. Keep unit as far away as possi-

ble from obstacles/obstructions and at least 30 in. (76 cm) above the ﬂoor or ground. Curtains and other objects within

the room should be prevented from blocking the air ﬂow.

5. Be certain that the proper electrical outlet is within reach of the installation. Use only a single outlet circuit rated at 15

amps. All wiring should be in accordance with local and national electrical codes.

6. DO NOT install unit where leakage of combustible gas is suspected. Your air conditioner may fail to operate in air

containing oils (including machine oils), sulﬁde gas, near hot springs, etc.

NOTE: Your unit is designed to evaporate condensation under normal conditions. However, under extreme humidity con-

ditions, excess condensation may cause basepan to overﬂow to the outside. The unit should be installed where conden-

sation run-off cannot drip on pedestrians or neighbouring properties.

NOTE: It is normal for your unit to drip a small amount of water, especially on excessively humid days.

INSTALLATION INSTRUCTIONS

LOCATION

Awning

Fence,

wall, or

other

obstacle

Ground

Side

Obstruction

20 in.

(50.8 cm)

Min

30 in. (76.2 cm)

Min

12 in. (30.5 cm) Min

20 in.

(50.8 cm)

Fig. 2

INSTALLATION INSTRUCTIONS

1. Assembly of the upper channel to the cabinet (factory installed on some units).

• “L” Shaped Top Channel: install the “L” shaped channel to the top of the cabinet as shown in Fig. 3, using four (4)

3/8 in. (9.5 mm) screws.

2. Assembly of the side curtains to the cabinet.

• Extend the shutter from the shutter frame and slide it into the shutter tabs on the side channel of the air conditioner,

as shown in Fig. 4.

• Slide the shutters into the top (“L” shaped) and bottom (“U” shaped) channels. The shutters are identiﬁed (on frame)

as left and right.

3/8 in. (9.5 mm)

“L” shaped mounting

bracket

“U” shaped Channel

(Factory Installed)

Fig. 3

Slide down into tabs

Shutter tabs

Shutter

Shutter frame

Fig. 4

3. Completing the installation.

• Cut the foam (non adhesive) sealing strip to ﬁt the area of the window sill that the air conditioner will rest on.

• Carefully place the air conditioner into the window with the “L” shaped mounting bracket (on top) positioned in front

of the upper window sash. The bottom of the cabinet should be positioned on the “recessed” portion of the window

frame. Pull the window down until it rests just behind the front ﬂange of the (top) “L” shaped mounting bracket (See

Fig. 5).

• Expand the shutter frames (fully) on each side and secure the top of the frames to the window sash using one 1/2 in.

(13 mm) screw on each side and one in the “L” shaped mounting bracket (Fig. 5).

• Secure the shutter clamp on each side of the lower part of the shutter, and secure to window sill using one 1/2 in.

(13 mm) screw on each side (Fig. 5).

• Place the second foam sealing strip to ﬁt the opening between the inside and outside windows, then attach the safety

lock to the outside window frame using one 1/2 in. (13 mm) screw (See Fig. 6).

PLEASE NOTE: Window applications come in a variety of different styles. Therefore, it may be necessary to modify your

particular installation.

Window sash

“L” Shaped

Mounting

Bracket

Shutter clamps

1/2 in. (13mm) screws

Safety Lock

1/2 in. (13 mm) screw

Foam Seal

(adhesive)

Fig. 6Fig. 5

ASSEMBLY AND INSTALLATION

This manual suits for next models

Table of contents

Languages:

Other Danby Air Conditioner manuals

Danby

Danby DAC145EB6WDB-6 User manual

Danby

Danby ArcticAire AAC5044DE User manual

Danby

Danby ArcticAire AAC10044DE User manual

Danby

Danby DPA085CB1GDB Assembly instructions

Danby

Danby DAC8007EE Assembly instructions

Danby

Danby DPAC6507 User manual

Danby

Danby DAC150EB1GDB Assembly instructions

Danby

Danby Simplicity SPAC5088 User manual

Danby

Danby DAC080ECB2GDB Assembly instructions

Danby

Danby DPTA090HEB1WDB User manual

Danby

Danby DAC060ECB4GDB Assembly instructions

Danby

Danby DAC100B5WDB User manual

Danby

Danby DAC5002D User manual

Danby

Danby dac10007ee Assembly instructions

Danby

Danby DPA120BCCWDB Assembly instructions

Danby

Danby Premiere DAC6078EE User manual

Danby

Danby Designer DPAC8020 User manual

Danby

Danby DAC150EB2WDB User manual

Danby

Danby Premiere DPAC 5009 Assembly instructions

Danby

Danby DAC100B6WDB User manual

Danby

Danby DPA140E1BDB-6 User manual

Danby

Danby DPA100B6WDB-6 User manual

Danby

Danby DAC060BFCWDB User manual

Danby

Danby DPAC10030 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
