Dahua IPC-EBW81230 Installation and user guide

Equipment Model Firmware Course Version Date

IPC-EBW81230

[PAL]DH_IPC-HX8XXX-

Nova2_Eng_P_Stream3_V2.600.000

0.3.R.20170830

V1.0 2017/11/30

How to set the Fisheye Dewrap function?

Page1

Copyright © 2017 Dahua Technologies Co., Ltd. All rights reserved.

Fisheye Dewrap Function

What is dewarping (Image Distortion Correction)?

Page2

Copyright © 2017 Dahua Technologies Co., Ltd. All rights reserved.

Fisheye Dewrap Function

Three Installation Mode: Wall/Ground/Ceiling.

Wall Ground Ceiling

Page3

Copyright © 2017 Dahua Technologies Co., Ltd. All rights reserved.

Fisheye Dewrap Function

Dewarp Mode: up to 10 kinds of display mode.

(R means region; O means original; P means panoramic. )

Page4

Copyright © 2017 Dahua Technologies Co., Ltd. All rights reserved.

Setup-Web Fisheye Dewarp

LiveLogin Web

Steps:

①Filled in the IPC IP address in the

IE explorer, it will show a login

interface .

②Then input username and

password

③Click on login

Note:

IPC default IP address is

192.168.1.108.

Default username and password

are both admin. Please change user

password after first time login for

security.

Playback

Page5

Copyright © 2017 Dahua Technologies Co., Ltd. All rights reserved.

Setup-Web Fisheye Dewarp

Login Web

Steps:

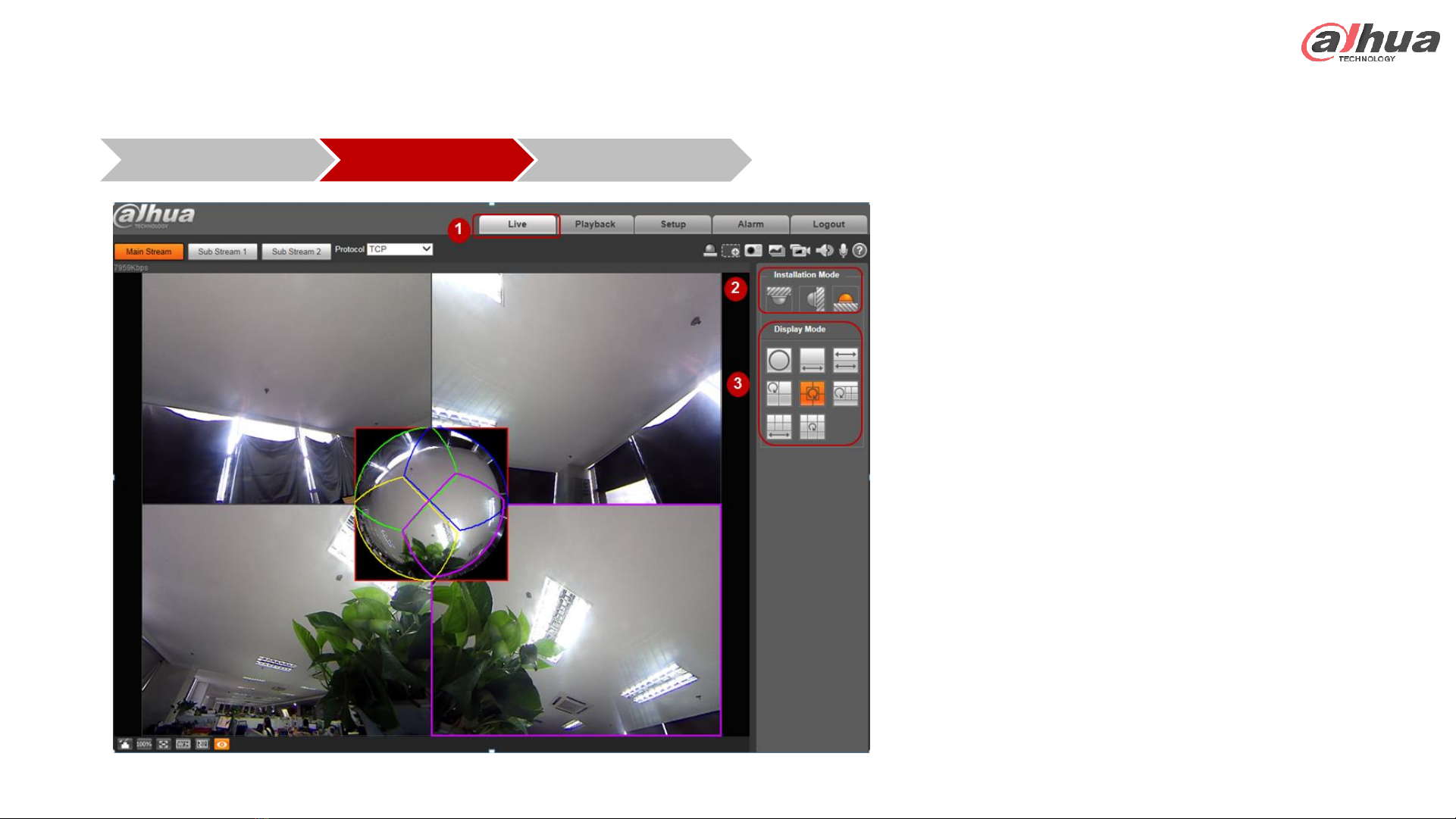

①Go to live interface, and install

web plugin, then see video .

②Set installation mode according

to camera install way, ceiling, wall

and ground.

③After choose install mode, then

choose display mode you want.

you can adjust region as you like

by moving different colorful

frame.

④When you playback from IPC SD

card, it will show live video

according to your live setup.

Live Playback

Page6

Copyright © 2017 Dahua Technologies Co., Ltd. All rights reserved.

Setup-Web Fisheye Dewarp

Steps:

①When you playback from IPC SD

card, it will show live video

according to your live setup.

②Original recording video still

supports dewarp with different

modes when playback, Just check

the left picture. Even you dewarp

to store, it will still show original

pic when playback.

Login Web

Playback

live
