Dahua K6 User manual

HDCVI Motorized Vari-focal IR Vandal-proof Dome Camera

User’s Manual

Version 1.0.0

Table of Contents

1General Introduction ..................................................................................................................1

1.1 Overview........................................................................................................................1

1.2 Features.........................................................................................................................1

2Device Framework .....................................................................................................................2

2.1 Framework and Dimension.........................................................................................2

2.2 Structure Component...................................................................................................2

3Installation....................................................................................................................................4

4Menu.............................................................................................................................................6

4.1 HDCVI Local Settings..................................................................................................6

4.1.1 Control Coaxial Device...................................................................................................6

4.1.2 Set Audio Coax................................................................................................................6

4.1.3 Open Menu.......................................................................................................................7

4.2 Menu List .......................................................................................................................8

Appendix Toxic or Hazardous Materials or Elements ...............................................................12

Welcome

Thank you for purchasing our HDCVI camera!

This user’s manual is designed to be a reference tool for your system.

Please read the following safeguard and warnings carefully before you use this series product!

Please keep this user’s manual well for future reference!

iii

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited

power source is rated 12V DC in the IEC60950-1.

We assume no liability or responsibility for all the fires or electrical shock caused by improper handling

or installation.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

3．Installation

Do not apply power to the camera before completing installation.

Please install the proper power cut-off device during the installation connection.

Always follow the instruction guide the manufacturer recommended.

If this product is installed in the ceiling, please make sure the installation position can sustain the min

50N.

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

This series HDCVI camera should be installed in a cool, dry place away from direct sunlight or strong

light, inflammable, explosive substances and etc.

This series camera shall work on the specified working temperature. Please keep it away from the

electromagnetic radiation object and environment.

Please make sure the CMOS component is out of the radiation of the laser beam device. Otherwise it

may result in CMOS optical component damage.

Please keep the sound ventilation.

Do not allow the water and other liquid falling into the camera.

6. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

7. Daily Maintenance

Please shut down the device and then unplug the power cable before you begin daily maintenance

work.

Use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the

mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device.

Please put the dustproof cap to protect the CMOS component when you do not use the camera.

Applicable models

This manual can be applied to the following models:

DH-HAC-HDB3220EN-Z;

DH-HAC-HDB3120EN-Z;

DH-HAC-HDB3220EN-ZH;

DH-HAC-HDB3120EN-ZH;

DH-HAC-HDB3220EP-Z;

DH-HAC-HDB3120EP-Z;

DH-HAC-HDB3220EP-ZH;

DH-HAC-HDB3120EP-ZH;

DH-HAC-HDBW3220EN-Z;

DH-HAC-HDBW3120EN-Z;

DH-HAC-HDBW3220EN-ZH;

DH-HAC-HDBW3120EN-ZH;

DH-HAC-HDBW3220EP-Z;

DH-HAC-HDBW3120EP-Z;

DH-HAC-HDBW3220EP-ZH;

DH-HAC-HDBW3120EP-ZH;

HAC-HDB3220EN-Z;

HAC-HDB3120EN-Z;

HAC-HDB3220EN-ZH;

HAC-HDB3120EN-ZH;

HAC-HDB3220EP-Z;

HAC-HDB3120EP-Z;

HAC-HDB3220EP-ZH;

HAC-HDB3120EP-ZH;

HAC-HDBW3220EN-Z;

HAC-HDBW3120EN-Z;

HAC-HDBW3220EN-ZH;

HAC-HDBW3120EN-ZH;

HAC-HDBW3220EP-Z;

HAC-HDBW3120EP-Z;

HAC-HDBW3220EP-ZH

HAC-HDBW3120EP-ZH

1General Introduction

1.1 Overview

This series HDCVI camera conforms to the HDCVI standard. It supports video signal high-

speed long distance transmission without any delay. It can be controlled by the DVR

conforming to the HDCVI.

1.2 Features

High-performance CMOS image sensor, megapixel definition.

Restore clear and vivid video.

Default motorized vari-focal lens, support coaxial control lens zoom and focus.

Support external audio source input.

Support 1 channel external alarm signal input, 1 channel alarm output.

Support audio, control and video coaxial transmission.

For 720P series, support 75-3 coaxial cable transmission without any loss. The distance is

over 500m. For 1080P series, support 75-3 coaxial cable transmission without any loss.

The distance is over 300m. High speed, long distance real-time transmission.

Support HDCVI HD and analog SD switch output.

Support high performance 3D noise reduction.

Support intelligent IR function, max IR distance 20m.

Support ICR switch to realize surveillance both in the daytime and at night.

Support OSD (on-screen display) menu to adjust parameters.

Support privacy tampering, AWB, AE, auto aperture and other functions.

Support DC12V/AC24V power supplying.

Support IP66 protection level.

Support IK 10 compliance.

Can be applied to finance, supermarket, telecommunication, government, school, airport,

factory, hotel and other places which need HD video.

2Device Framework

2.1 Framework and Dimension

Please refer to the figure2-1 for dimension information. The unit is mm.

Figure 2-1

2.2 Structure Component

Figure 2-2

See Sheet 2-1 for more details about ports.

Cable

Color

Port Name

Function

Green

ALARM_NO

On-off alarm output end.

Orange

ALARM_NC

On-off alarm output end.

Red

ALARM_IN

Alarm signal input end.

Black

ALARM_GND

Alarm signal input GND.

Brown,

White

SD/HD Switch

Control Cable

It can realize the switch from HD video output to SD

video output when it is short circuit SD/HD switch

control cable. On the contrary, the open circuit

control cable will switch back to HD video output.

Audio Input Port

External Audio Source Input.

Note:

You need to set the camera’s “Audio Mode”as

“External Audio”when using external audio source

input.

Video Output Port

In the HD output mode, it sends video stream

according to HDCVI standard, and supports the

transmission of audio stream and control data

stream at the same time, and the back-end needs

to connect to HCVR to control; it transmits video

signal via CVBS signal in SD output mode.

Power Input Port

Input DC12V/AC 24V.

Sheet 2-1

3Installation

The installation mode of dome camera is mainly ceiling installation, and the installation location

includes ceiling and wall.

Attention:

Before the installation, please make sure the installation ceiling or wall can sustain at least

3X weight of the camera.

For the installation mode of side cable exit, make sure the direction of side cable exit has

to be in accordance with the direction of installation position map when sticking the

installation position map, and pull the cable through the pedestal cable slot and secure the

screws before fixing screws on the pedestal.

Please don’t tear off the electrostatic adsorption film on the cover before installation

debugging is over, which is to avoid damage during installation. Please don’t touch the

dome cover after tearing off the electrostatic adsorption film in order not to leave a mark.

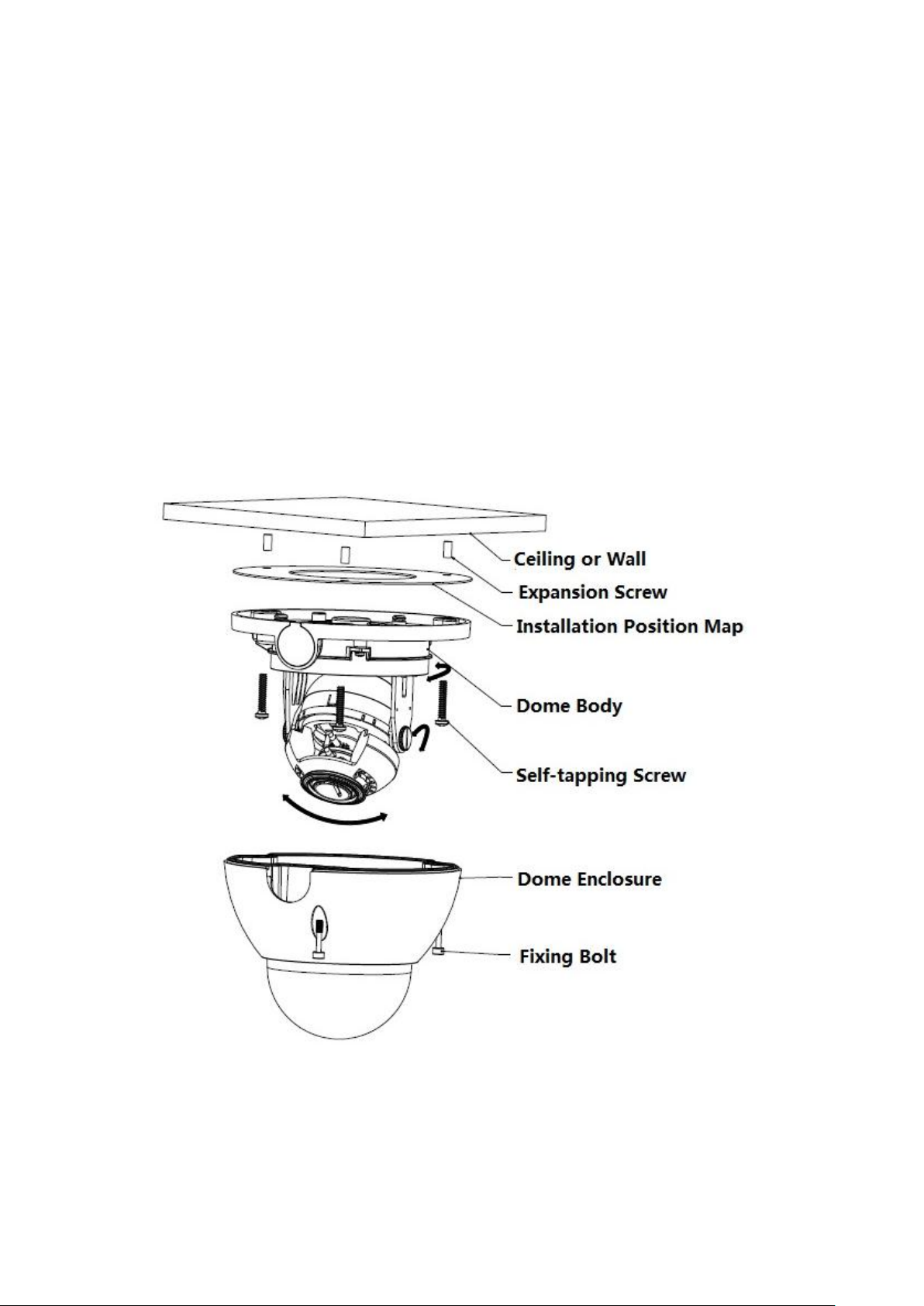

Figure 3-1
