Daewoo DWF-800 User manual

INSTRUCTION MANUAL

■Applying One-Touch Operation System.

■Realizing calm washing through the innovational low-noise

design.

■Before operating this washer, please read this instruction

completely. Thank you

Model: DWF-800/802/750/752

Full-Auto Electric Washing Machine

CONTENTS Page

PARTS AND FEATURES.........................................................................................................................................2

WASHER SAFETY.................................................

.................................................................................

.................3

INSTALLATION INSTRUCTIONS..........................

.................................................................................

................4

ELECTRICAL REQUIREMENTS............................................................................................................................5

INLET HOSE CONNECTION..................................................................................................................................6

OPERATING YOUR WASHER.........................................

.................................................................................

.....7

THE FUNCTIONS OF THE CONTROL PANEL....................................................................................................8

WASHING PROCEDURE AND PROGRAM SELECTION

......

...............................................................................

..9

GENERAL PROCEDURE FOR OPERATION.....................................................................................................11

CARING FOR YOUR WASHER..............................

..................................................................................

............12

HOW TO CLEAN THE FILTER.............................

..................................................................................

..............13

REMOVING STAINS..............................................................................................................................................14

TROUBLE SHOOTING..........................................................................................................................................15

SPECIFICATION.....................................................

....................................................

..............................

............16

A NOTE TO YOU

Thank you for buying a DAEWOO appliance.

DAEWOO washers are easy to use, save time, and help you manage your home better.

This manual contains valuable information about how to operate and maintain your washer properly and safely.

Please read it carefully.

DWF-800/802/750/752 00.8.31 1:42 PM ˘ ` 1

•GROUND WIRE

In case of 3-wire

power cord, ground

wire will not be

provided

•POWER CORD

•DRAIN HOSE

•LINT FILTER

•COLD WATER TAP

After using the washer,

close the water tap

•DETERGENT CASE

•ADJUSTABLE LEG

•SOFTENER INLET

•BLEACH INLET

•CONTROL PANEL

•POWER SWITCH

•PULSATOR

PARTS AND FEATURES

ACCESSORIES (Pull Option)

DRYTEN COVER UNDER WATER TAP ADAPTER

In case of screw-shaped inlet hoses, water tap

adapters will not be provided.

INLET HOSE

HOSE DRAIN (FOR NON-PUMP) HOSE CONNECTORHOSE DRAIN (FOR PUMP) CONNECTOR INLET

DRYTEN

The parts and features of your washer are illustrated on this page.

Become familiar with all parts and features before using your washer.

NOTE

•

The drawings in this book may vary from your washer model.

They are designed to show the different features of all models covered by this book,

Your model may not include all features.

•HOT WATER TAP

After using the washer, close the water tap.

In case of the single valve model,

there is no hot water valve.

DWF-800/802/750/752 00.8.31 1:42 PM ˘`2

Read all instructions before using your washer

Save these instructions

Your safety is important to us.

To reduce the risk of fire, electrical shock, or injury when using your washer adhere to

the following basic precautions.

Understanding your responsibilities

•Flammable fluids (dry-cleaning solvents,

kerosene, gasoline, etc.) should not be

used or stored in or near your washer.

Do not add flammable fluids to your wash

water. These substances give off vapours

that can create a fire hazard or explosion.

•Have only a qualified person install, repair,

or replace parts on washer.

•Maintain washer properly.

•Protect washer from the weather and keep

it where the temperature will not fall below

freezing.

•Do not install the washer at a place of

extremely high humidity. It could cause an

electric shock or a short circuit.

•Ground washer properly.

•Connect washer to the correct outlet, electrical

supply, water supply, and drain supply.

•Do not wash fiberglass materials.

Small particles can stick to fabrics washed in following loads and cause skin irritation.

•After starting a cycle, do not reach into the

spin basket until all motion stops.

•Do not tamper with the controls.

•The appliance is not intended for use by

young children or infirm persons without

supervision.

•Do not use chlorine bleach and ammonia or acid (such as vinegar or rust remover) in the

same wash. Hazardous fumes can form.

•

Young children should be supervised to ensure

that they do not play with the appliance.

•If the supply cord is damaged, it must be

replaced by the manufacturer or its sevice

agent or a similarly qualified person in order

to avoid a hazard.

•Do not use hot water if standard temperature is over 50ßC (122ßF).

It could cause a deformation of plastic parts.

•Do not spray water on the control panel and back cover of the washer.

It could cause fire or an electric shock.

•In case of the dual valve model, if you connect only cold water inlet valve, while water temperature

is selected as hot or warm, there can be water leakage from unconnected water inlet valve.

•Unplug power supply cord before attempting to service your washer.

•

If the appliance is supplied from a cord extension

set or electrical portable outlet device it should be

positioned so it is not subjected to splashing or

ingress of moisture.

Please ...

WASHER SAFETY

DWF-800/802/750/752 00.8.31 1:42 PM ˘`3

Non-Pump Model Pump Model

Location of washer

Check location where washer will be installed. Make sure you have everything

necessary for correct installation.

Proper installation is your responsibility.

•Do not place or store your washer below 0°C (32°F) to avoid any damage from freezing.

•Install the washer on the horizontal solid floor.

Drain system

Never forget to install drain hose before operating your washer.

The packing box is opened, there are a drain hose.

INSTALLATION INSTRUCTIONS

•Connect the drain hose to the drain outlet at the back side of the washer.

Drain hose

Drain Outlet

Drain hose

If the washer is installed on an unsuitable floor, it could

make considerable noise, vibrate and cause a malfunction.

If washer is not level, adjust the front leg(A) up or down for

horizontal setting.

•Earthed electrical outlet(B) is required with 20cm of

bottom back of washer cabinet.

•Hot and cold water faucets (C) must be within 1m of the

upper back of the washer cabinet and provide water

pressure 0.3kgf/cm 2-8kgf/cm 2 (2.94N/cm 2-78.4N/cm2).

UP DOWN

NOTES

•The opening must not be obstructed by carpeting when the washing machine is

installed on a carpeted floor.

DWF-800/802/750/752 00.8.31 1:42 PM ˘`4

Recommended earthing method

WARNING

Laundry tub drain system Standpipe drain system

Pump Model

Non-Pump Model

1In case that it goes over

a door sill.

Don’t let the height of

the drain hose exceed

20cm from the bottom

of washer.

2In case of extending the

drain hose.

Don’t let the total length

exceed 3m.

3Be careful that the end

of the drain hose is not

immersed in water.

• Top of tub must be at least 86cm

(34inches) high and no higher than 130cm

from bottom of washer (A)

•Needs a 3cm minimum diameter

standpipe with minimum carry away

capacity of 30liters per minute.

•Top of tub must be at least 86cm

(34inches) high and no higher than 130cm

from bottom of washer (B)

20Cm

ELECTRICAL REQUIREMENTS

For your personal safety, this washer must be earthed.

This washer is equipped with a power supply cord (A) having a

earthing plug (B). To minimize possible shock hazard, the cord must

be plugged into a mating earthing-type wall receptacle (C).

If a mating wall receptacle is not available, it is the personal

responsibility and obligation of the customer to have the proper

earthed wall receptacle installed by a qualified electrician.

•Electrical earth is required on this washer

•If it does not fit the outlet, have a proper outlet

installed by a qualified electrician.

•Don’t earth to a gas pipe

•Don’t change the power supply cord plug.

•Check with a qualified electrician if you are not

sure the washer is properly earthed.

electrical shock hazard:failure to follow these instructions could result in

death or serious injury.

DWF-800/802/750/752 00.8.31 1:42 PM ˘`5

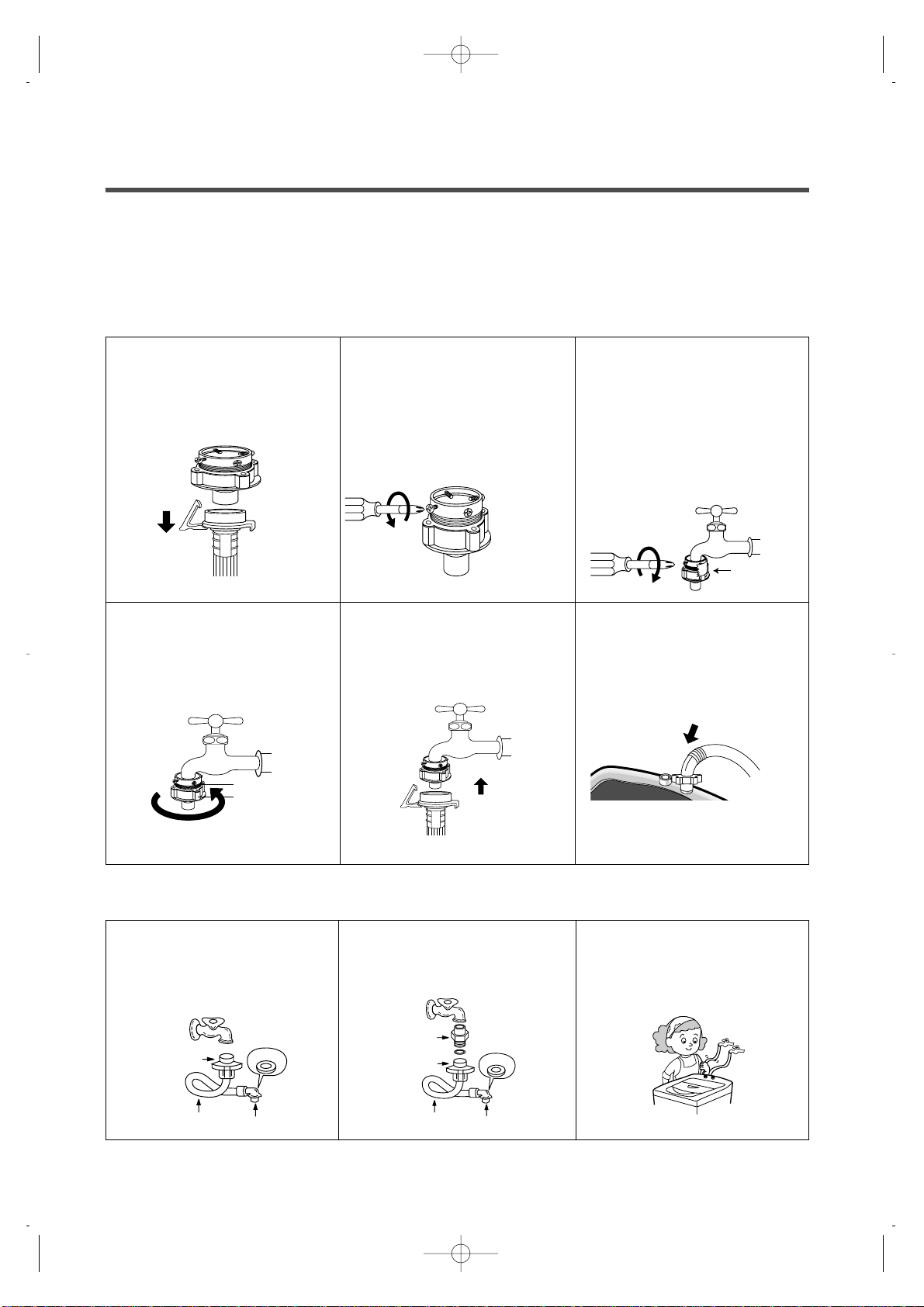

Be careful not to confuse hot water inlet and cold water inlet.

In using only one water tap or in case of attached one water inlet valve, connect the

inlet hose to the cold water inlet valve.

For Screw-Shaped Tap

For Ordinary Tap

INLET HOSE CONNECTION

1Pull down the collar of

the inlet hose to separate

it from the water tap

adapter.

2Loosen the four screws

properly in fitting into

water tap.

123

Fit the water tap adapter

into the water tap

and tighten the four

screws evenly while

pushing up the adapter

so that the rubber

packing can stick to the

water tap tightly.

4Remove the tape, and

screw connector B into

connect A tightly.

5Connect the inlet hose to

the water tap adapter by

pulling down the collar of

the hose end.

6Connect the inlet hose

adapter of the hose to

the water inlet of the

washer by turning it

clockwise to be fixed

tightly.

•Please check the rubber

packing inside the inlet hose

adapter of the hose.

Connect the inlet hose to

the water tap by

screwing the connector

tightly.

Connect the connector-

inlet supplied if

necessary.

Insert the inlet hose

adapter into the water

inlet of washer and turn

it to be fixed.

*Check the packing in the inlet

TAPE

Connector B

Connector A

Connector

Rubber

Packing

Hose

Connector

Rubber

Packing

Hose

Connector

inlet

DWF-800/802/750/752 00.8.31 1:42 PM ˘`6

Sorting

Preparing clothes for washing

To obtain the best washing results, you must operate your washer properly.

This section gives you this important information.

OPERATING YOUR WASHER

•Close zippers, snaps, and hooks to avoid

snagging other items.

Remove pins, buckles, and other hard

objects to avoid scratching the washer

interior.

•Empty pockets and turn them inside out.

•Turn down cuffs and turn synthetic knits

out to avoid pilling.

•Tie strings and sashes so they will not

tangle.

•Treat spots and stains.

(see "Removing stains" on page14)

•Drop items into washer loosely. Items

should move easily through wash water

for best cleaning and wrinkle-free results.

•Load washer properly and select correct

load size setting.

Overloading and selecting a setting too

small for the wash load can:

- cause poor cleaning

- increase wrinkling

- create excessive lint

- wear out items faster (because of pilling)

•Mix large and small items in each load.

Load evenly to maintain washer balance.

An unbalanced load can make the washer

vibrate during spin.

•Reduce wash time when using a small

load size setting. Loads with only a few

small items need less wash time.

•Use a large load size setting to reduce

wrinkling with permanent press clothes

and some synthetic knits. These items

should have more room to move in the

water than heavy items (towels, jeans)

•Separate heavily soiled items from lightly soiled ones, even if they would normally be

washed together.

•Separate dark colors from light colors, colorfast items from non-colorfast item.

DWF-800/802/750/752 00.8.31 1:42 PM ˘`7

THE FUNCTIONS OF THE CONTROL PANEL

• Press this switch to turn the power on or off.

•It can be used to choose water temperature to be supplied.

• As the button is pressed, water temperature will be repeated.

COLD ➝COLD+HOT ➝HOT

•In case of the single valve model, there is no wash temperature

selector function.

•It can be used to adjust amount of water according to the size of the

load to be washed.

•As the button is pressed, water level is selected by

MID ➝ HIGH ➝ LOW

•It can be used to pre-engage time for wash.

•It is the button for the partial process or the combination of each

process (wash, rinse, spin) (See page 10)

•If you want to change wash time, rinse times, spin time, you must

press this button after selecting each process by the process button.

Also, this button can be used to spin only. (See page 10)

•It can be used to select the full-automatic program.

•As the button is pressed, program will be selected by following order:

FUZZY➝FUZZY+SOAK➝HEAVY ➝SUIT(WOOL)➝HEAVY+SOAK ➝SPEEDY

•Operation and temporary stop is repeated as it is pressed.

•When you want to change program in operating;

press the "START/HOLD" button ➝Select the program that you want to

change ➝press the "START/HOLD" button again.

RES.

HOURS

CONTROL

PROGRAM

RES.

CONTROL

PROGRAM

DWF-800/802/750/752 00.8.31 1:42 PM ˘`8

PROGRAM

FULL AUTOMATIC PROGRAM

1. FUZZY PROGRAM (SENSOR);

• This selection is for general washing except extraordinary clothes.

•Artificial brain sensor selects properly the various kind of washing condition such as

•Procedure to press the button.

washing time, rinse times, spin time and water level.

5. SOAK PROGRAM;

•This selection is effective for heavily soiled clothes.

•If you want to soak, press the program button to adjust to "FUZZY+SOAK" or "HEAVY+SOAK".

•Procedure to press the button.

Adjust to

"SOAK" Adjust to

water level and

water temperature

WASHING PROCEDURE AND PROGRAM SELECTION

Adjust to Put the neutral

detergent.

2. HEAVY PROGRAM;

•This selection is effective for blue-jean, climbing clothes, rucksack, sports wear, etc..

•Procedure to press the button;

3. SPEEDY PROGRAM;

•This selection is useful to reduce water consumption and washing time for less dirty

•clothes.

Procedure to press the button;

4. SUIT(WOOL) PROGRAM;

•This selection is effective for suit clothes. (1.2kg’s limitation for 1-time wash)

•Do not put leather clothes, or chamois clothes into the washing tub for washing.

It may cause shrinkage or deformation to the clothes.

•Please use the neutral detergents only.

•The water temperature is fixed to "COLD".

•The water level "LOW" is not selected.

•Procedure to press the button.

Adjust to

"HEAVY"

PROGRAM

Adjust to water

level and water

temperature

Adjust to

"SPEEDY" Adjust to

water level and

water temperature

"SUIT(WOOL)"

DWF-800/802/750/752 00.8.31 1:42 PM ˘`9

RES.

WASH TIME CONTROL

• As the control button is pressed, wash time will be repeated as

following;

➝

9min.

•If you don’t want wash process, you must adjust wash time to 0 min..

RINSE TIMES CONTROL

• As the control button is pressed, rinse times will be repeated as

following;

➝

1 time(s)

•If you don’t want rinse process, you must adjust rinse times to 0 times.

SPIN TIME CONTROL

•As the control button is pressed, spin time will repeated as following;

➝

3min.

•If you don’t want spin process, you must adjust spin time to 0 min..

Reserved Washing

• Reservation can be made from 2 hours to 48 hours.

• Procedure to press the button.

example) To make reservation to complete washing in 8 hours.

•Now the reservation is made.

•If you want to check the selected program, press the "START/HOLD" button again.

PARTIAL PROCESS & COMBINATION

adjust to "8"

CONVENIENT OPERATION FOR SPIN ONLY

• If you want spin only, it is convenient to operate

the button as following;

"--" shall blink

Select the program.

Adjust to water level

and water temperature. HOURS

MIN MIN

HOURS

CONTROL

DWF-800/802/750/752 00.8.31 1:42 PM ˘`10

This manual suits for next models

Table of contents

Other Daewoo Washer manuals

Daewoo

Daewoo DWD-FD1411 User manual

Daewoo

Daewoo D-CV701PC Series User manual

Daewoo

Daewoo DWD-F1021 User manual

Daewoo

Daewoo DWF-830H User manual

Daewoo

Daewoo DWF-750MS User manual

Daewoo

Daewoo DWF-200SL User manual

Daewoo

Daewoo DWD-G1081S User manual

Daewoo

Daewoo DWD-HT1011 User manual

Daewoo

Daewoo DW-3000 Series Installation guide

Daewoo

Daewoo DWF-180MNP User manual

Daewoo

Daewoo DWF-5510P User manual

Daewoo

Daewoo DWF-270G User manual

Daewoo

Daewoo DW-1411 User manual

Daewoo

Daewoo DWD-WD1132 User manual

Daewoo

Daewoo DWD-FD1411 User manual

Daewoo

Daewoo DWF-5590DP Series User manual

Daewoo

Daewoo DWC-1011W User manual

Daewoo

Daewoo DWD-E1200R S User manual

Daewoo

Daewoo WM510T0WU0ES User manual

Daewoo

Daewoo DWF-600M User manual

Daewoo

Daewoo DWF-1089 User manual

Daewoo

Daewoo DWD-CV701PC User manual

Daewoo

Daewoo DWD-FD1451 User manual

Daewoo

Daewoo DWF-4220 Series User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
