INSTRUCTION MANUAL

DWDMV10B1 - DWDMV12B1

Washing Machine Instruction Manual

BEFORE USING THE APPLIANCE ......................................................................................................................2

OVERVIEW OF YOUR DEVICE ..........................................................................................................................18

INSTALLATION OF THE MACHINE....................................................................................................................23

INTRODUCTION OF CONTROL PANEL ...........................................................................................................32

PRELIMINARY PREPARATION FOR LAUNDERING .......................................................................................38

PROGRAM TABLE ...............................................................................................................................................57

MAINTENANCE AND CLEANING OF YOUR MACHINE..................................................................................66

FLUSH STOPPER / BODY / DRUM ....................................................................................................................71

TROUBLE SHOOTING.........................................................................................................................................72

AUTOMATIC FAULT WARNINGS AND WHAT TO BE DONE.........................................................................77

PRACTICAL INFORMATION ...............................................................................................................................78

DESCRIBING ENERGY LABEL AND SAVING ENERGY.................................................................................82

DISPOSAL OF YOUR OLD MACHINE ...............................................................................................................84

CONTENTS Page

7-��MI�KPFF ��

DAEWOO UK Customer Helpline Number : 03330 144477

For more information, Visit DAEWOO ELECTRONICS

Website www.daewooelectronics.co.uk

52240137_F2B_EN.indd 1 02.02.2018 17:01:04

Icon Type Meaning

WARNING Risk of serious injury or death

RISK OF ELECTRIC SHOCK Dangerous voltage risk

FIRE Fire risk

CAUTION Injury or property damage risk

IMPORTANT / NOTE Information on operating the system correctly

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation

and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this

book for future reference.

52240137_F2B_EN.indd 1 02.02.2018 17:01:05

EN - 1

1.SAFETY INSTRUCTIONS

Read this user manual carefully.

Your machine is for domestic use only.

Using it for commercial purposes will cause

your warranty to be cancelled.

1.1. General Safety Warnings

• The necessary ambient temperature for operation of

your Washing Machine is 15-25 °C.

• Where the temperature is below 0 °C, hoses may

split or the electronic card may not operate correctly.

• Please ensure that garments loaded into your

Washing Machine are free from foreign objects such

as nails, needles, lighters and coins.

• It is recommended that for your first wash,

you select the 90˚ Cotton programme without

laundry and half fill the compartment II of the

detergent drawer with a suitable detergent.

• Residue may build up on detergent and softeners

exposed to air for a long period of time. Only put

softener or detergent in the drawer at the beginning

of each wash.

• Unplug your Washing Machine and switch off the

water supply if the Washing Machine is left unused

for a long time. We also recommend that you leave

the door open to prevent build up of humidity inside

the Washing Machine.

• Some water may be left in your Washing Machine

as a result of quality checks during production.

This will not affect the operation of your Washing

Machine.

• The packaging of the machine could be hazardous

to children. Do not allow children to play with the

52240137_F2B_EN.indd 1 02.02.2018 17:01:05

EN - 2

packaging or small parts from the Washing Machine.

• Keep the packaging materials in a place where

children cannot reach them, or dispose of them

appropriately.

• Use pre-wash programs only for very dirty laundry.

Never open the detergent drawer while the machine

is running.

• In the event of a breakdown, unplug the machine

from the mains supply and turn the water supply

off. Do not attempt to carry out any repairs. Always

contact an authorised service agent.

• Do not exceed the maximum load for the washing

programme you have chosen.

Never force the door open when your Washing

Machine is running.

• Washing laundry containing flour may damage your

machine.

• Please follow the manufacturers’ instructions

regarding the use of fabric conditioner or any similar

products that you intend to use in your Washing

Machine.

• Make sure that the door of your Washing Machine is

not restricted and can be opened fully.

• Install your machine in a location that can be

fully ventilated and preferably has constant air

circulation.

Read these warnings. Follow the advice given

to protect yourself and others from risks and fatal

injuries.

RISK OF BURNS

Do not touch the drain hose or any discharged

water while your Washing Machine is running. The

high temperatures involved pose a burn risk.

52240137_F2B_EN.indd 2 02.02.2018 17:01:05

EN - 3

RISK OF DEATH FROM ELECTRICAL

CURRENT

• Do not connect your Washing Machine to the mains

electricity supply using an extension lead.

• Do not insert a damaged plug into a socket.

• Never remove the plug from the socket by

pulling the cord. Always hold the plug.

• Never touch the power cord/plug with wet

hands as this could cause a short circuit or

electric shock.

• Do not touch your Washing Machine if your

hands or feet are wet.

• A damaged power cord/plug can cause fire or

give you an electric shock. When damaged it

must be replaced, this should only be done by

qualified personnel.

Risk of flooding

• Check the speed of water flow before placing the

drain hose in a sink.

• Take necessary measures to prevent the hose from

slipping.

• Water flow may dislodge the hose if it is not properly

secured. Make sure the plug in your sink does not

block the plug hole.

Danger of Fire

• Do not store inflammable liquids near your machine.

• The sulphur content of paint removers may cause

corrosion. Never use paint removing materials in

your machine.

• Never use products that contain solvents in your

machine.

• Please ensure that garments loaded into your

52240137_F2B_EN.indd 3 02.02.2018 17:01:05

EN - 4

Washing Machine are free from foreign objects such

as nails, needles, lighters and coins.

Risk of fire and explosion

Risk of falling and injury

• Do not climb on your Washing Machine.

• Make sure hoses and cables do not cause a trip

hazard.

• Do not turn your Washing Machine upside down or

on its side.

• Do not lift your Washing Machine using the door or

detergent drawer.

The machine must be carried by at least 2

people

Child safety

• Do not leave children unattended near the machine.

Children might lock themselves in the machine

resulting in risk of death.

• Do not allow children to touch the glass door during

operation. The surface becomes extremely hot and

may cause damage to skin.

• To avoid danger of suffocation ,keep packaging

materials away from baby and children.

• Poisoning and irritation may occur if detergent

and cleaning materials are consumed or come

into contact with the skin and eyes. Keep cleaning

materials out of the reach of children.

1.2. During Use

• Keep pets away from your machine.

• Please check the packaging of your machine before

installation and the outer surface of the machine

once the packaging has been removed. Do not

52240137_F2B_EN.indd 4 02.02.2018 17:01:05

EN - 5

operate the machine if it appears damaged or if the

packaging has been opened.

• This appliance can be used by children aged

8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given

supervision or instruction concerning use of the

appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be done

by children without supervision.

• Only use your machine for laundry that is labelled as

suitable for washing by the manufacturer.

• Before operating the washing machine, remove

the 4 transit bolts and rubber spacers from the

rear of the machine. If the bolts are not removed

they may cause heavy vibration, noise and

malfunction (voiding the guarantee).

• For guidance see Daewoo Youtube https://www.

youtube.com/ watch?v=daL8ryYGA24).

• Your warranty does not cover damage caused by

external factors such as fire, flooding and other

sources of damage.

• Please do not throw away this user manual; keep it

for future reference and pass it onto the next owner.

NOTE: Specifications for the machine may vary

depending on the product purchased.

52240137_F2B_EN.indd 5 02.02.2018 17:01:05

EN - 6

1.3. Packaging and Environment

Removal of packaging materials

Packaging materials protect your machine from any

damage that might occur during transportation. The

packaging materials are environmentally friendly as

they are recyclable. Use of recycled material reduces

raw material consumption and decreases waste

production.

1.4. Savings Information

Some important information to get the most efficient

use out of your machine:

• Do not exceed the maximum load for the washing

programme you have chosen. This will allow your

machine to run in energy saving mode.

• Do not use the pre-wash feature for lightly soiled

laundry. This will help you save on the amount of

electricity and water consumed.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and

Regulations and the requirements listed in the standards referenced.

Disposal of your old machine

The symbol on the product or on its packaging indicates that this product

may not be treated as household waste. Instead it shall be handed over to

the applicable collection point for the recycling of electrical and electronic

equipment. By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment and human

health, which could otherwise be caused by inappropriate waste handling of

this product. For more detailed information about recycling of this product,

please contact your local city office, your household waste disposal service or the shop

where you purchased the product.

52240137_F2B_EN.indd 6 02.02.2018 17:01:05

EN - 7

2. TECHNICAL SPECIFICATIONS

123

2.1. General Appearance

1. Electronic Display

2. Programme Dial

3. Upper Tray

4. Detergent Drawer

5. Drum

6. Pump Filter Cover

7. Water Inlet Valve

8. Power Cable

9. Drain(discharging) Hose

10. Transit Bolts

2.2. Technical Specifications

Operating

voltage /

frequency

(V/Hz)

(220-240)

V~/50Hz

Total current

(A) 10

Water

pressure

(Mpa)

Maximum:

1 Mpa

Minimum :

0.1 Mpa

Total power

(W) 2100

Maximum

dry laundry

capacity (kg)

Spin speed

(rpm)

DWDMV10B1 :

1000 rpm

DWDMV12B1 :

1200 rpm

Programme

number 15

Dimensions

(mm)

Height

Width

Depth

845

597

497

52240137_F2B_EN.indd 7 02.02.2018 17:01:05

EN - 8

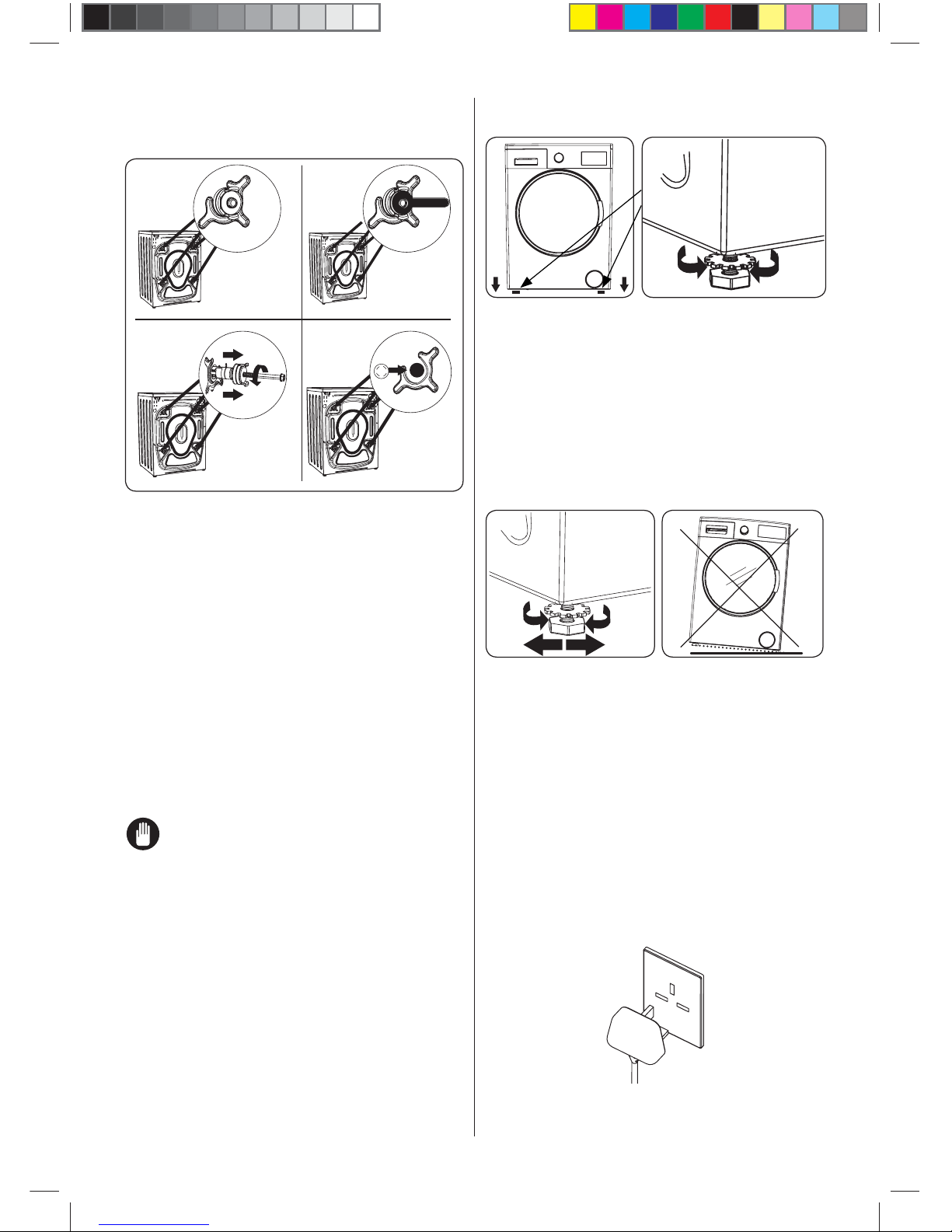

3. INSTALLATION

3.1. Removing Transit Bolts

X X

4 4

1. Before operating the washing machine,

remove the 4 transit bolts and rubber

spacers from the rear of the machine.

If the bolts are not removed, they

may cause heavy vibration, noise and

malfunction of the machine and void the

warranty.

2. Loosen the transit bolts by turning

them anticlockwise with an appropriate

spanner.

3. Remove the transit bolts with a straight

pull.

4. Fit the plastic blanking caps supplied in

the accessories bag into the gaps left

by the removal of the transit bolts. The

transit bolts should be stored for future

use.

NOTE: Remove the transit bolts

before using the machine for the first time.

Faults occurring due to the machine being

operated with transit bolts fitted are out of

the scope of the warranty.

3.2. Adjusting the Feet /

Adjusting Adjustable Stays

1. Do not install your machine on a surface

(such as carpet) that would prevent

ventilation at the base.

• To ensure silent and vibration-free

operation of your machine, install it on a

firm surface.

• You can level your machine using the

adjustable feet.

• Loosen the plastic locking nut.

2 3

2. To increase the height of the machine,

turn the feet clockwise. To decrease

the height of the machine, turn the feet

anticlockwise.

• Once the machine is level, tighten the

locking nuts by turning them clockwise.

3. Never insert cardboard, wood or other

similar materials under the machine to

level it.

• When cleaning the ground on which

the machine is located, take care not to

disturb the level of the machine.

3.3. Electrical Connection

• Your Washing Machine requires a 220-

240V, 50Hz mains supply.

52240137_F2B_EN.indd 8 02.02.2018 17:01:06

This manual suits for next models

Table of contents

Other Daewoo Washer manuals

Daewoo

Daewoo DWD-M12CK User manual

Daewoo

Daewoo DWD-M1041 User manual

Daewoo

Daewoo DWF-33CG Series User manual

Daewoo

Daewoo DWF-1094 User manual

Daewoo

Daewoo DWF-160M User manual

Daewoo

Daewoo DWF-261AW User manual

Daewoo

Daewoo DWF-901M User manual

Daewoo

Daewoo WM710T1WU4RS User manual

Daewoo

Daewoo DWF-7094P User manual

Daewoo

Daewoo DW-6510 User manual

Daewoo

Daewoo DWD-FC1011 User manual

Daewoo

Daewoo DWD-HC1011 User manual

Daewoo

Daewoo WM812T1WB0BG User manual

Daewoo

Daewoo DWD-HB143 Series User manual

Daewoo

Daewoo DWD-FD2442 User manual

Daewoo

Daewoo DWF-260NSTC User manual

Daewoo

Daewoo DWF-201M User manual

Daewoo

Daewoo DWD-MI Series User manual

Daewoo

Daewoo DWD-G1282SC User manual

Daewoo

Daewoo DWM-7010 User manual

Daewoo

Daewoo DW-1300 User manual

Daewoo

Daewoo DW-160C User manual

Daewoo

Daewoo DWC-UD121DC User manual

Daewoo

Daewoo DWF-4220 Series User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
