Daewoo DWD-AF1011 User manual
Service Manual
Washing Machine
Model: DWD-AF1011
DWD-AF1012
DWD-AF1013
1. SPECIFICATIONS
2
SPECIFICATIONS
HOT
(OPTION) COLD
■ Accessories
■ DWD-AF101X SERIES
Hose drain Inlet hose Manual Cap holder(3EA)
POWER SOURCE A.C 220V/50Hz , A.C 230V/50Hz , A.C 240V/50Hz
DiMENSION (WXDXH) 595mm x 540mm x 850mm
WEIGHT 64 kg
WATER CONSUMPTION 47~59
POWER CONSUMPTION 2200W
MAXIMUM MASS WASH 7 kg
OF TEXTILE SPIN 7 kg
WASHER TYPE DRUM TYPE (FRONT LOADING WASHING MACHINE)
OPERATING WATER PRESSURE 0.3 ~ 8kgf/cm2(29.4 ~ 784kPa)
DWD-AF1011/AF1012/AF1013
MODEL
ADJUSTABLE LEG
CONTROL PANEL
DOOR
DETERGENT CASE
INLET HOSE
LOWER COVER
POWER CORD
HOSE DRAIN
5. EXPLODE VIEW AND PARTS LIST
14
EXPLODE VIEW AND PARTS LIST
■ BOX INLET AS
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
A01 HANDLE CASE 3612611600 DWD-AF1011,HIPS 1
DWD-AF1011(2)
3612611601 ABS + SILVER SPRAY DWD-AF1013
A02 CASE DETERGENT 3611140300 PP 1
A03 CAP SOFTENER 3610916600 PP 1
A04 BOX INLET 3610526500 PP 1
A05 NOZZLE AS 3618103510 NOZZLE TOP + NOZZLE UNDER 1 COLD ONLY
3618103500 COLD +HOT
A06 SCREW TAPPING 7122402011 T2S TRS 4X20 MFZN 1
A07 CLAMP AS 3611203200 ID=60,WIRE+GUIDE+BOLT+NUT 1
A08 HOSE INLET 3613267200 EPDM U-TRAP 1
A09 CLAMP HOSE I 3611201400 HSW3,D2.6,MFZN,ID=38 1
A10 HOSE WATER SUPPLY 3613270900 EPDM,ID=9.5,OD=14.5,L=225 2(1) COLD(HOT)
A11 CLAMP HOSE 3611205800 ID=13.8, W=10.0, T=0.9 4(2) COLD(HOT)
A12 VALVE INLET 3615416821 220-240V.VDE.BITRON.2WAY 1 COLD
3615414900 220-240V 2-WAY PP/BRACKET
A13 VALVE INLET 3615416720
220-240 50/60-1WAY,HOT,BITRON,VDE
1 HOT(OPTION)
3615414800
220-240V 1-WAY HOT PP-BRACKET
A14 SCREW TAPTITE 7272400811 TT3 TRS 4X8 MFZN 2(2) COLD(HOT)
15
EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS (DWD-AF101X SERIES)
B01
B02
B03
B06
B04
B05
B07
B08
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
B01 PANEL FRONT 36142T1700 HIPS 1DWD-AF1011(2)
PANEL F AS 3614285822 ABS, URETHANE COATING DWD-AF1013
B02 BUTTON SELECT 3616639200 ABS 1DWD-AF1011(2)
BUTTON SELECT AS 3613405252 ABS + SILVER SPRAY DWD-AF1013
B03 WINDOW LED 3615507100 ABS-TR 1 DWD-AF101X
B04 PCB AS PRPSSWC03- DWD-AF101X SERIES 1
B05 CASE PCB 36111T1600 HIPS 1 DWD-AF101X
B06 SCREW TAPPING 7122401611 T2S TRS 4x16 MFZN 6
B07 KNOB DIAL 3613406900 ABS 1DWD-AF1011(2)
KNOB DIAL AS 3613405232 ABS + SILVER SPRAY DWD-AF1013
B08 SCREW TAPPING 7122401608 T2S TRS 4x16 SUS 2
Refer to Detailed Part
Code of PCB AS
16
EXPLODE VIEW AND PARTS LIST
■ Detailed Part Code of PCB AS
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
PRPSSWC030 AF1011 SERIES, EC OPTION, HOT V/V, BUBBLE OPTION
B04 PCB AS PRPSSWC031
AF1011 SERIES, EC OPTION, COLD V/V, NON BUBBLE OPTION
1
PRPSSWC032 AF1011 SERIES, EC OPTION, COLD V/V, BUBBLE OPTION
PRPSSWC033
AF1011 SERIES, EC OPTION, HOT V/V, NON BUBBLE OPTION
DWD-AF101X'S
(1000RPM)
17
EXPLODE VIEW AND PARTS LIST

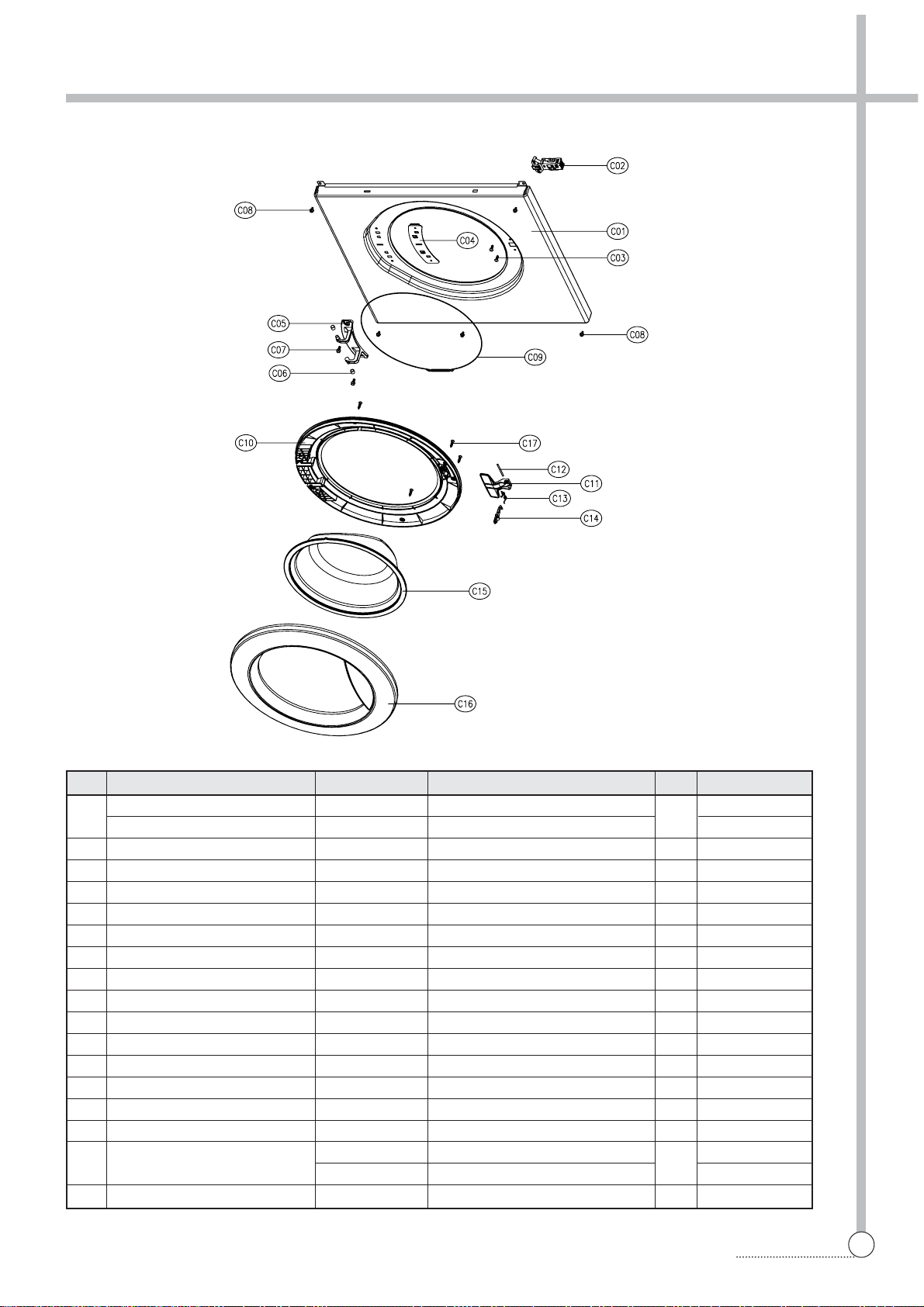

■ CABINET FRONT AS
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
C01 CABINET F 3610811201 DWD-800W PAINTING 1
DWD-AF1011(2)
CABINET FRONT 3610811210 PCM, SGCC 0.8T, SILVER DWD-AF1013
C02 SWITCH DOOR LOCK 3619046800 250V16A, ROLD, BI-METAL 1
C03 SCREW TAPPING 7122401208 T2S TRS 4X12 SUS 2
C04 PLATE HINGE SUPPORT 3614531900 SGCC T1.6 1
C05 HINGE DOOR 3612902800 ZNDC 1
C06 CAP HINGE DOOR 3610916500 POM 2
C07 SCREW TAPPING 3616030000 F/L BOLT(SE) 5*12 SUS 2
C08 SCREW TAPPING 3616029950 TTS"S" HEX F/L 4*8 6
C09 CLAMP DOOR AS 3611204800 HSWR D=1.4 1
C10 FRAME DOOR I 3612205200 PP 1
C11 HANDLE DOOR 3612608600 ABS 1
C12 PIN HANDLE 3618200200 SUS304, D3, L48 1
C13 SPRING HOOK 3615114600 SUS D1.4 1
C14 HOOK DOOR 3613100700 ZNDC 1
C15 DOOR GLASS 361A110700 GLASS PI300 1
C16 FRAME DOOR O 3612205102 HIPS D-F'S 1DWD-AF1011
3612205120 ABS, CR3 GILDING
DWD-AF1012(3)
C17 SCREW TAPPING 7115402008 T1S FLT 4*20 SUS 6
18
EXPLODE VIEW AND PARTS LIST
■ TUB ASS’Y
19
EXPLODE VIEW AND PARTS LIST
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
D01 BALANCER WEIGHT F L/R 3616106300 FRONT, 6.0kg 2
D02
SPECIAL SCREW(BALANCER)
3616029400 SWCH 8.5X30 8
D03 GASKET 3612321400 EPDM 1
D04 CLAMP GASKET AS 3611204500 HSWR D=1.8 1
D05 TUB FRONT 3618821001 FRPP FH7300GM 1
D06 SPECIAL SCREW(TUB) 3616029800 SWCH 6.5X30 14
D07 FIXTURE HEATER 3612007300 SUS 0.7T 440x45 1
D08 DRUM SUB AS 3617004001 SUS 0.5T 1
D09 LIFTER WASH 361A400400 PP 3
361A400410 NANO OPTION
D10 SPIDER AS 361A300500 ALDC+SM45C 1
D11 SPECIAL SCREW(SPIDER) 3616029500 SUS430 8x25 3
D12 HOSE DRAIN 3613267300 EPDM 1
D13 CLAMP AS 3611203200 ID=60,WIRE+GUIDE+BOLT+NUT 1
D14 CLAMP HOSE I 3611201400 HSW3, D2.6, MFZN, D=38 1
D15 AIR TRAP 361A500101 PP 1
D16 CLAMP HOSE 3611204700 D27 1
D17 HOSE AIR 3613268600 ID=4, OD=8, L=700 1
D18 TUB REAR 3618821101 FRPP FH7300GM 1
D19 BEARING OUTER 3616303200 6205Z FAG 1
D20 BEARING HOUSING 3616303300 ALDC 1
D21 BEARING INNER 3616303100 6206Z FAG 1
D22 WATER SEAL 361A600100 NBR 1
D23 GASKET TUB 3612321600 EPDM L=1675 1
D24 UNIT MOTOR UNIVERSAL 36189L4H00 220VDC50HZ 2POLES PI340 1
D25 CUSHION MOTOR FIX(A) 3611563900 BUTYLE 2
D26 CUSHION MOTOR FIX(B) 3611564000 BUTYLE 2
D27 SPECIAL WASHER 3616030400 T=4.0 M6 2
D28 SPECIAL BOLT 3616030900 M6x43, SPRING+PLATE WASER 2
D29 DAMPER FRICTION 361A700120 120N, AKS, ST=170-160, DL=197.5 2
D30 DAMPER PIN 361A700200 AKS, D=14.5 2
D31 HOSE VENT 3613267100 EPDM 1
D32 CLAMP HOSE 3611204700 D27 1
D33 BALANCER WEIGHT T 3616106500 TOP, 6.0kg 1
D34
SPECIAL SCREW(BALANCER)
3616029400 SWCH 8.5x30 3
D35 PULLEY 3618433500 PA6+GF30%, KEP 1330GF 1
D36 SPECIAL BOLT AS 3616029600 SWCH M10xL30, F/L BOLT 1
D37 BELT V 3616591100
MEGADTNE 5RIB, POLYURETHANE
1
3612802400
220V 2KW.1R0A721001.RW8TF.IRCA
220V 2kW
D38 HEATER WASH 3612802410
230V 2KW.1R0A721002.RW8TF.IRCA
1 230V 2kW
3612802420
240V 2KW.1R0A721003.RW8TF.IRCA
240V 2kW
D39 UNIT BUBBLE PUMP 36189L4120 220-240V DBK-204DB 1 OPTION
D40 SPRING SUSPENSION 3615114500 D3.2, L158 2
20
EXPLODE VIEW AND PARTS LIST
■ CABINET AS
21
EXPLODE VIEW AND PARTS LIST
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
E01 CABINET 3610811101
SGCC(GI), 0.7TX825.7X1630.8, WHITE PAINTIN G
1
DWD-AF1011(2)
3610811101
SGCC(GI), 0.7TX825.7X1630.8, SILVER PAINTING
DWD-AF1013
E02 SPECIAL SCREW 3616029100 M4x12.5, MACHINE 2
E03 FRAME UPPER 3612205800 SGCC T1.2 55X580 1
E04 SCREW TAPPING 3616029950 TTS"S" HEX F/L 4X8 4
E05 FRAME TOP-L 3612205600 SGCC T1.6 52x500 1
E06 FRAME TOP-R 3612205700 SGCC T1.6 52x500 1
E07 STOPPER SPRING 3615202200 POM 2
E08 COVER BACK AS 3611425510 SGCC 0.35T + EPDM 2T 1
E09 SENSOR PRESSURE 3614825300 5V DRUM DL-DW11 INLET 90 1
E10 FRAME LOWER 3612205500 SGCC T1.2 160X580 1
E11 BASE U-L 3610392200 SGCC T1.6 100x500 1
E12 BASE U-R 3610392300 SGCC T1.6 100x500 1
E13 UNIT DRAIN PUMP AS 36189L5K20 AL.220-240/50 B20-6 30W 6KG 1 220-240V/50Hz
E14 CAP WATER REMAIN 3610916800 PP 1
E15 HOSE WATER REMAIN 3613267800 EPDM, ID8.5, L200 1
E16 LEG ADJUST AS 3617703810 MFZN M10x1.25 + BUTYLE 4
E17 EMI FILTER(K26) 3611908730 [MIN]3MH, 0.47UF, 3TURN 1 K26
E18 CUFF DRAIN HOSE 3616802500 PP 1
E19 GUIDE DRAIN HOSE 3612510400 PP 1
E20 HOSE DRAIN I AS 3613268400 L=870 1
E21 CLAMP HOSE 3611204700 D27 1
E22 REACTOR AS 3615800100 DWD-800W RT--046B 1 OPTION
