D-Link SECURICAM DCS-7110 User manual

This document will guide you through the basic installation

process for your new D-Link Network Camera.

DCS-7110

Documentation also available on

CD and via the D-Link Website

Quick Installation Guide

HD IR Outdoor Network Camera

D-Link DCS-7110 Quick Installation Guide

This installation guide provides basic instructions for installing the DCS-7110

Network Camera on your network. For additional information about how to

use the camera, please see the User Manual which is available on the CD

include in this package or from the D-Link website.

Package Contents

• DCS-7110 HD IR Outdoor Network Camera

• Mounting Bracket

• User Manual and Software on CD-ROM

• CAT5 Ethernet Cable

• Power Adapter

• Quick Installation Guide

If any of the above items are missing, please contact your reseller.

Installation

D-Link DCS-7110 Quick Installation Guide 3

Infrared LEDs

IR LEDs Illuminate the

camera's eld of view

DI/DO Connectors

DI/DO connectors provide a physical interface to send

and receive digital signals to and from a variety of

external devices.

Reset Button

Press and hold this button for 10 seconds to reset

the camera to the factory default settings.

DC Power

Connect the supplied power adapter to a power outlet

or surge protector.

Ethernet (PoE)

Connect an Ethernet cable to connect to your network

and can also be used to power the camera using PoE.

IR-Cut Removable

(ICR) Sensor

IR-Cut Removable

sensor judges lighting

conditions and switches

from day mode to night

mode accordingly

Sunshield

Adjustable sunshield

protects the camera

sensor from direct

sunlight

24V Power Connector

Connects to 24V AC power.

RS485 Connector

RS485 Connectors for external devices.

Hardware Overview

D-Link DCS-7110 Quick Installation Guide

Ceiling Mount

1. Locate an area on the ceiling which is capable of

supporting the weight of the camera.

2. Mark and drill three pilot holes aligned to the screw

holes at the base of the mounting bracket.

3. Insert the plastic anchors into the pilot holes, and align

the holes at the base of the camera bracket with the

plastic anchors.

4. Once aligned, insert the provided screws through the

holes at the base of the camera bracket.

5. Use a screwdriver to tighten and secure the bracket into

place.

6. Attach the camera enclosure to the mounting bracket.

Align the camera to the correct eld of view and tighten

the thumbscrew to lock it into place.

7. The camera cables can be installed through a separate

large hole drilled in the ceiling, or using an external

cable conduit.

Wall Mount

1. Locate an area on the wall which is capable of supporting

the weight of the camera.

2. Mark and drill three pilot holes aligned to the screw

holes at the base of the mounting bracket.

3. Insert the plastic anchors into the pilot holes, and align

the holes at the base of the camera bracket with the

plastic anchors.

4. Once aligned, insert the provided screws through the

holes at the base of the camera bracket.

5. Use a screwdriver to tighten and secure the bracket into

place.

6. Attach the camera enclosure to the mounting bracket.

Align the camera to the correct eld of view and tighten

the thumbscrew to lock it into place.

7. The camera cables can be installed through a separate

large hole drilled in the wall, or using an external cable

conduit.

Hardware Mounting

D-Link DCS-7110 Quick Installation Guide

Basic Connection (without PoE)

1. Connect the camera to your switch or router via Ethernet cable.

2. Connect the power cable from the camera to the supplied power adapter.

3. Connect the supplied power adapter to a power outlet.

Power over Ethernet (PoE) Connection

If using a PoE switch or router, connect the network camera via Ethernet cable. PoE will transmit

both power and data over a single cable.

Note: Once power has been established, the LED will turn red. When the device has obtained

an IP address and is accessible, the LED will turn green.

Cable Connections

D-Link DCS-7110 Quick Installation Guide

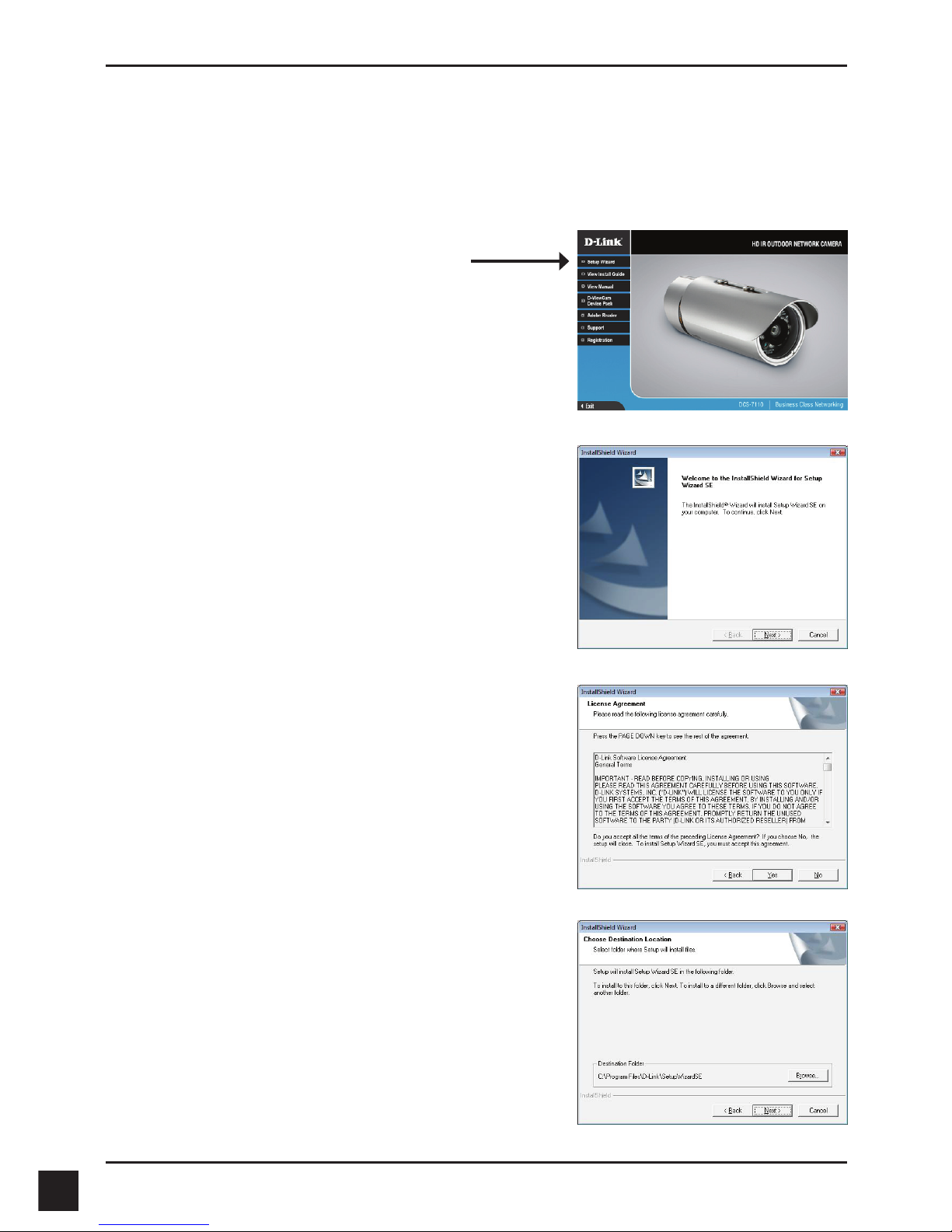

Insert the DCS-7110 CD into your computer's CD-ROM drive to begin the installation. If

the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start

automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive letter of

your CD-ROM drive.

Click Setup Wizard to begin the installation.

After clicking Setup Wizard, the following window will

open. Click Next to continue.

Click Yes to accept the License Agreement.

Select the location to install the Wizard and click Next to

continue.

Note: The installation may take several minutes to nish.

Conguration

D-Link DCS-7110 Quick Installation Guide

Click Finish to complete the installation.

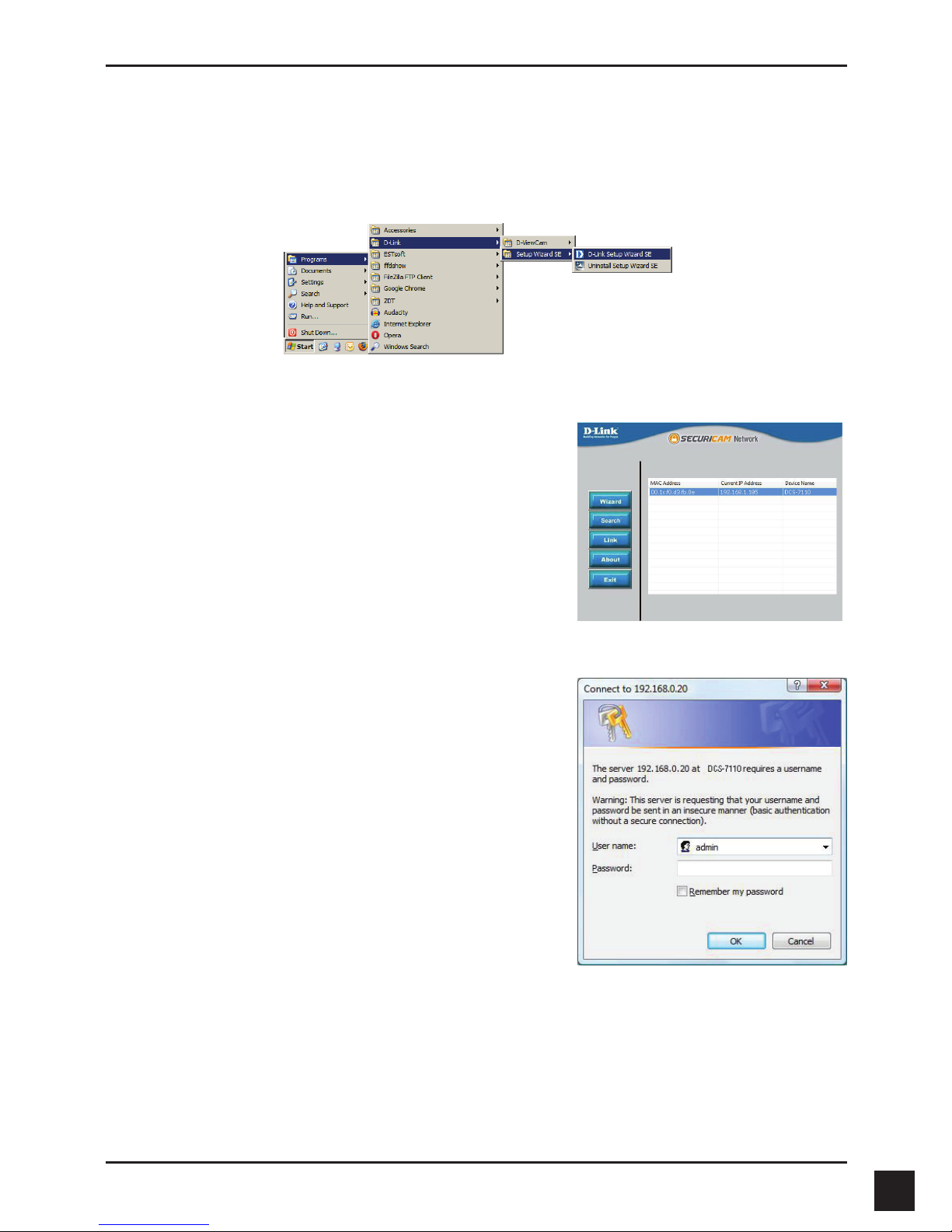

Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Enter the Admin ID and password. When logging in for

the rst time, the default Admin ID is admin with the

password left blank.

Click Next to continue.

The Setup Wizard will appear and display the MAC address and IP address of your camera(s). If

you have a DHCP server on your network, a valid IP Address will be displayed. If your network

does not use a DHCP server, the network camera's default static IP 192.168.0.20 will be

displayed.

Click the Wizard button to continue.

D-Link DCS-7110 Quick Installation Guide

Take a moment to conrm your settings and click Restart.

Select DHCP if your camera obtains an IP address

automatically when it boots up. Select static IP if the

camera will use the same IP address each time it is started.

Click Next to continue.

D-Link DCS-7110 Quick Installation Guide

Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Enter admin as the default username and leave the

password blank. Click OK to continue.

Select the camera and click the Link button to access the

web conguration.

The Setup Wizard will automatically open your web

browser to the IP address of the camera.

Viewing Camera via Web Browser

D-Link DCS-7110 Quick Installation Guide

This section shows your camera’s live video. You can select your video prole

and view or operate the camera. For additional information about web

conguration, please refer to the user manual included on the CD-ROM or

the D-Link website.

Please refer to the user manual for more information, conguration options,

and advanced features.
