D-Link SECURICAM DCS-7110 User manual

This document will guide you through the basic installation

process for your new D-Link Network Camera.

DCS-7110

Documentation also available

on CD and via the D-Link

Website

Quick Installation Guide

Full HD Day & Night Network Camera

Quick Installation Guide

Installationsanleitung

Guide d’installation

Guía de instalación

Guida di Installazione

D-Link DCS-7110 Quick Install Guide

ENGLISH

DCS-7110 Quick Installation Guide

This installation guide provides basic instructions for installing the DCS-7110 Network

Camera on your network. For additional information about how to use the camera,

please see the User’s Manual which is available on the CD include in this package or

from the D-Link support website.

Installation Steps

1. Verify the package contents against the list below.

2. Hardware Overview

3. Hardware Installation

4. Conguration with Wizard

1. Package Contents

 DCS-7110 Network Camera

 Mounting Bracket

 User Manual and Software on CD-ROM

 CAT5 Ethernet Cable

 Power Adapter

 Screw

 Quick Installation Guide

If any of the above items are missing, please contact your reseller.

D-Link DCS-7110 Quick Install Guide

ENGLISH

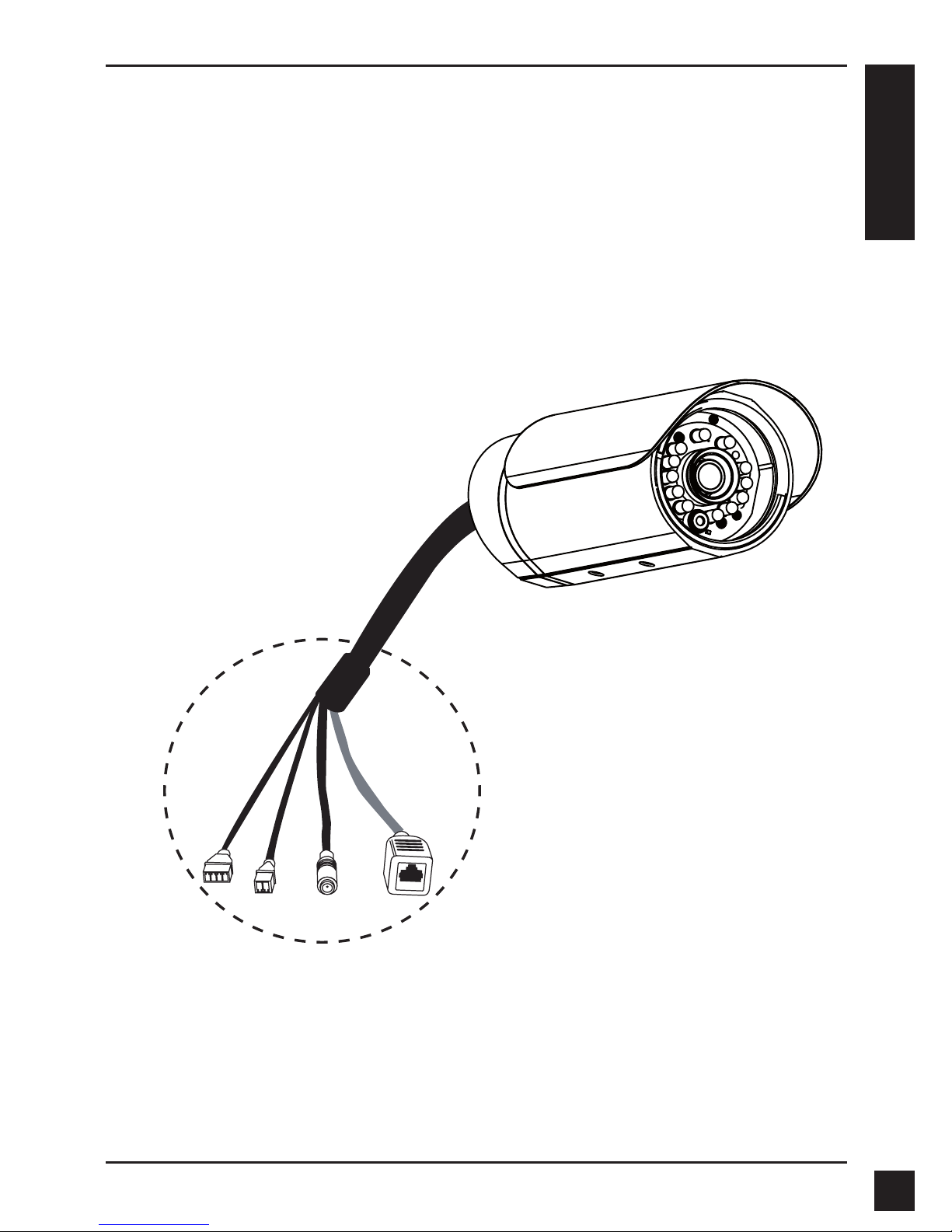

2. Hardware Overview

Infrared LEDs

IR LEDs Illuminate the

camera's eld of view

DI/DO Connectors

DI/DO connectors provide a physical interface

to send and receive digital signals to and from a

variety of external devices

DC Power

Connects to the 12V DC power

adapter to power the camera

Ethernet (PoE)

RJ-45 connector is for Ethernet and can also

be used to power the camera using PoE

IR-Cut Removable (ICR) Sensor

IR-Cut Removable sensor judges

lighting conditions and switches

from day mode to night mode

accordingly

Sunshield

Adjustable

sunshield

protects the

camera sensor

from direct

sunlight

24V Power Connector

Connects to 24V AC power

D-Link DCS-7110 Quick Install Guide

ENGLISH

Reset Button

Removing the weatherproof cover,

use a paperclip or similar tool to press

and hold the recessed button for 10

seconds to reset the camera back to

the factory default settings

2. Hardware Overview

D-Link DCS-7110 Quick Install Guide

ENGLISH

3. Hardware Installation

Mounting the Camera

Step1: Using the two screws provided attach camera shoe to

the underside of the camera.

Step2: Using the bolt provided attach camera shoe to the

mounting bracket and adjust the vertical orientation of

the camera.

Step3: Using the Allen Wrench provided, loosen the bolts and

adjust the vertical / horizontal orientation of the camera

to desired eld of view. Firmly tighten the adjustment

bolts and lock it into the place.

Deploying the Camera

Step1: Locate an area on the wall which is capable of

supporting the weight of the camera.

Step2: Use a drill bit to make holes. Insert wall anchors

and afx the mounting bracket using the screws

provided.

Step3: The camera cables can be installed through a

separate large hole drilled in the wall, or using an

external cable conduit.

D-Link DCS-7110 Quick Install Guide

ENGLISH

Cable Connections

Basic Connection (without PoE)

1. Connect the camera to your switch or router via Ethernet cable.

2. Connect the power cable from the camera to the supplied power adapter.

3. Connect the supplied power adapter to a power outlet.

Connection Using a PoE Switch

If using a PoE switch or router, connect the network camera via Ethernet cable.

PoE will transmit both power and data over a single cable.

Note: Once power has been established, the LED will turn red. When the device has

obtained an IP address and is accessible, the LED will turn green.

D-Link DCS-7110 Quick Install Guide

ENGLISH

Note: To prevent the camera’s wire connectors from being damaged by water or other

elements:

1. When connecting the camera, the unsheathed part of the wire connectors must either

be sealed or enclosed in a junction box.

2. The unsheathed part of the wire connectors should be positioned at a downward-

facing angle when they extend out of the rear of the camera, not upward.

The unsheathed part of the wire connectors must either

be sealed or enclosed in a junction box.

D-Link DCS-7110 Quick Install Guide

ENGLISH

4. Conguration with Wizard

Insert the DCS-7110 CD into your computer's CD-ROM drive to begin the installation. If

the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start

automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive

letter of your CD-ROM drive.

Click Setup Wizard to begin the installation.

After clicking Setuop Wizard, the following window will

open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

To start the installation process, click Next.

Note: The installation may take several minutes to

nish.

D-Link DCS-7110 Quick Install Guide

ENGLISH

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Take a moment to conrm your settings and click Restart.

Select DHCP if your camera obtains an IP address

automatically when it boots up. Select static IP if the

camera will use the same IP address each time it is

started.

Click Next, to proceed to the next page.

Enter the Admin ID and password. When logging in for

the rst time, the default Admin ID is admin with the

password left blank.

Click Next, to proceed to the next page.

The Setup Wizard will appear and display the MAC

address and IP address of your camera(s). If you have

a DHCP server on your network, a valid IP Address

will be displayed. If your network does not use a

DHCP server, the network camera's default static IP

192.168.0.20 will be displayed.

Click the Wizard button to continue.

D-Link DCS-7110 Quick Install Guide

ENGLISH

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Viewing Camera via Web Browser

This section shows your camera’s live video. You

can select your video prole and view or operate

the camera. For additional information about web

conguration, please refer to the user manual included

on the CD-ROM or the D-Link website.

Enter admin as the default username and leave the

password blank. Click OK to continue.

Select the camera and click the button labeled "Link"

to access the web conguration.

The Setup Wizard will automatically open your web

browser to the IP address of the camera.

TECHNICAL SUPPORT

United Kingdom (Mon-Fri) , Website: http://www.dlink.com

Home Wireless/Broadband 0871 873 3000 (9.00am–06.00pm, Sat 10.00am-02.00pm)

Managed, Smart, & Wireless Switches, or Firewalls 0871 873 0909 (09.00am- 05.30pm)

(BT 10ppm, other carriers may vary.)

Ireland (Mon-Fri), Website: http://www.dlink.com

All Products 1890 886 899 (09.00am-06.00pm, Sat 10.00am-02.00pm)

Phone rates: €0.05ppm peak, €0.045ppm off peak times
