D-Link DWL-P50 User manual

DWL-P50

Deliver Power over Ethernet to

Remote Devices

802.3af Compliant Power over

Ethernet

D-Link, an industry leader in networking, introduces

the DWL-P50 Power over Ethernet (PoE) Adapter.

By using the DWL-P50, both data and electrical

power can be delivered to a non-PoE Ethernet-enabled

device from a single CAT5 Ethernet cable.

The DWL-P50 is simple to install and requires no

tools or software. Multiple DWL-P50 terminal

units complement any PoE injector unit or midspan

switch to provide small to medium business settings

a complete end-to-end PoE solution. In addition,

this unit supports 802.3af ensuring compatibility

with other 802.3af PoE compliant injector units

or midspan switches.

Its compact size makes implementation extremely

easy. During setup, this terminal unit can be set to

power up any compatible 5V or 12V Ethernet-enabled

device2via the volt selector located on the back.

Using the convenience of Power over Ethernet, you

eliminate the need to place an Ethernet-enabled

device, such as a wireless access point or an Internet

camera near a power outlet. Having to manage only

an Ethernet cable simpliﬁes the physical installation

of the device. You can now mount these devices on

a ceiling or outside, up to 328 feet (100m)1from a

power source.

With PoE, both power and data can be transmitted

using standard Ethernet cabling with virtually no

reduction in data throughput. Use the DWL-P50

with Ethernet-enabled devices where power outlets

are not readily available and with any compatible PoE

power source.

Deliver Power up to 3281Feet

(100m) Away

Plug & Play Installation

Adjustable Output Power

Power over Ethernet Adapter

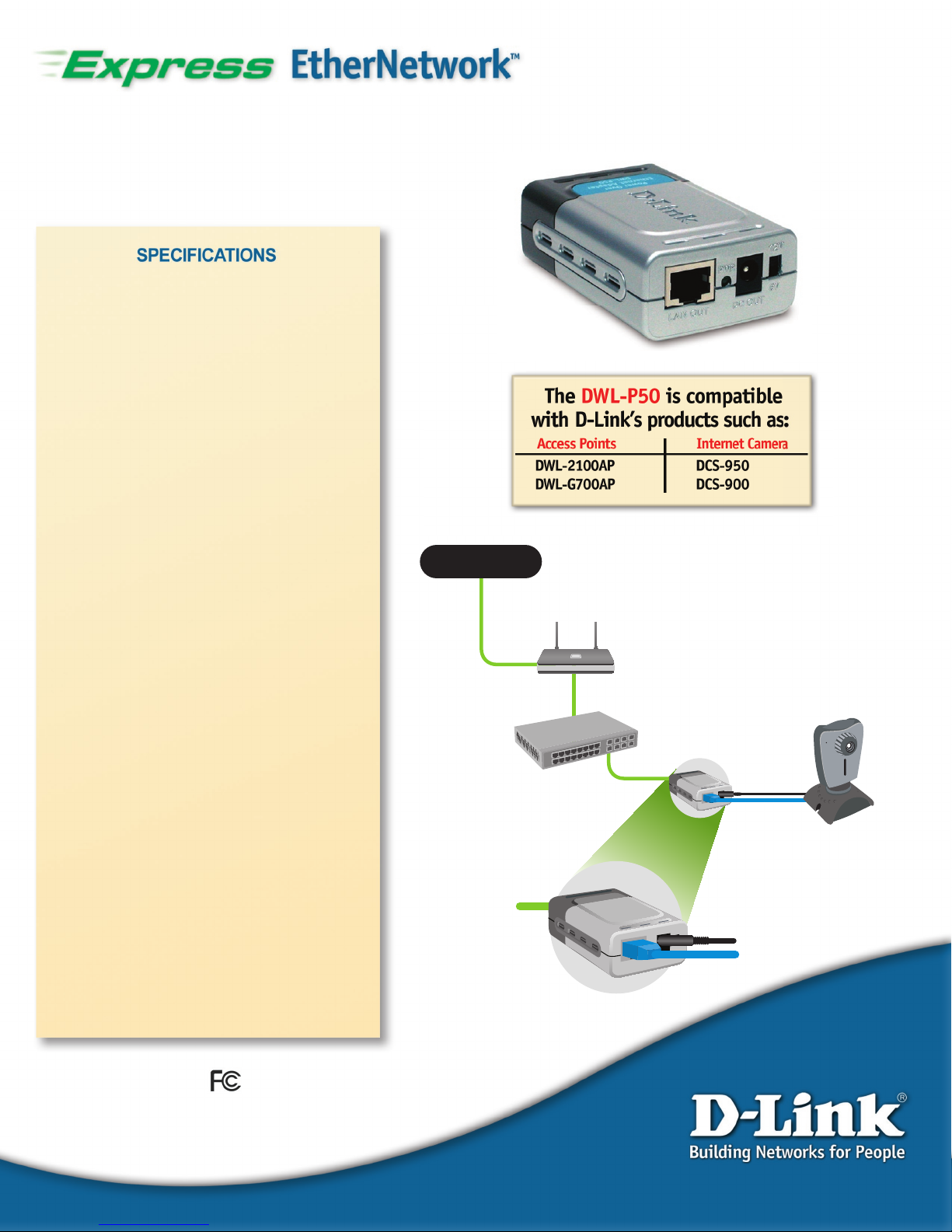

Simpliﬁes Installation for an

Ethernet-based Device

DWL-P50

Router

PoE Switch

INTERNET

Data/Power In

Data Out

Power Out

DWL-P50

Standards

• 802.3af

CAT5 Ethernet Pin Usage

• Data: 1,2,3,6

• Power: 4,5,7,8

LEDs

• Power

Voltage

• Input: 48V DC, 400mA over

CAT5/e or CAT6

• Output: 5V DC, 2.5A or 12V

DC, 1A

Temperature

• Operation: 32-104°F (0-40°C)

• Storage: 14-158°F (-10-70°C)

Humidity

• Operation: 10%-80% RH

• Storage: 5%~90% RH

Certiﬁcations

• FCC Class B

• CE

• C-Tick

• UL

Dimensions

• 3.19 in (L)

• 2.05 in (W)

• 1.10 in (H)

Weight

• 0.18 lbs

Warranty

• 1-Year

Power over Ethernet Adapter

D-Link Systems, Inc. 17595 Mt.Herrmann FountainValley CA92708-4160 www.dlink.com

Other trademarks or registered trademarks are the property of their respective manufacturers or owners.

Price and specifications are subject to changes without notice.See inside package for warranty details.

* 24/7Tech Support is available only in USA.

1Maximun distance per 802.3u speciﬁcations

2Maximum power output: 5 volts= 2.5 amps; 12 volts = 1 amp
