DWL-G520M

Wireless 108G MIMO Desktop Adapter

System Requirements

Minimum System Requirements:

A desktop computer with an available 32-bit PCI slot

At least 500MHz processor and 64MB of memory

An 802.11g Access Point (for Infrastructure mode)

Manual and

Software on CD

D-Link DWL-G520M

Wireless 108G MIMO

Desktop Adapter

Package Contents

Hardware Overview

This is the connector that

ﬁts into the PCI slot on your

computer’s motherboard.

32-bit connector

Used to wirelessly connect

to WiFi networks.

Smart Antenna

Indicates that the adapter

is properly installed when

the computer is on and

blinks when data is being

transmitted.

Link/Activity LED

Hardware Overview

Driver Installation

Turn on the computer and insert the D-Link DWL-G520M Driver

CD in the CD-ROM drive. The installation Wizard will automatically

appear.

Installing the Drivers

The step-by-step instructions that follow are shown in Windows XP.

The steps and screens are similar for the other Windows operating

systems.

Do NOT install the DWL-G520M Wireless 108G MIMO Desktop

Adapter into your computer before installing the driver software

from the D-Link CD!

Click Install Drivers

Click Next

If the Installation Wizard does not automatically start on your

computer, type “D:\Drivers\setup.exe.” If the Wizard does start,

proceed to the next screen.

Driver Installation

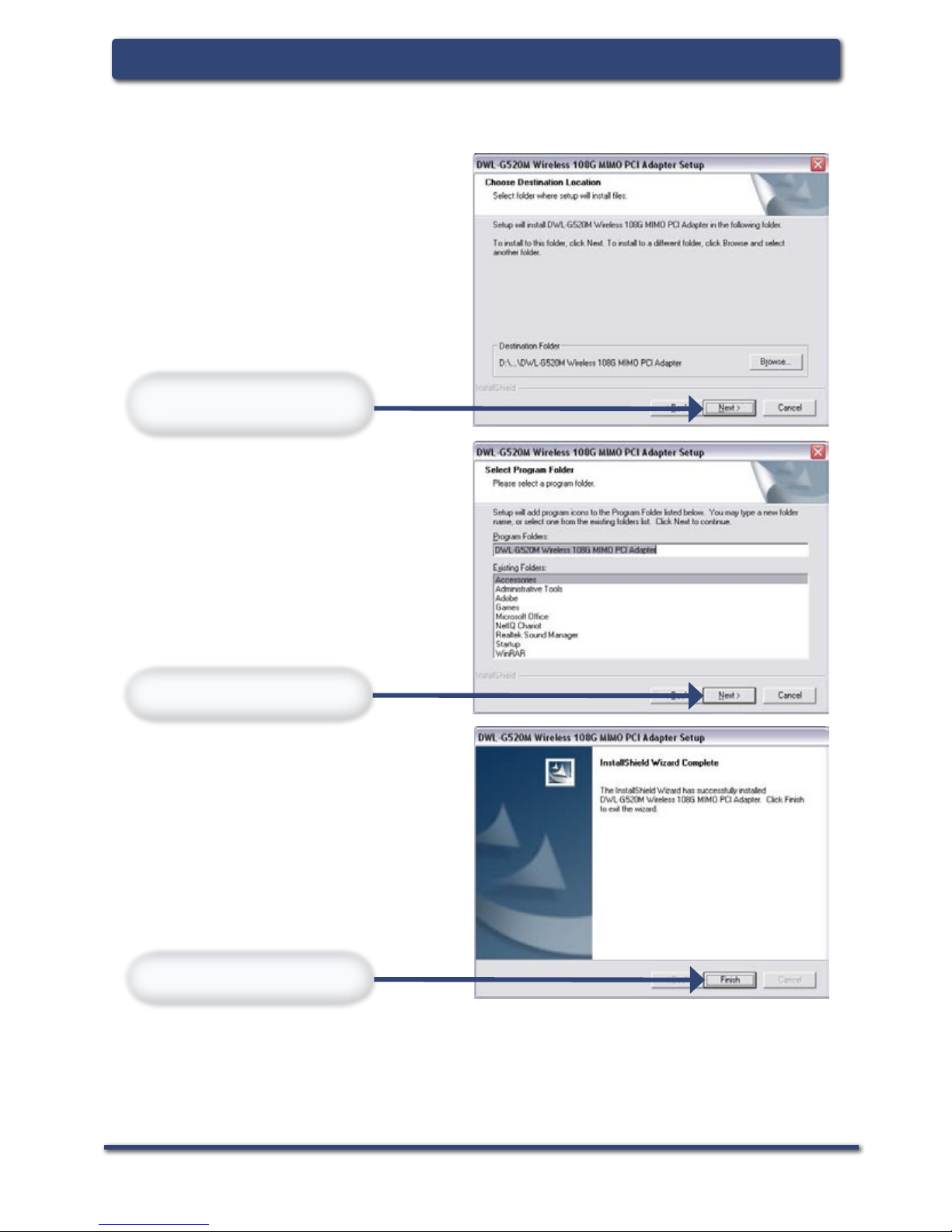

Installing the Drivers (continued)

Click Next

Click Finish

Click Next

Select “No, I will restart my computer later” and click Finish. Shut

down your computer and unplug its power cable. Remember to leave

the DWL-G520M Driver CD in the CD-ROM drive.

Hardware Installation

To avoid damage caused by static electricity, make sure to

properly ground yourself, by ﬁrst touching a metal part of your

computer to discharge any static electricity, before working

with the DWL-G520M Wireless PCI Adapter.

A. Make sure to turn off the computer and unplug the power

cord.

B. Remove the back cover of the computer.

C. Install the DWL-G520M carefully and ﬁrmly seat it into an

available PCI slot (which is usually white or cream colored).

Installing the DWL-G520M

D. Secure the DWL-G520M back panel shield with a screw.

E. Replace the computer’s cover.

F. Place the computer back in its normal position.

Hardware Installation

Click Next

Select Install the

software automatically

(Recommended).

Click Continue Anyway.

Click Finish to complete

the installation.

Restart your Computer

When you restart your computer this Found New Hardware Wizard

screen will appear.

Hardware Installation

If the utility icon does not

appear, double-click the

shortcut icon that has

appeared on your desktop.

After completing the Found New Hardware Wizard, the Conﬁguration

Utility will automatically start and the utility icon will appear in the

bottom right hand corner of the desktop screen (system tray). If

this icon appears GREEN, then you have successfully installed the

DWL-G520M, are connected to a wireless network, and are ready

to communicate!

Your Installation is Complete!

Double-click the utility icon to

use the conﬁguration utility.

Using the Conﬁguration Utility

For Windows XP, if you wish to use the Wireless 108G MIMO utility,

please do the following:

Using the Utility in Windows XP

Click the XP networking

icon to use the Zero

Conﬁguration Wireless

Settings.

Click Advanced.

Uncheck Use Windows

to conﬁgure my wireless

network settings.

Click OK.

Using the Conﬁguration Utility

Status: Displays the MAC Address of the access point or wireless router

that is associated with the DWL-G520M.

SSID: Displays the Service Set Indentifier assigned to the wireless

network.

Proﬁle Name: Displays the current proﬁle being used.

Tx Rate: Displays the current data transmission rate.

Channel: Displays the channel information.

Signal Quality: Represents the wireless signal quality between the access

point and the DWL-G520M. The percentage coincides with the graphical

bar.

Signal Strength: Represents the wireless signal strength between the

access point and the DWL-G520M. The percentage coincides with the

graphical bar.

Data Rate: Graphically displays the statistics of data transmitted and

received.
