CYP CMIR-882 User manual

CMIR-882

8×8 Bi-directional Infrared Matrix

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

VS0 26/03/12 Updated format/diagrams

VR0 30/04/12 Preliminary Release

VS1 24/07/12 IR Codes/RS-232 updated

VR2 02/11/12 Updated RS-232 Command table B

VS3 03/05/13 Updated Connection Diagram

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features................................................. 2

6. Operation Controls and Functions....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel.........................................4

6.3 Remote Control................................5

6.4 IR Data Codes ..................................6

6.5 DIP Switch Settings ...........................6

6.6 IR Cable Pin Assignment..................7

6.7 RS-232 Pin Assignment .....................7

6.8 RS-232 Commands A .......................8

6.9 RS-232 Commands B........................8

7. Connection Diagram ............................ 9

8. Specications ...................................... 11

9. Acronyms ............................................. 12

1. INTRODUCTION

The Bi-directional Infrared Matrix is designed to work alongside the 8×8

HDMI matrix, providing control of up to 8 source devices from up to 8

display locations. Using the original or programmable remote controls,

source devices such as DVD/Blu-ray players or satellite/set-top boxes

can be controlled from any location.

2. APPLICATIONS

• Control multiple sources and displays via bi-directional Infrared

signals

• Extending the range of existing systems

• Long distance Infrared control

3. PACKAGE CONTENTS

• 8×8 Bi-directional Infrared Matrix

• Remote Control (CR110) with battery

• 5 V/2.6 A DC Power Adaptor

• 9×IR Extender cables

• 9×IR Blaster cables

• Operation Manual

4. SYSTEM REQUIREMENTS

IR controllable Source equipment (e.g. DVD or Blu-ray players), IR

controllable Display/ TV/monitors and HDMI/video matrix devices.

5. FEATURES

• Supports independent IR input and output selection and control

• Supports an IR frequency range of 30 kHz~50 kHz

• Use your existing remote controls or programmable/universal

remote controls

• Supports bi-directional IR from input and output locations

• Supports RS-232 control, IR remote control and on-panel control

• 1U size design

Note: This device does not support the sending of audio/video signals,

it only transmits and receives infra-red signals.

6. OPERATION CONTROLS AND FUNCTIONS

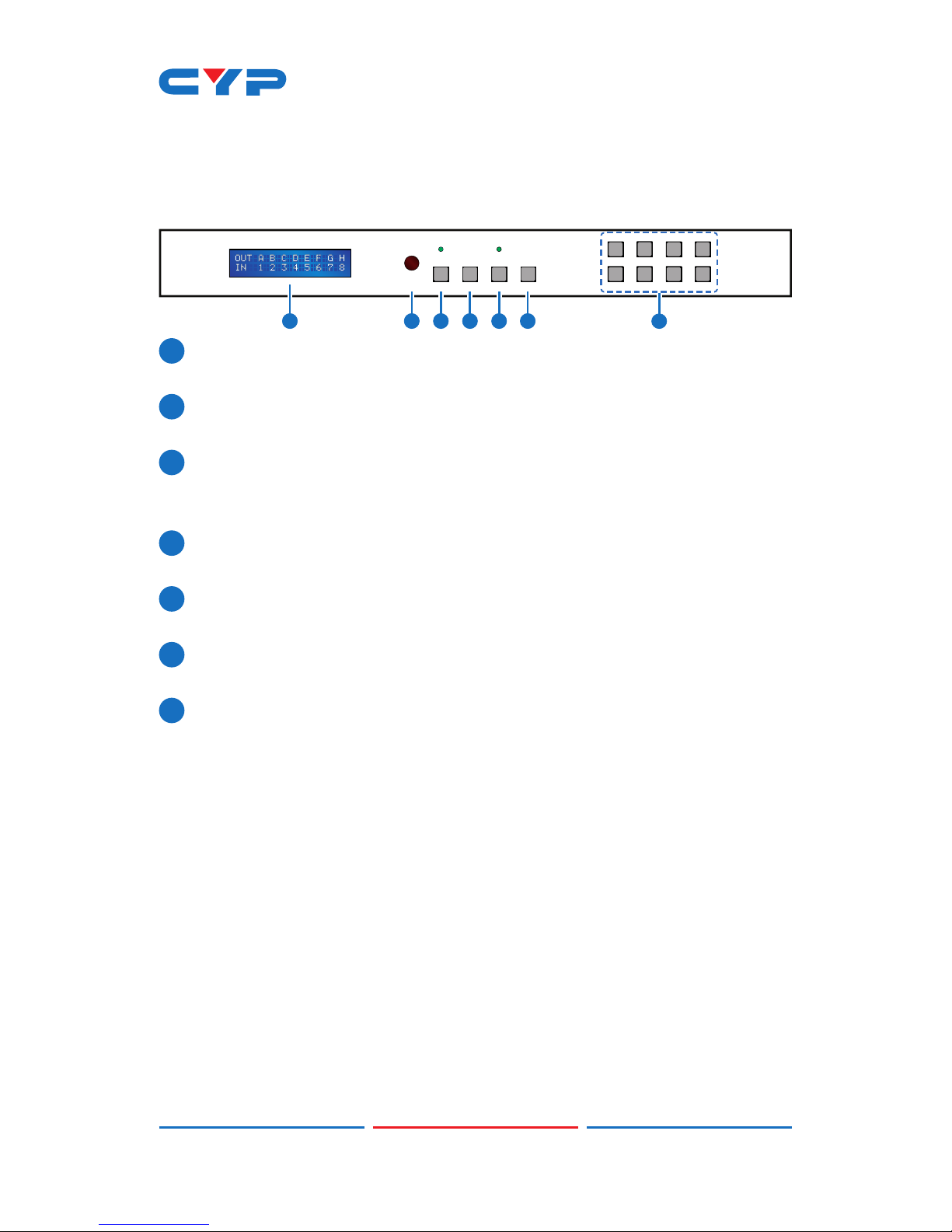

6.1 Front Panel

PowerAll LockEnter

5678

1 2 3 4 5 6

8x8 IR Matrix

LCM: Displays the setting information of each input and output

setting.

IR: IR Receiver window (accepts the remote control signal of this

device only).

Power: Press this button to power the device on/off. The LED will

illuminate green when the power is on, red when it is in 'Standby'

mode.

All: Press this button to select all IR output with one IR input signal.

The sequence should be: ALLNumber KeyENTER.

Lock: Press this button to lock all the buttons on the panel; press

again to unlock. The LED will illuminate green when locked.

6Enter: Press this button to conrm the selection. Any selection will

be cancelled if the Enter button is not pressed after 20 seconds.

71~8/A~H: Use these buttons to select which source is selected for

control in each output location. Press a number key to select fromt

TV A to TV H channels and press a number key again to select

from Source 1 to Source 8 channels. Press 'Enter' to conrm the

selection.

Note: Press 'All', 'Enter' and '1' together to switch the RS-232 baud

rate to 9600 bps or press 'All', 'Enter' and '2' together to switch

baud rate to 19200 bps. The LCM will display the current baud rate

setting for few seconds.

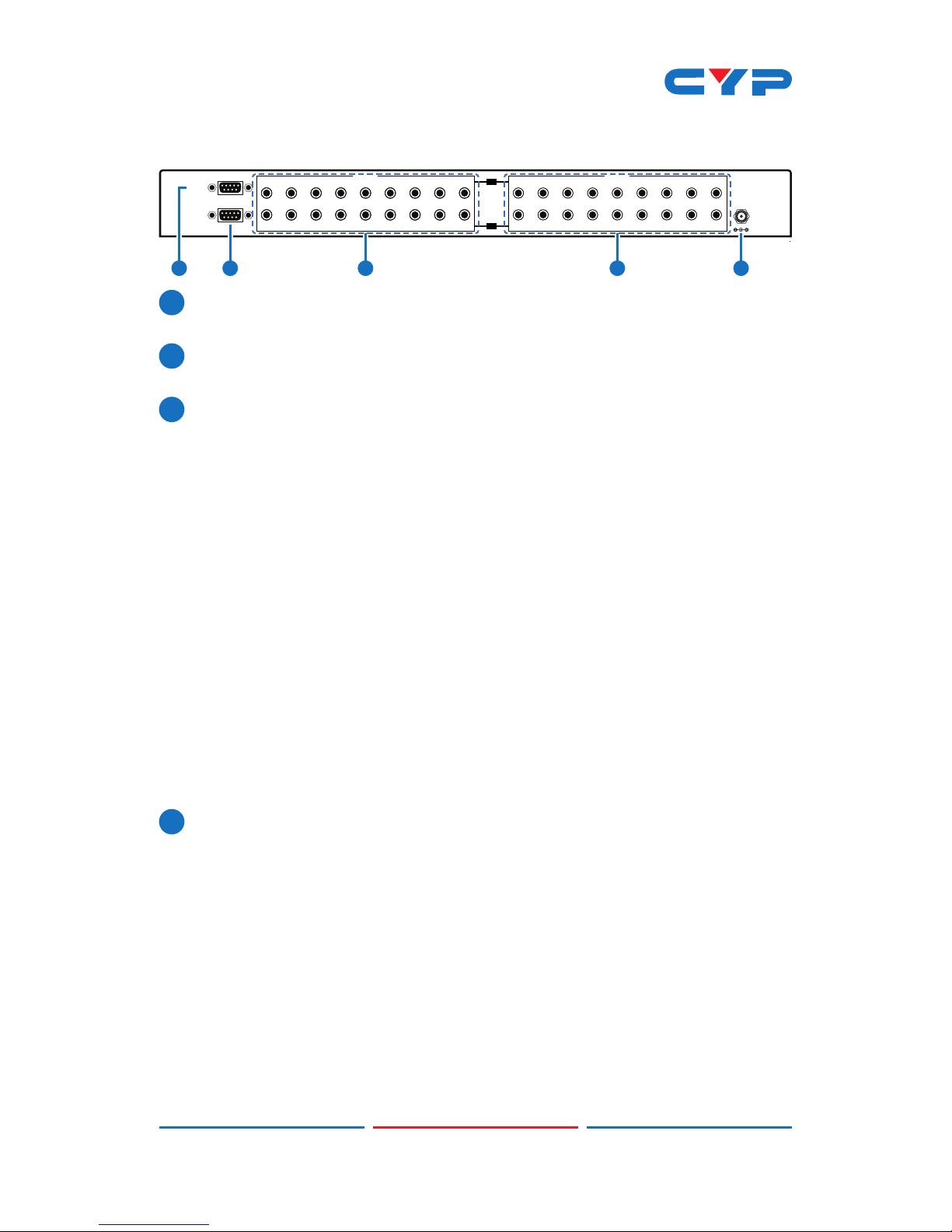

6.2 Rear Panel

RS232

AUX

RS232

MAIN

A12345678All

BCDEFGHAll

TV SOURCE

DC 5V

Out

1 2 3 4 5

RS-232 AUX: Connect to a device that can be controlled (via D-Sub

9-pin male cable) by RS-232 commands e.g. the 8x8 HDMI Matrix.

RS-232 MAIN: Connect to a PC or control system with D-Sub 9-pin

male cable for the transmission of RS-232 commands.

TV In A~H: Connect to the supplied IR extender cables for IR signal

reception, the signal will be relayed to the designated source

device via the IR Blaster. Ensure that the remote being used is

within the direct line-of-sight of the IR extenders.

TV In All: Connect to a single IR extender cable for IR signal

reception, the signal will be relayed to all Source outputs (1~8)

at the same time. Ensure that the remote being used is within the

direct line-of-sight of the IR extender.

TV Out A~H: Connect to the supplied IR blaster cables for IR signal

transmission, IR signals will be relayed from the designated Source

IR extender. Place the IR blasters in direct line-of-sight of the

equipment to be controlled.

TV Out All: Connect to a single IR blaster cable for IR signal

transmission, IR signals will be relayed from all Source inputs (1~8)

at the same time. Place the IR blaster in direct line-of-sight of the

equipment to be controlled.

Source In 1~8: Connect to the supplied IR extender cables for IR

signal reception the signal will be relayed to the designated TV

output device via the IR Blaster. Ensure that the remote being used

is within the direct line-of-sight of the IR extenders.

Source In All: Connect to a single IR extender cable for IR signal

reception, the signal will be relayed to all TV outputs (A~H) at the

same time. Ensure that the remote being used is within the direct

line-of-sight of the IR extender.

Source Out 1~8: Connect to the supplied IR blaster cables for IR

signal transmission, IR signals will be relayed from the designated

TV output IR extender. Place the IR blasters in direct line-of-sight of

the equipment to be controlled.

Source Out All: Connect to a single IR blaster cable for IR signal

transmission, IR signals will be relayed from all TV outputs (A~H)

at the same time. Place the IR blaster in direct line-of-sight of the

equipment to be controlled.

5DC 5V: Plug the 5V DC power supply into the unit and connect the

adaptor to an AC outlet.

6.3 Remote Control

The remote control's settings can be controlled

with the four DIP switches on the back of the unit

(under the battery compartment cover). When

all the DIP switches are set to ON () the

remote control is able to control all the input

settings for all outputs. For example, to set Output

A to relay commands from Input 5 press Button

A to select Output A and then press Button 5 to

select Input 5, Output A will switch to Input 5.

The Remote Control can also be set to limit the

Input selection to only one Output, allowing

different remote control units to perform input

selection individually for each output port i.e. a

single zone (refer to Section 6.6 - IR Custom codes

and DIP switch Settings for details). For example,

when all DIP switches are set to OFF (),

this setting limits input selections to only Output A.

Therefore, when setting Output A to input 3 only Button 3 needs to be

pressed to switch to that input.

CR-110

IN OUT
