Crosley CDE-8000GR User manual

SLEY

PRODUCT FEATURES

Your dryer provides sensor drying and time drying programs.

Sensor Dry

The dryer senses the dampness ofthe laundry and automatically determines the heat level and operation

time. You might see a sudden increase or decrease in operation time ifthe sensor determines more or less

drying is required.This is not a malfunction.

Time Dry

Use TIME DRY to select heatlevel and drying time manually.This can be used if clothes are notas dry as

you likethem at the end of the cycle. Use TIME DRY for heavy and bulky items and thick work.

CDE-8OOOGW/GR/GS/GBL 2008.1.9 11:42 AM _11°1xl2

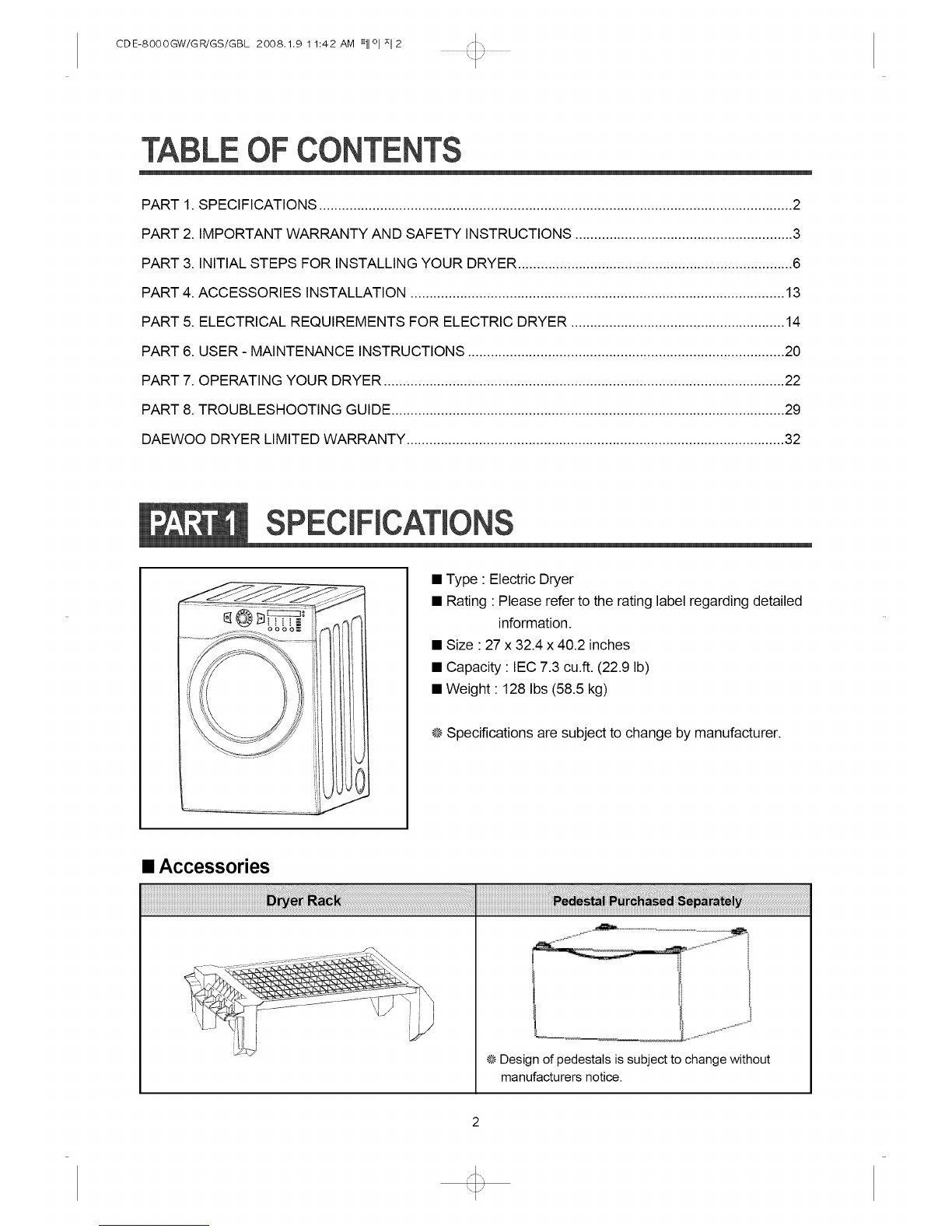

PART 1. SPECIFICATIONS ............................................................................................................................ 2

PART 2. IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS ......................................................... 3

PART 3. INITIAL STEPS FOR INSTALLING YOUR DRYER ........................................................................ 6

PART 4. ACCESSORIES INSTALLATION .................................................................................................. 13

PART 5. ELECTRICAL REQUIREMENTS FOR ELECTRIC DRYER ........................................................ 14

PART 6. USER - MAINTENANCE INSTRUCTIONS ................................................................................... 20

PART 7. OPERATING YOUR DRYER ......................................................................................................... 22

PART 8. TROUBLESHOOTING GUIDE ....................................................................................................... 29

DAEWOO DRYER LIMITED WARRANTY ................................................................................................... 32

• Type : Electric Dryer

• Rating : Please refer to the rating label regarding detailed

information.

• Size :27 x 32.4 x 40.2 inches

• Capacity : IEC 7.3 cu.ft. (22.9 Ib)

• Weight : 128 Ibs (58.5 kg)

Specifications are subject to change by manufacturer.

• Accessories

€2Design of pedestals is subject to change without

manufacturers notice.

CDE-8OOOGW/GR/GS/GBL 2008.1.9 11:42 AM _11°1xl3

rSAFETY

[SEEKING WARRANTY SERVICE]

The warranty informationfor your dryer is located at the end of this manual. Warranty Service is available by

contacting the nearest DAEWO0

Service Center. Ifthis product is installed and operated according to the instructionsin this manual, DAEWO0 will

repair or replace any parts defective in material or workmanship throughout the warranty period,beginning with the

date of purchase.

Warranty Restriction :

If the dryer issubjectedto other than singlefamily use, allwarranty coverage is effectivefor only 90 days.

You will need the complete model and serial numberwhen requestingwarranty service. A proof of purchase is also

required.

Use the space below to recordthe model number and serial numberof your new DAEWOO dryer.

Model Number,

Serial Number

Date of Purchase

Staple your receipt herefor conveniencewhen contacting service.

CDE-8OOOGW/GR/GS/GBL 2008.1.9 11:42 AM _11°1Xl4

[IMPORTANT SAFETY INSTRUCTIONS]

1) Readall instructionsbeforeusingthe appliance.

2) Donotdry articlesthathavebeen previouslycleanedin,washedin,soaked in,or spottedwith gasoline,dry-cleaning

solvents,or otherflammableor explosivesubstances,as theygiveoff vapoursthatcouldigniteor explode.

3) Donot allowchildrento playonor inthe appliance.Closesupervisiondchildrenis necessarywhentheapplianceis

usednear children.

4) Beforethe applianceisremovedfromserviceor discarded,removethedoor to thedryingcompartment.

5) Donot reachintothe applianceif thedrumismoving.

6) Donot installor storethis appliancewhereitwillbe exposedto theweather.

7) Donottamperwith controls.

8) Donot repairor replaceanypartdthe applianceor attemptanyservicingunlessspecifcally recommendedin the

user-maintenanceinstructionsor in publisheduser-repairinstructionsthatyou understandand havethe skillsto carry

out.

9) Donot useheattodryarticlescontainingfoam rubberor similarlytexturedrubber-likematerials.

10)Cleanlintscreenbeforeor aftereach load.

11) Keepareaaroundthe exhaustopeningand adjacentsurroundingareasfreefromthe accumulationoflint,dust,and

dirt.

12)Theinteriordtheapplianceandexhaustductshouldbe cleanedperiodicallybyqualifiedservicepersonnel.

13) Donotplaceitemsexposedto cookingoilsin yourdryer. Itemscontaminatedwith cookingoilsmaycontributeto a

chemicalreactionthat couldcausea loadtocatchfire.

14) Donotusefabric softnersor productstoeliminatestaticunless recommendedbythe manufacturerdthefabric

softneror product.

15)This dryerisdesignedonlyfor residentialuse.

16) Ensurepocketsarefreefrom smallirregularlyshapedhardobjects,foreignmaterial,etc.ie. coins,knives,pins,etc.

Theseobjectscoulddamageyourdryer.

17) Donotwash clothingwith large buckles,buttons,or otherheavy metalor soliddecorativethings.

[SAVETHESE INSTRUCTIONS]

USINGINSTRUCTIONS

1) Do notoverloadthedrum, that may cause poor dryingand wrinkling.

2) Do notoverdry fabricssuch as knittedfabricsand flannel.

3) Do notdry itemssuch aselasticbands, plastics,rubberizeditems,or sneakers that might melt or ignitein thedryer.

4) Checkthe lintfilter isin place.

5) Make surethe laundryisnot caughtwhen thedoor isclosedto preventfabric damage.

6) Checkthe filterevery cyclebecause a cloggedfiltercausesfire hazardousconditionand affectsthe dryer

efficiency.

7) When cleaningthe surfaceof the drum, youshould use a non-abrasivestainlesssteel cleaner.

8) To preventa short circuitor penetratingmoisture,make surethe lampcover isfirmly closed.

9) Do notsit on top ofthe dryer.

NOTE; Because of c0ntinuing product improvemenB' Daew0oresemeSthe right to Changespecficatons

without notice: Forcomplete details, seethe Installation Instructions PaCkedwith YoUrproduct before

selecting cabine!ry, making _!outs! o! beginning installation!

CDE-8OOOGW/GR/GS/GBL 2008.1.9 11:42 AM _11OlXl5

[GROUNDING INSTRUCTIONS]

A. For agrounded, cord-connected appliance:

This appliance must be grounded. Inthe event of malfunctionor breakdown, grounding will reducethe risk of

electricshock by providinga pathof least resistancefor electric current.

This appliance must be equipped with a cord having an equipment-grounding conductor and a grounding plug.

The plug must be plugged intoan appropriateoutlet that isproperly installed and grounded in accordancewith all

localcodes and ordinances.

Do not modifythe plug providedwith the appliance. If itwill notfit the outlet, have a proper outlet installed by a

qualified electrician.

B. For apermanentlyconnected appliance:

This appliance must be connected to a grounded metal, permanentwiring system; or an equipment-grounding

conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on

the appliance.

CDE-8000GW/GR/GS/GBL 2008.1.9 11:42 AM ]Zll°lxl6

The following instructionswill guide you through the initialsteps of settingup yourdryer.

Pleasenote that every section of this manual provides important information regardingthe preparationand useof

your dryer, and it isimportant that you review this entire manual beforeproceeding with any installationor use.

Moredetailed instructionsconceming electricalconnections,gas connections, and exhaust requirements are

providedin other partsof this manual.

Choose a location with a solidfloor for yourdryer.

Placethe dryer in the desired location and make sure that it hasthe required clearances shownbelow.

40.2"

(102.1cm)

27"

(68.6cm)

44.3"

(112.5cm)

(82.3cm)

* Mostinstallations require a minimum

5 1/2(5.5)inches.

(14 cm) clearance behind the dryer forthe

exhaust vent with elbow.

NOTE:

Leveling legs should be secured.

Allfour legsshould be stably placedon asolid and evenfloor.

If dryer isnot level, laundry may nottumble properlyand sensorwill notdetect humidity informationaccurately.

When leveling, please be cautious not to injureyourfingers and toes.

If you installthe dryer on the optional pedestal, itis necessary to levelwith the pedestal leveling legs.

CDE-8OOOGW/GR/GS/GBL 2008.1.9 11:42 AM _ll°lxl7

Minimum clearances on above, behind, and sides of the unit, as shown below, are required.

Those required minimum clearances are set forth in the picture below. Pleasekeep thefollowing instructionsin

mindwhen installing ina closetor recessed area:

• Consider allowingadditional clearance for installation and servicing.

• Wall, door and floor molding may necessitate additionalclearances.

•Additional inchesof clearance are recommended to reducenoisewhile operating.

• Consider the space needed for companion appliances.

•For closet installations,the picture belowshows the minimum requiredventilation openingsfor the door.

A Iouvereddoor with comparable ventilation openings isalso acceptable.

Closet Door

14"max 18"

(35.60m) _ _(45.72cm)

32.4"

1_ (82.3crn) 1" 0"

(2.54crn) (2.54cm) (0cm)

Closet Side View

27"

(68.6crn) 0"

(0cm

Closet-Front View

Once in position, adjustthe leveling legsof the dryer until itis levelfrom left to rightand front to back.

The levelinglegs must remainfirmly on the floor and the dryer should not rock.The maximum slopeof the dryer

from left to rightor front to back should not exceed 2.5 cm (1 inch).Ifthe dryer isnot level, andif the slope exceeds

2.5 cm (1 inch), a load may nottumble properlyand internalsensors may malfunction.

NOTE:

Other sections ofthis manual also provide importantinfo_ation concerningthe placementof and clearances

for ourdryei;

Pleasereview this en!ire manual before proceedingwi!h any installa!ion:

CDE-8OOOGW/GR/GS/GBL 2008.1.9 11:42 AM _11°1Xl8

_VVARNING!

The exhaust must be vented to the outside.

Impi0pei taPing and inC0irect instalati0n w cause drYei malfunction

Inadditionto the following warnings, please referto manualsection on Exhaust Requirements and Maintenance.

IMPORTANT: To reducethe risk of fire, combustion, and gas accumulation, thedryer must be vented tothe

outdoors. Pleasefollow the instructions (and all others in this manual) very carefully.

iiiiii_iiiiii:_

•Do not use plasticor thin foilduct.

• Use 4" (10.2 cm) diameter rigid or semi-rigid metal duct (NOTEf Venting materialsare notsupplied with the dryer,

and you should obtain the venting materials necessary for proper installation)

• Positionthe dryersuch that the exhaust duct run is as short as possible.

Clean old ducts before installing this dryer

•The male end of each sectionof exhaustduct must pointaway from the dryer.

• Use as few elbowjoints aspossible.

• Use duct tapeon all duct joints.

•Insulateductwork that runsthrough unheatedareas in order to reducecondensation and lintbuild-up on pipe

walls.

PLEASE BE AWARE THAT FAILURE TO EXHAUST THE DRYER CORRECTLY WILL VOID THE

DRYER'S WARRANTY,

CDE-8OOOGW/GR/GS/GBL 2008.1.9 11:42 AM _11°1Xl9

• ALTERNATE EXHAUST DIRECTIONS

1. Remove screw and exhaust duct.

i°

2-1. Detach and remove the knockout that

matches the desired venting direction

PORTION A

2-2. Reconnect the new duct[8.66 inch(22cm)]

to the blower housing, and fixing the duct

to the base.

3-1. Insert the male end of a 4" elbow into the

female end of a short duct. Tape the joint. 3-2. Insert this assembly elbow first through

the hole in the dryer and push the female

end of the elbow onto the male end of the

blower output shaft. Tape the joint.

DUCT

TAPE DUCT

TAPE

CDE-8OOOGW/GP-,/GS/GBL2008.1.911:42AM_11OlXl 10

Followingsteps are several wamings and instructionsconceming making the electrical connectionfor electric

dryers.

Moredetailed information concerningthe electricalconnection isprovided in the manual section entitled Electrical

Requirementsfor ElectricDryer.

It isimportant that you thoroughly reviewthat section and the remainderof this manual, beforetaking anysteps to

installor usethis dryer.

1.Use only a new UL listed No. 10 (copperwire only) threeor four conductor powersupply cordkit rated240 Volts

(minimum) 30 Amperes and labeled as suitable for use in a clothesdryer.

2. A four-wire cord isrequired for manufactured (mobile)home installations and where local codes do notallow

grounding of this appliancethrough neutral.

3.Electrical Plug Connections.

4. For additional instructionon connectingthe dryer to an electrical powersource, please referto thismanual's

sectionon Electrical Requirements and Electric Dryer.
